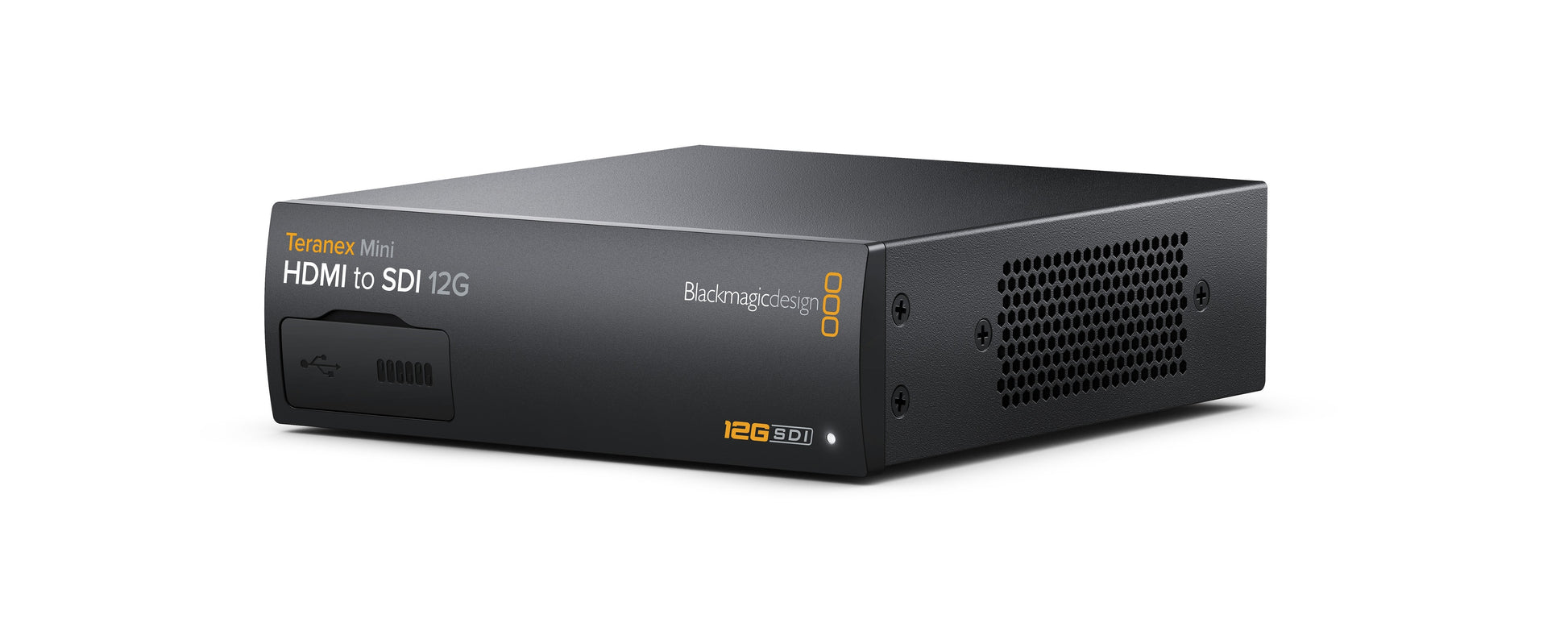

Convert from HDMI to 12G-SDI. Works with all video formats including SD, HD, 6G and 12G-SDI rates and includes an up converter for converting HD to Ultra HD. Embed audio from balanced analog or AES/EBU and timecode input. Ideal for converting HDMI consumer cameras to SDI, or adding SDI outputs to computers with HDMI connections.
Official Technical Details

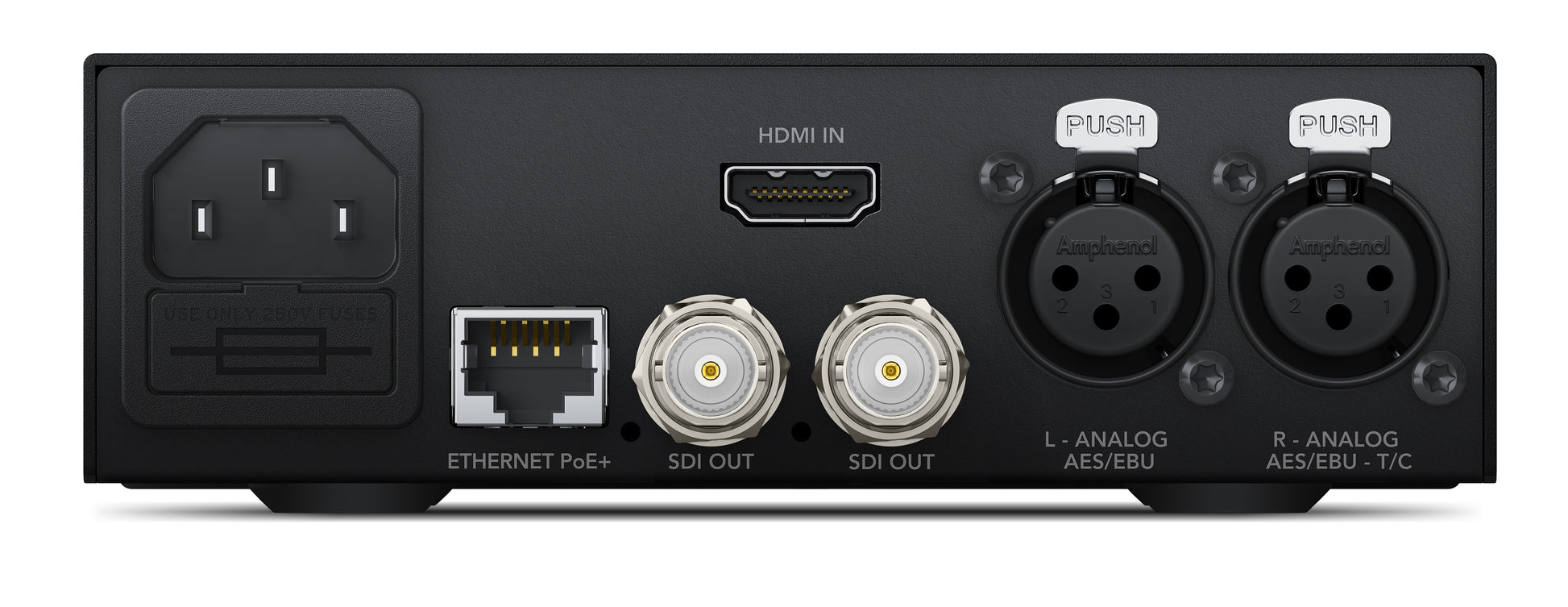

Connections
SDI Video Outputs: 2 x 12G SDI outputs. Automatically matches the SD, HD and 12G-SDI HDMI video input.
HDMI Video Inputs: 1 x HDMI 2.0 type A.
Analog Audio Inputs: 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
Digital Audio Inputs: 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.
Embedded Audio Support: 16 channels.
Multi Rate Support: Automatic switching between SD/HD/2K and 4K.
Updates and Configuration: USB or Ethernet.
Reclocking: Yes
SDI Output Standards
SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
SDI Video Rates: SDI video connections are auto switching between standard definition SDI, high definition 3G-SDI, 6G-SDI, and 12G-SDI.
SDI Video Sampling: 4:2:2
SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
SDI Color Precision: 4:2:2
SDI Color Space: YUV
HDMI Input Standards
SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
HDMI Color Space: REC 601, REC 709
HDMI Color Precision: YUV 4:2:2 in HD, 2K and 4K.
Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Format Conversion
HD up and down conversion
Software
Software Control: Mac™ and Windows™ software upgrade via USB and Ethernet.
Internal Software Upgrade: Via included updater application.
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Settings Control
Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.

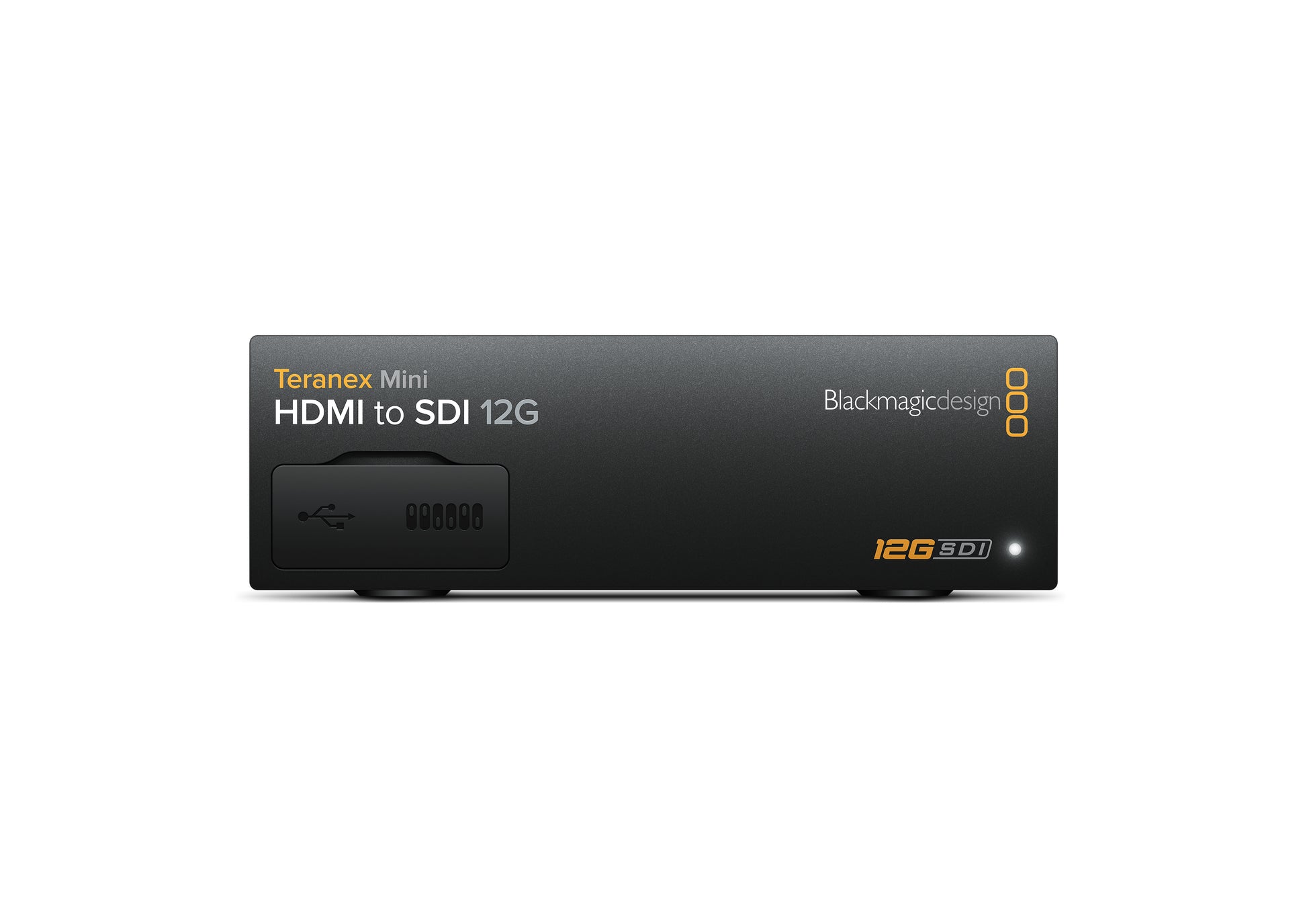

Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power Requirements
Power Supply: 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
