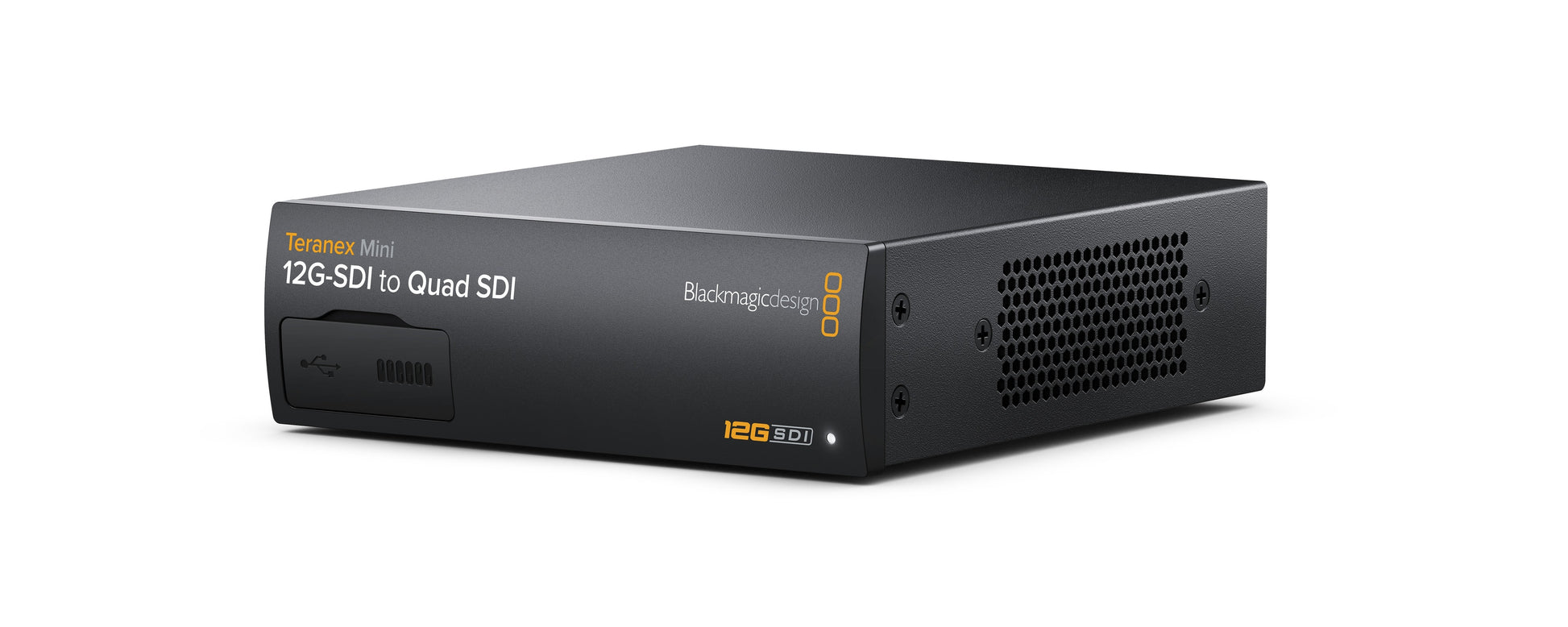

Blackmagic Design Teranex Mini - 12G-SDI to Quad SDI

Convert 12G-SDI to Quad Link SDI so you can connect the latest 12G-SDI Ultra HD equipment with Quad Link Ultra HD equipment. Also allows Ultra HD SDI to be separated into four HD SDI outputs for using regular HD displays for creating video wall style displays. Includes 12G-SDI loop through and support for both Level A and Level B 3G-SDI equipment.

Official Technical Details

Connections

• SDI Video Inputs: 1 x 12G-SDI SD/HD/2K/4K auto switching.

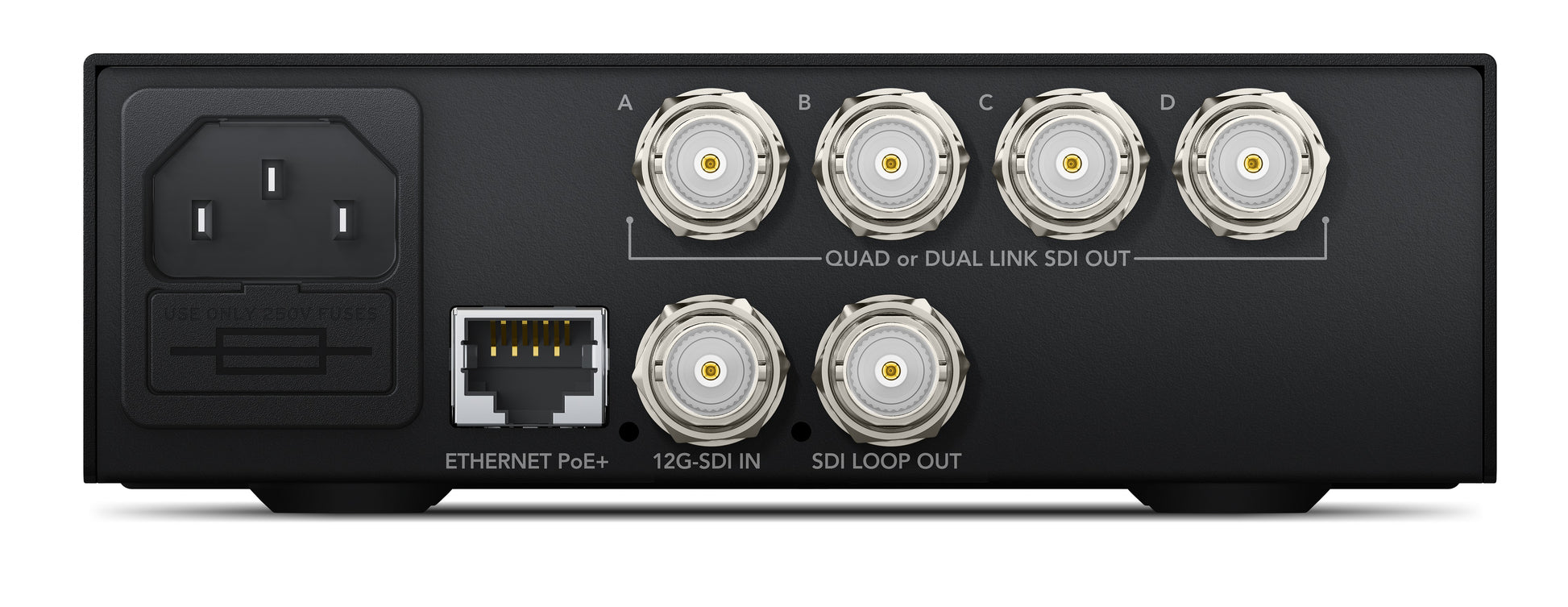

• SDI Video Outputs: 4 x 3G-SDI and 1 x 12G-SDI loop output.
• Embedded Audio Support: 16 channels.
• Multi Rate Support: Automatic switching between SD/HD/2K and 4K
• Updates and Configuration: USB or Ethernet
• Reclocking: Yes

Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
• SDI Video Rates: SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
• SDI Color Space: YUV & RGB

Software

• Software Control: Mac™ and Windows™ software upgrade via USB and Ethernet.
• Internal Software Upgrade: Via included updater application.

Operating Systems

• Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
• Windows 10, 64-bit.

Settings Control

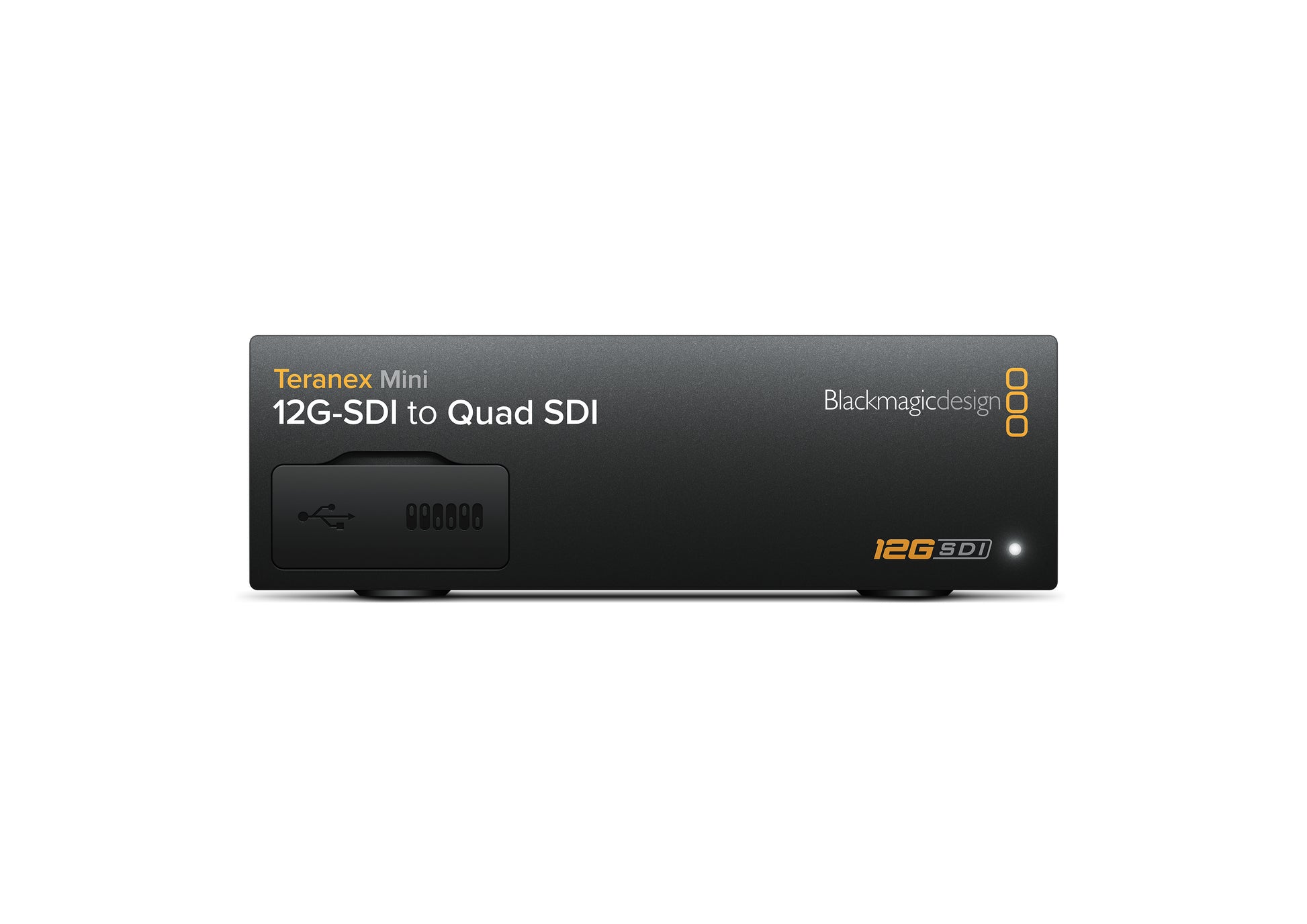

• Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.

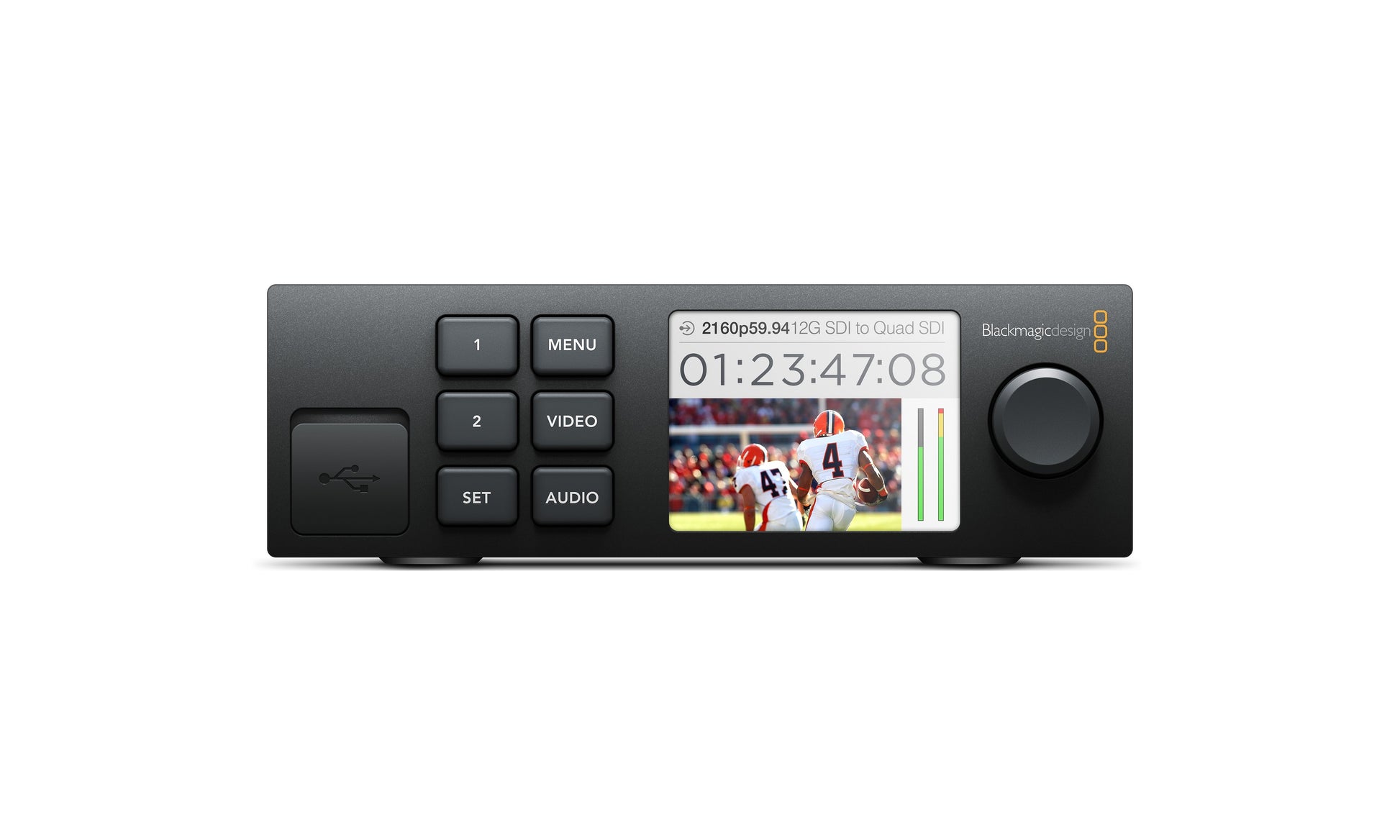

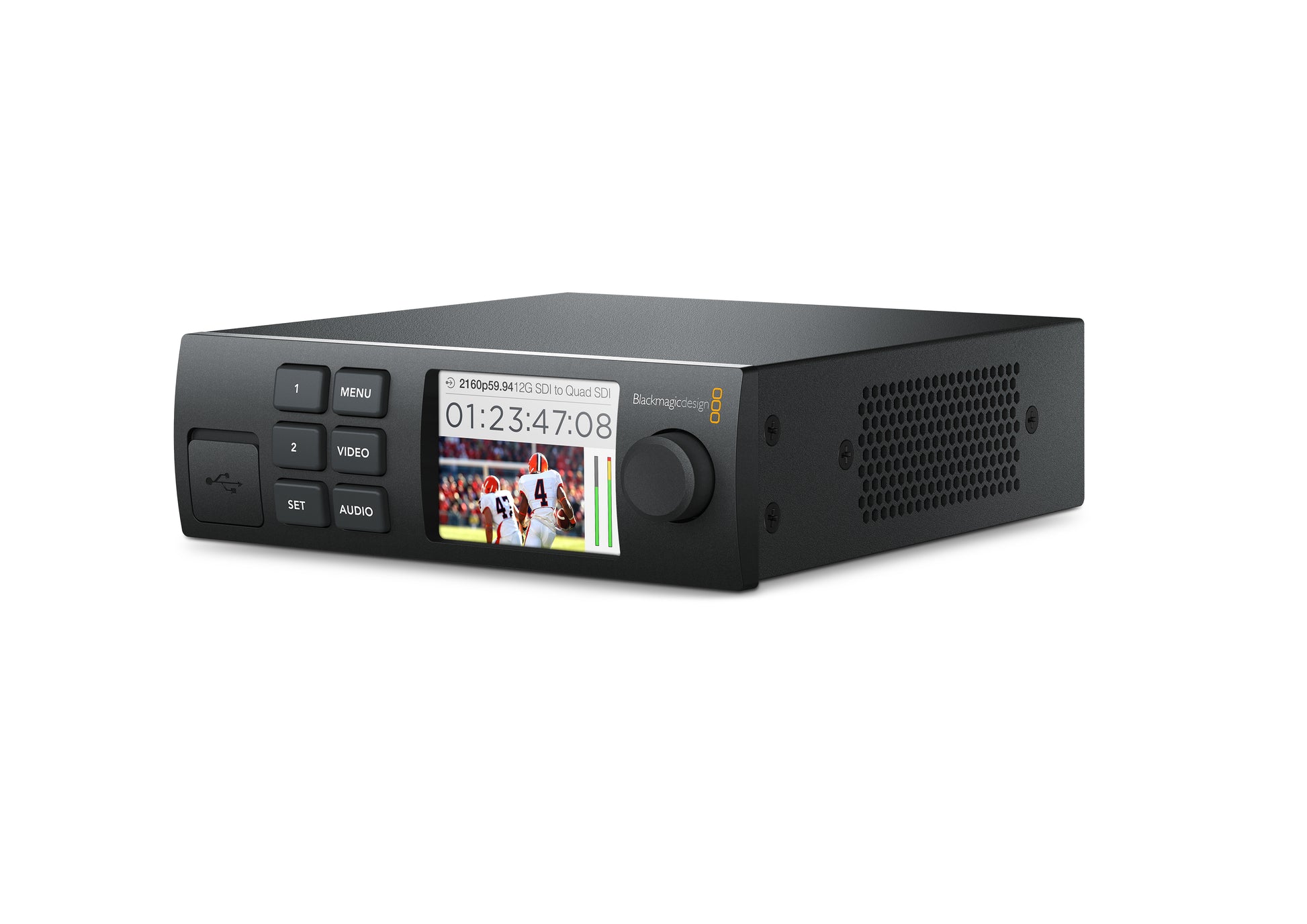

• Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

Power Requirements

• Power Supply: 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input .
• Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
• Power Consumption: 16 Watts
• Operational Voltage Range: 100 - 240V AC

Environmental Specifications

• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -20° to 60°C (-4° to 140°F)
• Relative Humidity: 0% to 90% non-condensing

What's Included

• Teranex Mini 12G-SDI to Quad SDI
• Welcome wallet with QR code for software download

Warranty

• 3 Year Limited Manufacturer’s Warranty.
