Serv 4K is an all-in-one production streaming solution that unites next-gen hardware with simplified UI to easily manage and share 4K HDR streams in real time, whether you’re collaborating on set or around the world. Serv 4K allows both local and cloud-based streaming with Teradek the Teradek TV app (iOS, Android and MacOS), Teradek TV, as well as third-party integrations like Frame.io. During Local Streaming, up to four live camera feeds can be streamed to multiple local devices at once, even without an internet connection. Cloud-based streaming can be shared with an unlimited number of devices via MacOS, iOS, Android, or web browsers.
This next-gen hardware includes an updated fan for cooling efficiency, directional buttons for menu navigation and military-grade 256-bit encryption. Serv 4K (2024) continues to support up to 45mbps HEVC, 10bit 4:2:2 color, and DCI-P3 / PQ 2084 for consistent color-accuracy from first shot through final color.
Serv 4K is easy to set up, easy to manage, and comes with tools to keep every stakeholder in the loop, wherever they are.
Technical Specifications
Video
Video Inputs: 1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC) 1 x HDMI 2.0 Type-A receptacle
HDR Support: Yes
SDI Compliance: Simultaneous bonding over up to 7 networks: • Ethernet • Wi-Fi • USB cellular modem • Up to 4 cellphones (iOS or Android)
Video Compression: ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264 AVC: Baseline, Main, High SO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265 HEVC: Main
Supported Video Bitrate: 250 Kbps to 85 Mbps
Video Format Conversion Support: Built in video scaler and deinterlacer
Number of Encoder Streams: Up to one 4KDCI p60 4:2:2 10bit
Color Correction: CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color)
Supported Video Transport Protocols: Secure Reliable Transport (SRT), AirMix, Teradek bonding
Remote Control: Teradek Core
Audio Processing
Audio Compression: AAC-LC
Inputs
Audio Input: 3.5mm Stereo Line Level Analog or Microphone in, adjustable gain
Outputs
Audio Output: 3.5mm Stereo Headphone output
Physical
Dimensions: 6.25”W x 3.6”D x 1.4”H [150 x 107 x 36mm]
Weight: 1 lb [476g]
Construction: Milled Aluminum
Mountability: Can be mounted horizontally or vertically with 1/4" 20 mounting holes
Interfaces

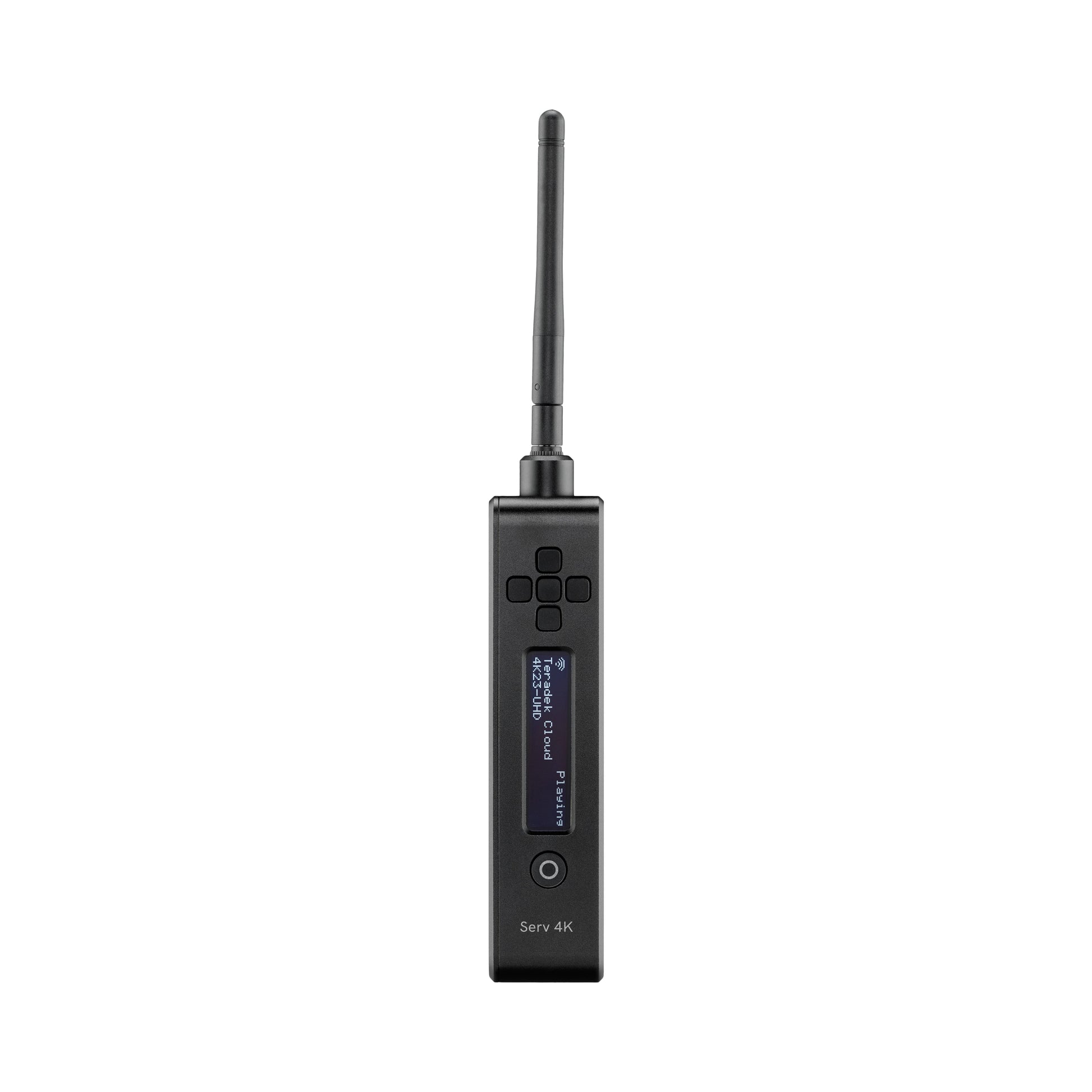

Configuration Interfaces: Feature-rich Web UI for local device management, configuration, and control, Intuitive iOS/Android configuration app (Teradek Serv), OLED Status Display w/ Nav control buttons, Core for cloud-based device management
Switches: On/Off switch
Recording / Storage: Full-size SD/SDXC (class 6 and above) formatted exFAT, USB formatted FAT32, NFS
Mobile App: Teradek Serv for iOS and Android devices
Cloud Services: Teradek Core, Frame.io, Sony Ci, PIX
USB Interface Functionality: 2x Powered USB-C host ports with 3G/4G modem support
