Teradek

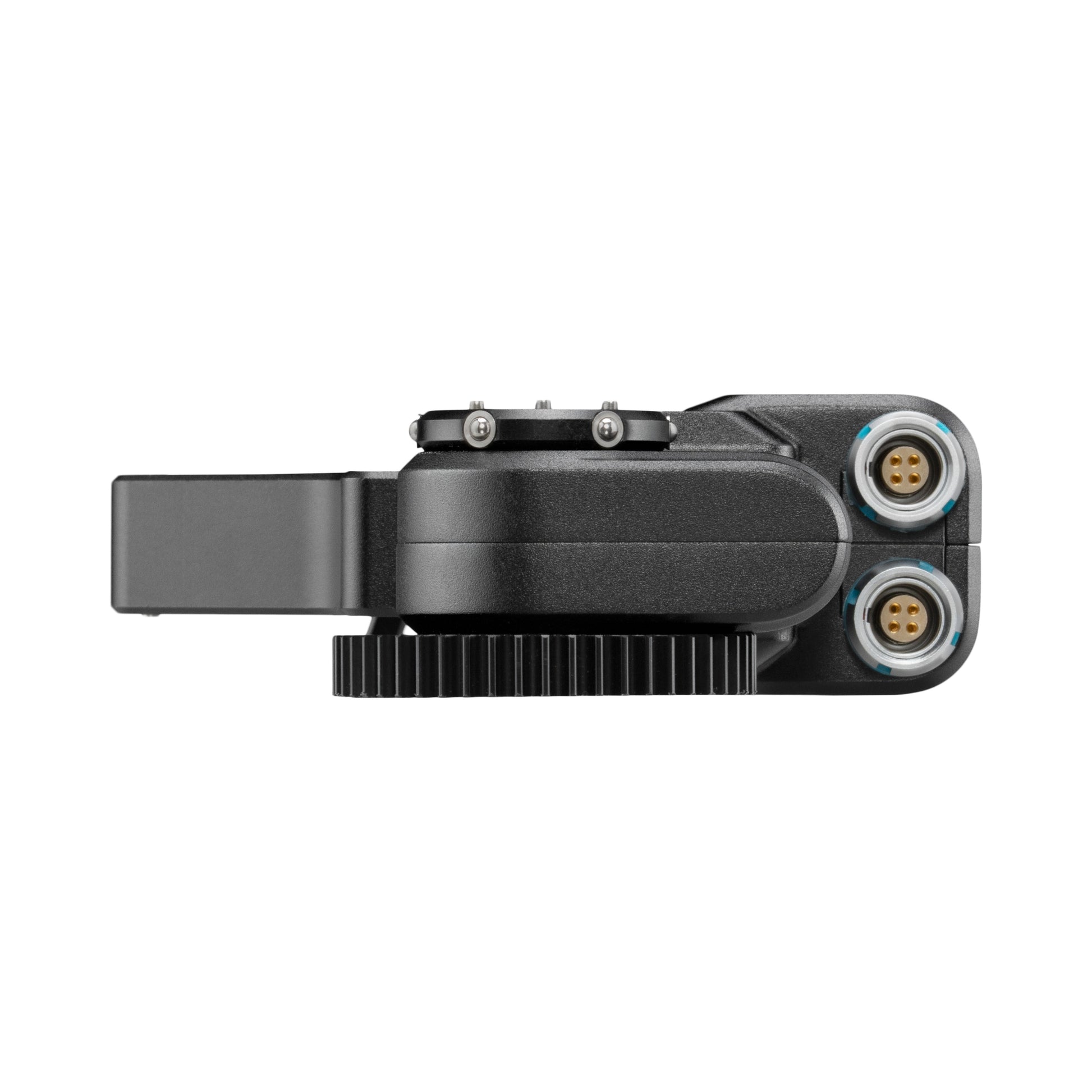

Teradek MOTR.S MAX

Teradek MOTR.S MAX

Įprasta kaina €2.124,13 be PVM
Įprasta kaina Išpardavimo kaina €2.124,13 be PVM
Išpardavimas Išparduota
Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.
Kiekis

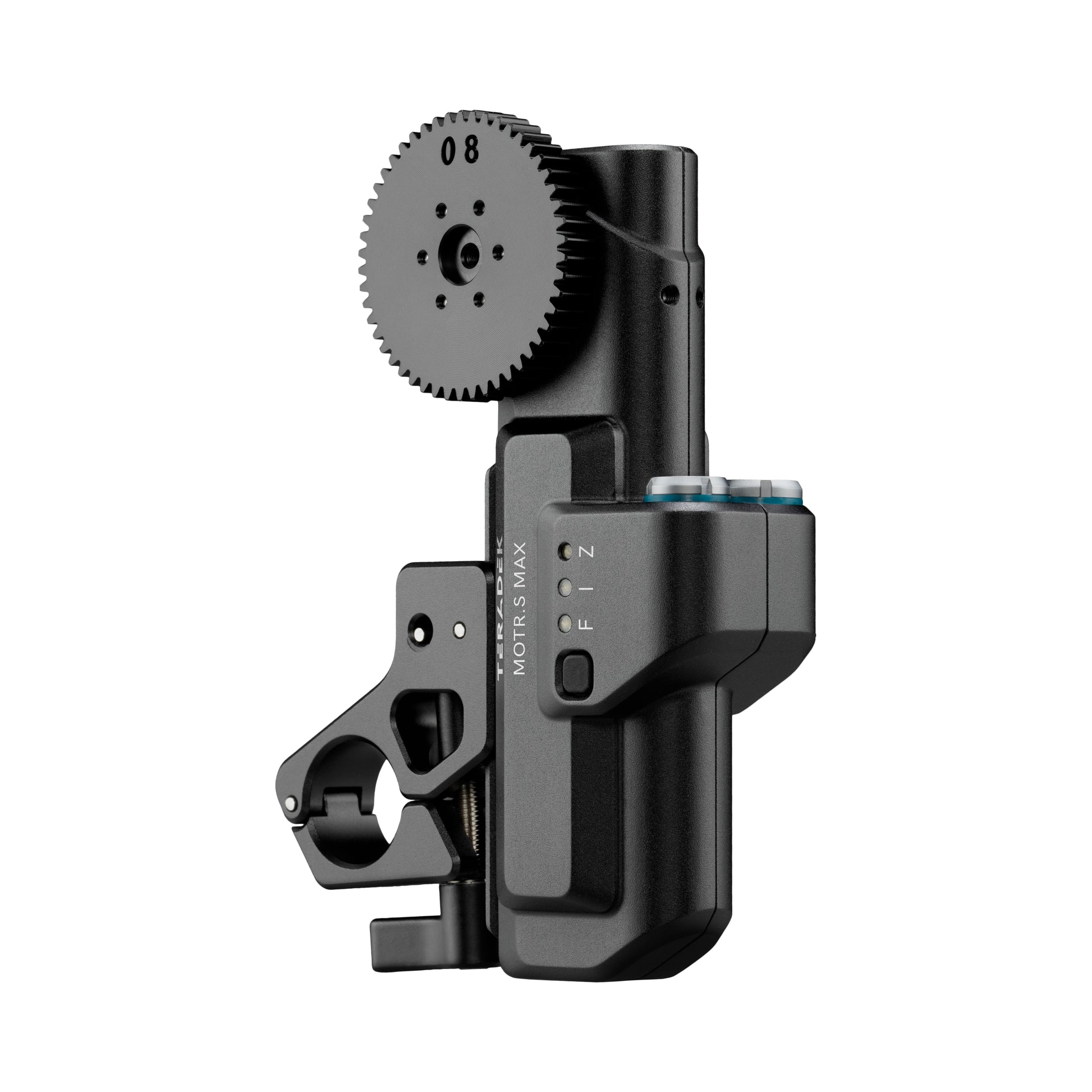

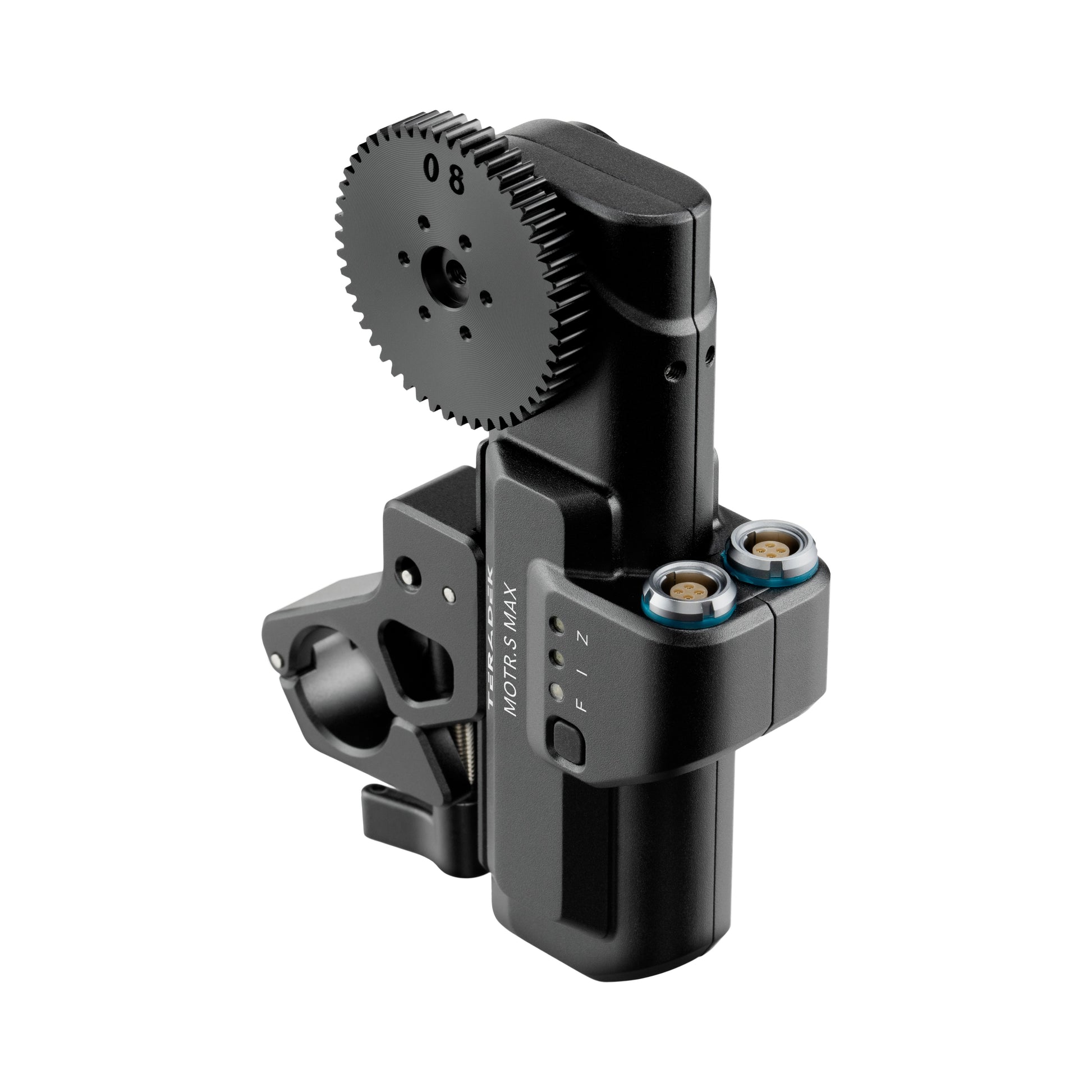

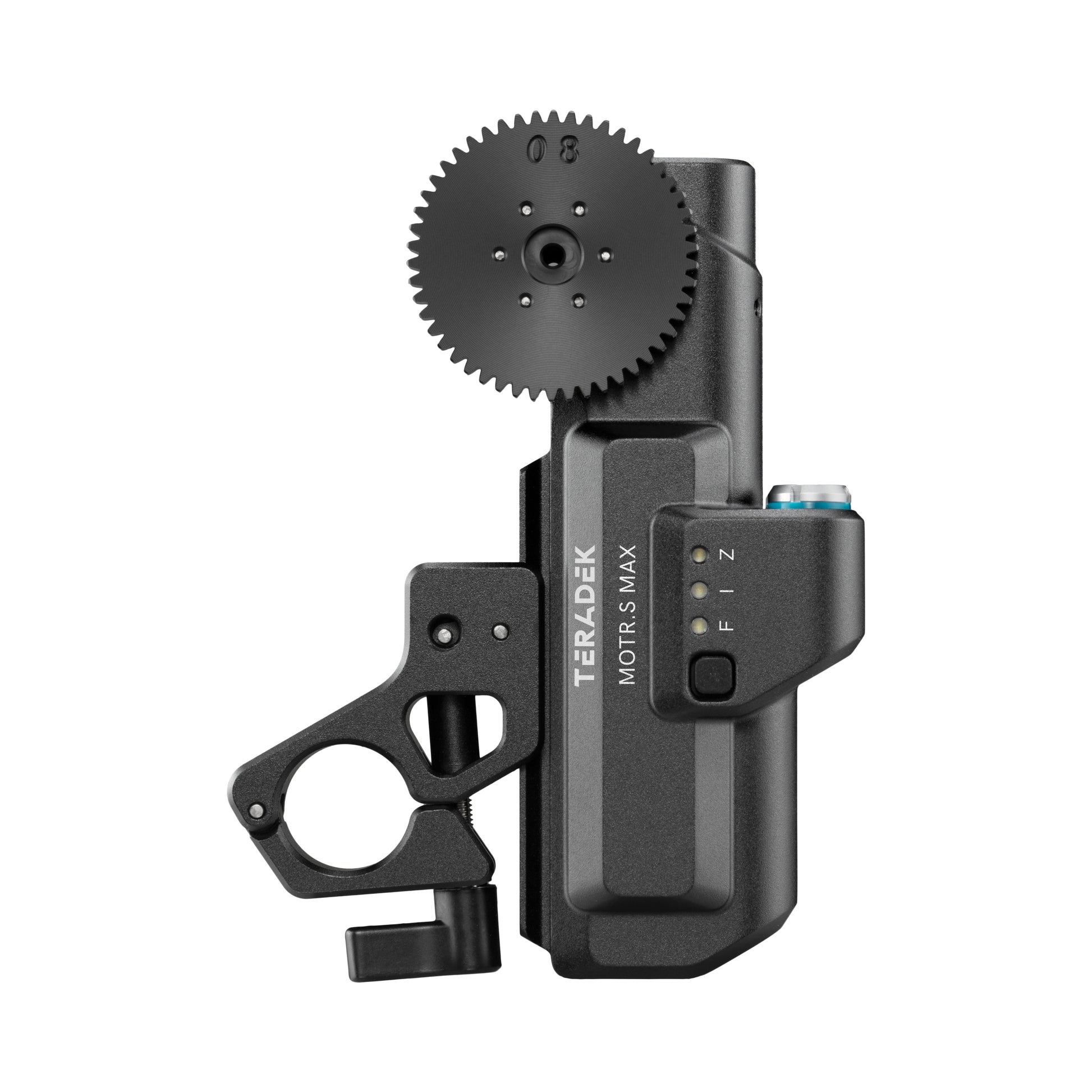

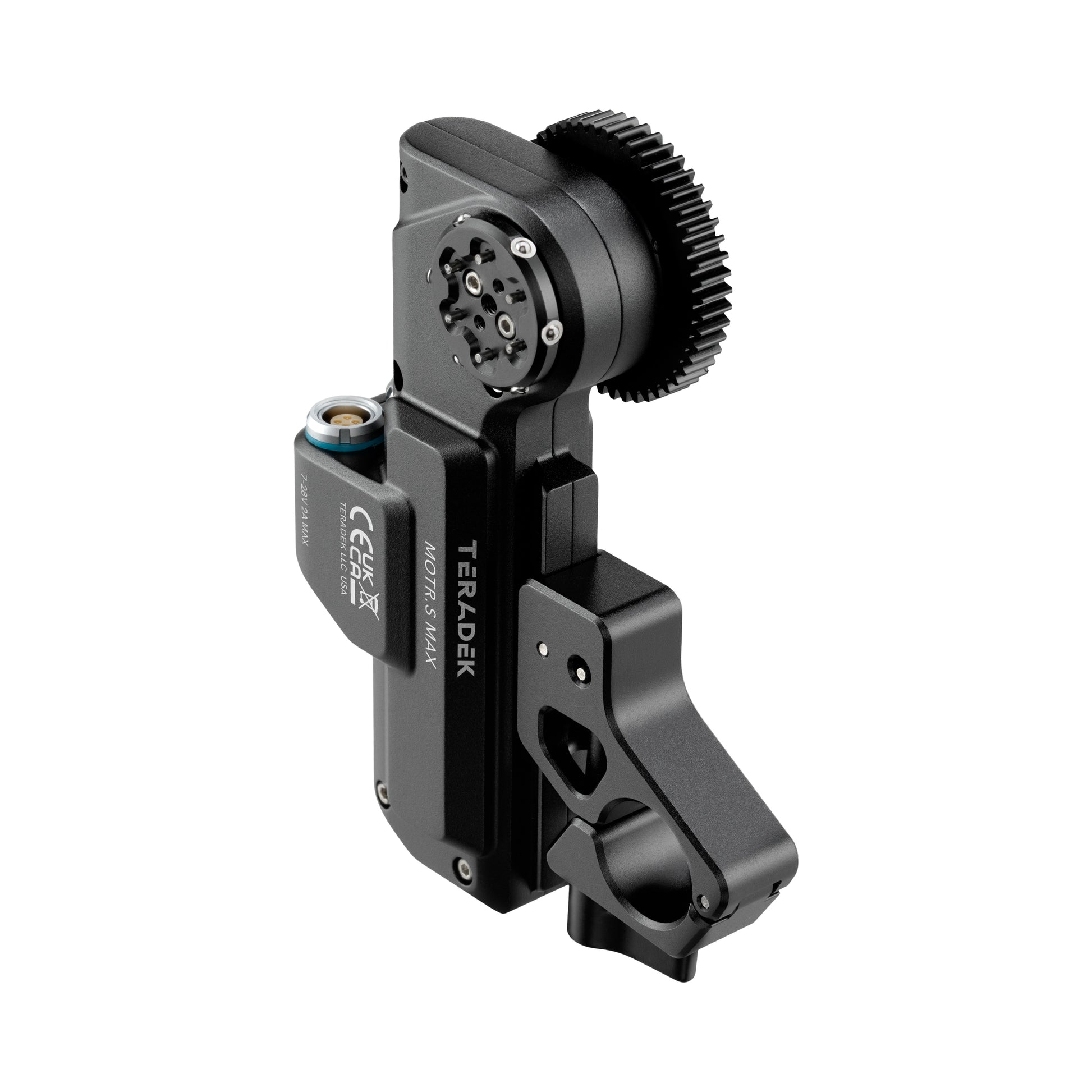

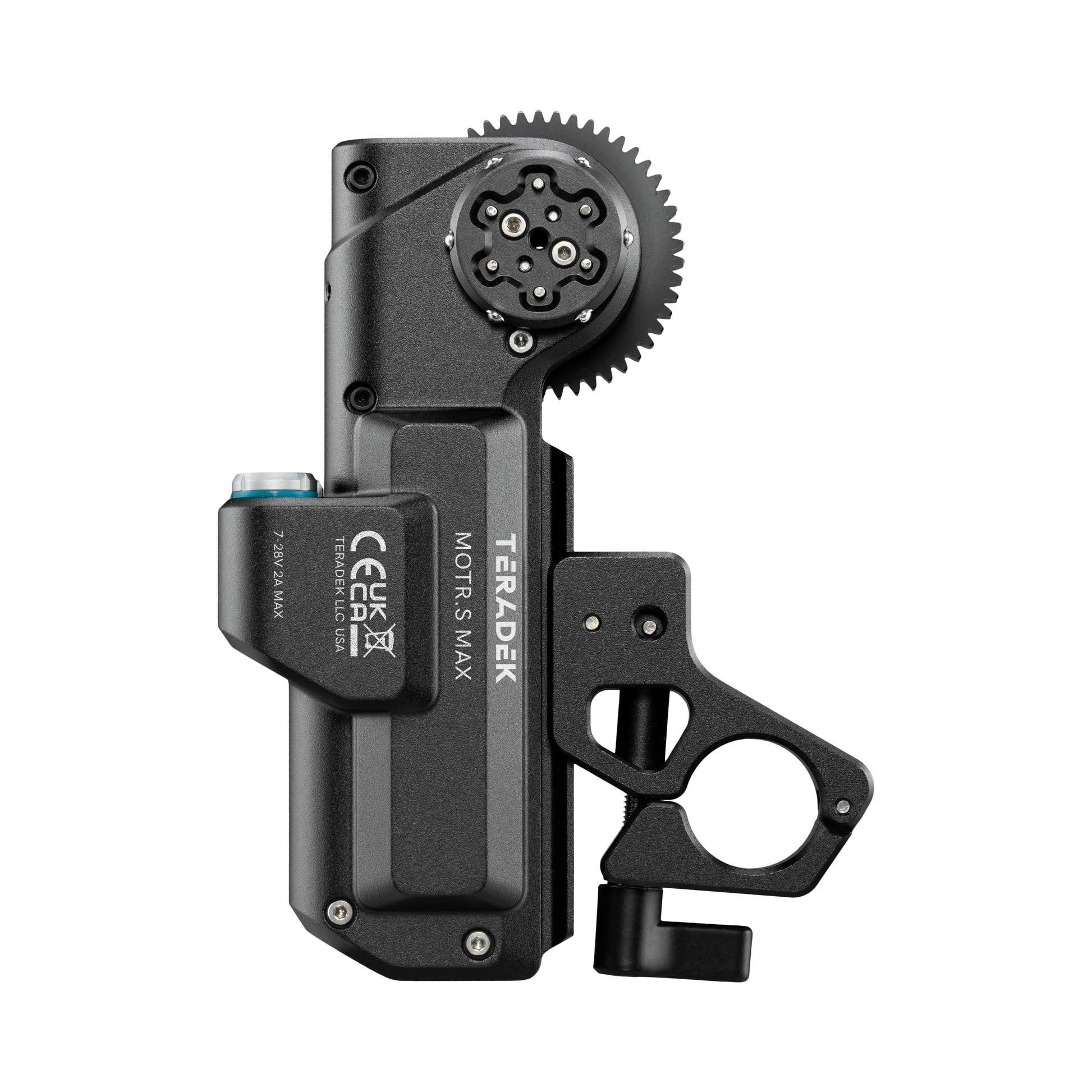

The MOTR.S MAX Lens Motor is the high-torque wireless lens-control solution for heavy-duty lenses with stiff, grinding gears. Completely redesigned from the ground up, MOTR.S MAX delivers 2 Nm of peak torque at up to 168 rotations per minute for precise focus-pulling on heavy-duty lenses. It features durable, all-aluminum construction and reinforced sockets, a quick-release gear for intuitive setup and quick transitions, and is daisy-chainable.

This add-on motor comes with one 0.8 gear. No motor cables are included.

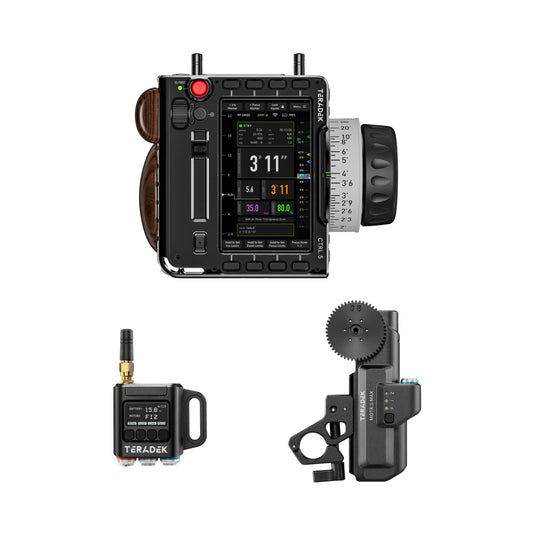

The MOTR.S MAX lens motor can be purchased alongside our MOTR.S FIZ Kit and MOTR.S Single Channel Kit for full motor control of focus, iris, and/or zoom.

Technical Specifications

Physical

  • Gear Pitch: 0.8 Mod standard (others available)
  • Max Torque: 2 Nm peak, 2 Nm continuous
  • Max Speed: 168 rotations/minute
  • Construction: All aluminium
  • Mountability: Compatible with 19, 15 mm Rods
  • Dimensions: 4.6 x 2.4 x 1.2" (117.5 x 59 x 31 mm)
  • Weight: 7.8 oz (222 g)

Power

  • Operating Voltage: 7-32V
  • Power Input: 0.1A idle. 2.5A peak

Interface

  • Connectors: 2x 0B.4 (chainable)

Environmental

  • Operating Temperature: –20°C to 50°C

Product Details

  • SKU: TE-15-0053
  • EAN: 818264029008
  • Warranty: 12 months
  • Country of origin: United States
