Teradek MOTR.S
Teradek MOTR.S
Nepavyko įkelti atsiėmimo galimybių

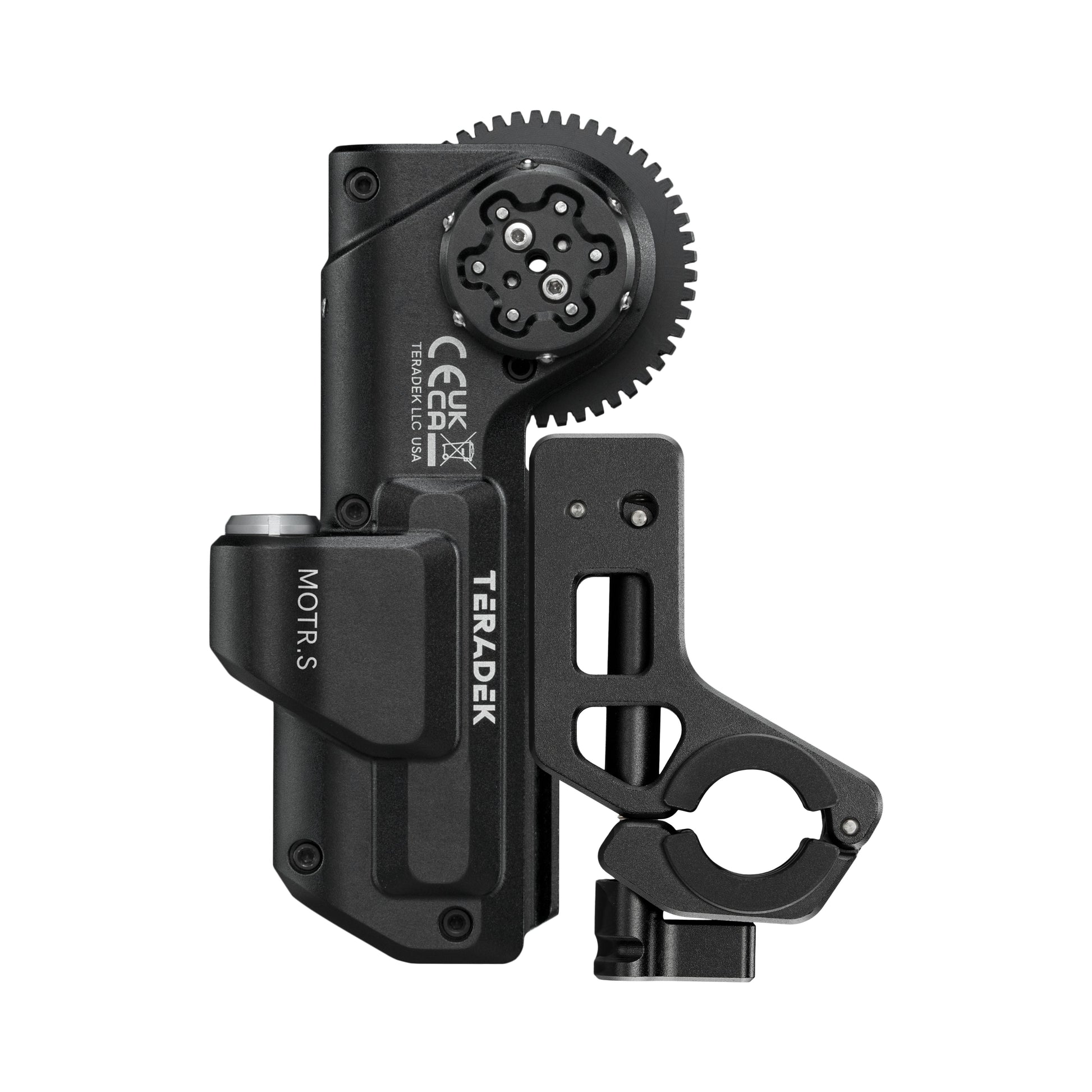

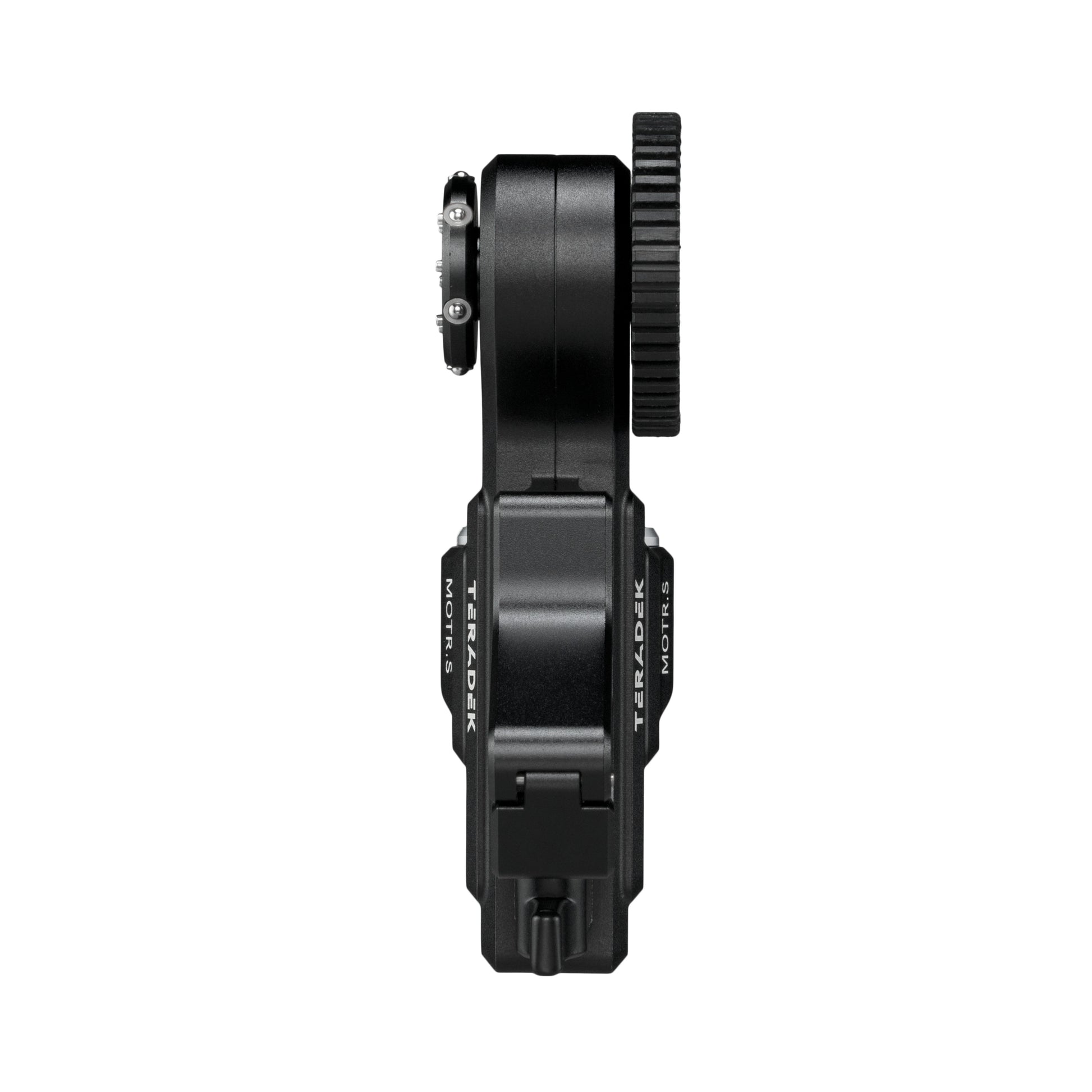

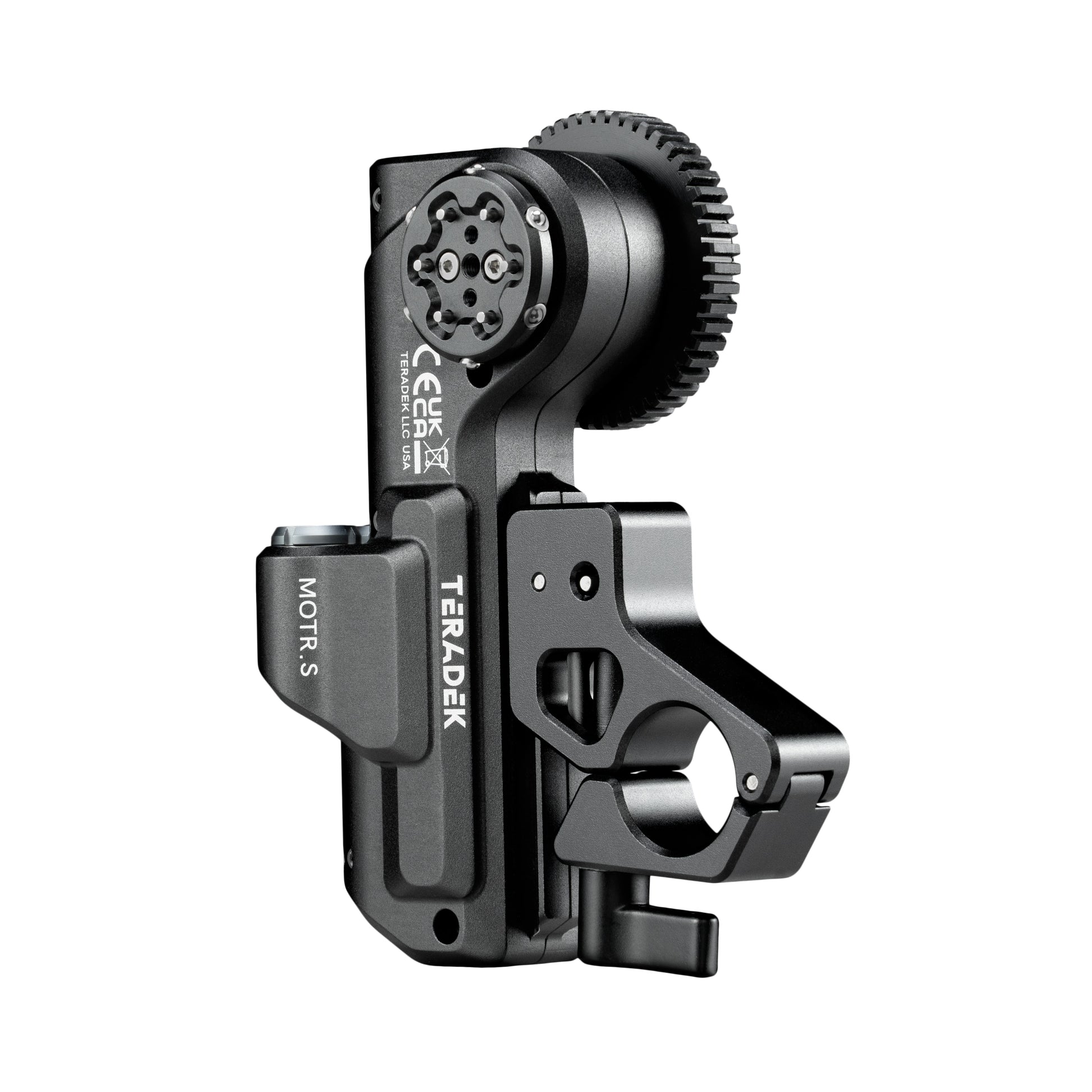

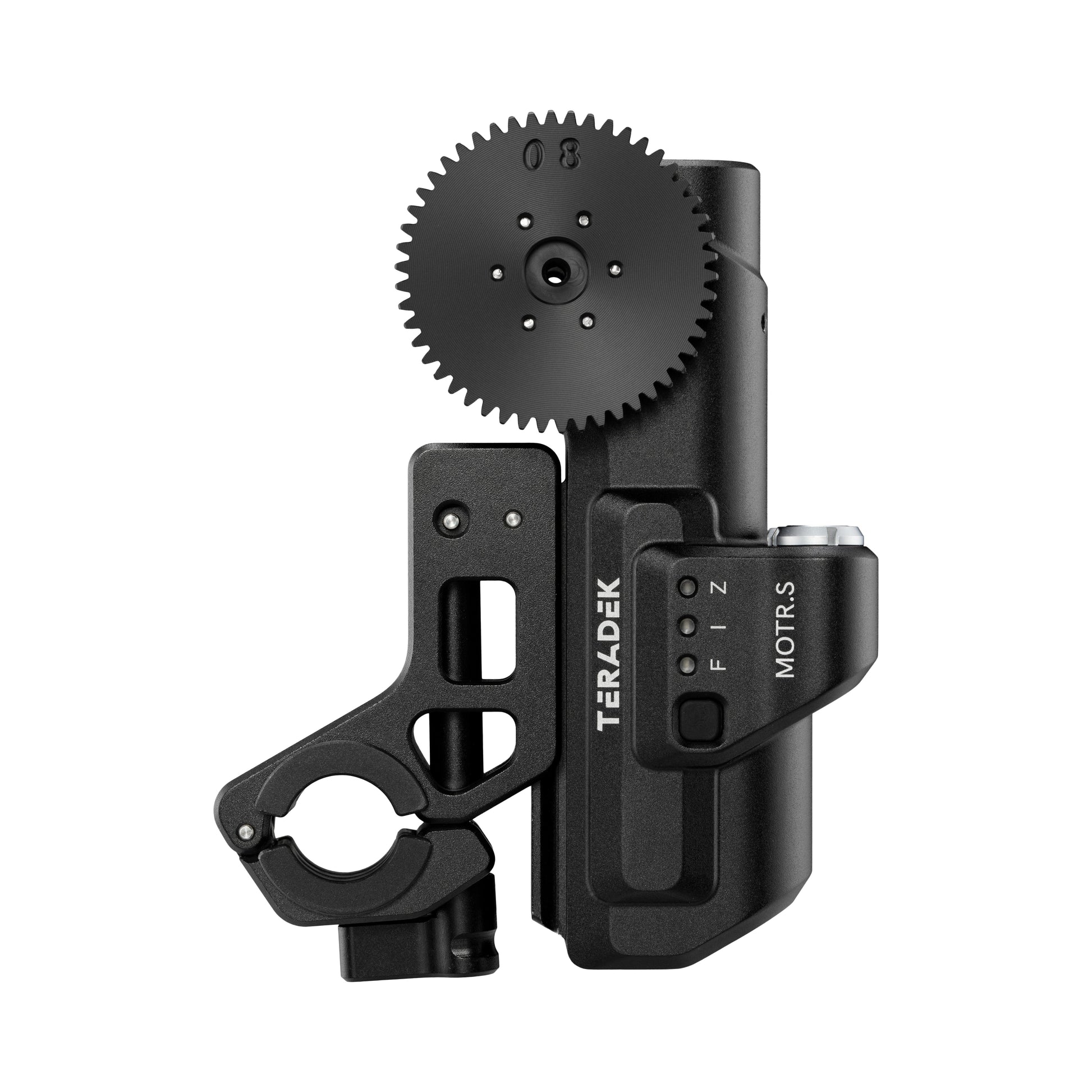

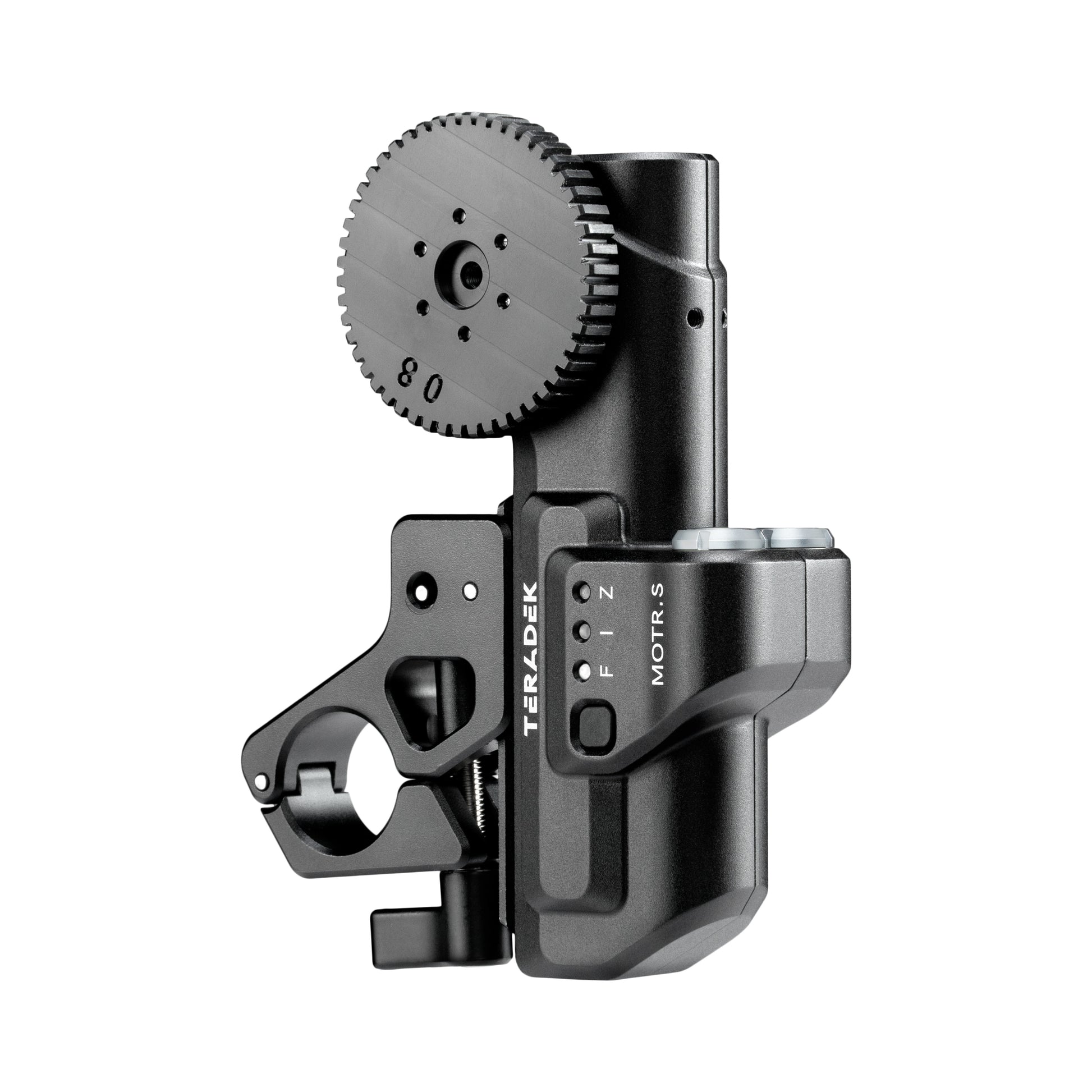

MOTR.S is the new standard for lens motors and has been completely redesigned from the ground up. MOTR.S is ultra-lightweight, compact, and blazing fast at up to 320 rotations per minute. RT users can now daisy-chain motors, utilize power inputs up to 32V, and streamline camera rigging with a revolutionary quick-release gear system and new ergonomic rod clamps. MOTR.S will be compatible with all previous RT handsets, receivers, and daisy-chainable motors (MOTR.X and MOTR.X MAX).
This add-on motor comes with one 0.8 gear. No motor cables are included.
The MOTR.S lens motor is bundled with our MOTR.S FIZ Kit and MOTR.S Single Channel Kit for full motor control of focus, iris, and/or zoom, as well as the optional MOTR.S MAX for up to 25% more torque for stiff, resistant dials on heavy-duty lenses.
Technical Specifications
Physical
- Gear Pitch: 0.8 Mod standard (others available)
- Max Torque: 0.55 Nm peak, 0.55 Nm continuous
- Max Speed: 320 rotations/minute
- Construction: All aluminium
- Mountability: Compatible with 19, 15 mm Rods
- Dimensions: 4.1 x 2.2 x 1.2" (106 x 56 x 31 mm)
- Weight: 6.5 oz (184 g)
Power
- Operating Voltage: 7-32V
- Power Input: 0.1A idle. 2.5A peak
Interface

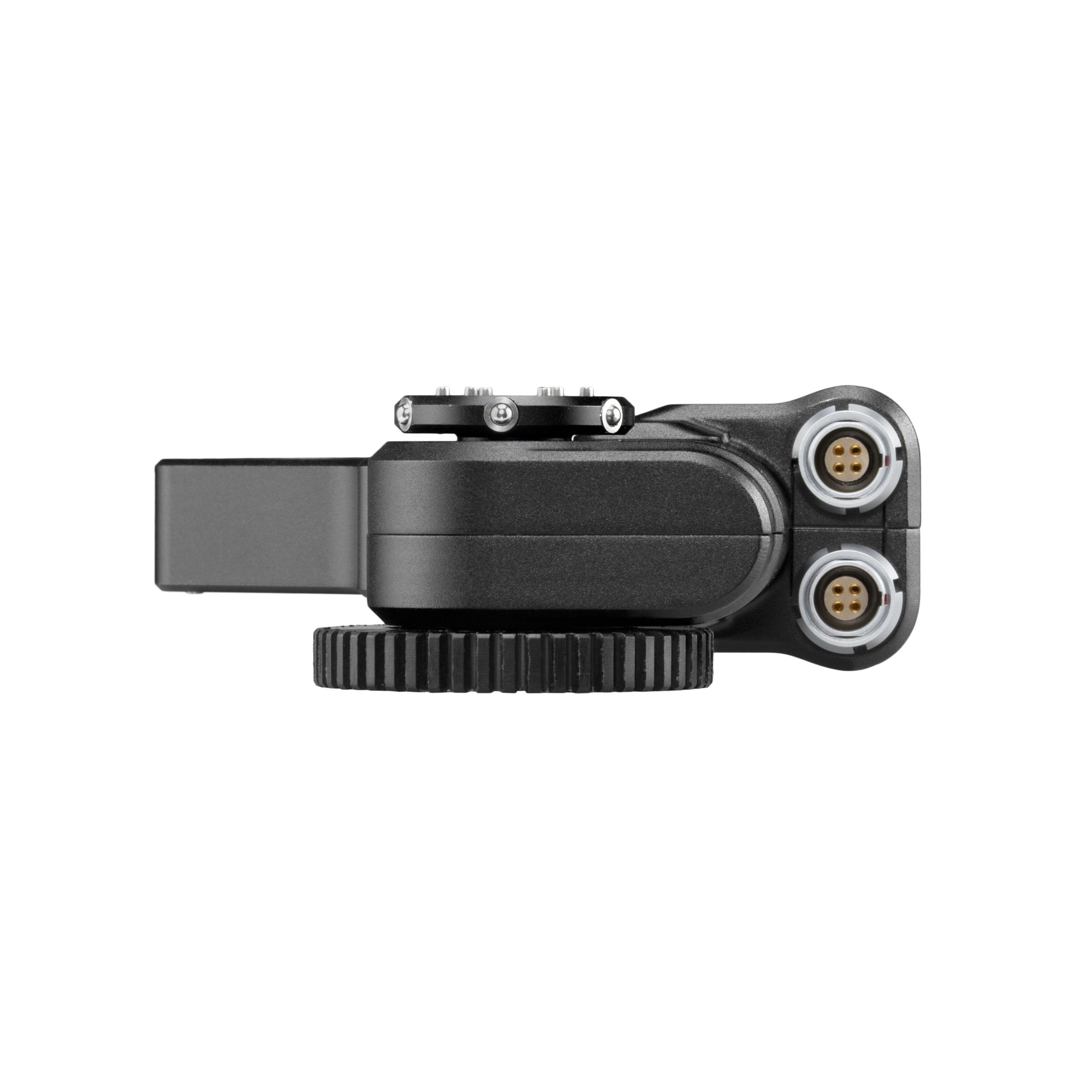

- Connectors: 2x 0B.4 (chainable)
Environmental
- Operating Temperature: –20°C to 50°C
Product Details
- SKU: TE-15-0050
- EAN: 818264027752
- Warranty: 12 months
- Country of origin: United States
Official Resources
Related Products
Share
Suderinami priedai
-
Teradek Compact Bracket for MOTR.S/MAX
Įprasta kaina €110,13 be PVMĮprasta kainaIšpardavimo kaina €110,13 be PVM -

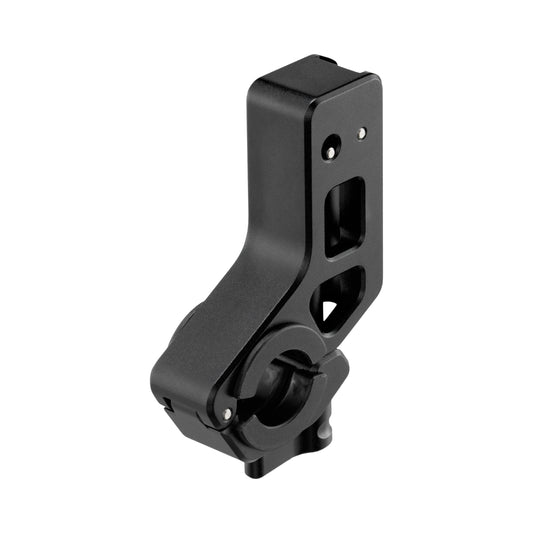

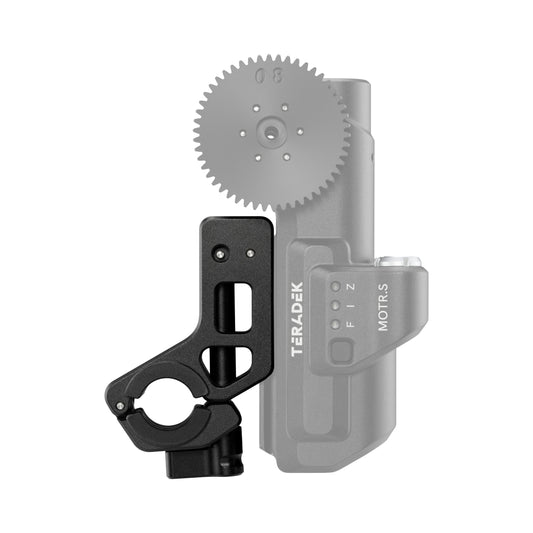

Teradek Standard Bracket for MOTR.S/MAX
Įprasta kaina €130,33 be PVMĮprasta kainaIšpardavimo kaina €130,33 be PVM
Rekomenduojame kartu
-
Teradek Motor Gears for MOTR.S/MAX (Individual) Large - 0.8 Mod, 80 Teeth, 6mm Width
Įprasta kaina €46,70 be PVMĮprasta kainaIšpardavimo kaina €46,70 be PVM -
Teradek Motor Gears for MOTR.S/MAX (Individual) Standard Gear - 0.8 Mod, 50 Teeth, 7mm Width
Įprasta kaina €46,70 be PVMĮprasta kainaIšpardavimo kaina €46,70 be PVM -
Teradek Motor Gears for MOTR.S/MAX (Individual) Thick Gear - 0.8 Mod, 50 Teeth, 12mm Width
Įprasta kaina €47,97 be PVMĮprasta kainaIšpardavimo kaina €47,97 be PVM -

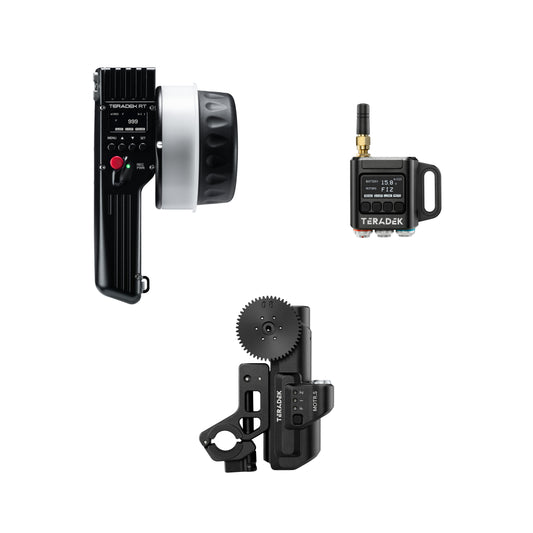

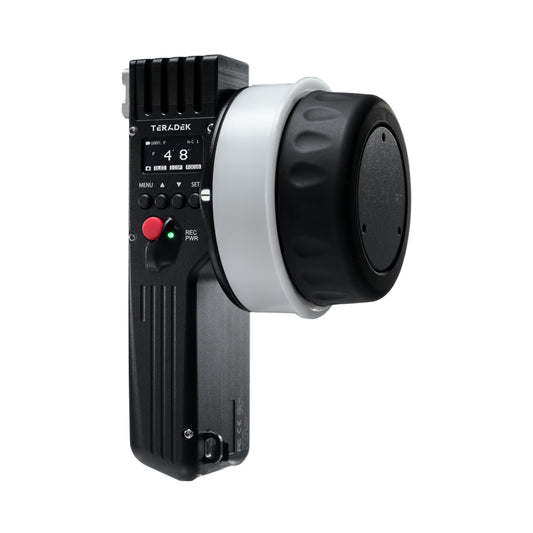

Teradek Single Channel Kit
