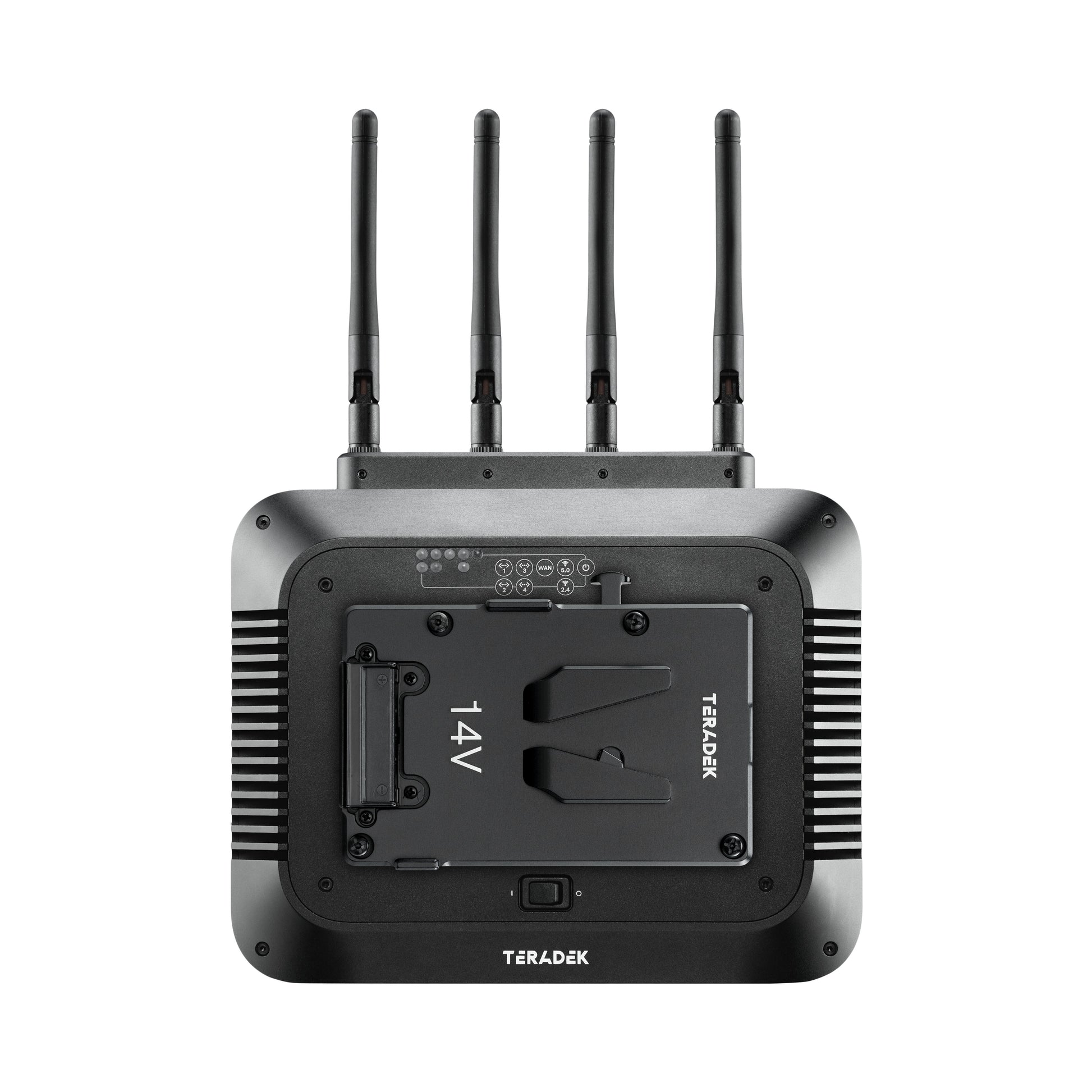

Teradek Link AX V-Mount

Link AX expands your production networking capabilities with a ruggedized, set-ready aluminum chassis wrapped around a Wi-Fi 6 (802.11AX) router. Use Link AX for multiple workflow scenarios: more cameras and devices on your local production streaming network, camera-to-cloud for multiple cameras; simultaneous camera-control over multiple cameras.

Read the Link AX blog for an in-depth breakdown of real-world workflows.

Rugged Design

• Robust Aluminum Chassis
• Gold-Mount and V-Mount Battery Plate Options
• ⅜” and ¼”-20 Mounting Points
• 5 customizable ethernet ports
• USB-A for cellular modems like Node II with Teradek Data

Built for Production

• Wi-Fi monitoring with multiple Serv devices*
• 20 independent viewers using Teradek TV app on mobile devices*
• Add an internet connection to enable remote monitoring or camera-to-cloud workflows
• Simultaneous control of multiple cameras over Wi-Fi

*Serv Micro, Serv 4K, or Serv Pro required for Wi-Fi monitoring. Sold separately.

Technical Specifications

Physical

• Dimensions: 7.3” W x 5.7” D x 2” H [185mm x 145mm x 51mm]
• Weight: Without battery plate: 37oz (1046g) With battery plate: 38.4oz (1090g)
• Construction: Milled Aluminum
• Mountability: 2x 1/4”-20 threaded holes, 1x 3/4”-16 threaded hole

Interfaces

• Configuration Interfaces: Feature rich web UI for configuration nd control
• Switches: On/Off, Reset, and Reboot switches
• Status LEDs: Multiple LEDs for device, wireless, and network statuses

Network

• Ethernet: 4x 1Gbps Ethernet Ports 1x 2.5Gbps Ethernet Port
• USB: USB 2.0
• WiFI: 2x2 2.4GHz MU-MIMO OFDMA 802.11 b/g/n/ax, max 20dBm per chain 2x2 5GHz MU-MIMO OFDMA 802.11 a/n/ac/ax, max 20dBm per chain Frequency Range 2.412~2.472GHz, 5.180~5.825GHz
• Encryption: 802.11AX, 802.1x, 802.11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES

Power

• Power Input: 2pin locking connector: 12-28V
• Nominal Power Consumption: 17.5W (Max)
• PoE: Supports IEEE 802.3at 48~56V
• Battery Plates: Integrated Gold or V mount battery plate (optional)

Environmental

• Operating Temperature: -10ºC to 50ºC
• Storage Temperature: -40ºC to 90ºC
• Operating Humidity: 5% to 95%
• Storage Humidity: Max. 90%

Product Details

• SKU: TE-10-0065-V
• EAN: 818264029039
• Warranty: 12 months
• Country of origin: United States
