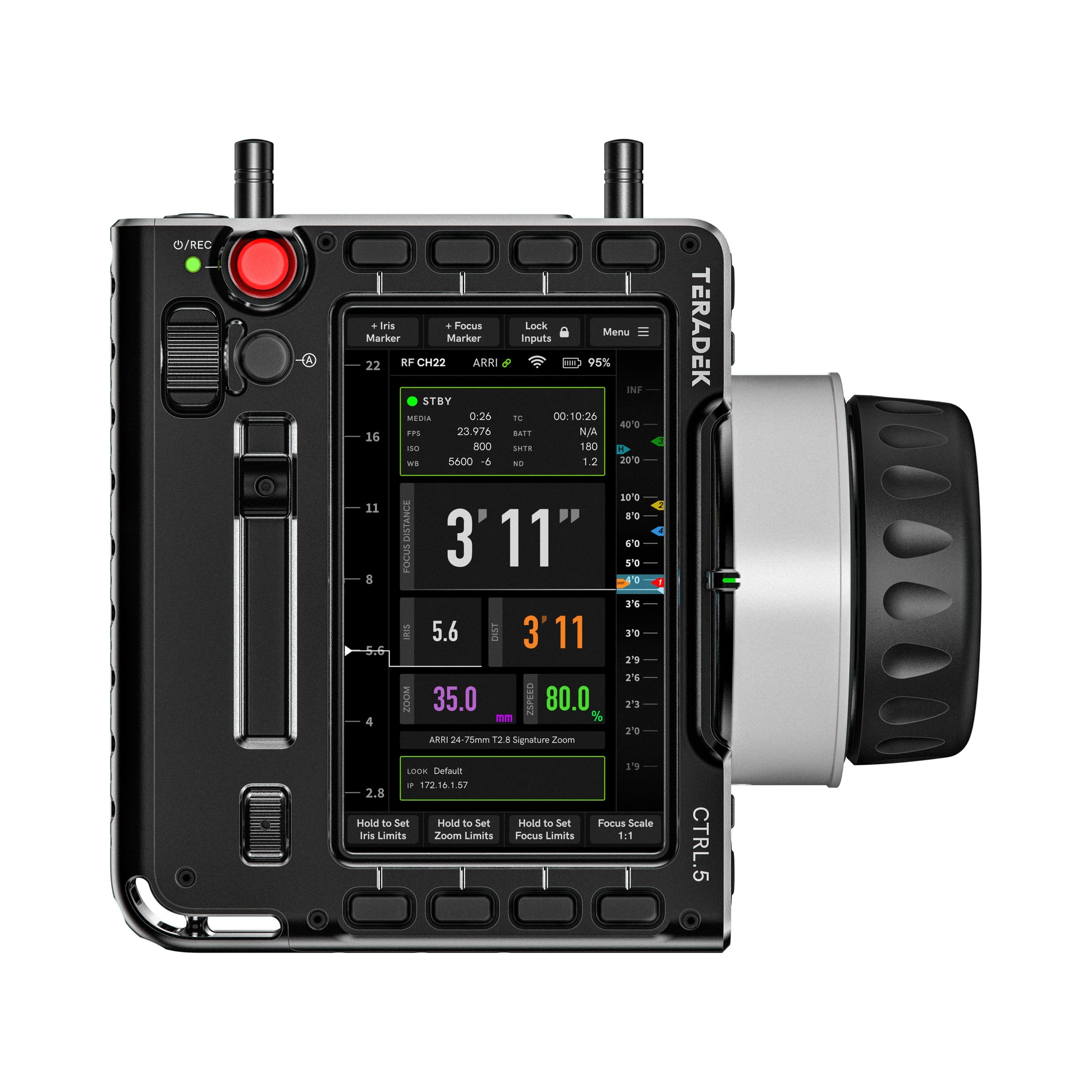

CTRL.5 raises the bar for wireless FIZ lens-control handsets with a 5-inch SmallHD Ultra-bright touchscreen powered by CTRL.OS, a task-specific evolution of SmallHD’s PageOS. View critical lens data overlays while pulling focus without taking your eyes off the video feed. Calibrate lenses to pre-marked focus rings and access configurations at any time via the touchscreen or one of eleven programmable function buttons. The hand unit includes a multitude of mounting points for accessories. CTRL.5 is fully cross-compatible across the Teradek RT Lens Control Ecosystem.
The CTRL.5 is not compatible with the older RT overlay cables. You will need either this 5-pin to USB A or this 5-pin to 5-pin cable and depending on your monitor, this dual 5-pin USB Adapter to convert your USB connection.
Technical Specifications
Power
Power Input: NP-F
Power Draw: 4w with back light off, 9w with back light full
Interfaces
Connectors: 5-pin USB port and 4-pin AUX port
Run/Stop Control: RED (Epic, Scarlet, Weapon, Raven, etc.), ARRI (Alexa, Amira, etc.), Phantom, Sony F55, LANC (Blackmagic, Canon C100/300/500 Sony FS7)
Axes: 4 total: knob slider rocker wheel
Bluetooth: Bolt Pairing and Control (coming soon)
Display: 5 inch Highbright SmallHD
Network
Wireless: FW Updates Camera Control (coming soon)
Wireless Range: 5000 ft
Physical
Dimensions: 6.6 x 6.6 x 3.3 (168.28 x 168.29 x 82.90 mm)
