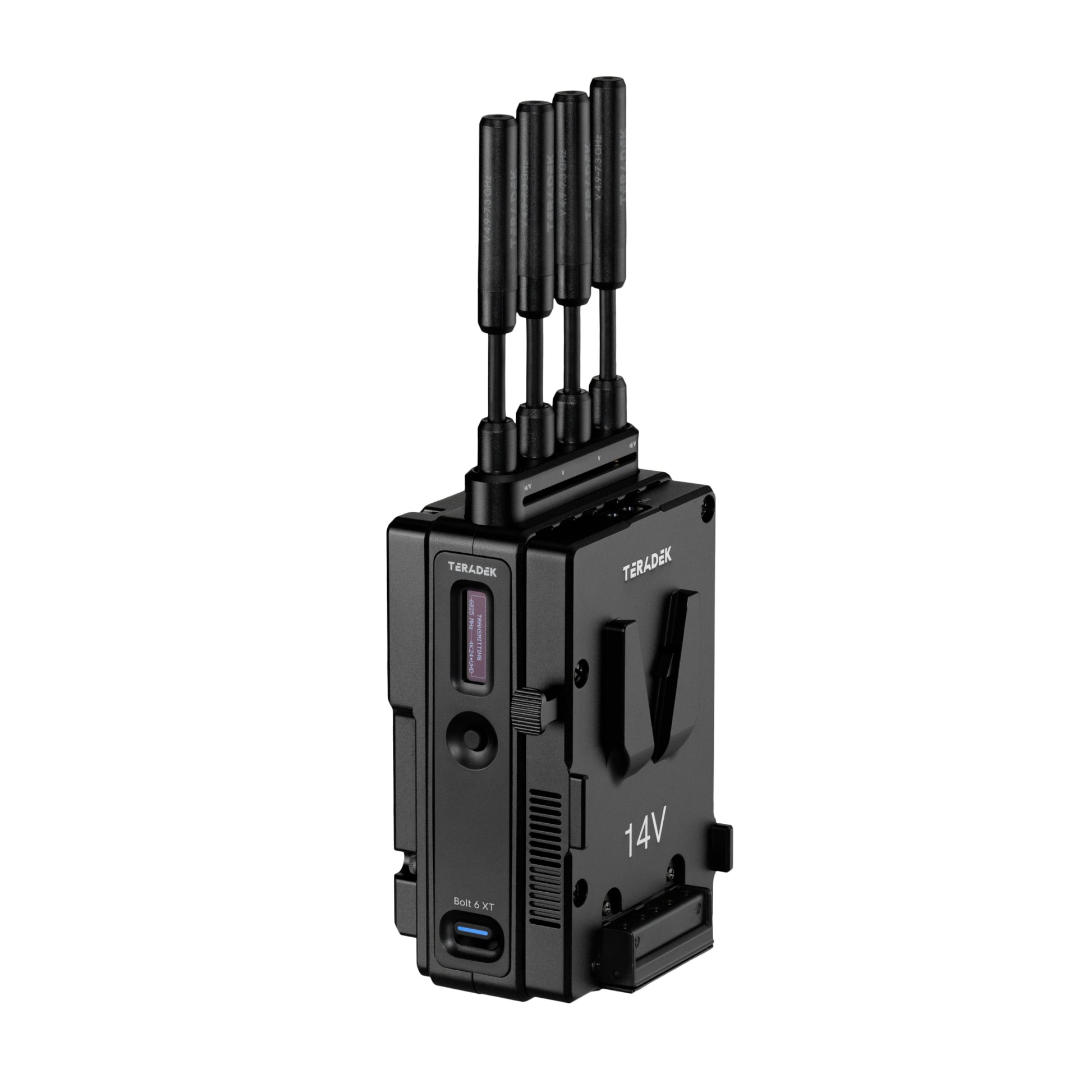

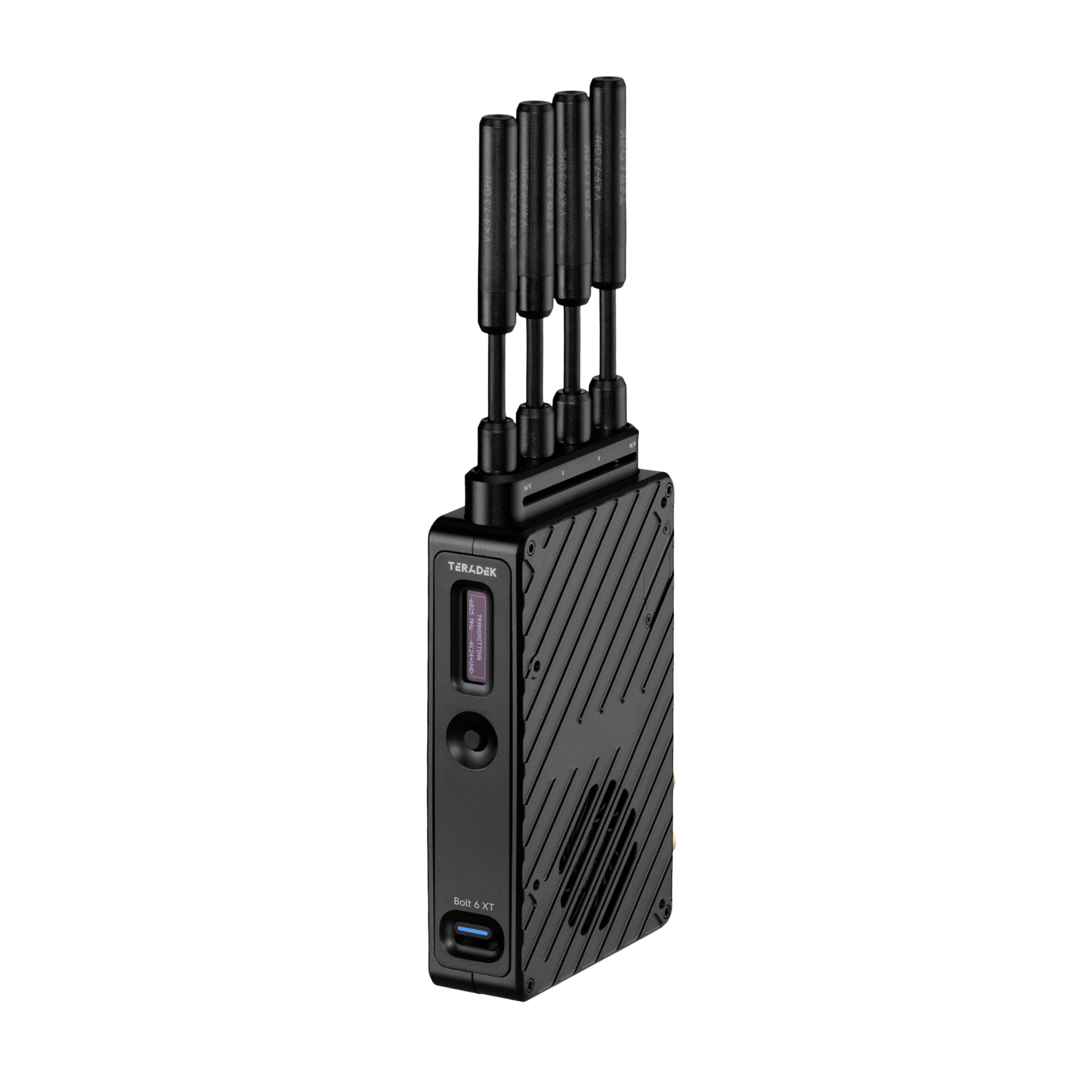

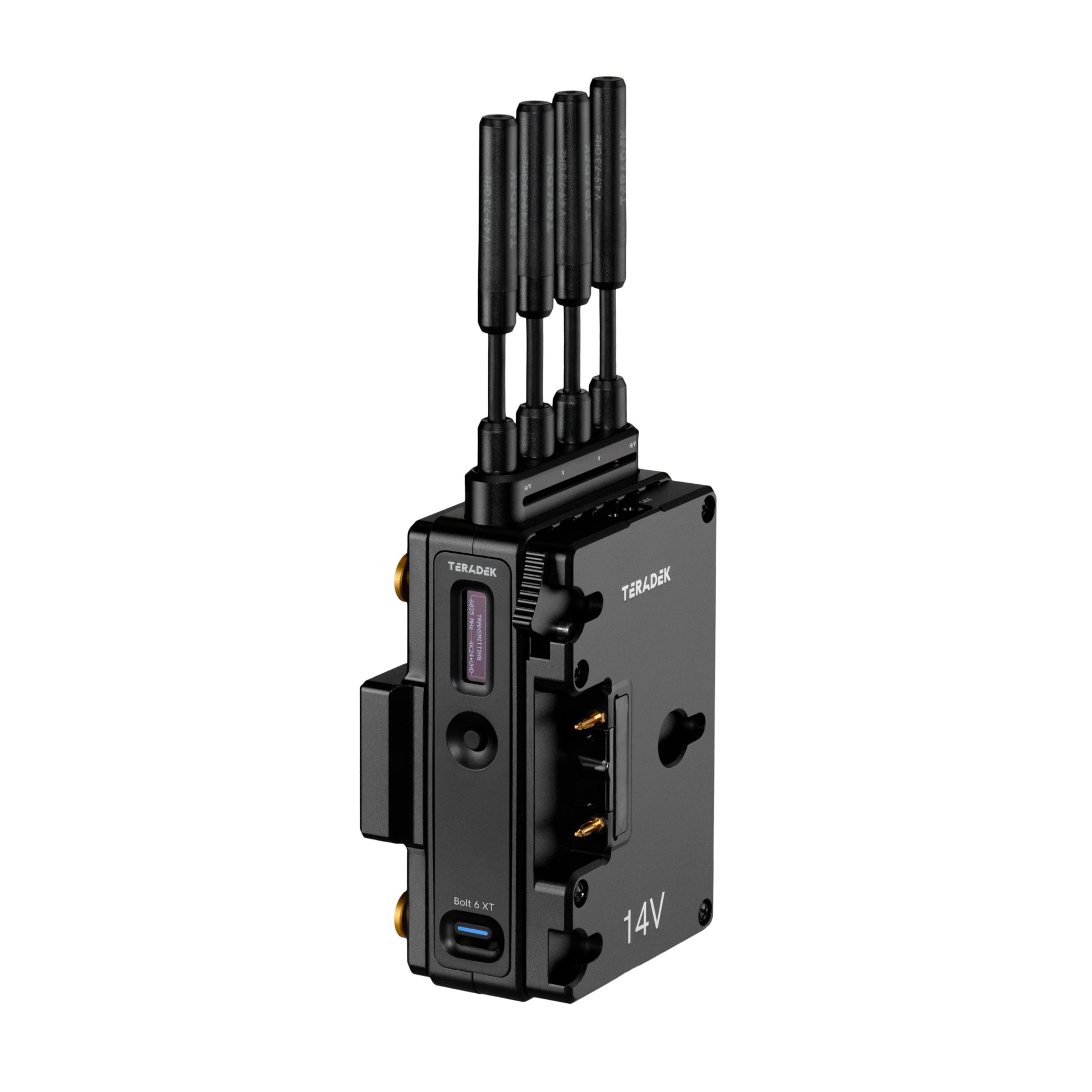

Teradek Bolt 6 XT Transmitter 1500 / No Mount

Name: Teradek Bolt 6 XT Transmitter 1500 / No Mount
Brand: Teradek
SKU: TE-10-2311
Price: 5137.53 EUR
Availability: InStock

€5.137,53 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

Bolt 6 XT TX is a wireless video transmitter that supports up to 4K60 10-bit 422 HDR video over SDI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

Bolt 6 XT TX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode.

The Transmitter is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

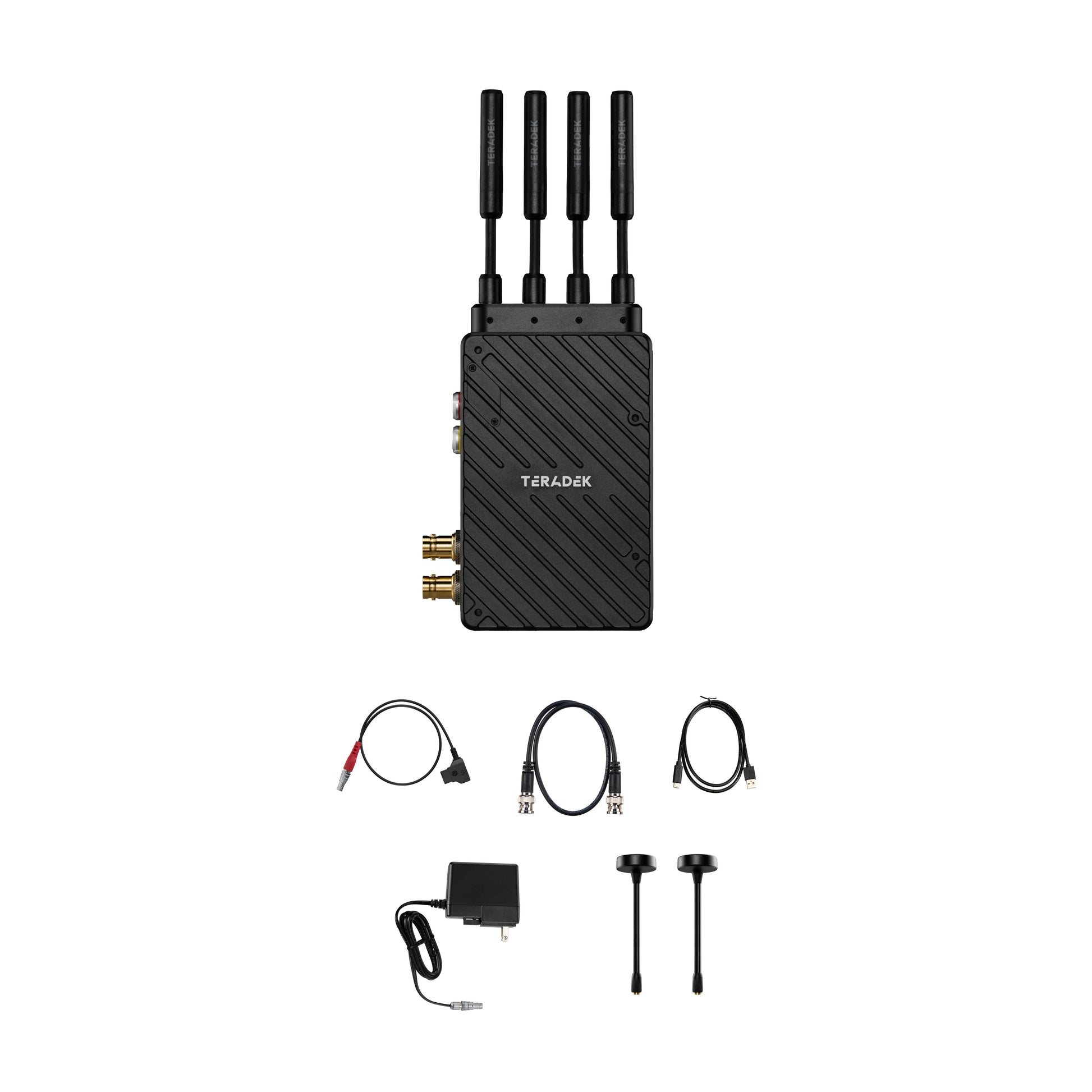

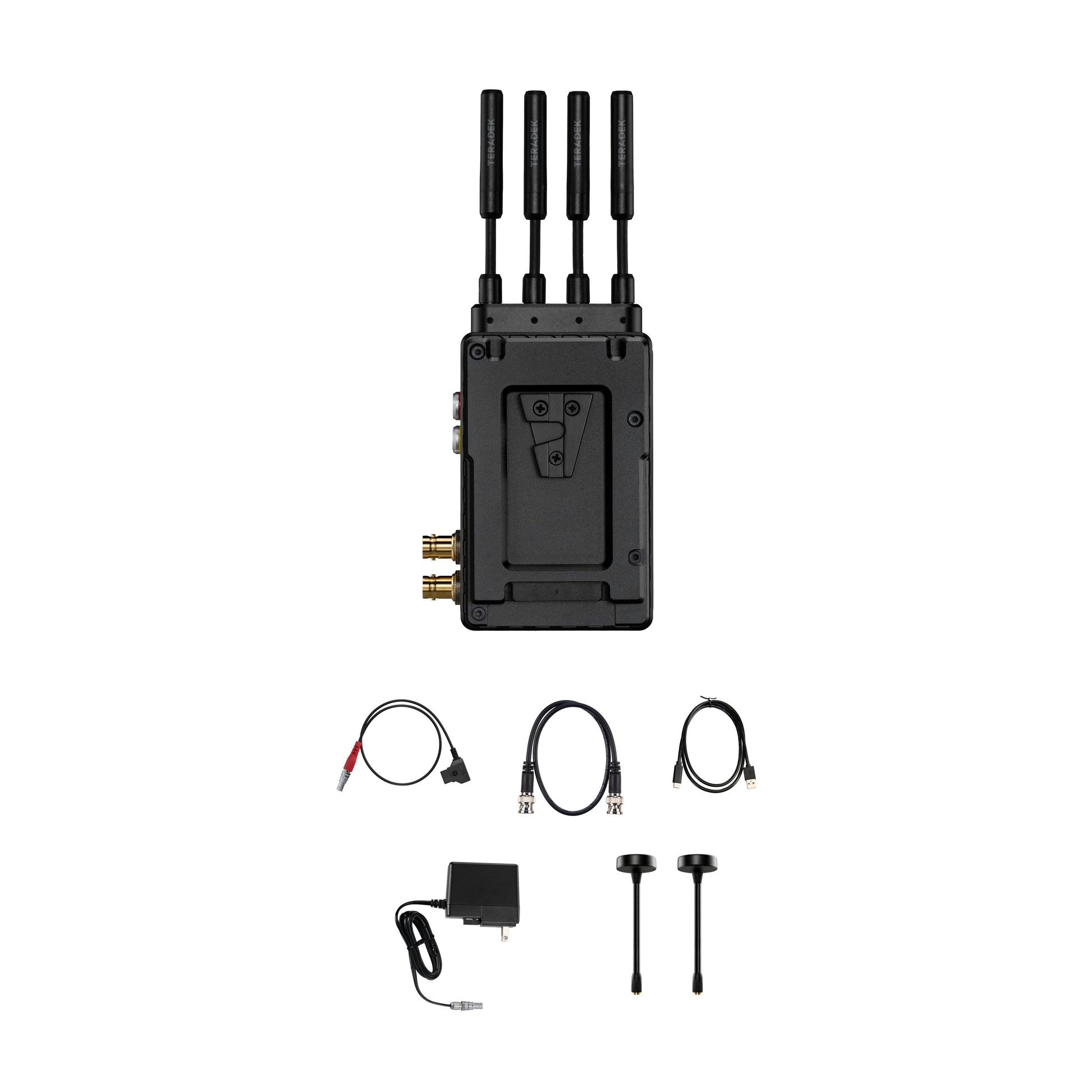

The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

Looking for even more robust signal connection when in the most challenging RF environments? Try using RF-X Auto-Switcher, built specifically for Teradek Bolt RXs to secure the best possible signal every time.

Technical Specifications

Video

Video Inputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle
Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
SDI Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay (TX to RX): <0.001sec
Input Cross Conversion: Yes, HDMI to SDI

Supported Resolutions

Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60

Video Processing

Video Compression: Visually Lossless
Color Correction: None

Audio Processing

Audio Compression: 48kHz 24-bit PCM

Inputs

Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)

Physical

Dimensions: 132 x 91 x 27 mm
Weight: 344g (12.1 Oz)
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: Multiple mounting options with 1/4"x20 and M3 holes

Interfaces

Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
USB Interface Functionality: Upgrade via USB-C 5pin Locking Connector CCU
Bluetooth: 2.4 GHz

Network

Antennas: 4 External 2dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
RF Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
RF Power: 23 dbm EIRP
Range: Up to 1500 ft, line of sight
Unicast / Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
