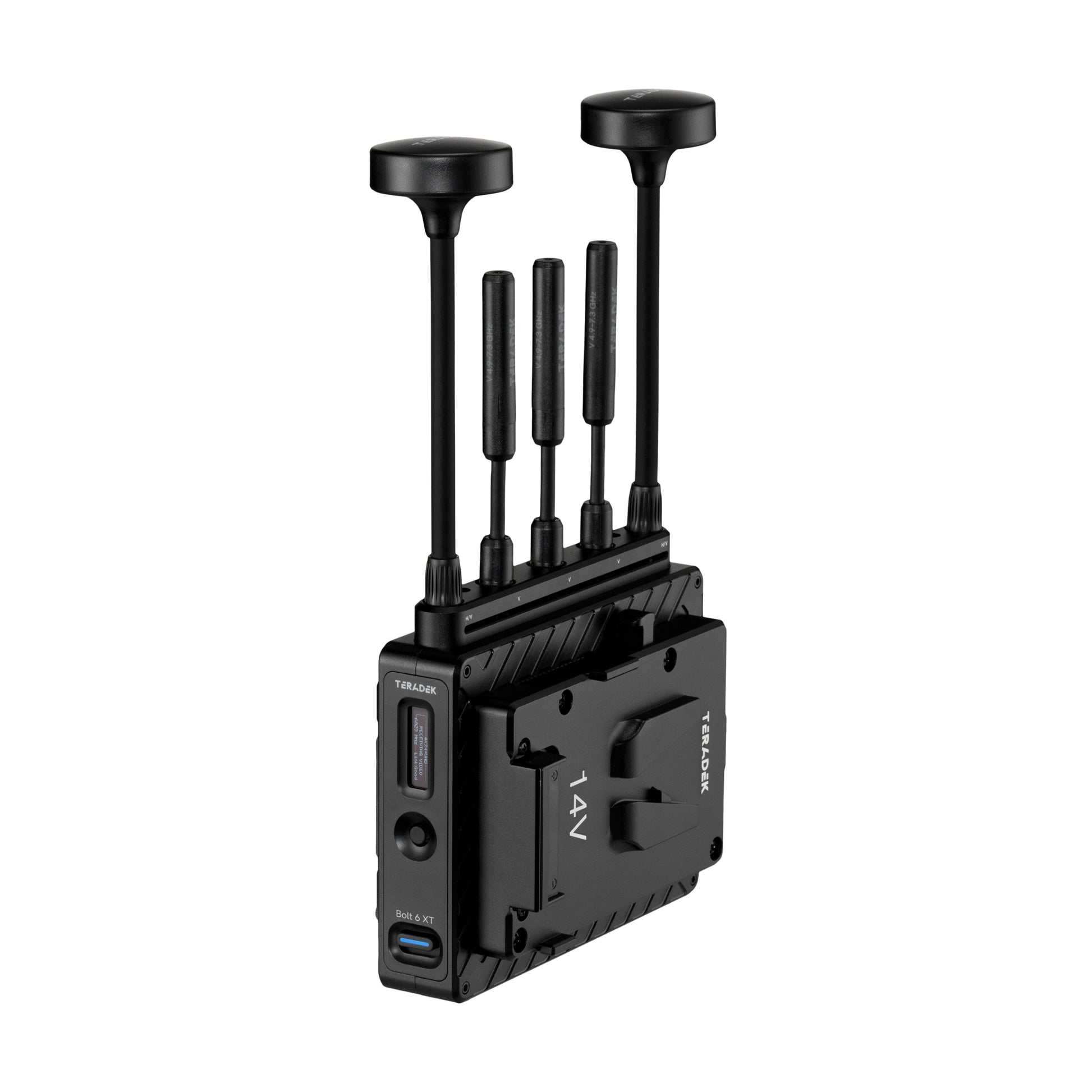

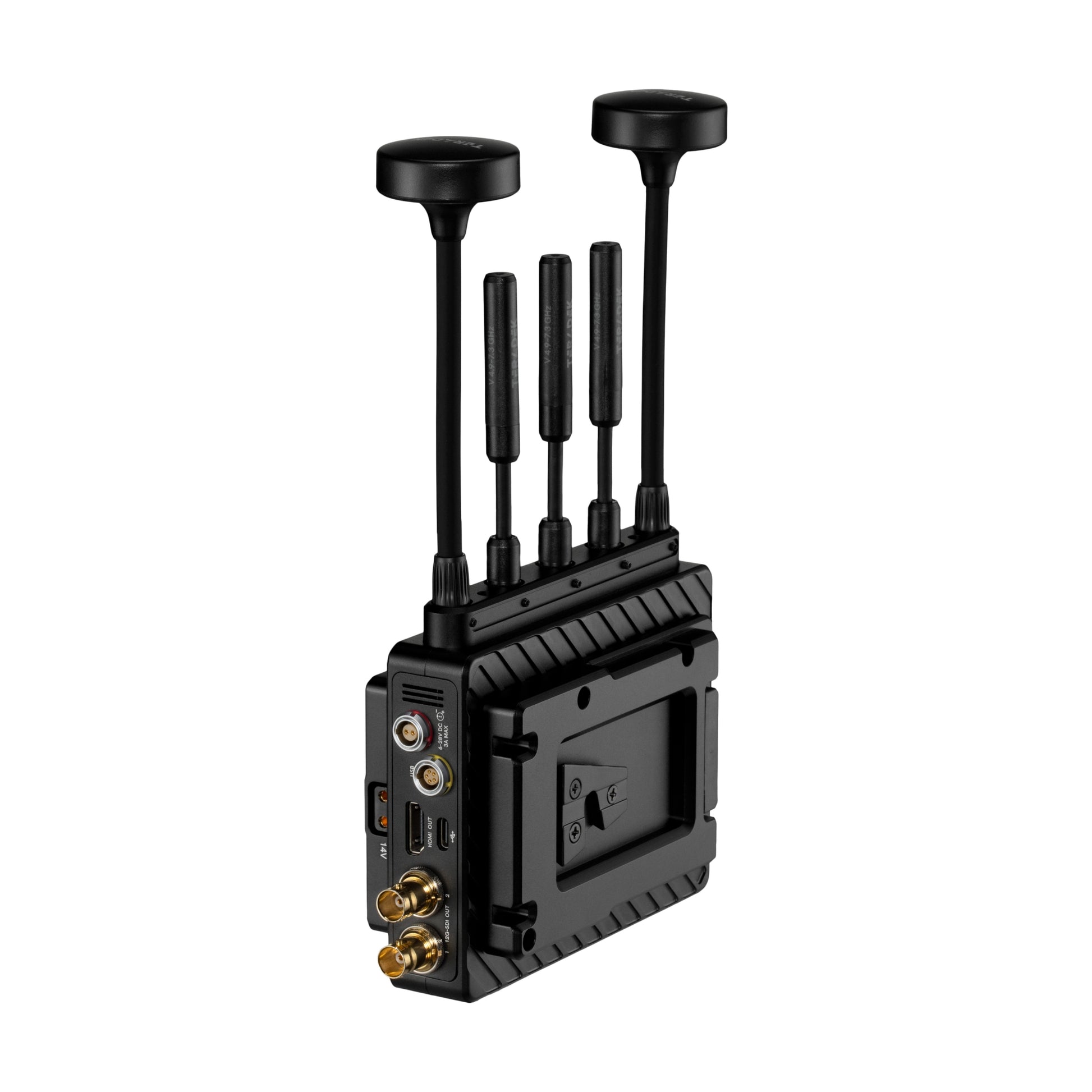

Teradek Bolt 6 XT Receiver MAX / V-Mount

Teradek Bolt 6 XT Receiver MAX / V-Mount

€6.948,53 be PVM
€6.948,53 be PVM
Išpardavimas Išparduota
Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

Bolt 6 XT RX is a wireless video receiver that supports up to 4K60 10-bit 422 HDR video over 12G-SDI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

Bolt 6 XT RX offer three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

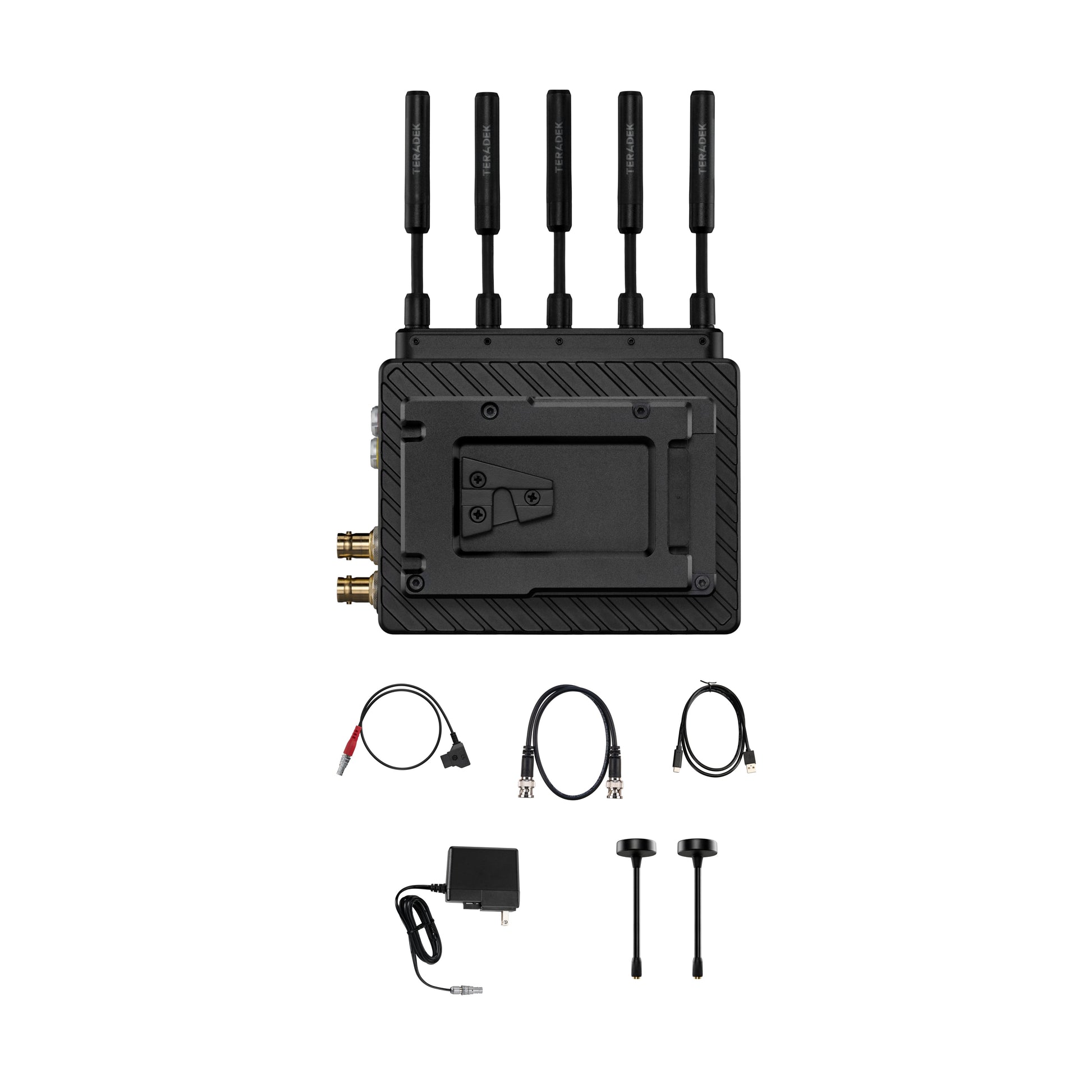

The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

Looking for even more robust signal connection when in the most challenging RF environments? Try using RF-X Auto-Switcher, built specifically for Teradek Bolt RXs to secure the best possible signal every time.

Technical Specifications

Video

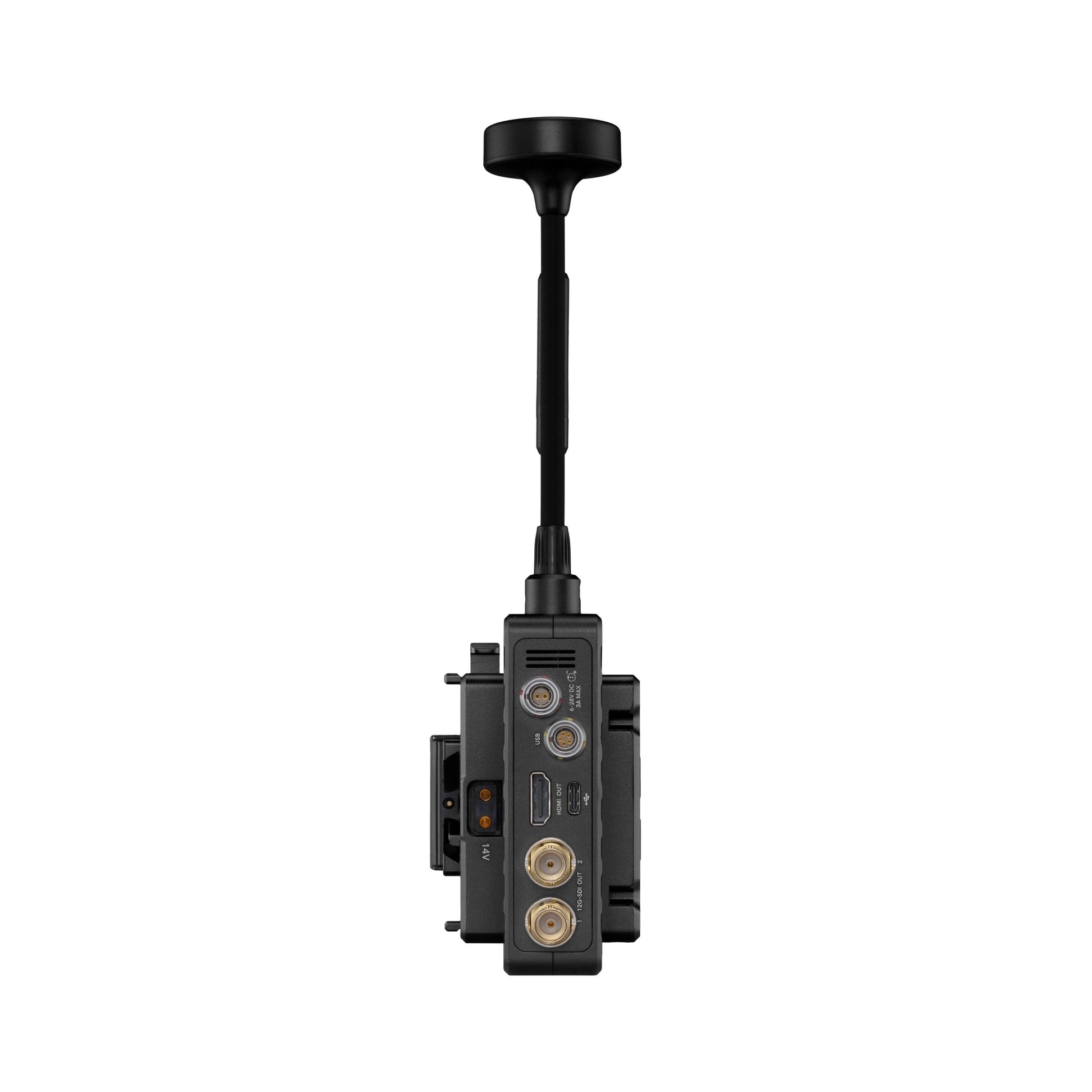

  • Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle
  • SDI Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
  • Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
  • Delay (TX to RX): <0.001sec
  • Output Video Scaling: Yes, Framerate and Resolution Scaling

Supported Resolutions

  • Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60

Video Processing

  • Video Compression: Visually Lossless
  • Color Correction: 17x17x17 3D LUT (supports 10-bit color)

Audio Processing

  • Audio Compression: 48kHz 24-bit PCM

Outputs

  • Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)

Physical

  • Dimensions: 112 x 139 x 27 mm
  • Weight: 430g (15.2 Oz)
  • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
  • Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes

Interfaces

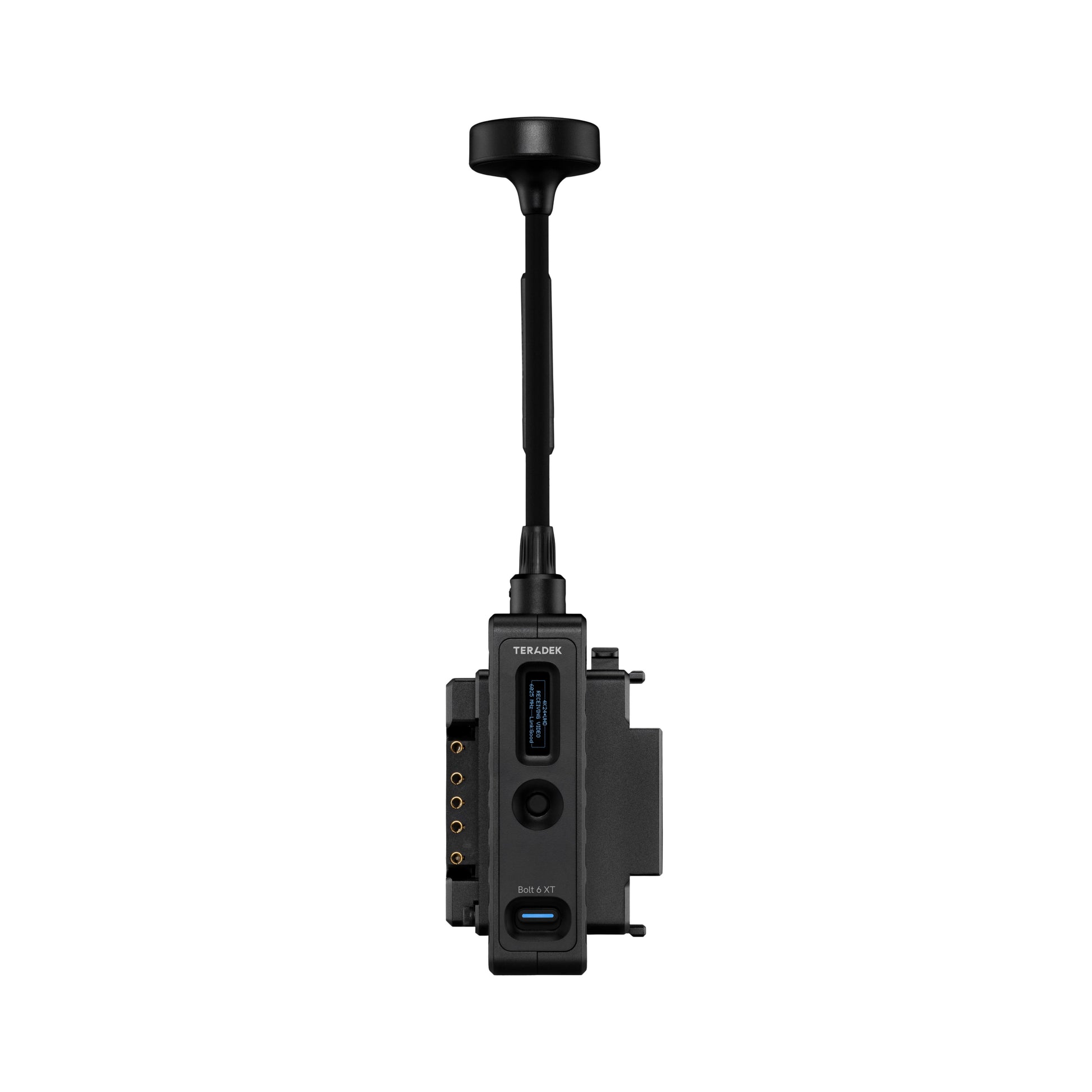

  • Configuration Interfaces: OSD with Menu, Joystick Navigation
  • Switches: On/Off Switch
  • USB Interface Functionality: Upgrade via USB-C 5pin Locking Connector CCU
  • Bluetooth: 2.4 GHz

Network

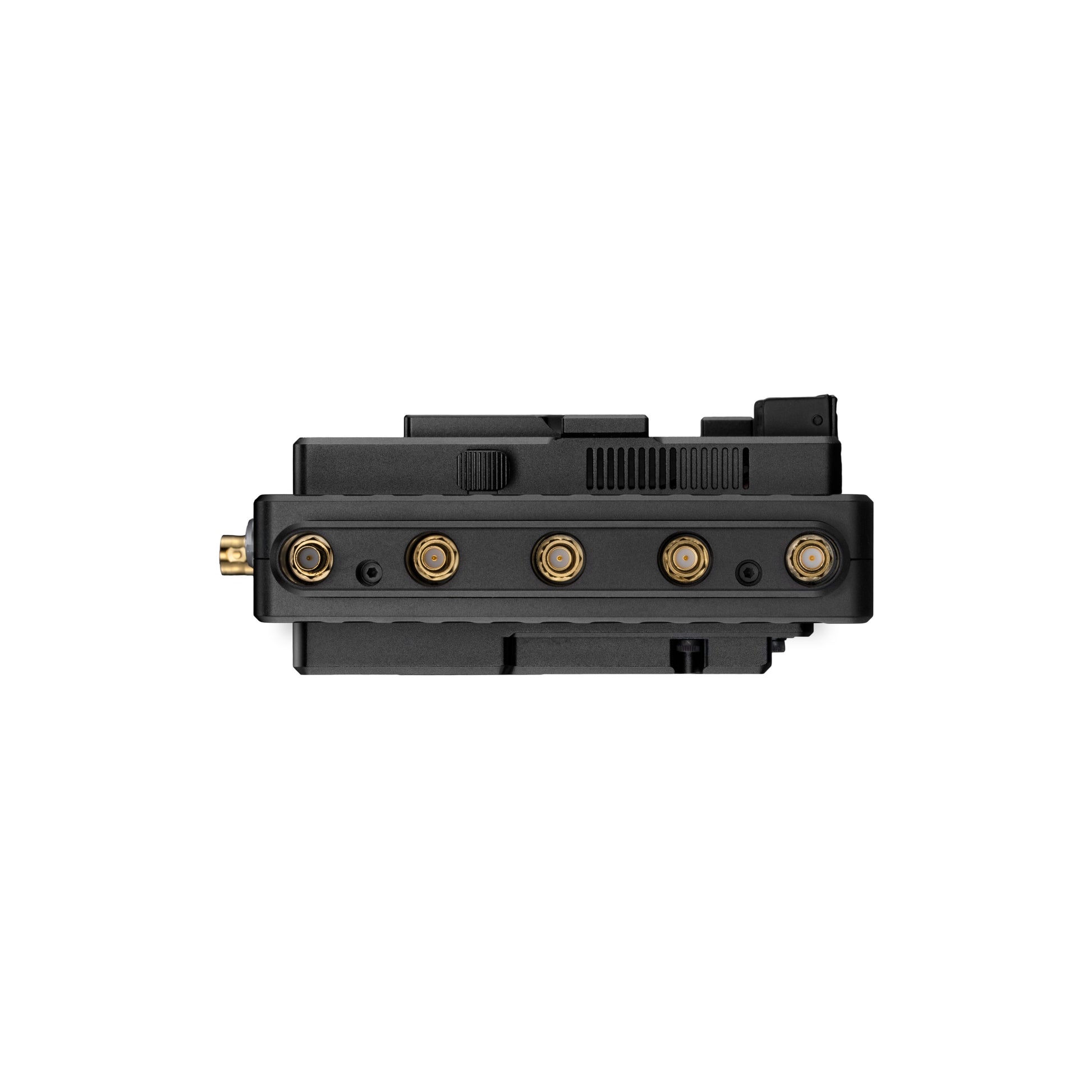

  • Antennas: 5 External 2 dBi antennas (included)
  • Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
  • RF Channel Selection: Auto, Manual
  • Encryption: AES-256, RSA-1024 key exchange
  • RF Power: 21 dbm EIRP
  • Range: Up to 5000 ft, line of sight
  • Unicast / Multicast: Can connect one Transmitter to up to 6 Receivers
  • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location

Power

  • Power Input: 2-Pin Circular locking Connector 6-28 VDC
  • Battery: None, optional Gold or V mount battery plate
  • Battery Runtime: 18 Watts

Environmental

  • Operating Temperature: 0-40℃

Product Details

  • SKU: TE-10-2322-V
  • EAN: 818264027332
  • Warranty: 12 months
  • Country of origin: United States
