Teradek Bolt 6 XT Receiver 1500 / No Mount

Name: Teradek Bolt 6 XT Receiver 1500 / No Mount
Brand: Teradek
SKU: TE-10-2312
Price: 5137.53 EUR
Availability: InStock

€5.137,53 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

Bolt 6 XT RX is a wireless video receiver that supports up to 4K60 10-bit 422 HDR video over 12G-SDI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

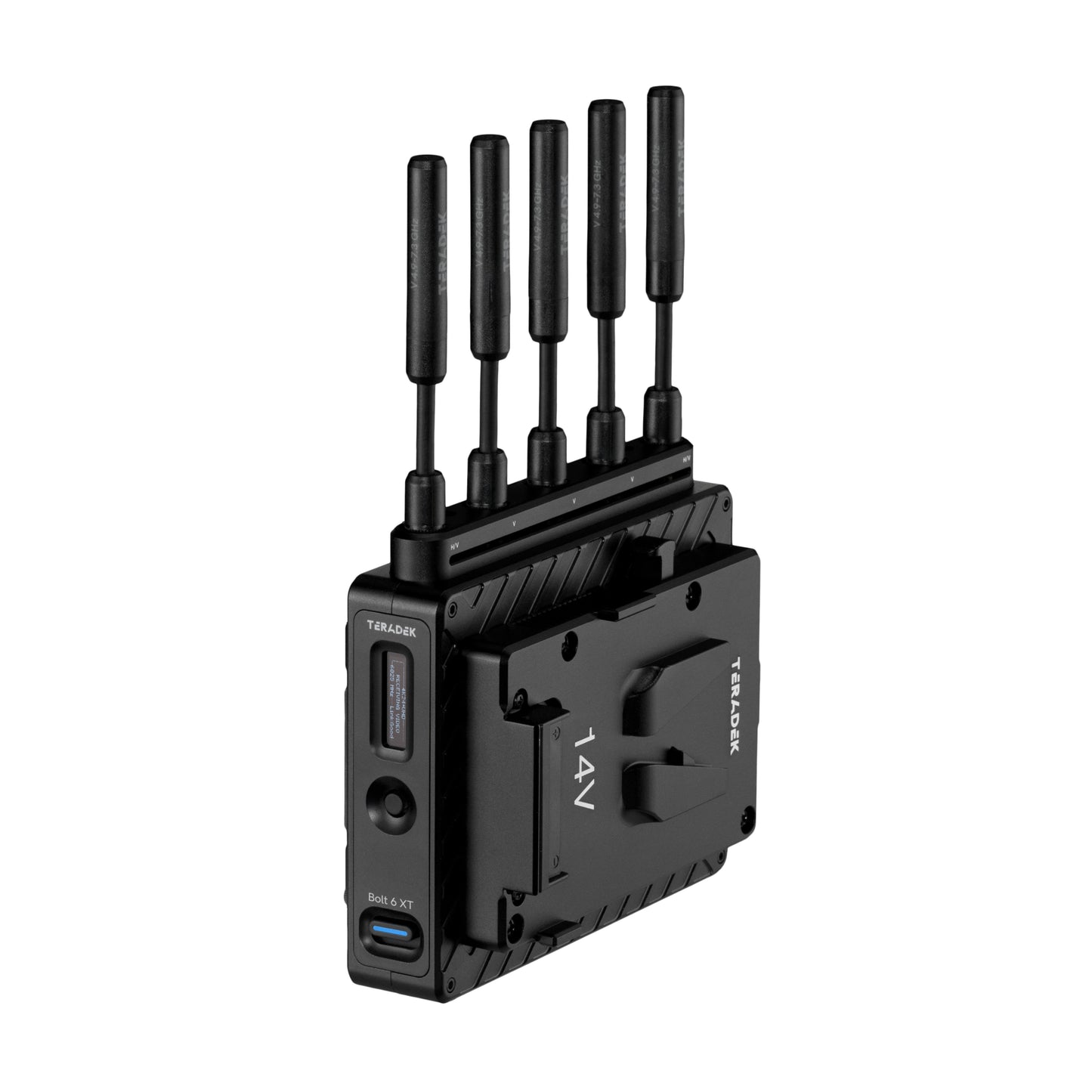

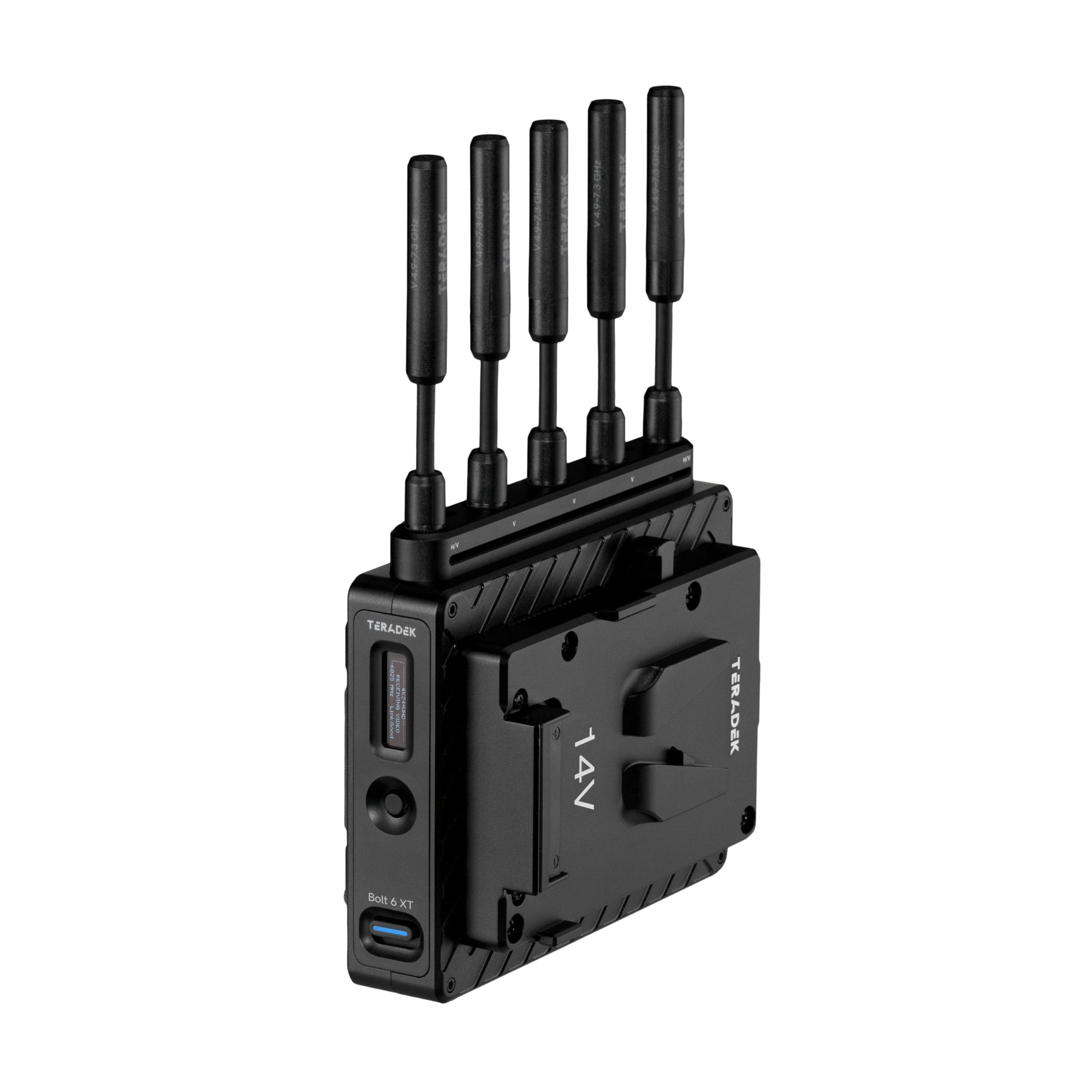

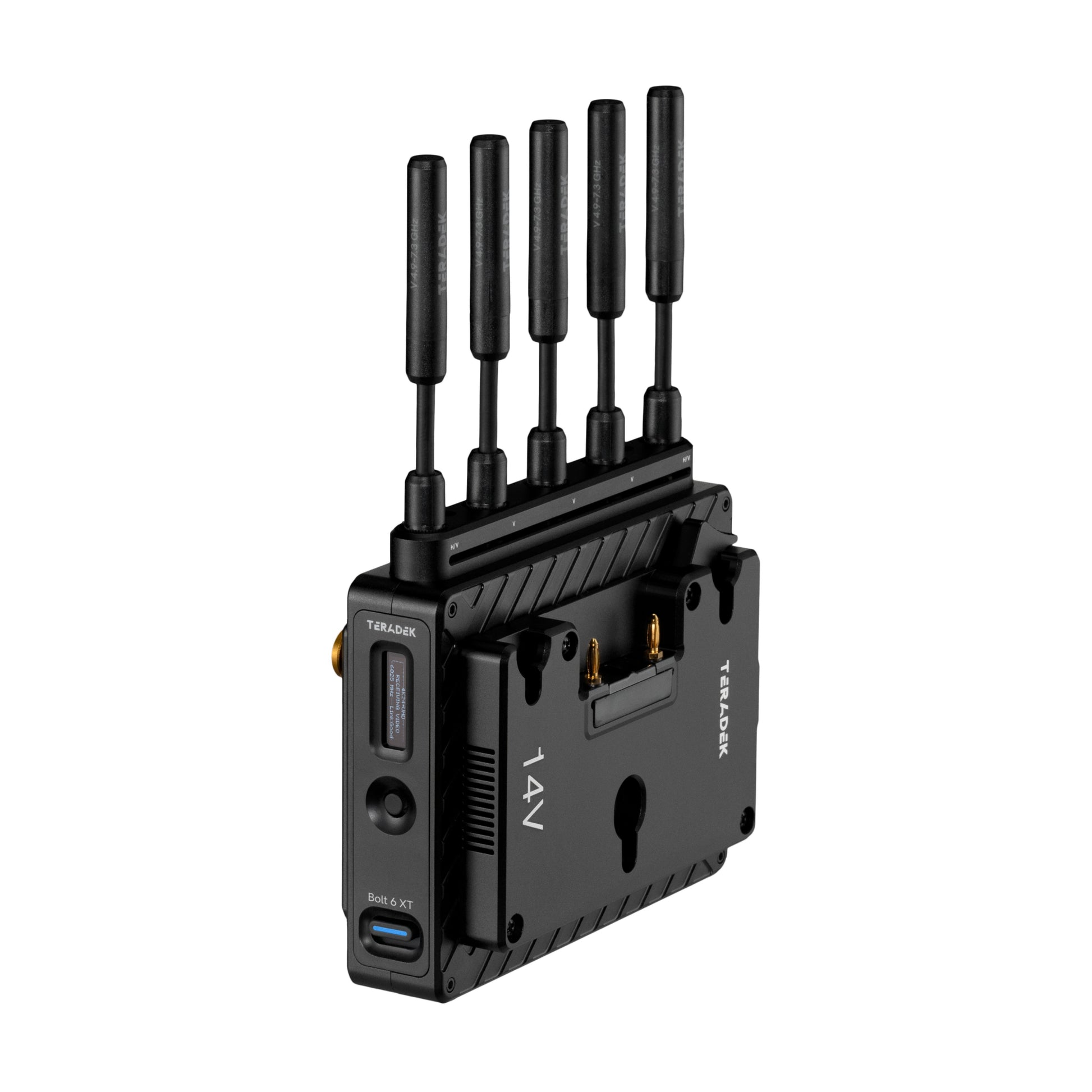

Bolt 6 XT RX offer three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

Looking for even more robust signal connection when in the most challenging RF environments? Try using RF-X Auto-Switcher, built specifically for Teradek Bolt RXs to secure the best possible signal every time.

Technical Specifications

Video

Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle
SDI Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay (TX to RX): <0.001sec
Output Video Scaling: Yes, Framerate and Resolution Scaling

Supported Resolutions

Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60

Video Processing

Video Compression: Visually Lossless
Color Correction: 17x17x17 3D LUT (supports 10-bit color)

Audio Processing

Audio Compression: 48kHz 24-bit PCM

Outputs

Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)

Physical

Dimensions: 112 x 139 x 27 mm
Weight: 430g (15.2 Oz)
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes

Interfaces

Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
USB Interface Functionality: Upgrade via USB-C 5pin Locking Connector CCU
Bluetooth: 2.4 GHz

Network

Antennas: 5 External 2 dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
RF Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
RF Power: 21 dbm EIRP
Range: Up to 1500 ft, line of sight
Unicast / Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
