Teradek Bolt 6 XT 10K RX Gold Mount (14/26V)

Bolt 6 XT 10K RX is a zero-delay video receiver, offering a remarkable wireless range of up to 10,000 feet (3 kilometers) over 5 or 6GHz frequencies. Compatible with both Bolt 6 and Bolt 4K transmitters, it integrates seamlessly into any existing Bolt 4K or Bolt 6 system.

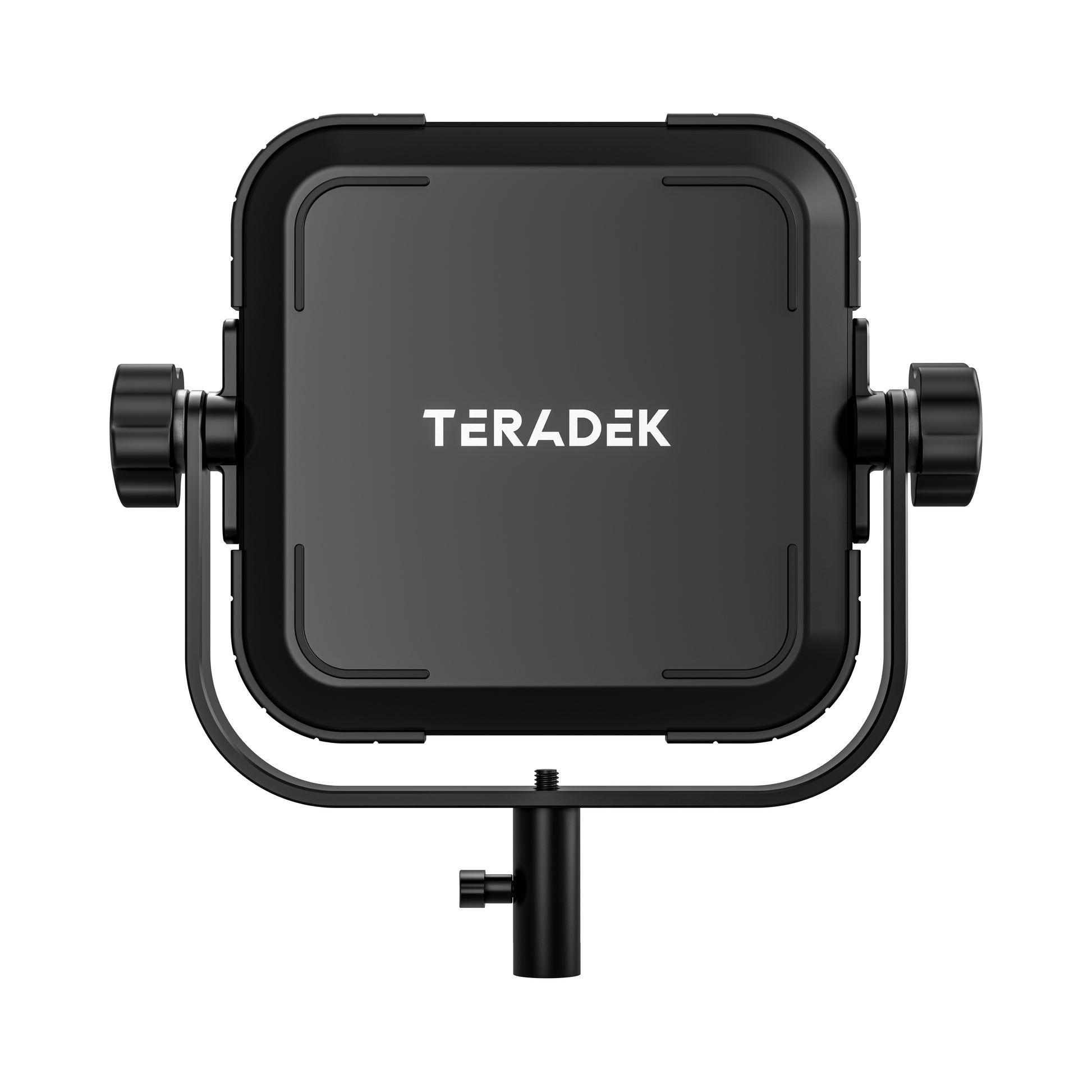

Delivering visually lossless 4Kp60 4:2:2 video via two 12G-SDI outputs, the Bolt 6 XT 10K RX ensures professional-grade image quality. Its enhanced directional antenna is specifically designed for superior RF performance, minimizing interference by focusing signal reception and benefiting from robust internal shielding.

Its all-in-one enclosure design not only boosts range and reliability in challenging RF environments but it also eliminates the hassle of external antenna cables. This results in a much cleaner setup, expediting deployment from its case onto a c-stand. To maximize range, enable Broadcast Mode on both Bolt 6 XT or LT TX.

Control your setup with ease using the Bolt App, which simplifies device pairing, allows fine-tuned frequency adjustments, and includes a built-in spectrum analyzer for advanced RF diagnostics.

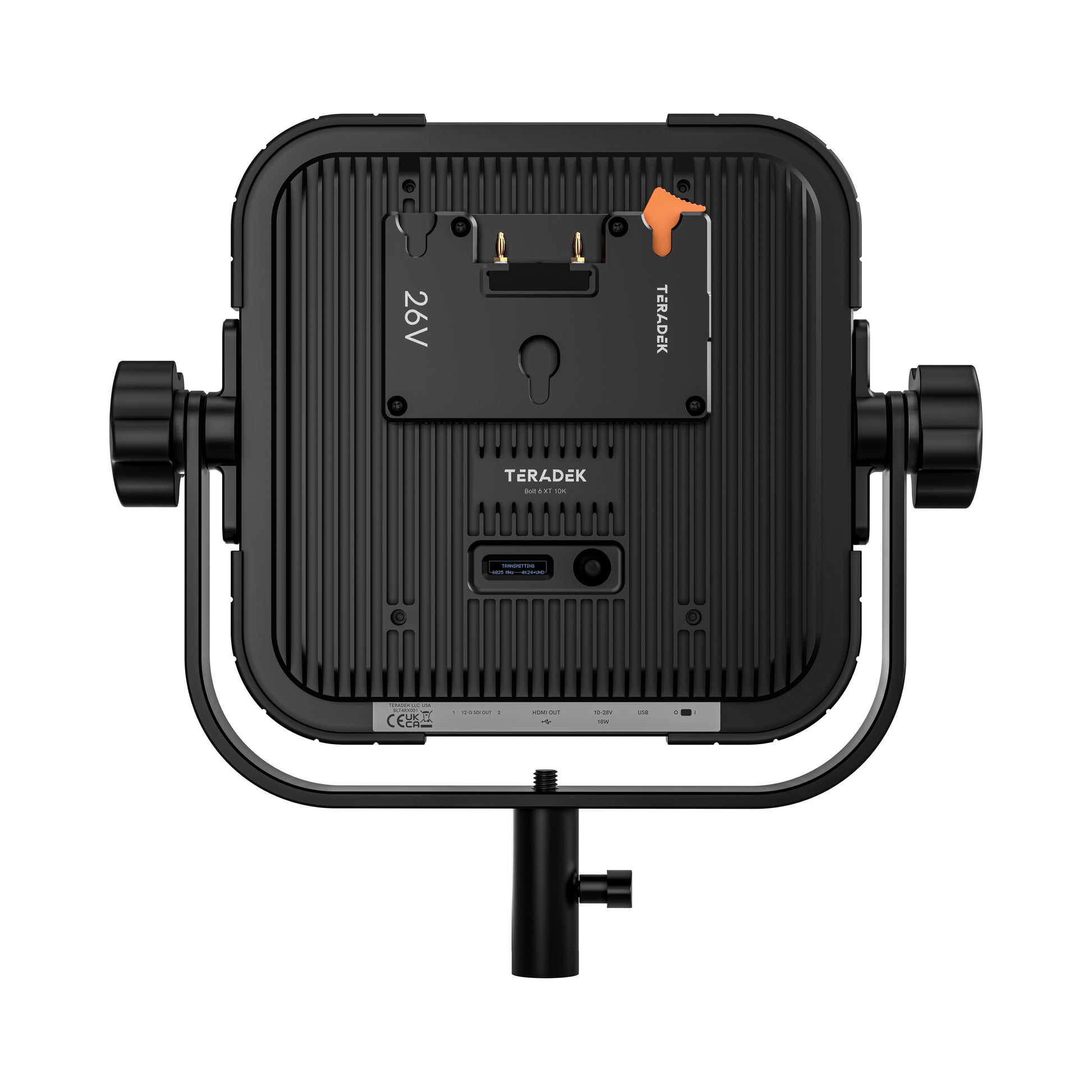

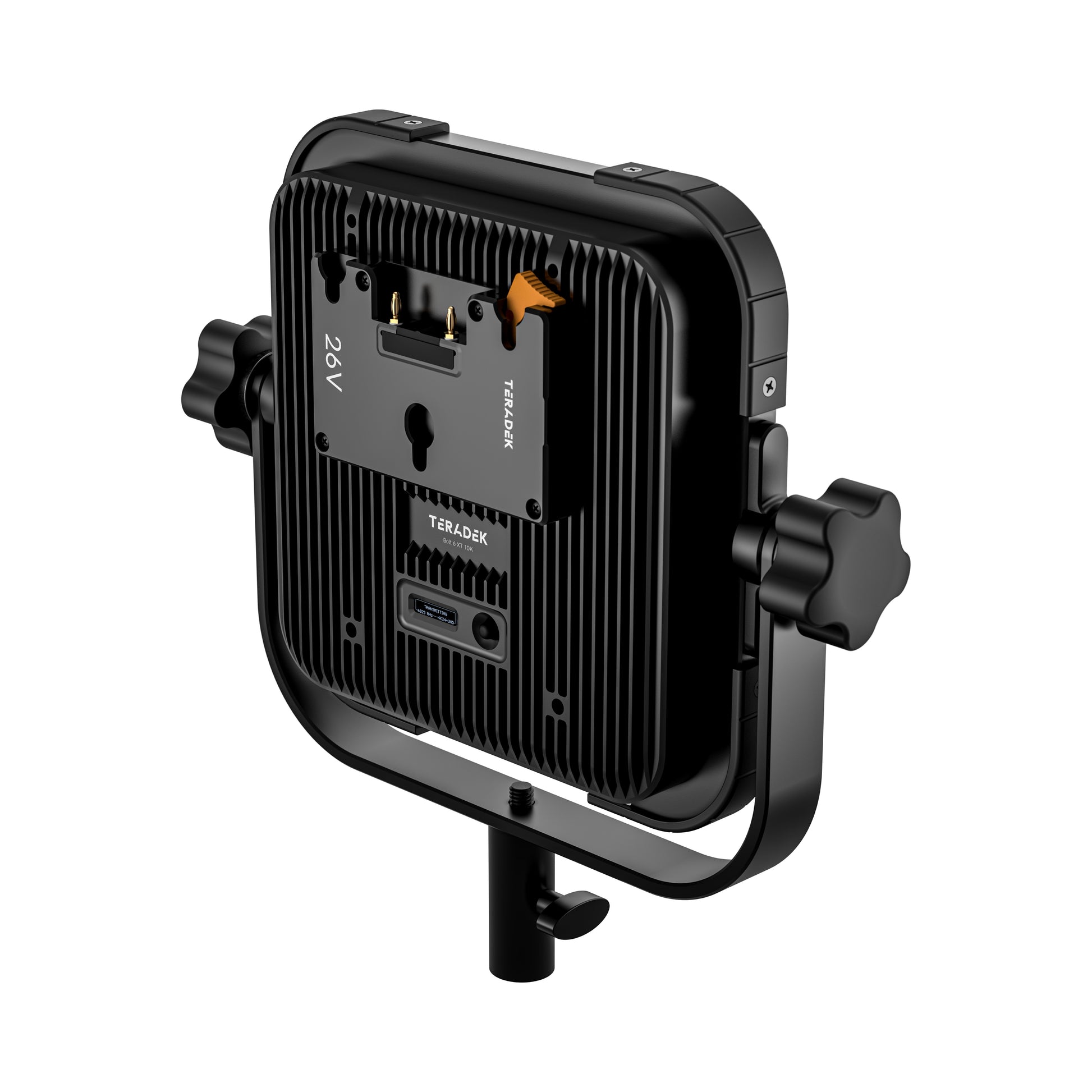

The Gold Mount version of the Bolt 6 XT 10K RX is compatible with 14V and 26V batteries.

Technical Specifications

Video

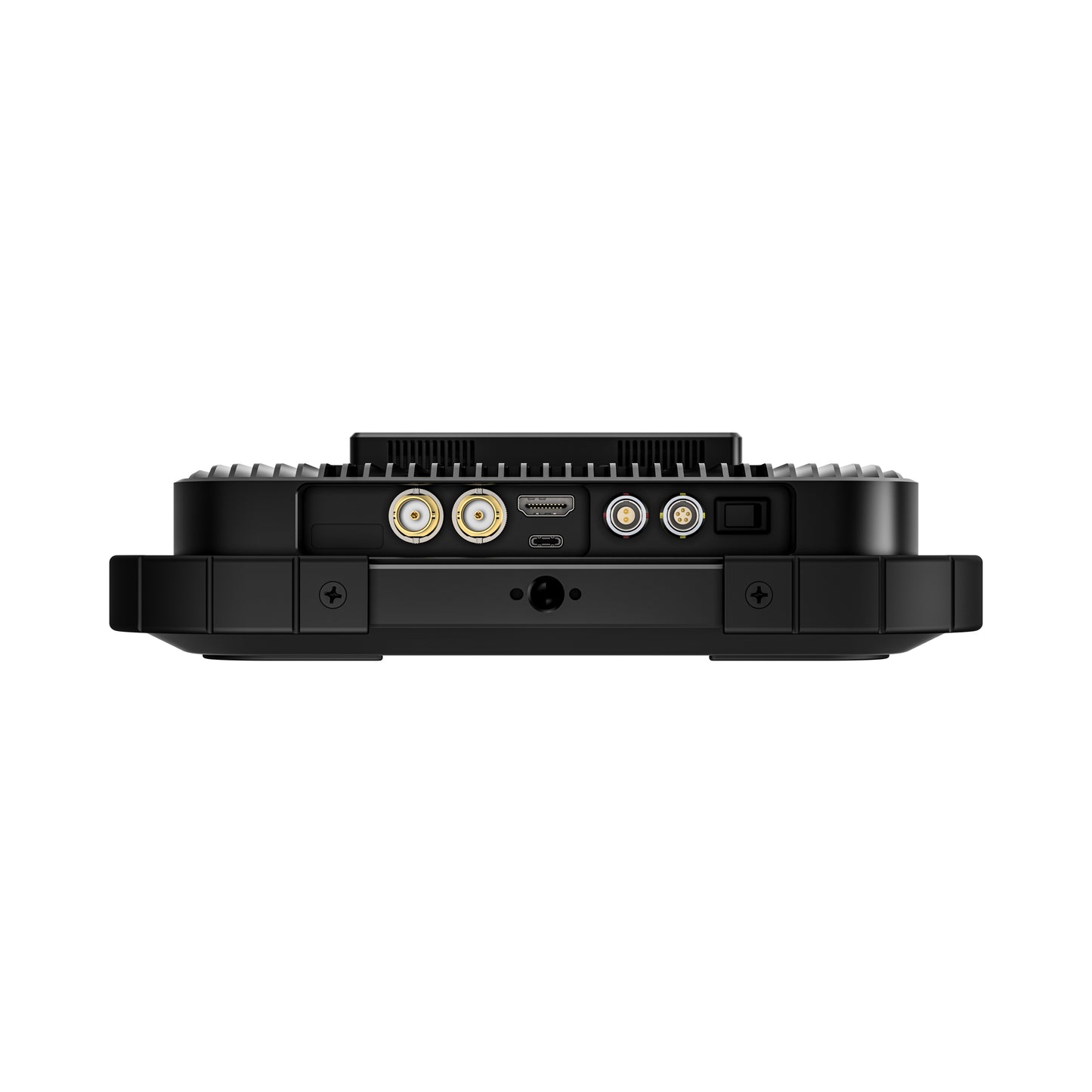

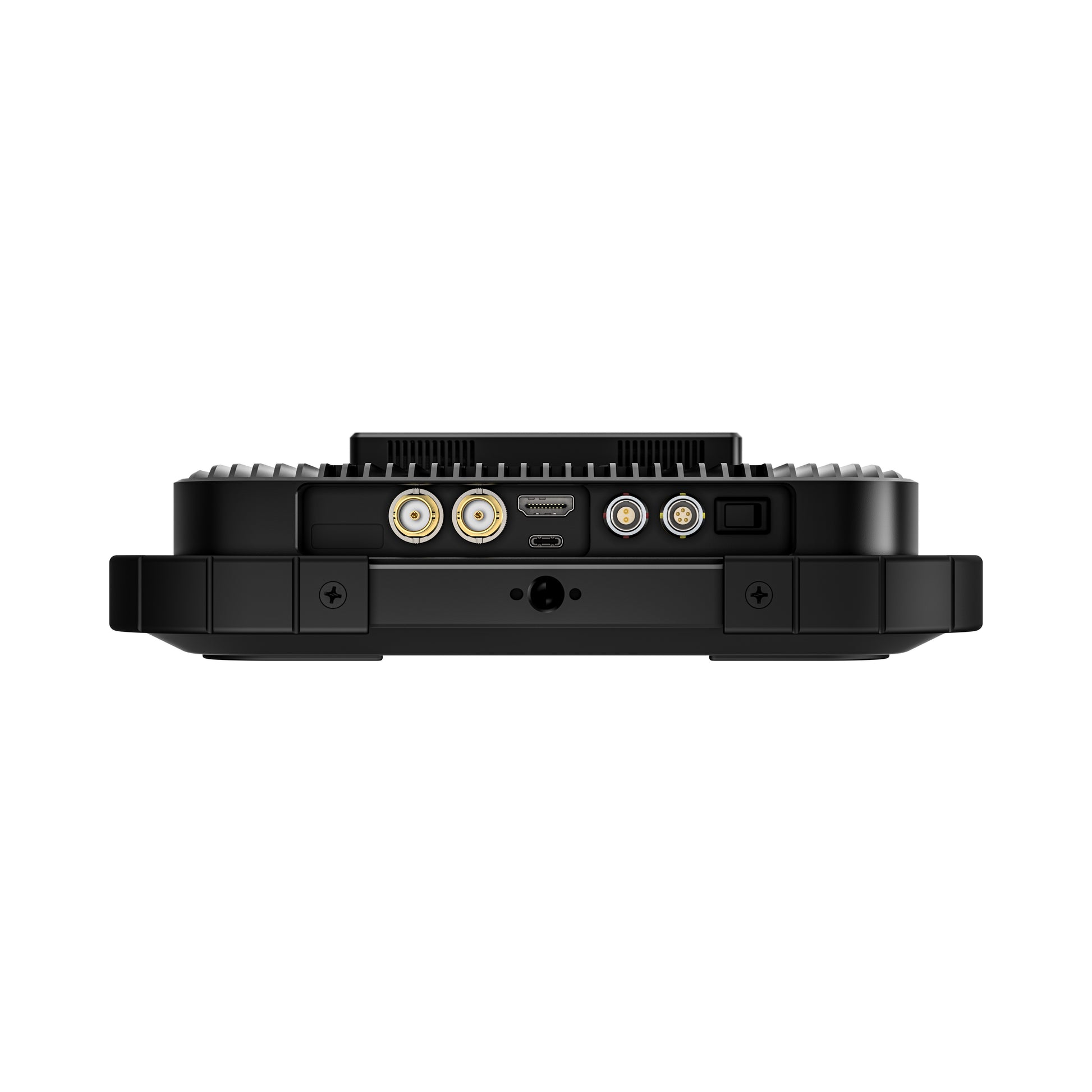

• Video Outputs: 1x 12G-SDI SMPTE 2082-1 standard/75 Ω (BNC x 1) 1x HDMI 2.0 Type-A receptacle
• SDI Ancillary Data Support: Supports timecode and start/stop flags from most camera manufacturers. Additional SDI metadata support for Arri and Sony cameras.
• Color Sampling: SDI: YCbCr 4:2:2, 10-bit HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit
• Delay (TX to RX): <0.001sec (without format conversions)
• Output Video Processing: Yes (deinterlacer, frame rate converter, scaler, 1D/3D LUTs)
• Other Tools: Spectrum Analyzer, Test Pattern Generator

Supported Resolutions

• Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60

Video Processing

• Video Compression: Visually lossless
• Test Pattern Generator Support: Yes
• Spectrum Analyzer: Yes
• Video format Conversion Support: Yes
• Color Correction: 17x17x17 3D LUT (Supports 10-bit color), 1D LUT330.47 x 55.4 x 322.36 mm / 13.011 x 2.18 x 12.69 inch

Audio Processing

• Audio Format: 48kHz 24-bit PCM

Outputs

• Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)

Physical

• Dimensions: 13 x 2.2 x 12.7 inch (330 x 55 x 322 mm)
• Weight: 4.44lbs. (2.01 kg)
• Construction: Milled aluminum (chassis), polyurethane antenna cover with rubber shock protection regulation-compliant PCB

Interfaces

• Configuration Interfaces: OSD with Menu Joystick Navigation
• Switches: On/Off Switch
• Mobile App: Bolt App (iOS and Android)
• Desktop App: Bolt Manager app (OSX and Windows)
• USB Interface Functionality: Upgrade via USB-C, 5-pin locking connector CCU
• Bluetooth Compatibility: Yes

Network

• Antennas: Integrated directional array panel antenna, 4.9-7.3GHz
• Wireless: DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz
• Bluetooth: 2.4GHz
• RF Channel Selection: Auto, Manual
• Encryption: AES-256, RSA-1024 key exchange
• RF Power: 21 dBm EIRP (max power)
• Range: Up to 10000ft [1524m] using broadcast mode with a Bolt 6 MAX TX, Approx. 5000ft. with broadcast disabled
• Unicast / Multicast: 750/1500/MAX: Can connect one transmitter to up to 6 receivers MAX (with Broadcast Mode enabled): Can connect one transmitter to unlimited receivers
• Noise Rejection: Coexists with Wi-Fi and 5GHz cordless phones, and operate up to 6 sets in the same location

Power

• Power Input: 2-Pin locking connector 10-28 VDC
• Battery: None, optional Gold or V-mount battery plate
• Nominal Power Consumption: 18 Watts

Environmental

• Operating Temperature: 0~40 deg-C

Product Details

• SKU: TE-10-2324-G
• EAN: 818264029961
• Warranty: 12 months
• Country of origin: United States
