Bolt 6 RX Monitor Module is a wireless video receiver that supports up to 4K30 10-bit 422 HDR video. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

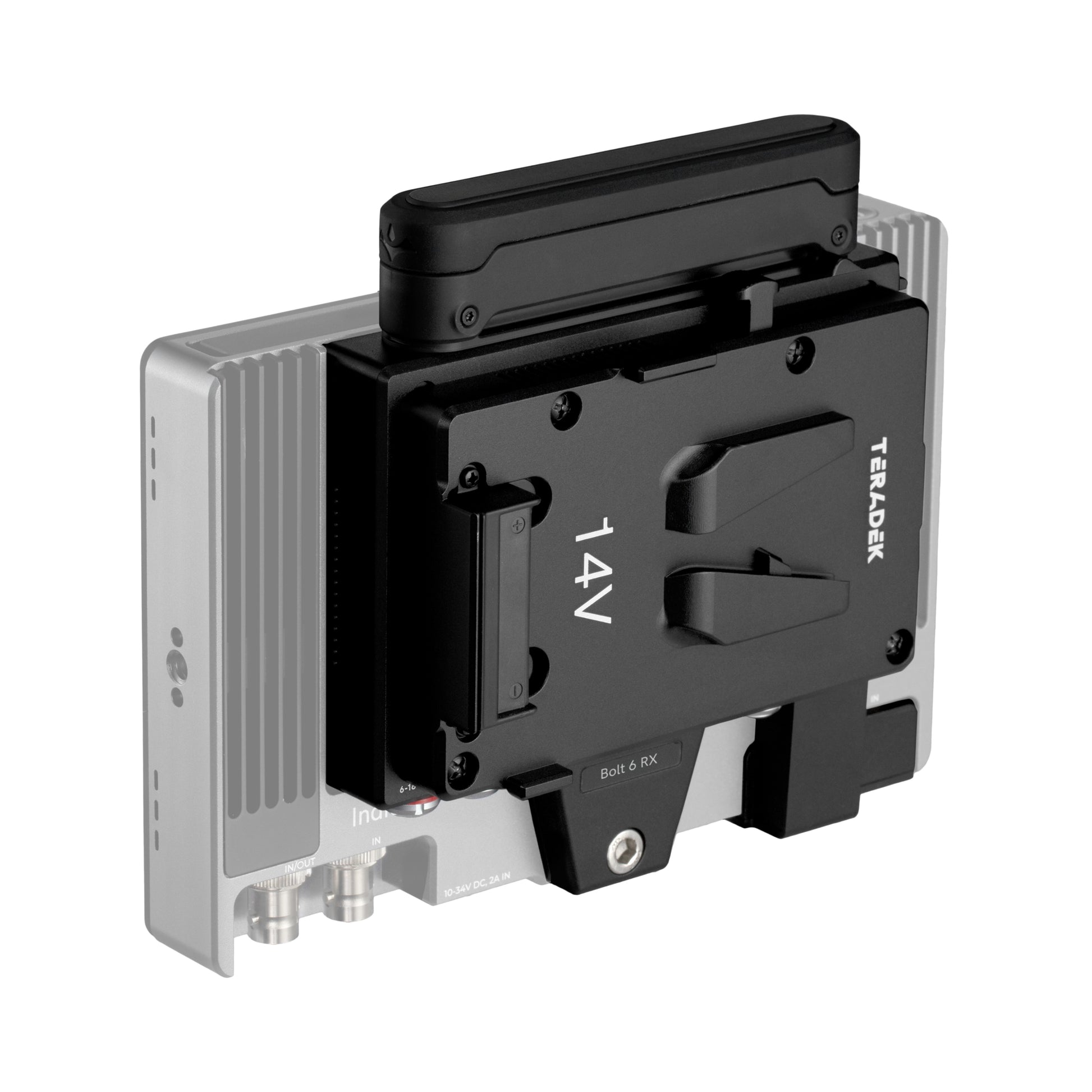

The Bolt 6 Receiver Monitor Module easily attaches to the back of SmallHD’s Cine 7, 702 Touch, and Indie 7 Smart Monitors. With this direct integration, the Bolt 6 and Smart monitor can share power and video, allowing you to reduce the amount of cables on set. With the Bolt 6 Monitor Module, Wireless Camera-Control is also possible because it integrates directly into SmallHD Smart Monitors.

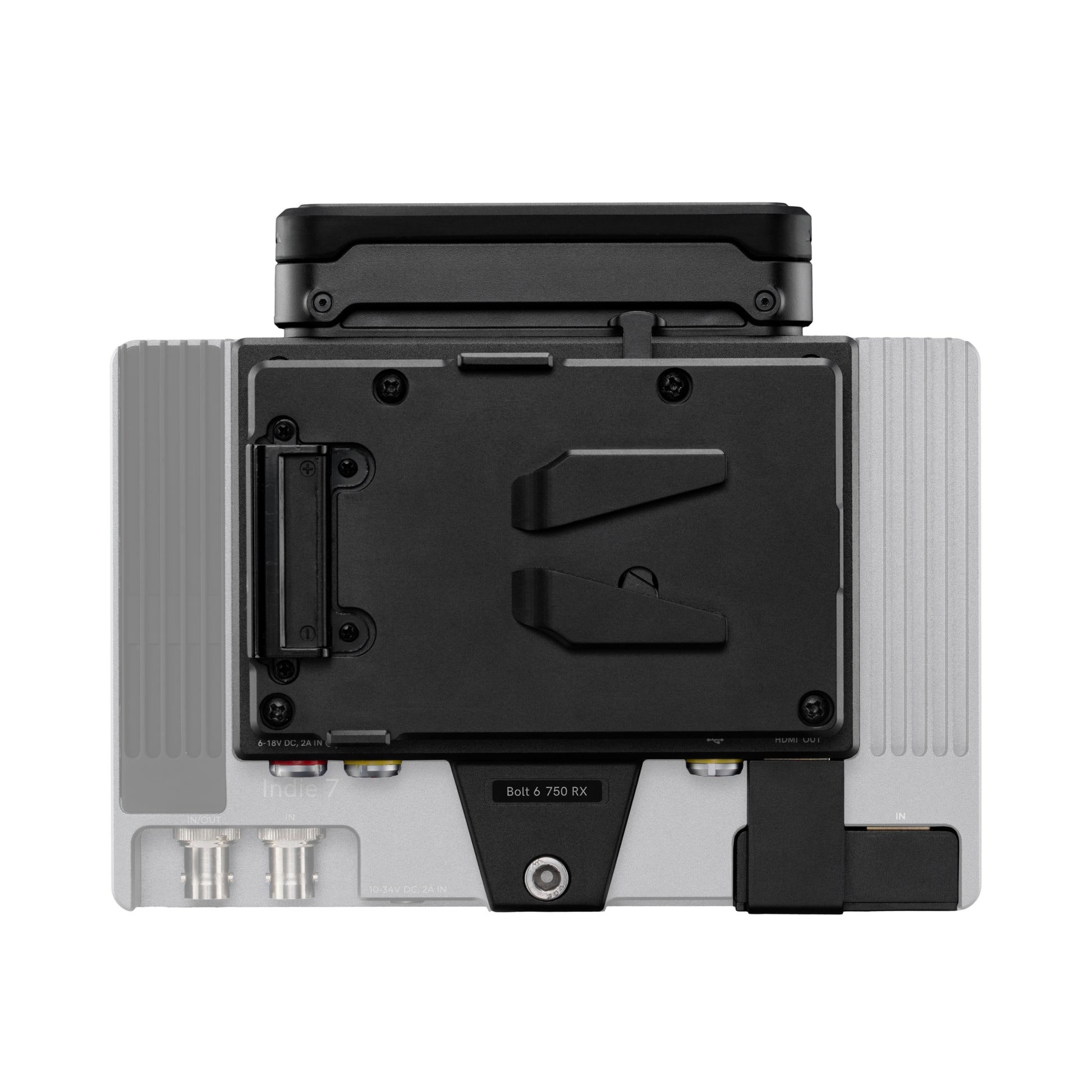

Bolt 6 Monitor Module RX offers two line-of-sight options: 750 ft. and 1500 ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

The 750 model includes V (vertical) Antennas. 1500 model includes both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

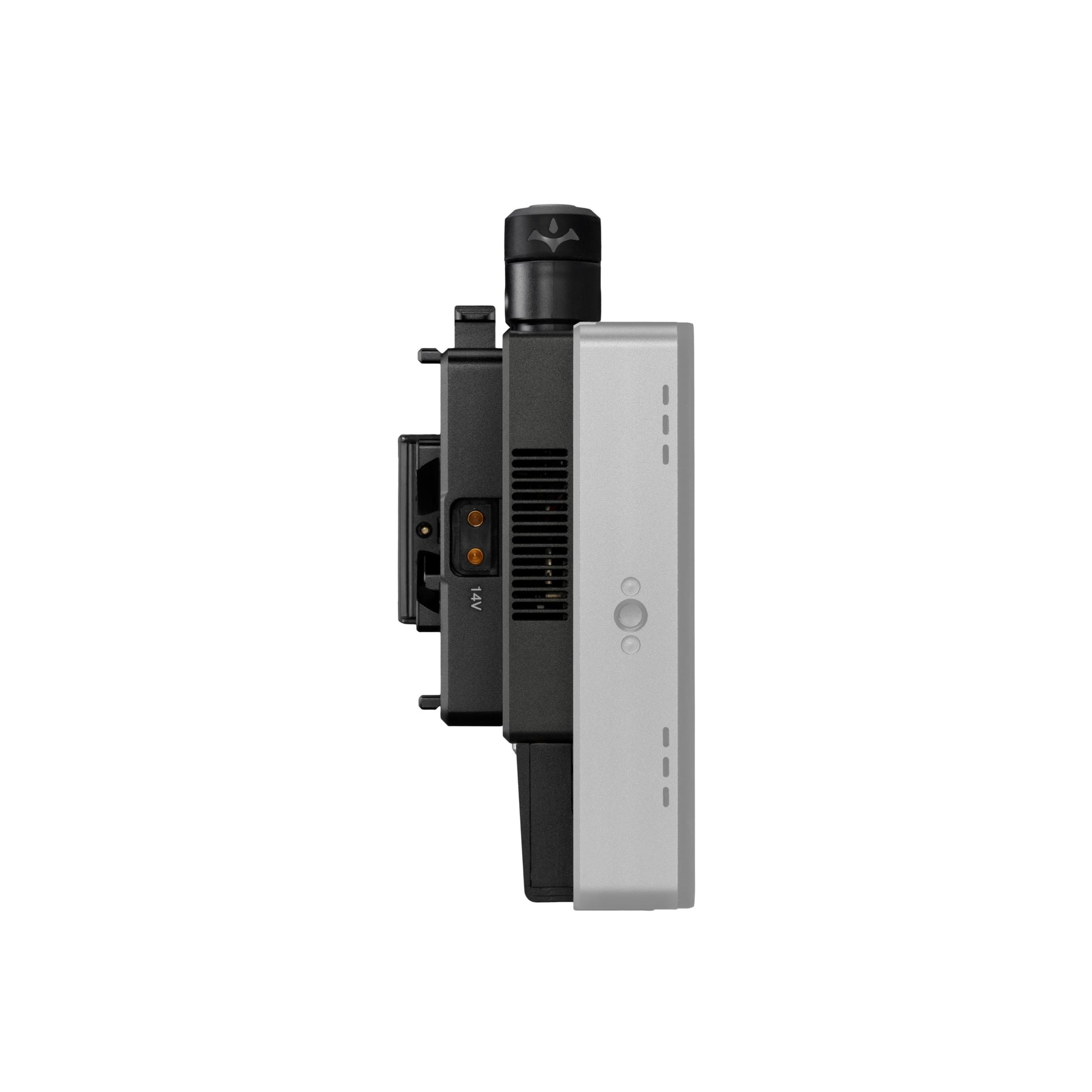

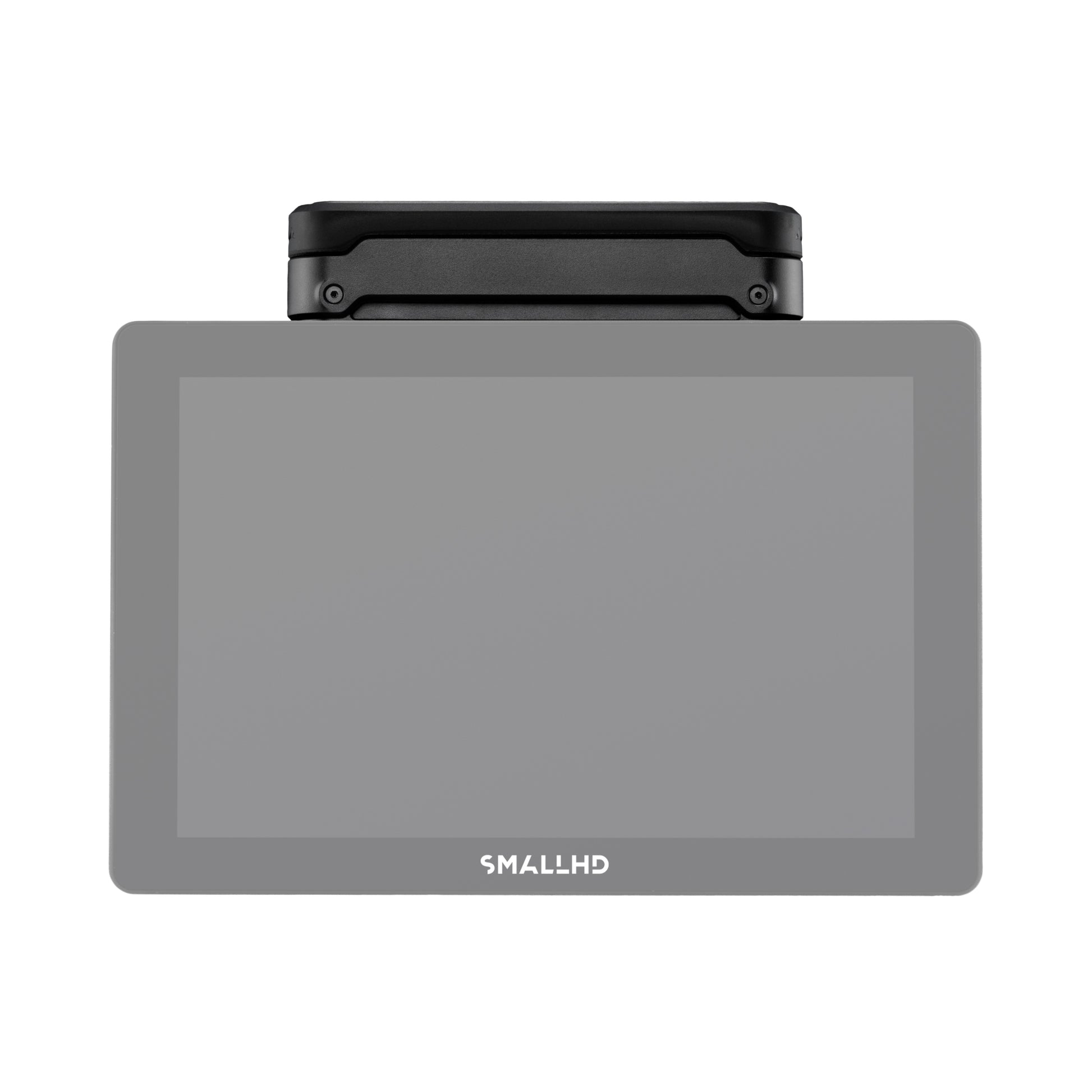

Optionally, the 750 model of Bolt 6 Monitor Module RX can include a permanent internal antenna to allow for reliable zero-delay transmission in a more compact and durable form factor.

Read the Bolt 6 Internal Antenna FAQ to learn more about the optional built-in internal antennas.

Technical Specifications

Video

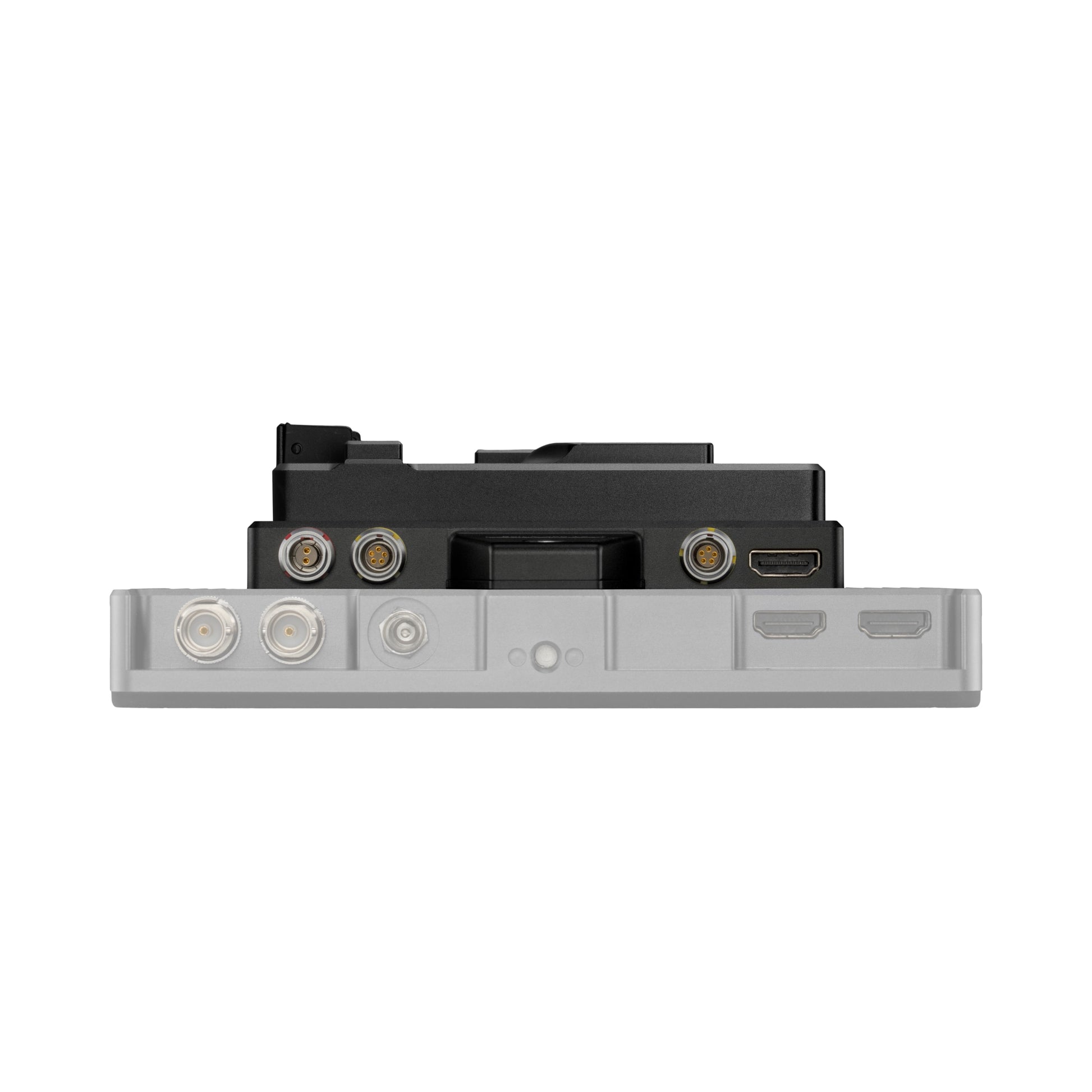

Video Outputs: 2 x HDMI 1.4b Type-A receptacle
SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay (TX to RX): <0.001sec

Supported Resolutions

Supported Resolutions: 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60

Video Processing

Video Compression: Visually Lossless
Color Correction: None

Audio Processing

Audio Compression: 48kHz 24-bit PCM

Outputs

Audio Output: Embedded HDMI Audio Output (2 Channel)

Physical

Dimensions: 122mm x 94mm x 27mm
Weight: 292g (10.3oz)
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: SmallHD 7" Monitor

Interfaces

Configuration Interfaces: SmallHD Monitor UI
Mobile App: Bolt App
USB Interface Functionality: SmallHD Monitor UI 2x 5pin Locking Connector CCU (Host)
Bluetooth: Via SmallHD Monitor

Network

Antennas: 5x Internal 2dBi antennas
Wireless: DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz
RF Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
RF Power: 22 dbm EIRP
Range: Up to 750 ft, line of sight
Unicast / Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Interoperability (Compatibility): Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)
