Teradek BIT-793 Bolt RX Single Female V-Mount Batt. plate 14.4V Cable (Approx)

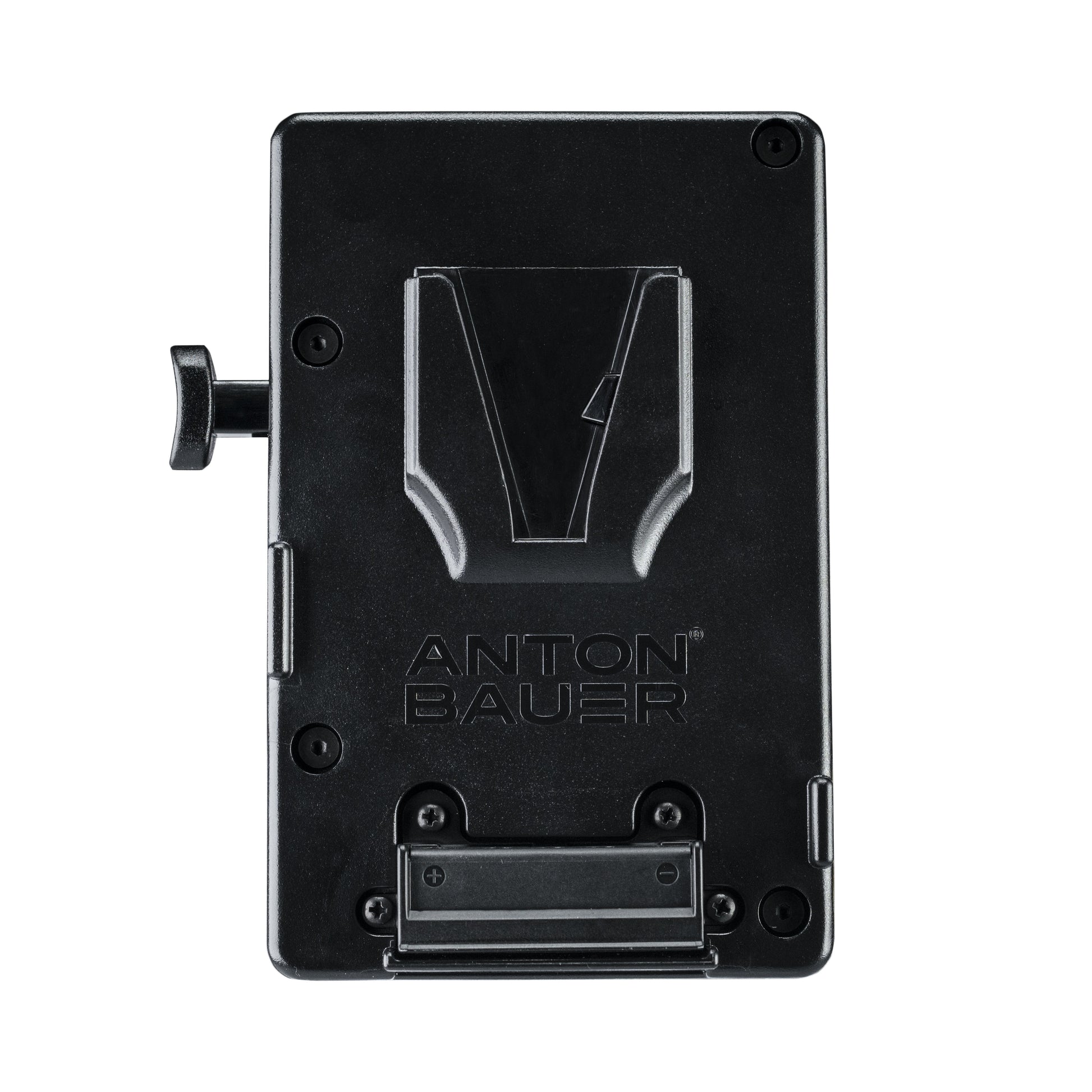

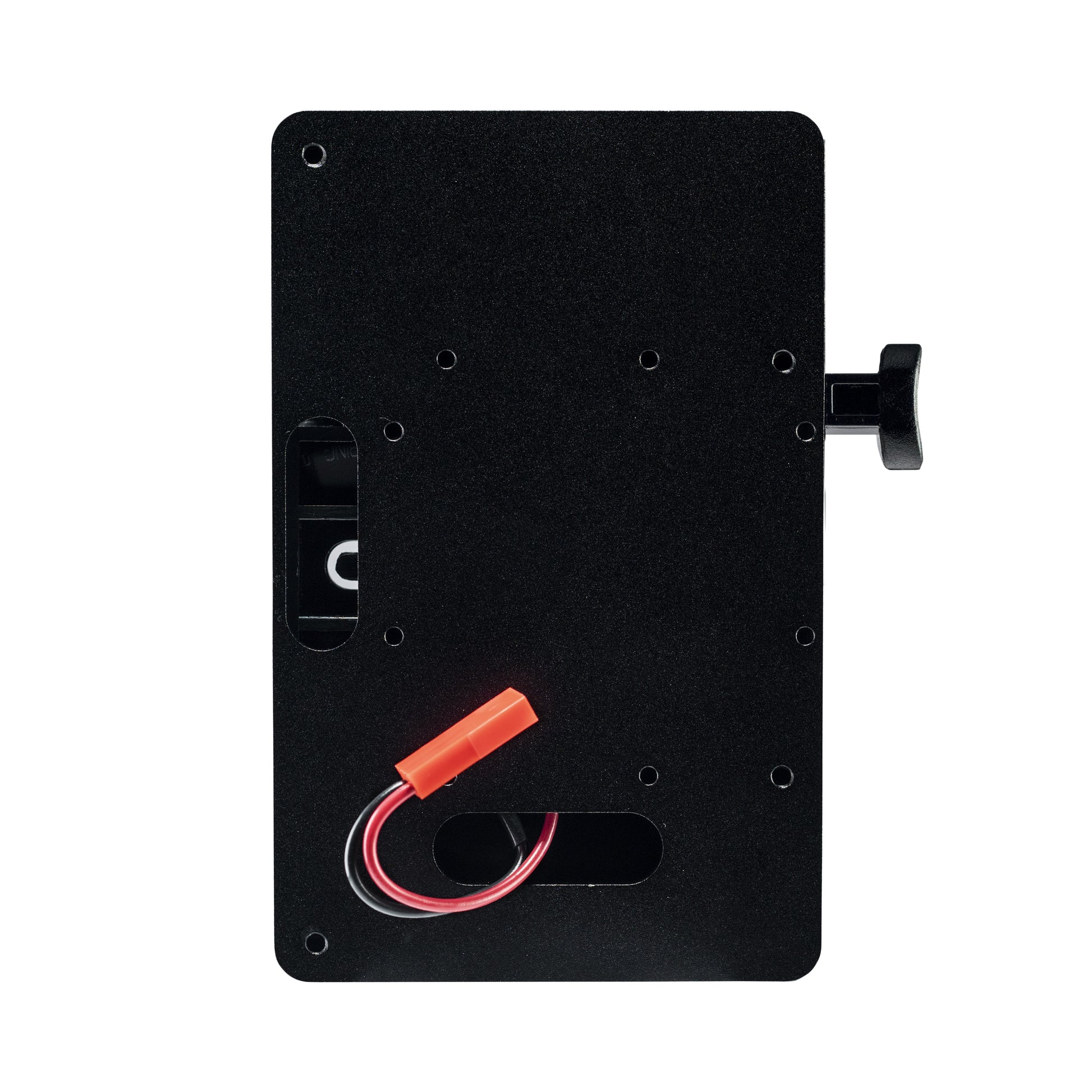

This Single (Female) Battery Plate from Teradek allows you to secure a Gold or V-Mount battery directly to Teradek Bolt 1000 LT, Sidekick XT and 500 XT Receivers and provide power internally. Machine Anondized, with 2 P-Tap outputs can provide power for additional accessories.

Please select which mounting option (Gold or V-Mount) you would like.
Please be aware, there are other battery type plate options available, including Sony L-series and Canon LP-E6.

To install:

• Position both the receiver and battery plate facing up with the video connectors on the receiver facing right.
• Remove the cover plate on the receiver to expose the internal JST connector.
• Place the riser plate in between the receiver and the battery plate so that the holes on the riser plate align with the threaded holes on the receiver.
• Connect the internal connector from the battery plate to the receiver’s internal connector, then insert and tighten the four M2 x 6mm Phillips screws.
• Insert the M3 x 12mm screws through the battery plate and riser plate, into the receiver.
• Tighten the screws.

Technical Specifications

productId

• productId: 656095674413

physical

• material: 6061-T6 Aluminum
• dimensions: 3.36 x 6.17 x 3.06 in
• weight: 15.3 oz
• connector: a JST connector to connect to a Bolt XT or LT and screws to mount directly on top of a Bolt It is compatible with: Bolt 1000 LT Receivers Bolt 500 XT Receivers Bolt XT Sidekick

Product Details

• SKU: TE-BIT793
• EAN: 818264020722
• Warranty: 12 months
• Country of origin: United States
