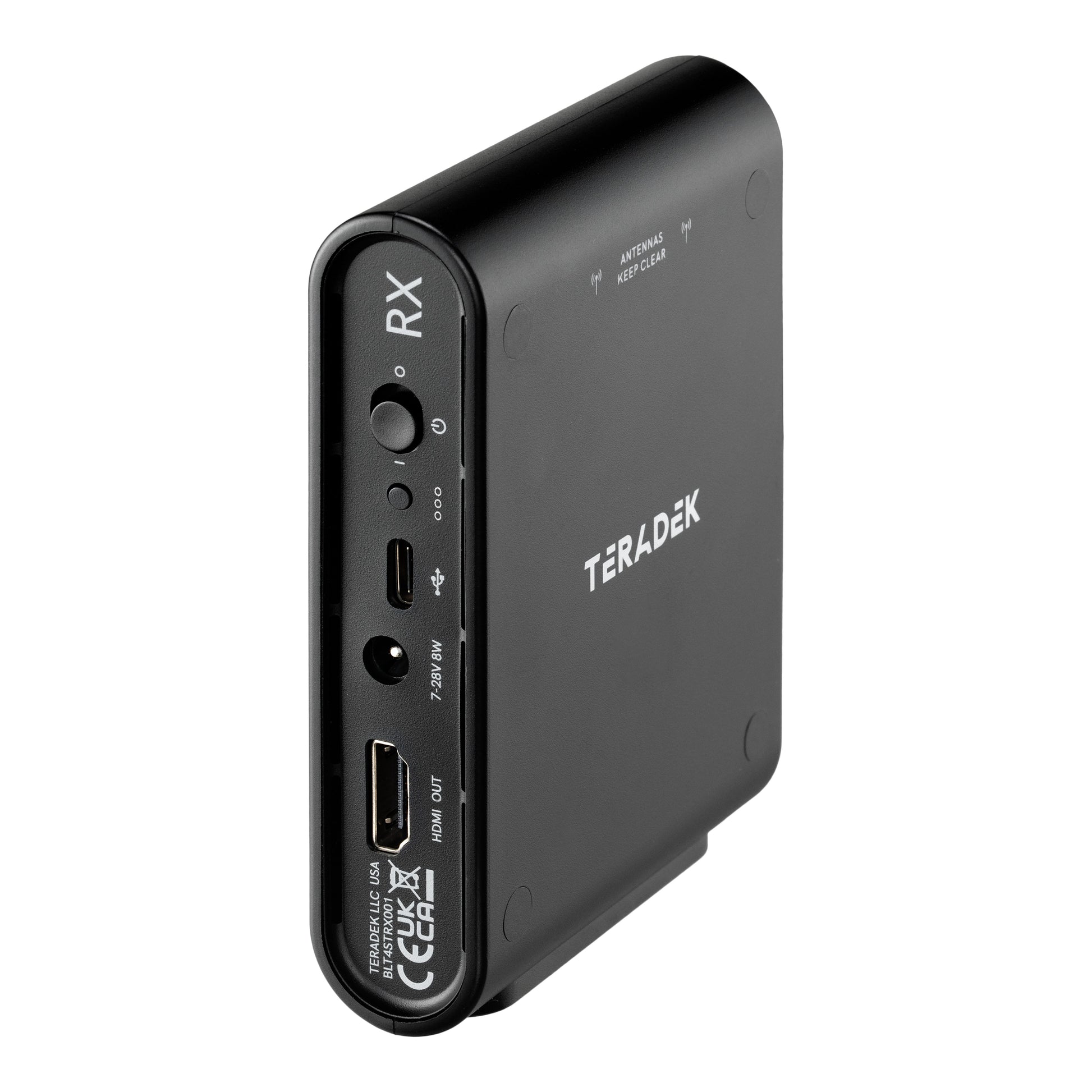

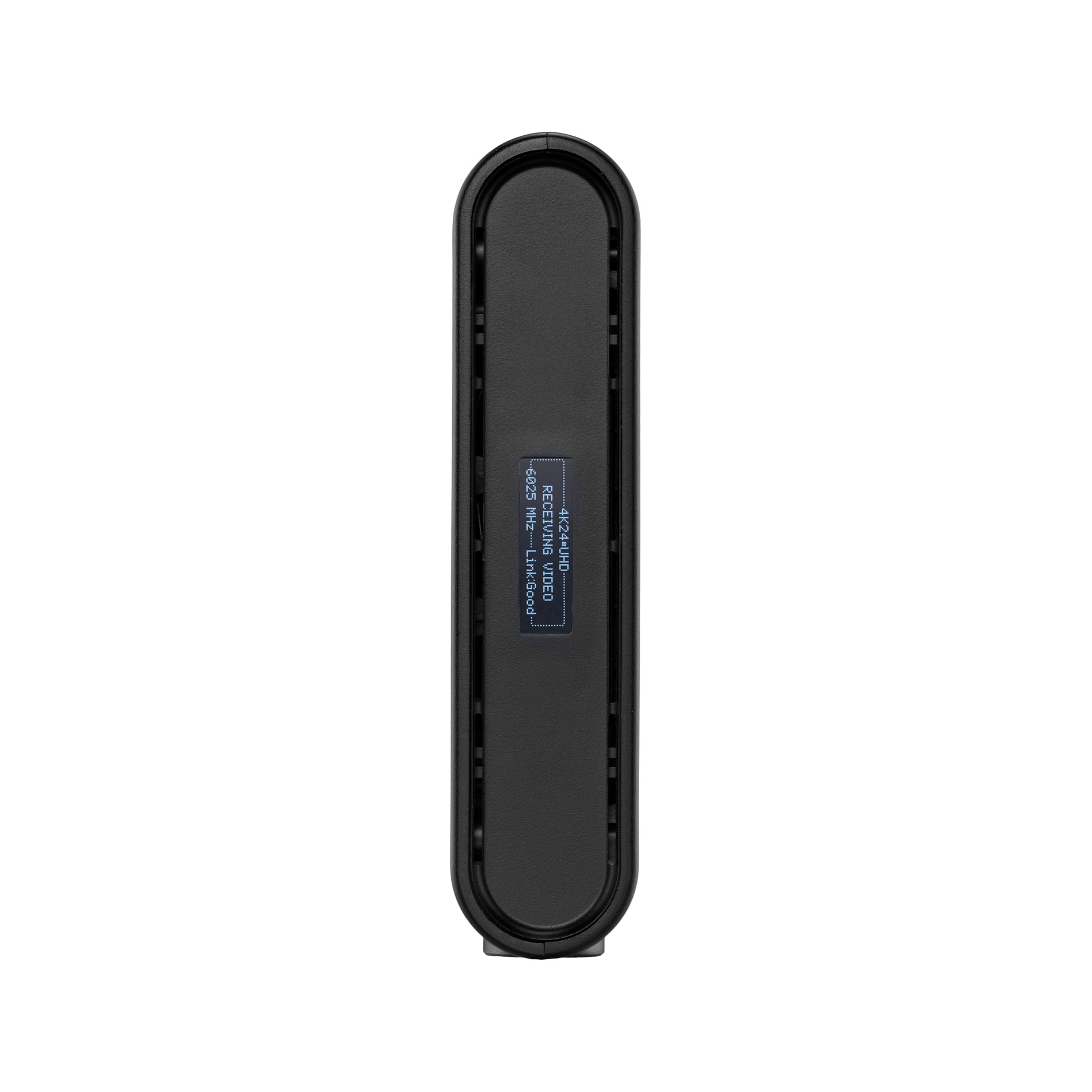

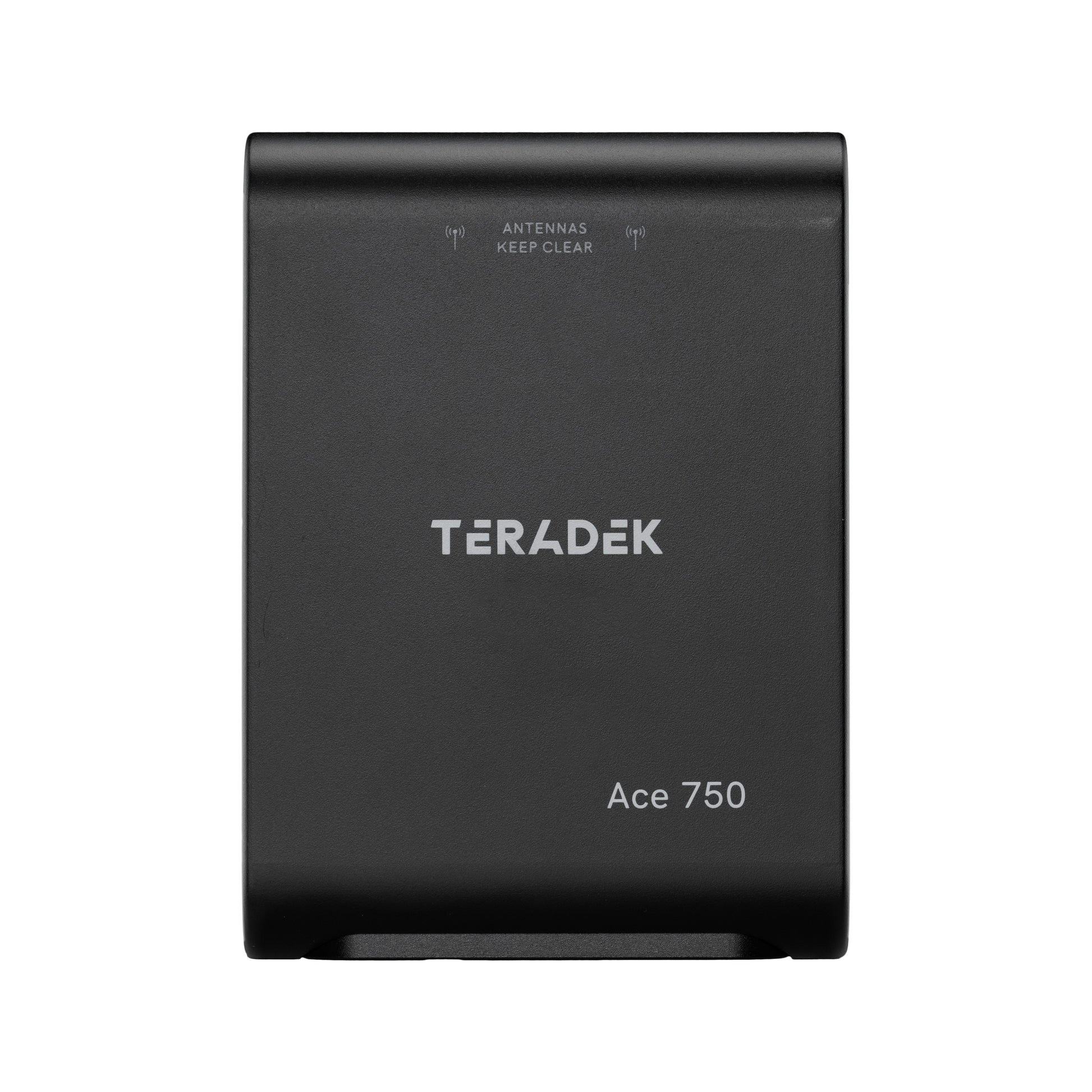

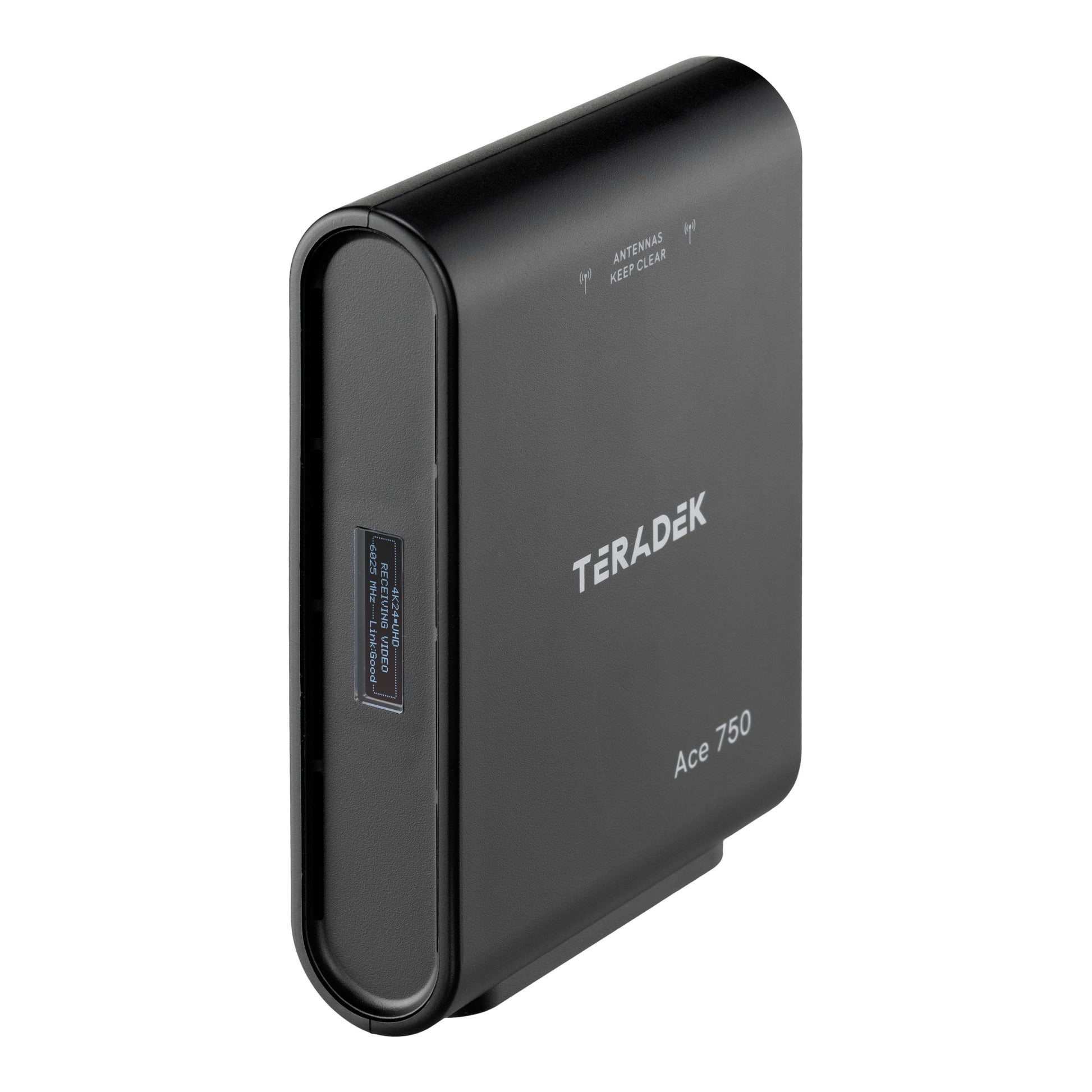

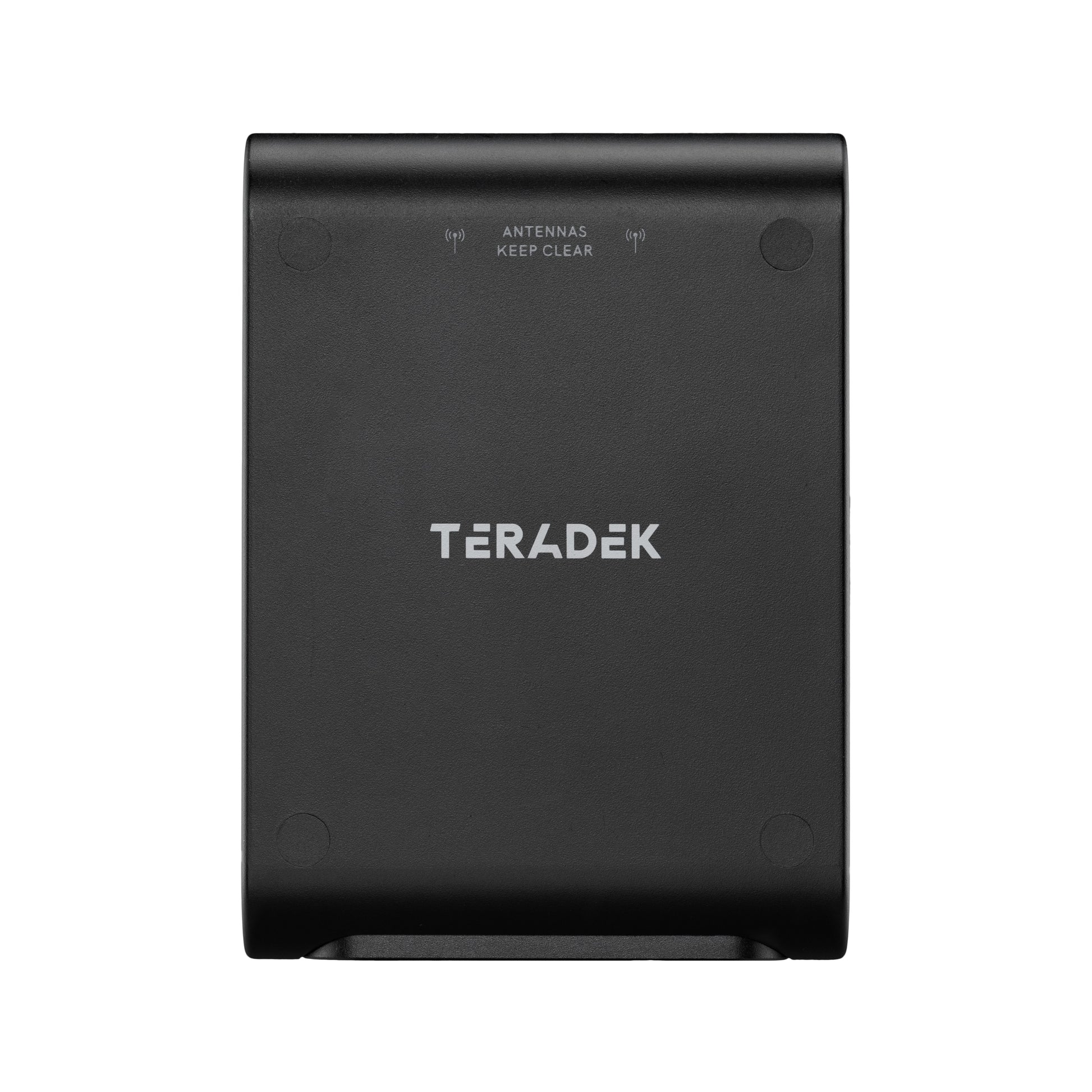

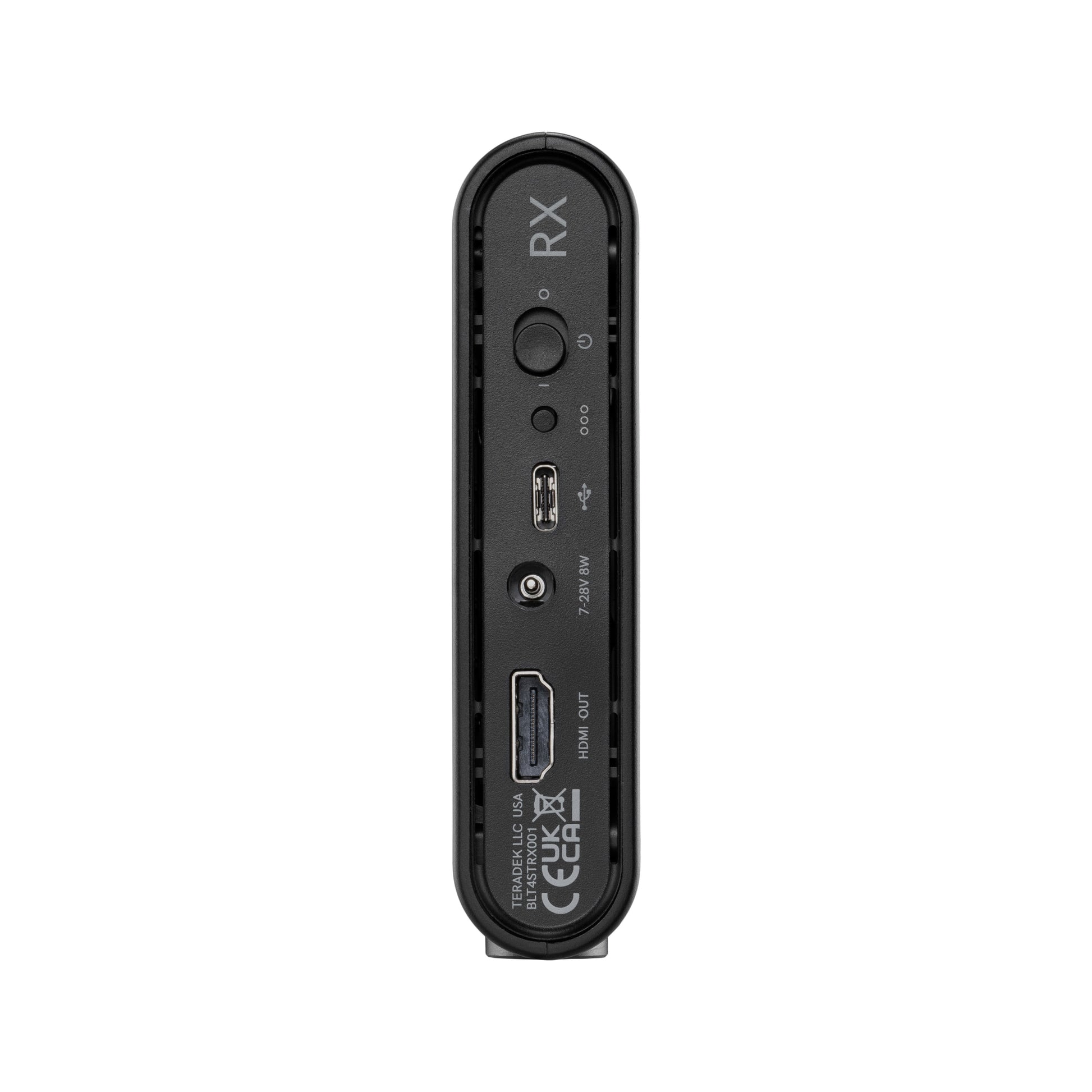

Ace 750 RX is a lightweight, compact, HDMI wireless video receiver with built-in antennas that is designed to be used with mirrorless cameras, camcorders, action cameras and, A/V workflows. It receives uncompressed zero-delay, 4Kp30, HDR video and audio with up to 750 feet (230m) of range. Ace 750 is cross-compatible with Bolt 4K and Bolt 6 in 5GHz and 6GHz modes and is fully compliant with FCC and CE frequency usage and power output guidelines. Ace 750 RX features an integrated hole pattern for mounting and can be powered with NP-F or LP-E6 batteries using an optional L-shaped plate.
The transmitter (TX) and receiver (RX) units automatically detect and select the 5Ghz or 6GHz RF channel with the least interference and employ Auto-Frequency Switching to maintain optimal signal quality. The TX can send video to up to six RX devices at the same time using the Bolt Manager app for iOS or Android.
Ace 750 is built with the same reliable wireless technology found in our acclaimed Bolt product line. Because of this, Ace 750 is fully compatible with all Bolt 4K and Bolt 6 models.
Technical Specifications
Video
Video Outputs: 1x HDMI 1.4b Type-A receptacle
Color Sampling: YCbCr 4:2:2 10-Bit RGB 4:4:4 8-bit
