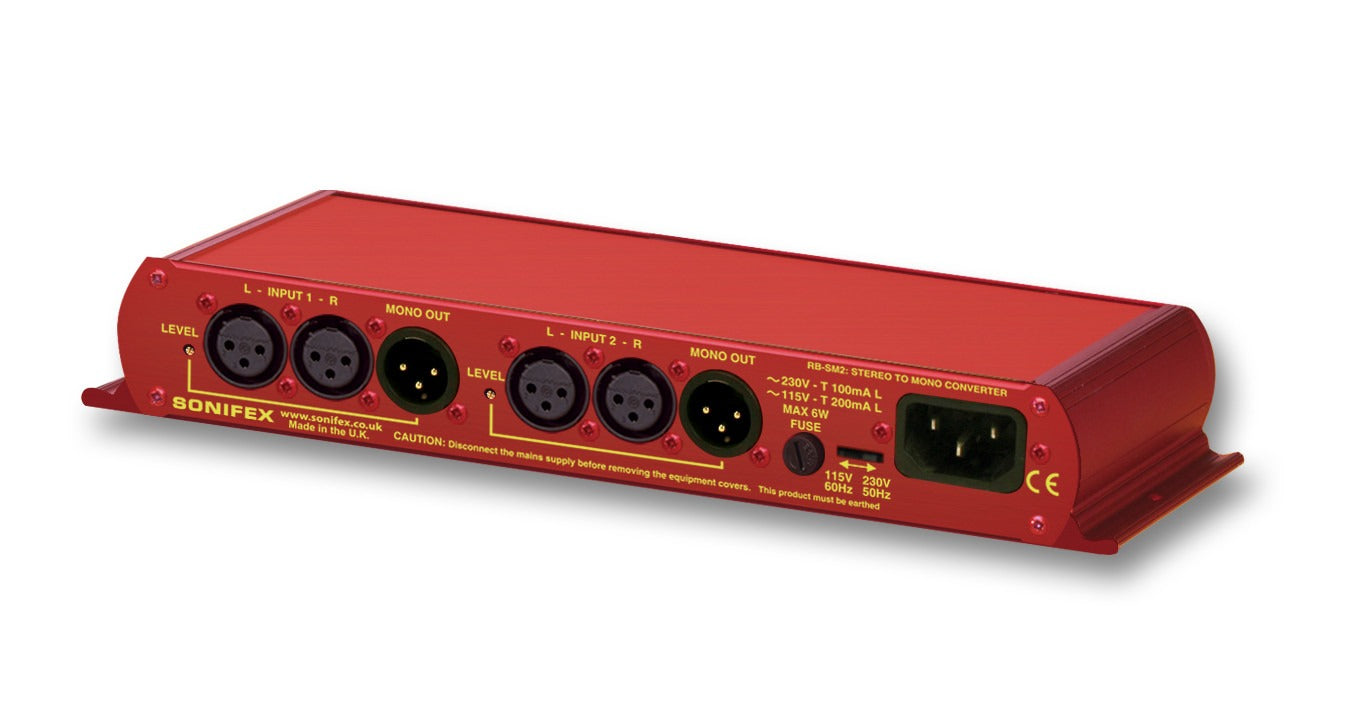

Sonifex RB-SM2 | Dual Stereo to Mono Converter

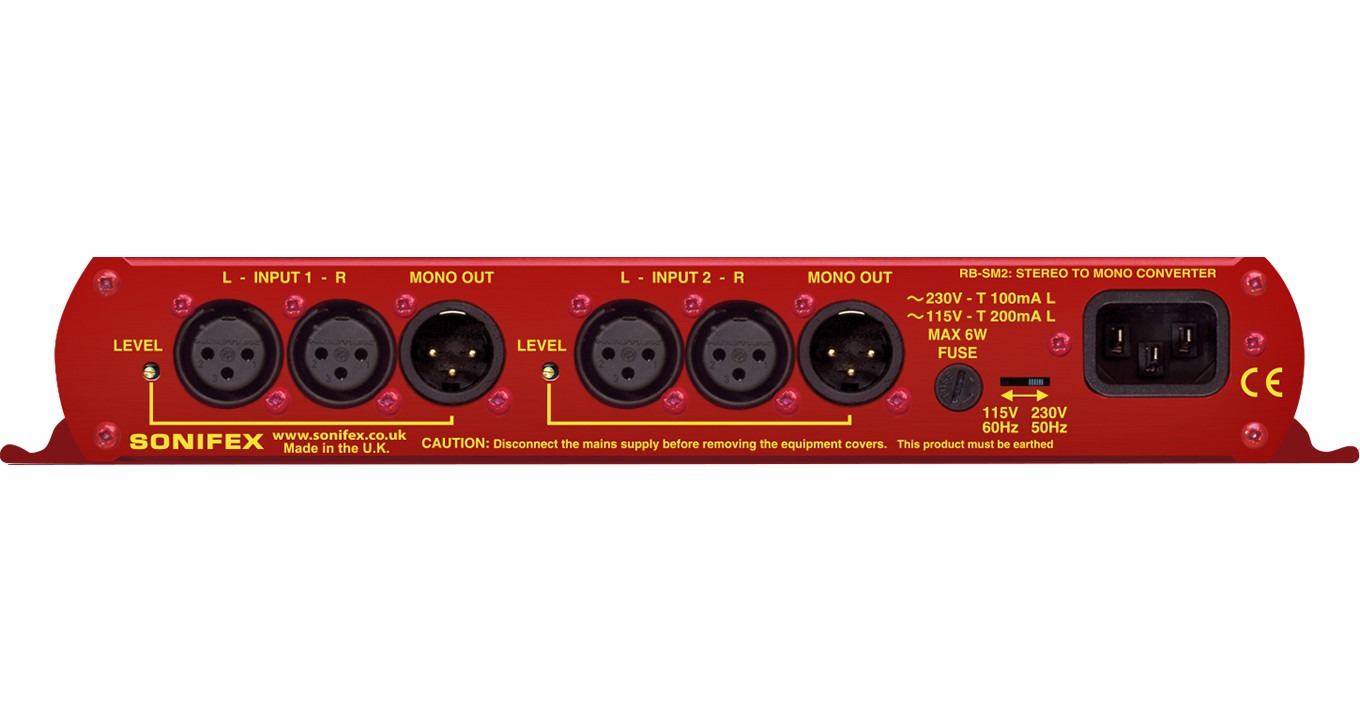

The RB-SM2 is a dual version of the RB-SM1, consisting of two independent converters which will produce two fully buffered and balanced mono line outputs from two stereo inputs. All connections are on the rear panel. The XLR-3 inputs are electronically balanced with an impedance of 20kΩ bridging. These can be wired unbalanced to accept an output from domestic equipment.

Product Features

• Neutrik XLR connectors.
• Balanced audio but can be wired unbalanced.
• Electronically balanced <50Ω outputs.
• Output gain adjustment.

Typical Applications

To supply cue in broadcast environments, to make a mono feed for AM transmission, or to feed a mono PA system.

Product Category

Signal Converters

Technical Specifications

Audio Specification

• Maximum Input Level: +28dBu
• Maximum Output Level: +28dBu
• Input Impedance: >20kΩ balanced bridging
• Output Impedance: <50Ω balanced
• Frequency Response: 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)
• Gain Range: Adjust -8dB to +18dB gain, ref. 0dB input on L and R
• Common Mode Rejection: >66dB typically
• Distortion: 0.01% THD @ 1kHz, ref +8dBu output
• Noise: -100dB, unity gain, ref +8dBu output

Connections

• Inputs: 4 x XLR 3 pin female (Balanced, can be unbalanced)
• Outputs: 2 x XLR 3 pin male (Balanced, can be unbalanced)
• Mains Input: Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
• Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)
• Fuse Rating: Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

• RB-SM2: Dual stereo to mono converter

Physical Specification

• Dimensions (Raw): 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
• Dimensions (Raw): 11” (W) x 4.3” (D) x 1.7” (H) (1U)
• Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H)
• Dimensions (Boxed): 14.2” (W) x 8” (D) x 2.4” (H)
• Weight: Nett: 1.05kg Gross: 1.50kg
• Weight: Nett: 2.3lbs Gross: 3.3lbs
