The RB-SC2 sample rate converter is a 1U rack-mount which produces AES/EBU, S/PDIF and TOSlink optical level digital audio outputs from a balanced AES/EBU, S/PDIF and TOSlink optical level digital audio inputs. The sample rate of the outputs can be set by an internal clock or from various external synchroniser sources. The RB-SC2 is a high performance, enhanced version of the RB-SC1 providing the following additional features:

Product Features

  • 2 x AES/EBU, S/PDIF, and optical digital I/O.
  • Two independent sample rate converter circuits.
  • Sample rates up to 24-bit, 192kHz.
  • User selectable sample rate, status bit, and sync source.
  • X-Lock mode for bi-directional SRC.
  • Analogue and Digital video sync board options.
  • RS232 remote control interface.
  • Sonifex SCi (Serial Control Interface) compatible.

Typical Applications

Converting an audio library from 44.1kHz to 48kHz, transferring digital audio from a recorder at 48kHz to a digital mixer at 192kHz.

Product Category

Signal Converters

Technical Specifications

Audio Specification

  • Dynamic Range: 138dB typical A-Weighted.
  • Distortion & Noise: -134dB THD + N at 1kHz, ref 0 dBFS
  • Sample Freq Range: 32kHz – 196kHz
  • Input Sample Width: Up to and including 24 Bits.
  • Output Sample Width: 24 Bits.

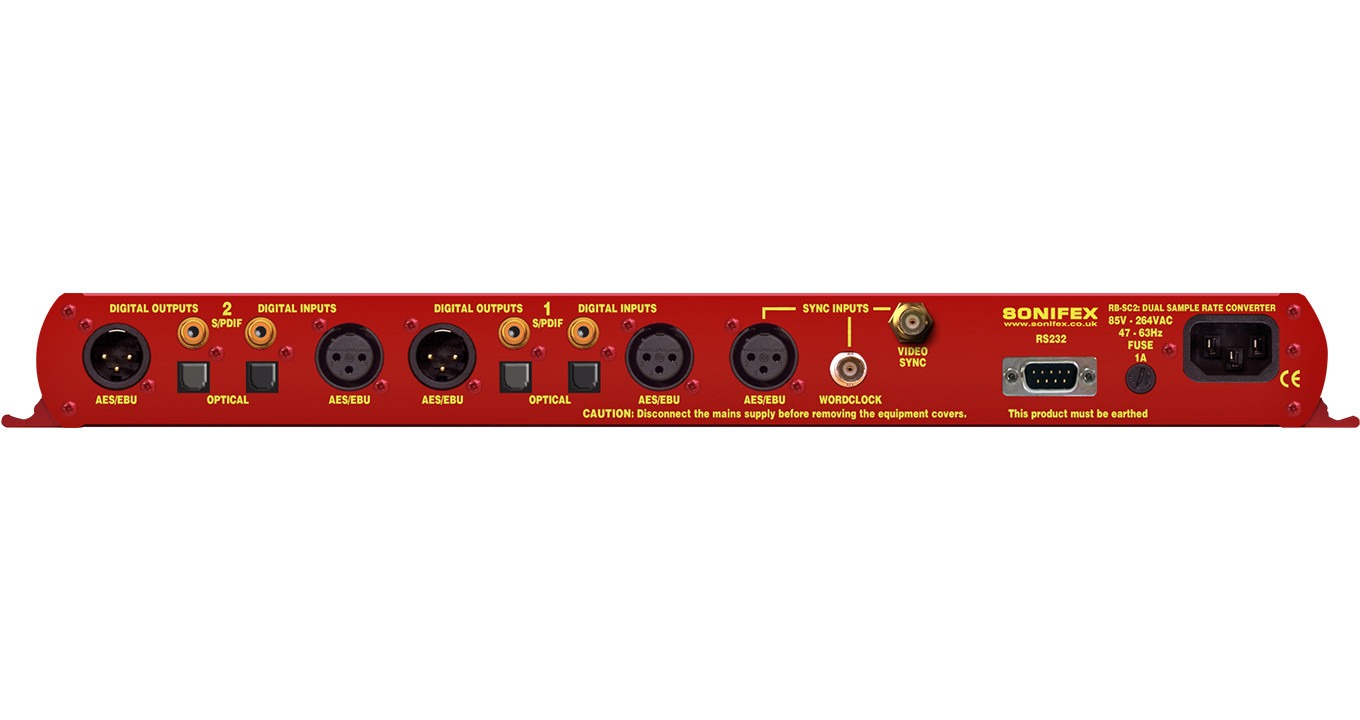

Connections

  • Digital Inputs: 2 x AES/EBU XLR 3 pin female
  • Digital Inputs: 2 x S/PDIF RCA phono
  • Digital Inputs: 2 x TOSLink optical input
  • Digital Outputs: 2 x AES/EBU XLR 3 pin plug
  • Digital Outputs: 2 x S/PDIF RCA phono socket
  • Digital Outputs: 2 x TOSLink optical output
  • Sync Inputs: 1 x AES/EBU XLR 3 pin female
  • Sync Inputs: 1 x Word Clock BNC
  • Sync Inputs: 1 x Video Input (optional)
  • Video Sync Specs: The Digital video sync board will accept 270Mbps SD-SDI and HD-SDI signals covered by
  • Video Sync Specs: SMPTE-259-M-C (SD) and SMPTE-292M (HD).
  • Video Sync Specs: The Analogue video sync board will accept a composite signal of NTSC (525), PAL (625) & SECAM (625) signals covered by SMPTE-170-M (NTSC) and ITU-R BT.470-6 (PAL & SECAM).

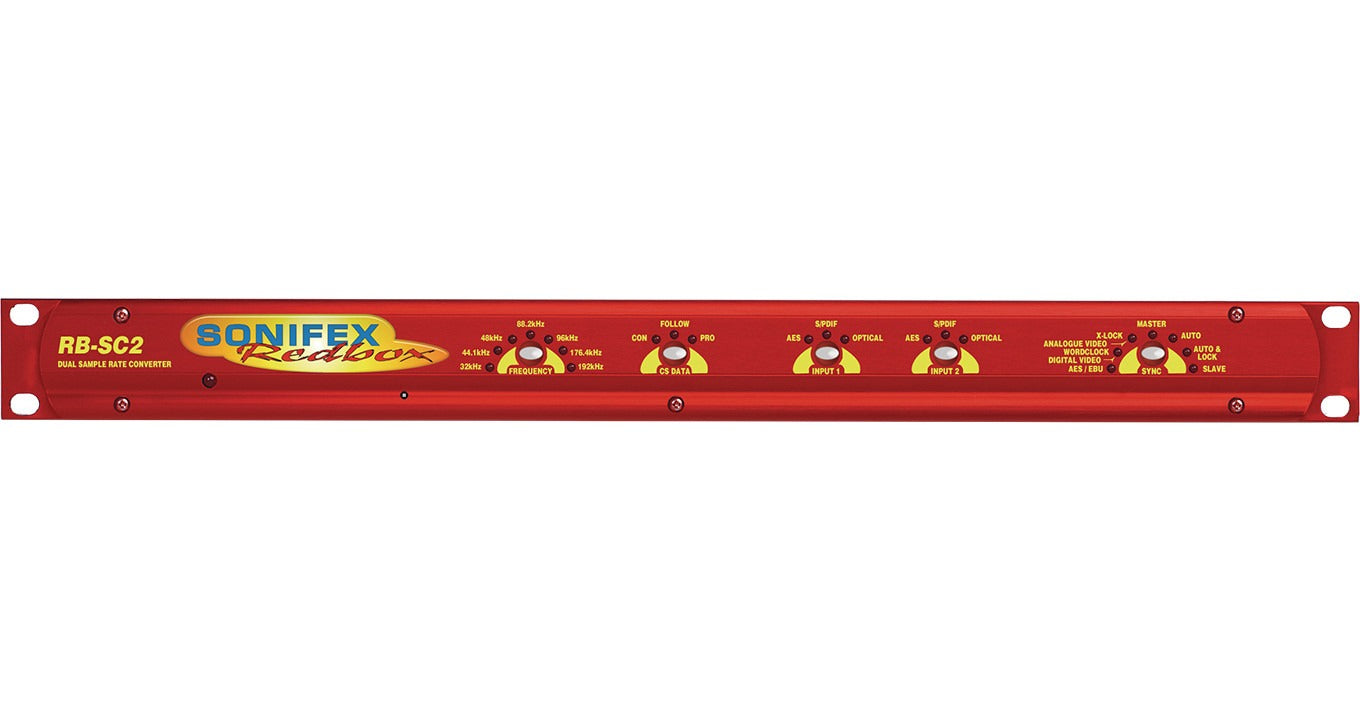

Operational Controls

  • Master Frequency Select: 32, 44.1, 48, 88.2, 96,176.4 or 192kHz via FREQUENCY push-button
  • Channel Status Bits: Consumer mode, professional mode or follow input, via CS DATA push-button
  • Digital Select: AES/EBU, S/PDIF or TOSlink Input optical, via INPUT1 or INPUT2 push-buttons
  • Sync Input Select: AES/EBU, Word Clock, X-Lock or Video, via SYNC push-button
  • Sync Mode elect: Master, slave, auto or auto lock, via SYNC push-button

Other Connections

  • Mains Input: Universal filtered IEC, continuously rated 85-264VAC @47- 63Hz, max 10W
  • Fuse Rating: Anti-surge fuse 1A 20 x 5mm
  • Serial Port: RS232 9 Pin D-type socket

Equipment Type

  • RB-SC2: Dual Stereo Sample Rate Converter, 24 bit 192kHz

Physical Specifications

  • Dimensions (Raw): 48cm (W) x 10.8cm (D*) x 4.2cm (H) (1U)
  • Dimensions (Raw): 19” (W) x 4.3” (D*) x 1.7” (H) (1U)
  • Dimensions Boxed): 59cm (W) x 27.5cm (D) x 11cm (H)
  • Dimensions Boxed): 23.2” (W) x 10.8” (D) x 4.3” (H)
  • Weight: Nett: 1.4kg Gross: 2.0kg
  • Weight: Nett: 3.1lb Gross: 4.4lb

Accessories

  • RB-SYA: Analogue video sync board (NTSC, PAL & SECAM)
  • RB-SYD: Digital video sync board (SD-SDI & HD-SDI)
  • RB-RK3: 1U Rear panel rack kit for large Redboxes
  • * Note that this product is deeper than standard Redboxes
