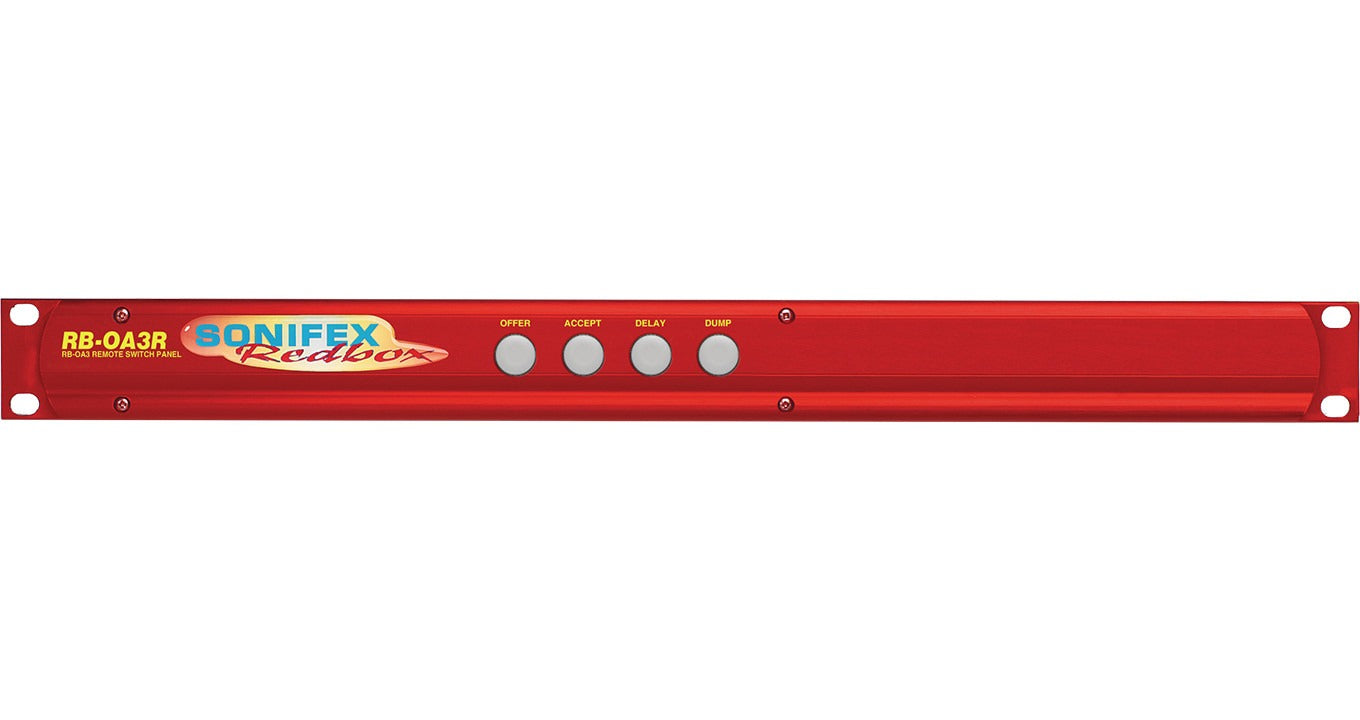

The RB-OA3 has been designed for installation in a central technical area with cabling to custom panels, or selection switches, in each studio. If you don’t have any custom switch panels available, you can use an RB-OA3R in each studio. The RB-OA3R is a 1U rack mount switch unit for use in each studio that needs to be connected to the STUDIO 1-3 CONTROL connectors on an RB-OA3. It takes it’s power from the RB-OA3 unit so needs no power supply itself. It contains four buttons which are used to control the functions of the RB-OA3. Each front panel push button is illuminated by coloured LEDs and controls the OFFER, ACCEPT, DELAY and DUMP functions.
Product Features
Studio-based remote control for RB-OA3 on-air switcher.
Powered from the RB-OA3 unit.
Allows the RB-OA3 unit to be situated in the main control room.
Illumination of selected button showing status.
Typical Applications
Allows remote control of the RB-OA3 unit.
Product Category
Source Selectors
Technical Specifications
Connections

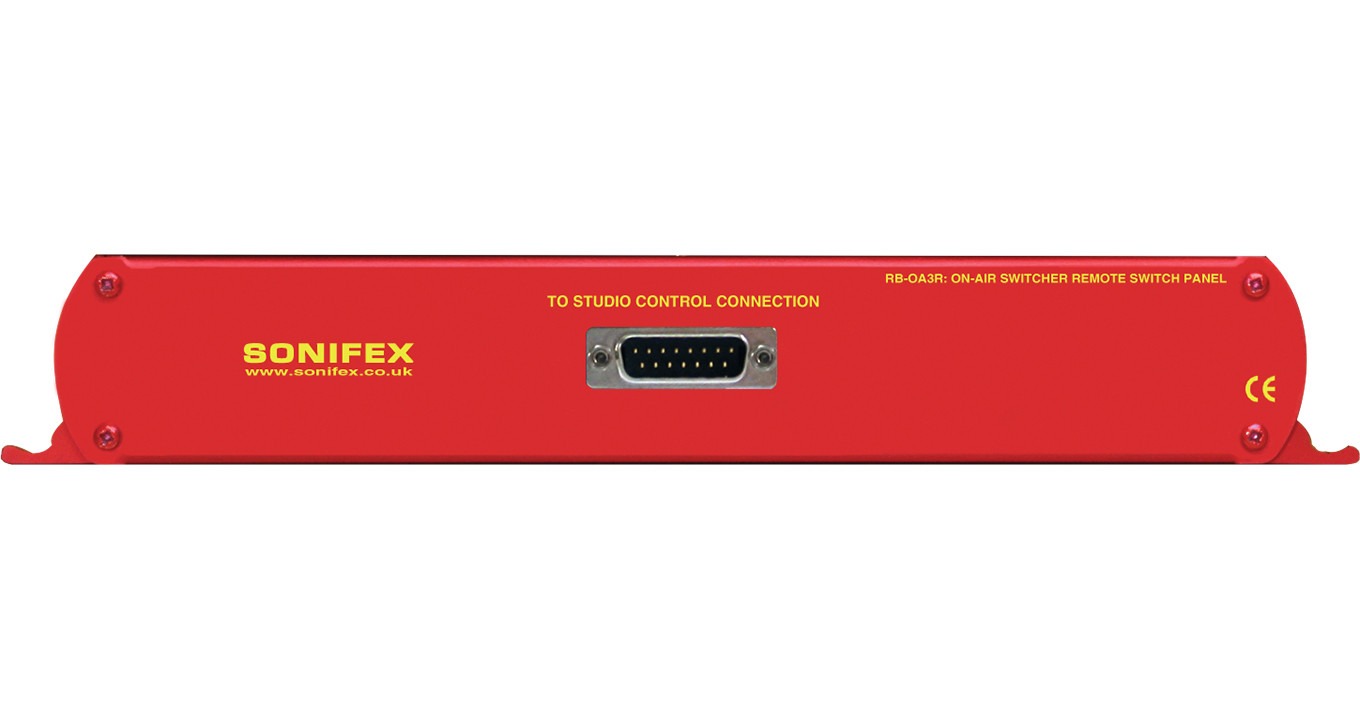

Studio Control: 1 x 15 way D type plug (male)
Equipment Type
RB-OA3R: 1 Studio on-air switcher
Physical Specification
Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
Dimensions (Raw): 19” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed): 53cm (W) x 20.5cm (D) x 6cm (H)
