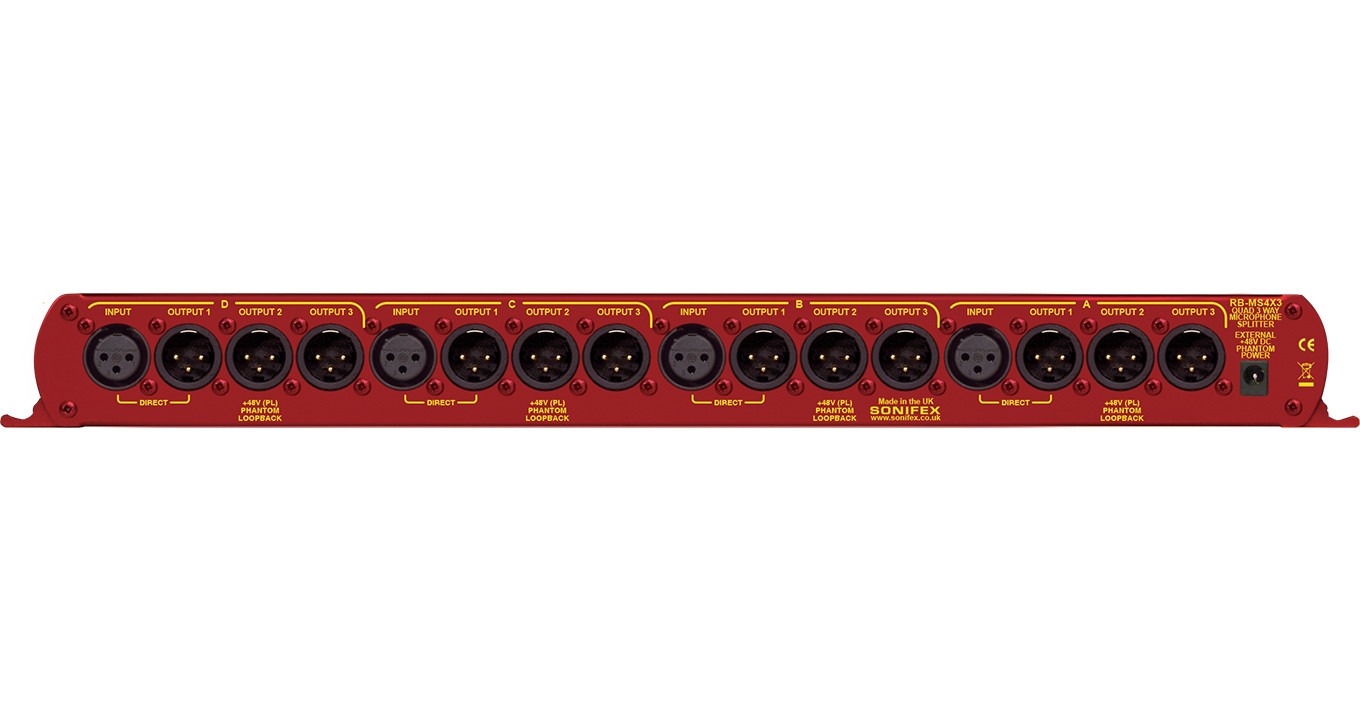

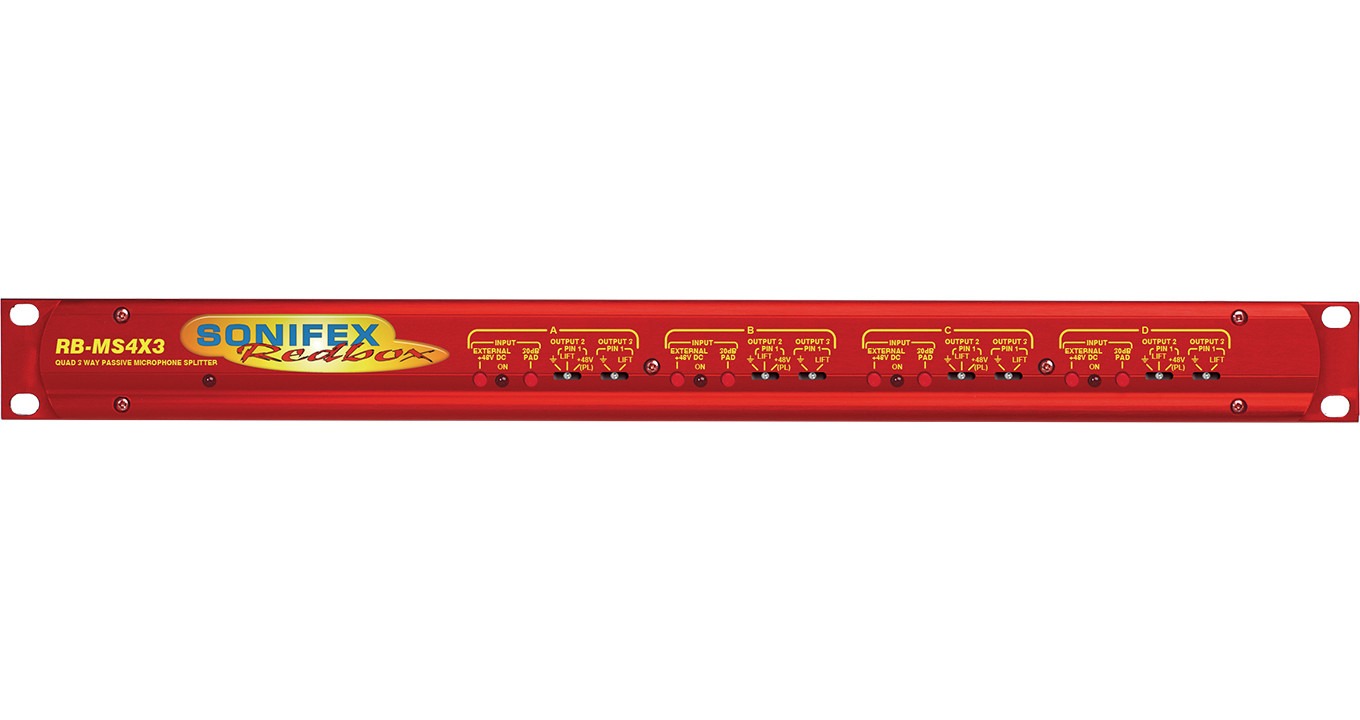

The RB-MS4X3 is a passive, quad, “one-to-three” splitter housed in a 19” rack. Each bank is designed to split a single microphone or line source to up to three destinations, using Neutrik XLR connectors. Cable connections are located on the rear panel, with recessed controls and indicators available to the user on the front panel, allowing quick and easy access to setup parameters. The RB-MS4X3 uses high quality audio transformers that are capable of accepting input levels of up to +18dBu, making the splitter useful in both microphone and line level splitting applications. A 30dB pad can be applied to the input, allowing a line level signal to be interfaced into a microphone input with suitable levels and the correct termination.
Product Features
4x 3-way mic splitter.
Balanced XLRs.
Passive transformer design.
Ground lift switches.
External or looped phantom power inputs.
Line level -30dB pad.
Typical Applications
To share microphones between radio/TV/production studios.
Product Category
Passive Splitters
Technical Specifications
Test
Frequency Response: 10Hz - 30kHz ±0.5dB
Frequency Response (Conditions): • Ref. -6dBu, 1kHz ±0.5dB
Frequency Response (Conditions): • Source impedance = 150Ω
Frequency Response (Conditions): • Load impedance = 10kΩ
Total Harmonic Distortion: 0.02%
Total Harmonic Distortion (Conditions): • Ref. +3dBu, 50Hz
Total Harmonic Distortion (Conditions): • Source impedance = 150Ω
Total Harmonic Distortion (Conditions): • Load impedance = 10kΩ
Total Harmonic Distortion 0.1%: +13dBu
Total Harmonic Distortion 0.1% (Conditions): • Ref. 0.1%THD+N, 50Hz
Total Harmonic Distortion 0.1% (Conditions): • Source impedance = 150Ω
Total Harmonic Distortion 0.1% (Conditions): • Load impedance = 10kΩ
Total Harmonic Distortion 1%: +18dBu
Total Harmonic Distortion 1% (Conditions): • Ref. 1%THD+N, 50Hz
Total Harmonic Distortion 1% (Conditions): • Source impedance = 150Ω
Total Harmonic Distortion 1% (Conditions): • Load impedance = 10kΩ
Common Mode Rejection Ratio: >60dB
Common Mode Rejection Ratio (Conditions): • Ref. 20kHz
Common Mode Rejection Ratio (Conditions): • Source impedance = 600Ω
Common Mode Rejection Ratio (Conditions): • Load impedance = 10kΩ
Connections
Inputs: 4 x XLR 3 pin female
Outputs: 12 x XLR 3 pin male
DC Phantom Power Input: +48V DC, 2.5mm socket
Equipment Type
RB-MS4X3: Quad 3 way microphone splitter.
Physical Specification
Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H)(1U)
Dimensions (Raw): 19” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H)
