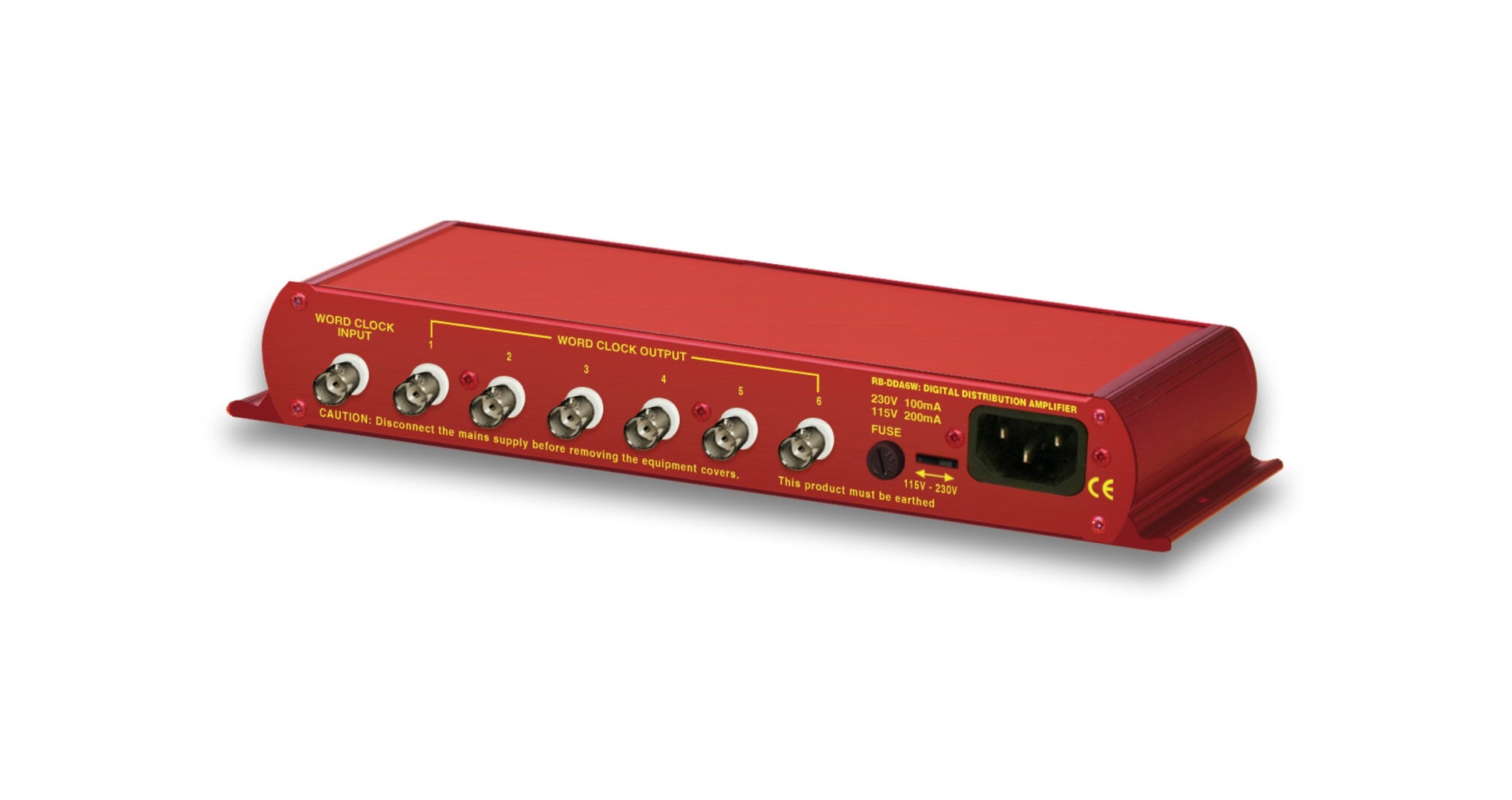

The RB-DDA6W word clock distribution amplifier distributes a word clock BNC input signal to 6 word clock BNC outputs re-conditioned. It is used to distribute reference clocks for digital audio systems. It has a single female BNC audio input which is distributed to 6 female BNC outputs. The units primary application is to distribute a master TTL word clock source to multiple pieces of equipment that need to be synchronised from the master.
Product Features
1x TTL Word clock (BNC) input.
6x TTL Word clock (BNC) digital audio outputs.
Fully buffered outputs.
Typical Applications
Distribution of word clock signal from a master generator to other studio equipment to keep them synchronised.
Product Category
Word Clock
Technical Specifications
Audio Specification
Input impedance: 50Ω
Output impedance: <50Ω

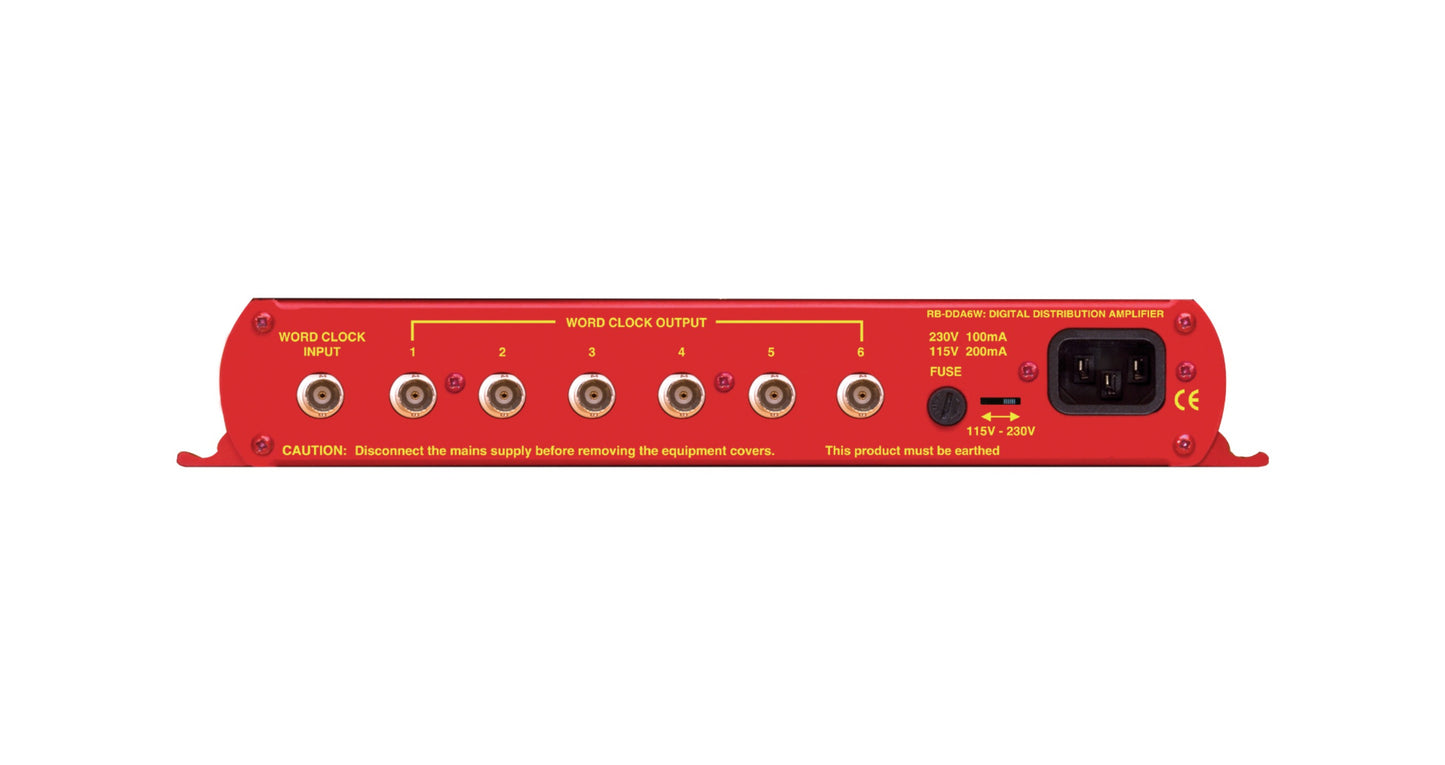

Connections
Inputs: 1 x BNC female
Outputs: 6 x BNC female
Mains Input: Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)
Fuse Rating: Anti-surge fuse 250mA 20 x 5mm (115VAC)
Equipment Type
RB-DDA6W: 6 way word clock distribution amplifier
Physical Specification
Dimensions (Raw): 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
Dimensions (Raw): 11” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H)
