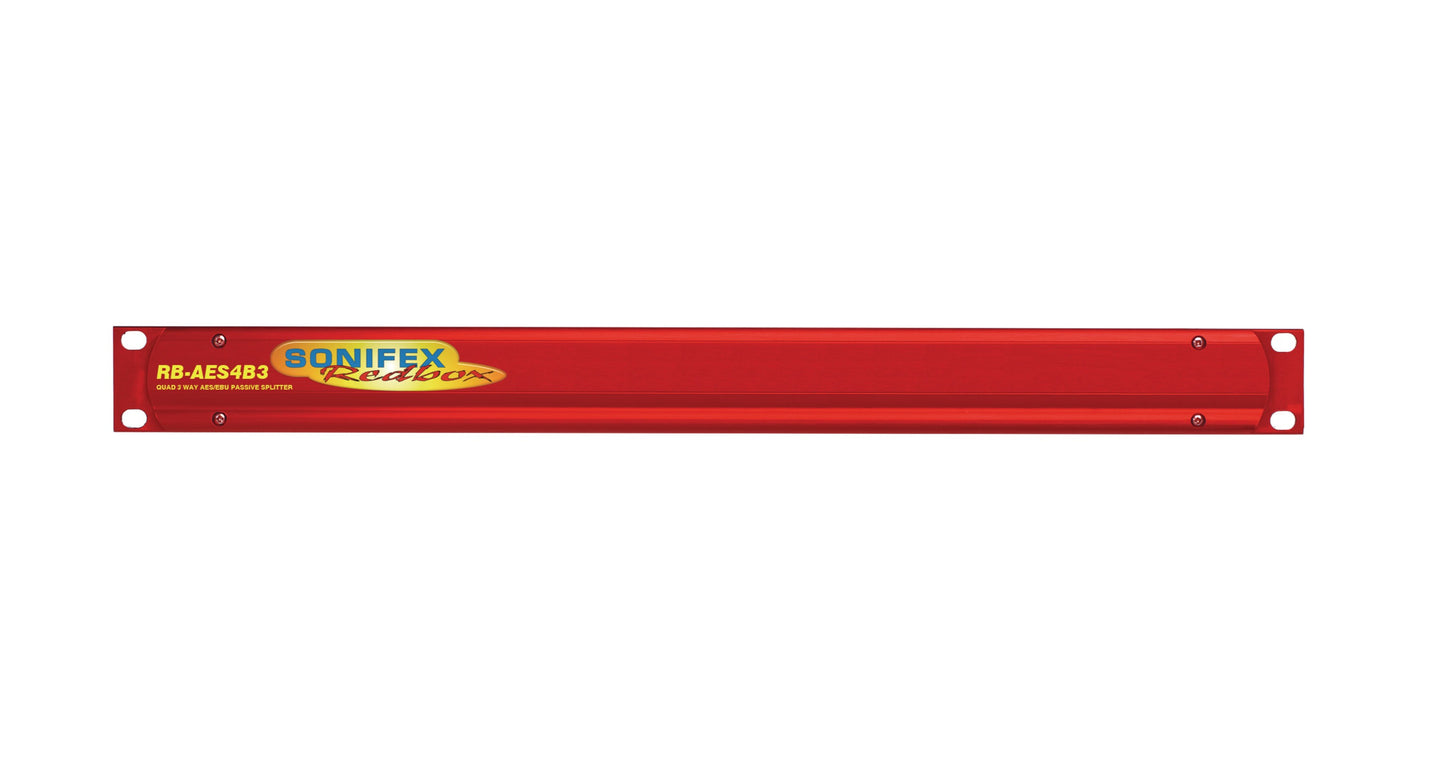

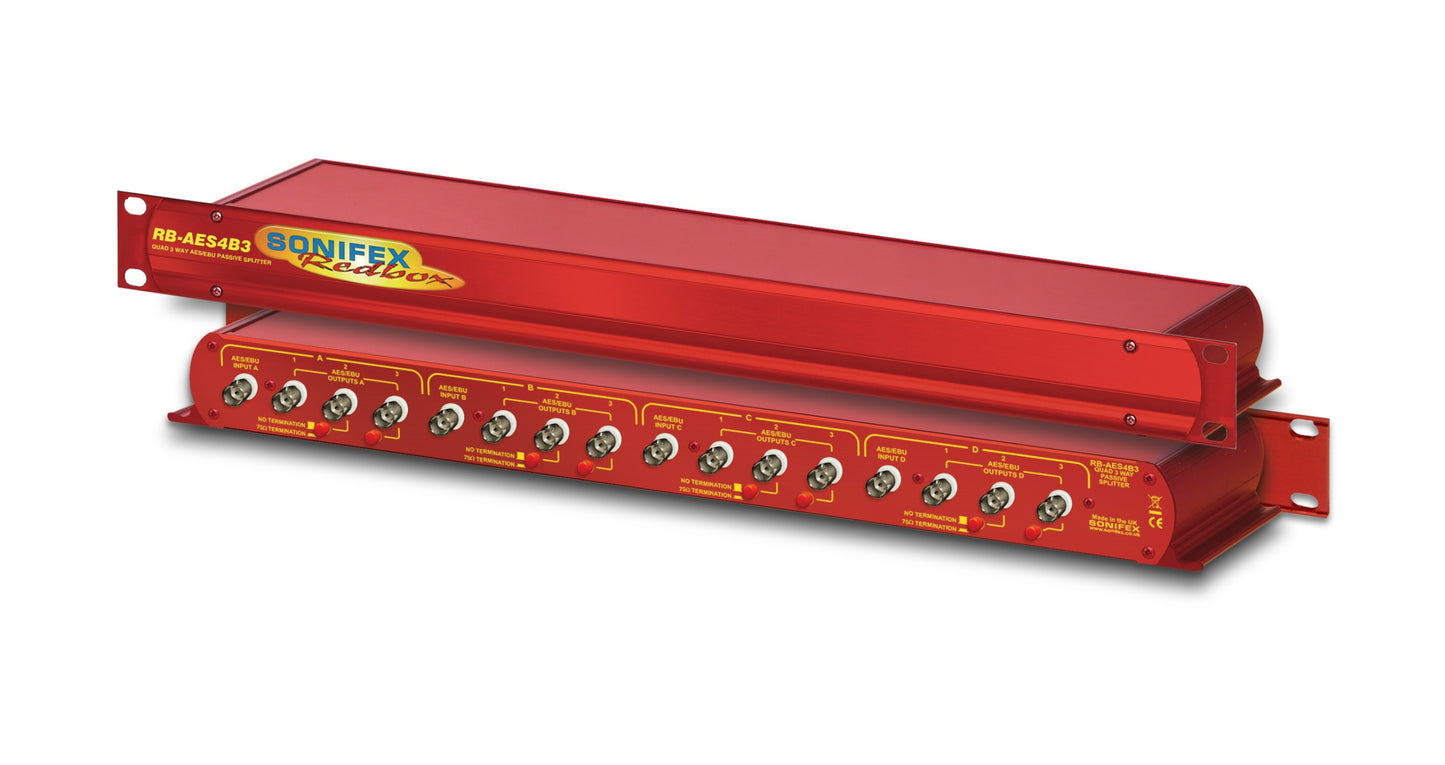

The RB-AES4B3 is a passive, quad “one-to-three” splitter housed in a 19” rack. Each bank is designed to split a single AES-3id digital audio source to up to three destinations, using female BNC connectors. Particularly useful in a video production and broadcast environment, the RB-AES4B3 splits the input signal through high quality transformers. 75Ω termination can be applied, if desired, to unconnected outputs to maintain optimum carrier parameters.
Product Features
4x 3-way AES-3id (BNC) splitter.
Switched 75Ω termination on all outputs.
Passive unit - no power supply.
Typical Applications
Distribution of AES3id source to 3 mixing consoles.
Product Category
Passive Splitters
Technical Specifications
Cable drive capability
Cumulative cable drive capability of 100m of 75Ω coaxial cable at sample rates up to and including 96kHz.
Connections

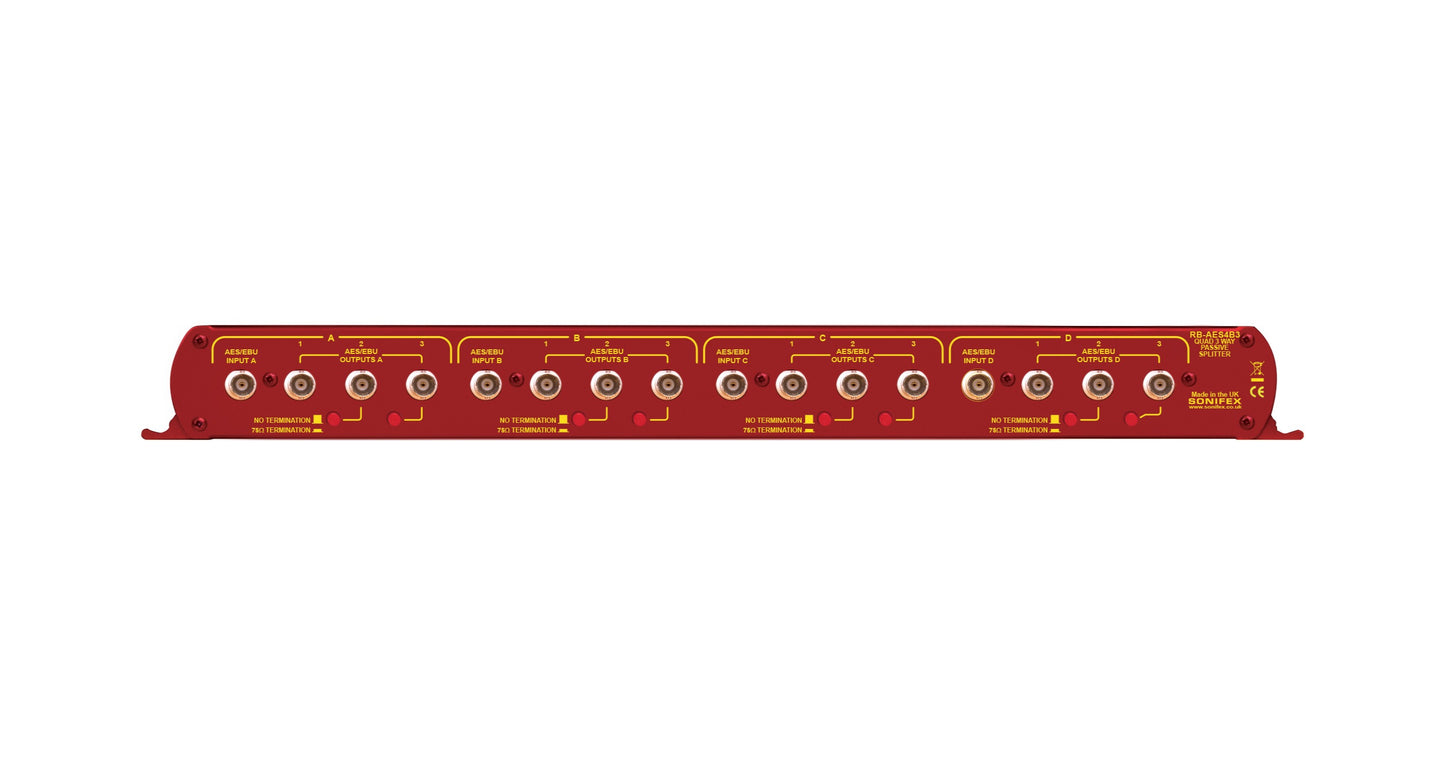

Inputs: 4 x BNC female
Outputs: 12x BNC female
Equipment Type
RB-AES4B3: Quad 3 way passive AES-3id splitter with BNC connectors.
Physical Specification
Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
Dimensions (Raw): 19” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H)
