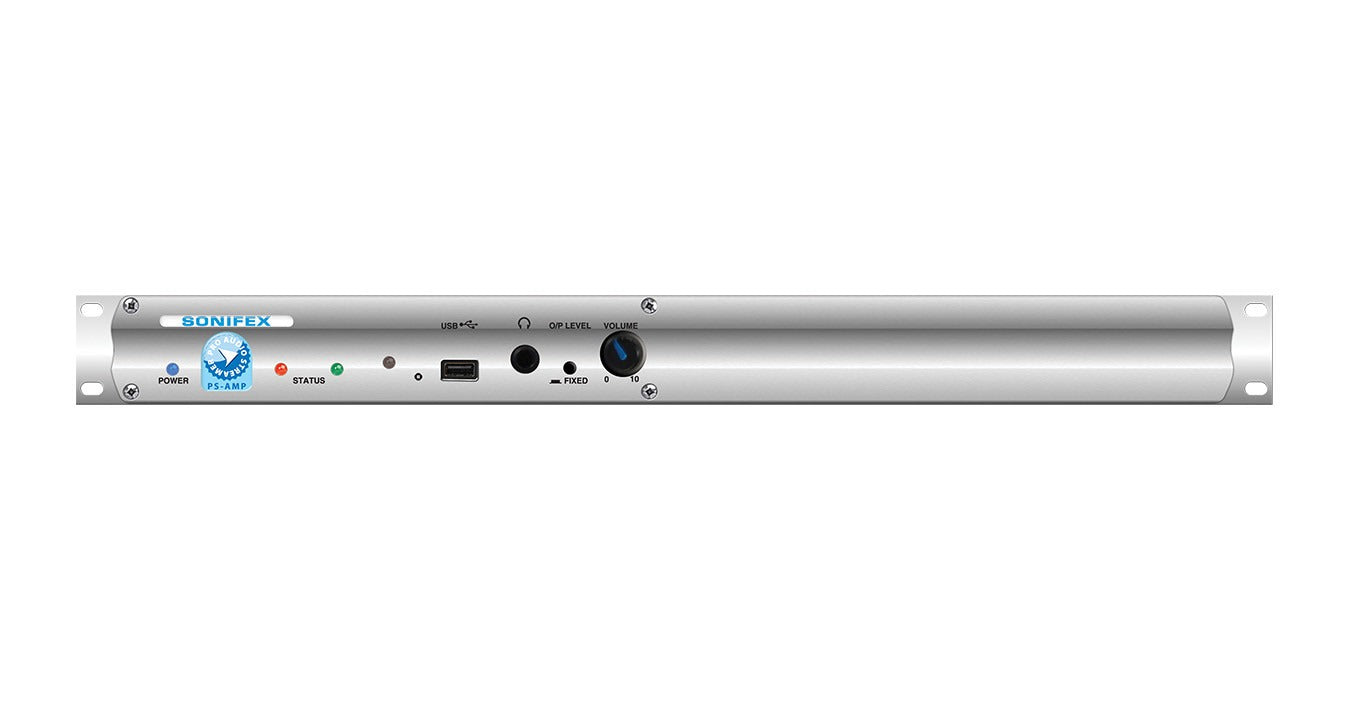

The PS-AMPS is a 1U rack-mount unit which converts an IP audio stream directly to speaker outputs. It is also available as a freestanding unit as the PS-AMPS. The PS-AMPS has the same feature-set as the PS-PLAYS except that there are no individual audio outputs other than the speaker terminals. The PS-AMP uses an integrated 2 x 15W D-class amplifier to deliver audio directly to a pair of connected speakers. For further information on features please refer to the PS-PLAY. IP to audio speaker terminals streamer.
Product Features
IP to audio speaker terminals streamer.
Built-in web server for configuration.
1 x stereo speaker terminals output.
Front panel headphone monitor with local & remote volume control.
USB port acts as an audio source.
Can decode from a multitude of services, e.g. Shoutcast, Icecast.
2 x GPO relays controlled remotely from a PS-SEND.
Product Category
Pro Audio Streamers
Technical Specifications
Technical Specification
Analogue Outputs: 2 x speaker connectors (2 each black and red terminals)
Analogue Outputs: 1 x ¼ inch (6.35mm) stereo jack headphone socket
Headphones Output: Drives 150mW into 32Ω to 600Ω stereo headphones
Headphone Level Range: -60dB – 18dB via front panel control knob or optional IR controller
USB Port: 1 x USB A socket
Frequency Response: 20Hz - 20kHz using MP3 at a bit rate of 192kbps and above
GPOs (General Purpose Outputs): 2 x switchable relay contacts (simultaneously switched) controlled from PS-SEND
Serial Port: 1 x 9 way D-type socket, used to send control commands and update firmware
Ethernet Port: 1 x RJ45 socket. Remote control commands can be sent via TCP or UDP as well as firmware updates.
IR Remote Receiver: Remote commands can be sent using optional remote control via built in IR sensor
Speaker Power: 15W per channel into 8ohm @ 10% THD+N
