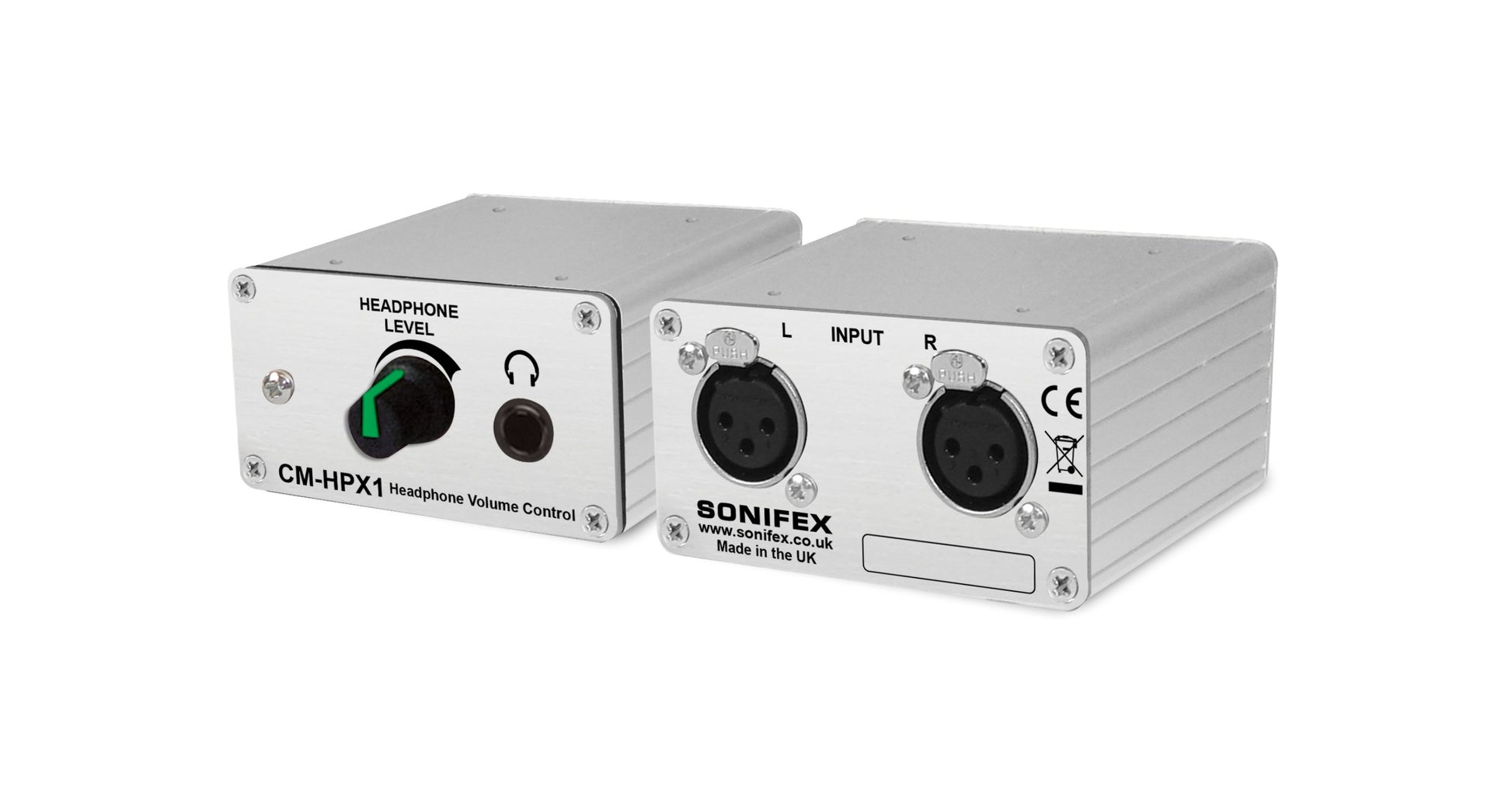

This product allows the connection of a stereo balanced line input via 2 x female XLRs and creates a headphone output, with level control. It is transformer balanced, and can be used with any headphones above 150Ω impedance. The transformer ratio of 2:1 ensures that any headphone load presented at the output is reflected through to the input at a 1:4 ratio (hence a 150Ω set of headphones looks like 600Ω at the input, a suitable load for most good quality line output stages). The stereo headphone output uses a stereo 6.35mm jack socket with the following connections: Pin Type & Connection: Tip: Left. Ring: Right. Screen: Ground. The headphone level will be at half the level of the incoming signal with the volume control at 100%. The volume level control sets the output level of the stereo headphone socket and runs logarithmically from zero to the maximum output level. The stereo analogue input is on two female 3 pin XLR connectors with the following pin assignments: Pin 1: 0V Common. Pin 2: Phase. Pin 3: Non Phase.
Product Features
Stereo line level XLR inputs.
Headphone output with level control.
For headphones above 150Ω impedance.
Typical Applications
Creates a connection of a stereo balanced line input via 2 x female XLRs and provides a headphone output, with level control.
Product Category
Passive Controllers
Technical Specifications
Audio Specification
Input/Output Level Ratio: 02:01
Input/Output Impedance Ratio: 04:01
Minimum Headphone Impedance: 150Ω
Max Input Level: +28dBu
Max Output Level: +22dBu
Frequency Response: 20Hz to 20kHz, +0/-0.5dB
Noise: <-115dBu A-wgtd
Distortion Ref +8dBu (Output): <0.01%
Common Mode Rejection: >80dB
Connections

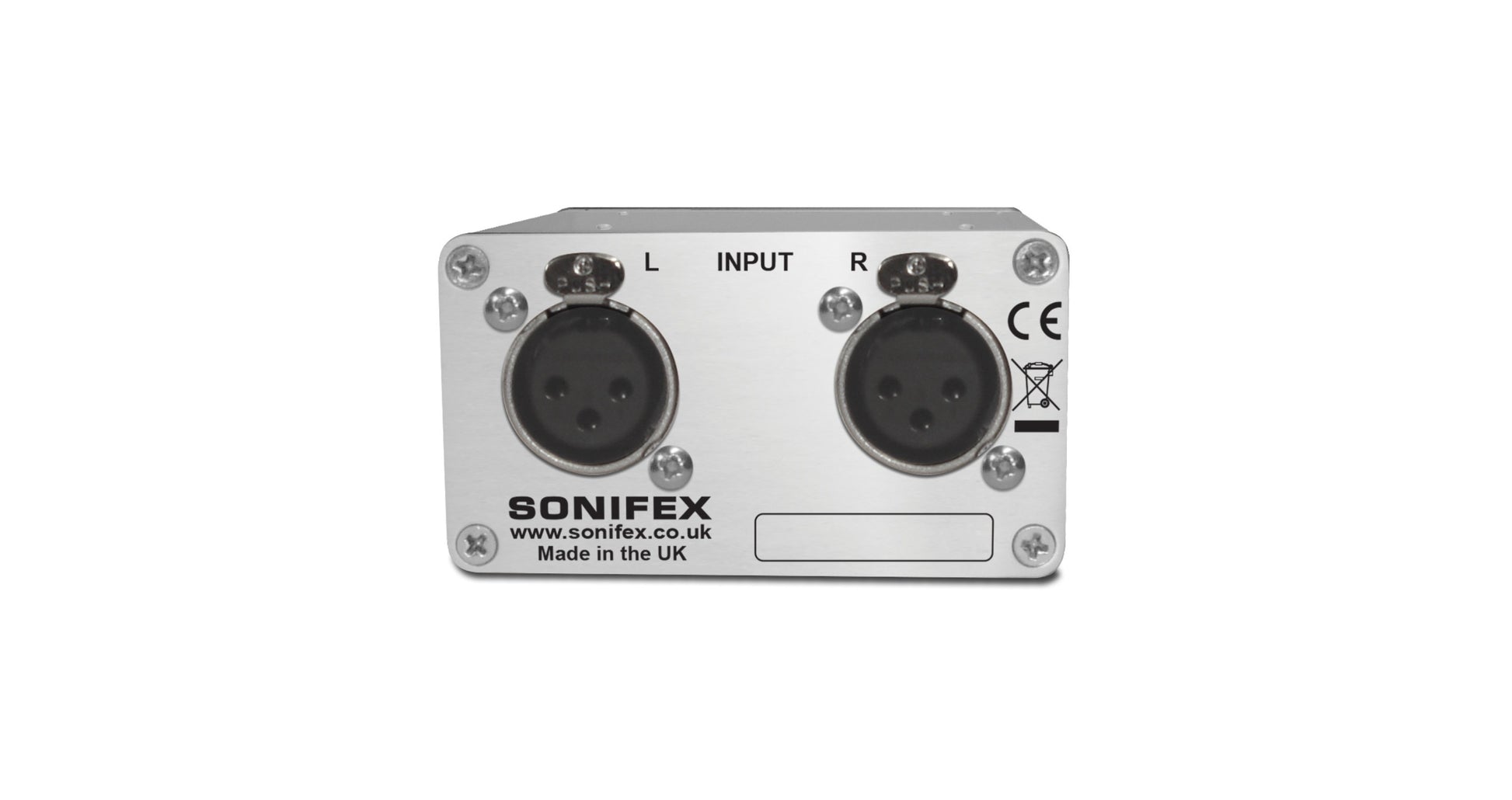

Main Stereo Input (CM-HPX1): 2 x XLR 3 pin, female

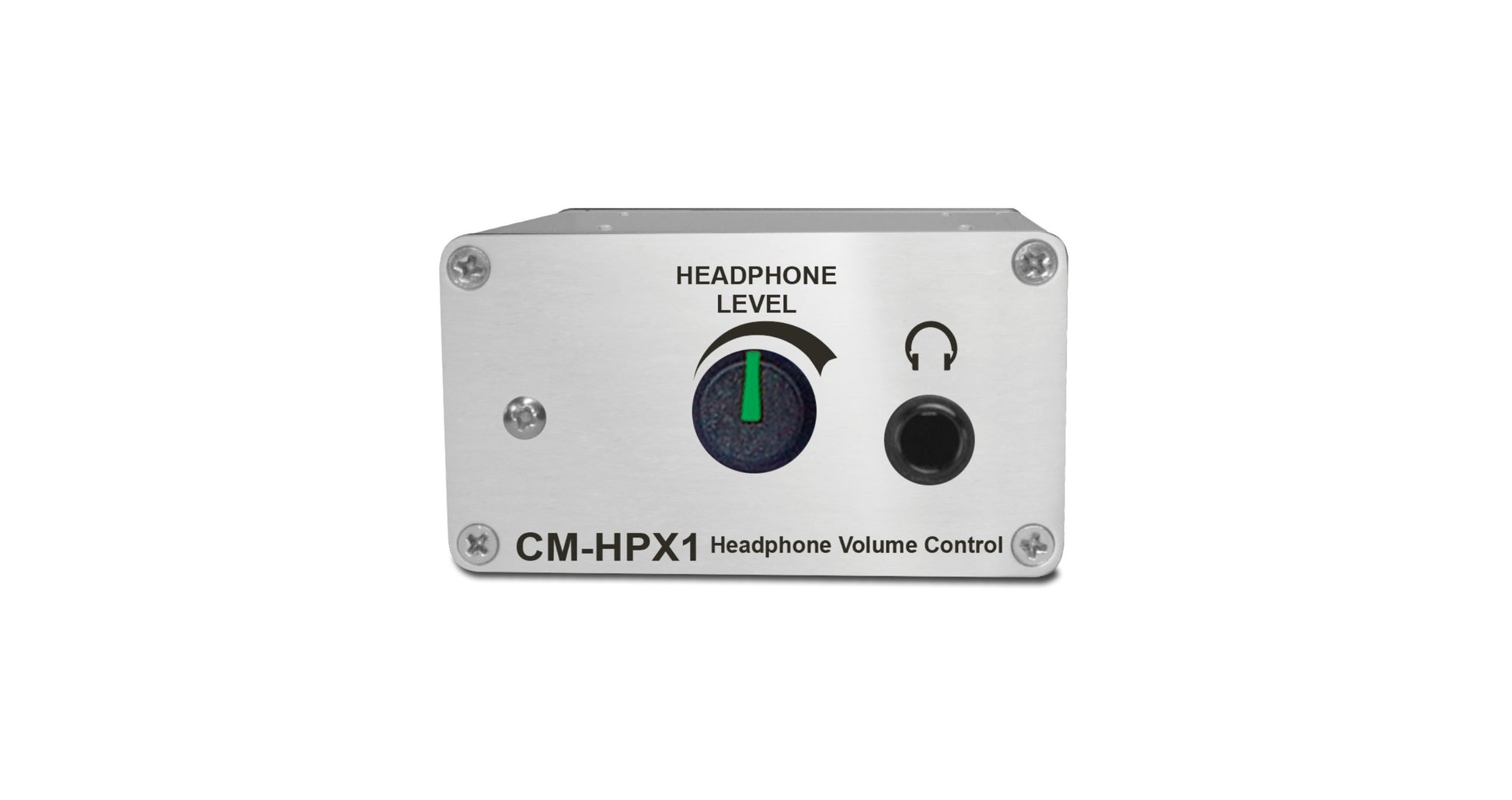

Output: ¼” (6.35mm) A/B gauge 3-pole stereo jack sockets
Equipment Type
CM-HPX1: Headphone volume control, XLR input
Physical Specification
Dimensions (Raw): 7.7cm (W) x 8.3cm (D) x 4.2cm (H)
