This product allows the connection of a stereo balanced line input via a RJ45 with StudioHub+™ pinout and creates a headphone output, with level control. It is transformer balanced, and can be used with any headphones above 150Ω impedance. The transformer ratio of 2:1 ensures that any headphone load presented at the output is reflected through to the input at a 1:4 ratio (hence a 150Ω set of headphones looks like 600Ω at the input, a suitable load for most good quality line output stages). The stereo headphone output uses a stereo 6.35mm jack socket with the following connections:
Product Features
Stereo line level RJ45 (StudioHub+™ pin-out).
Headphone output with level control.
For headphones above 150Ω impedance.
Typical Applications
Creates a connection of a stereo balanced line input via a RJ45 with StudioHub+™ pinout and provides a headphone output, with level control.
Product Category
Passive Controllers
Technical Specifications
Audio Specification
Input/Output Level Ratio: 02:01
Input/Output Impedance Ratio: 04:01
Minimum Headphone Impedance: 150Ω
Max Input Level: +28dBu
Max Output Level: +22dBu
Frequency Response: 20Hz to 20kHz, +0/-0.5dB
Noise: <-115dBu A-wgtd
Distortion Ref +8dBu (Output): <0.01%
Common Mode Rejection: >80dB
Connections

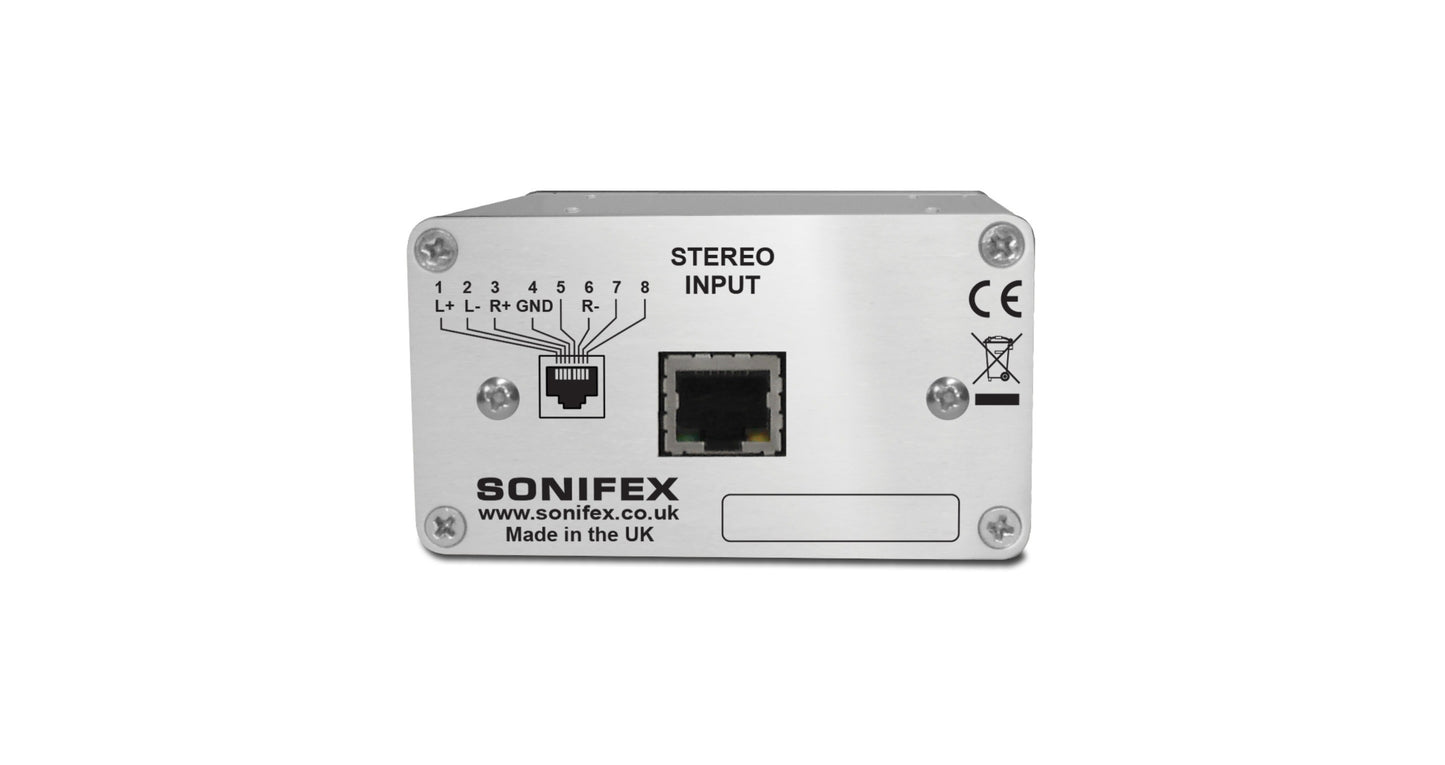

Main Stereo Input: 1 x RJ45 female StudioHub+™ pinout
Output: ¼” (6.35mm) A/B gauge 3-pole stereo jack sockets
Equipment Type

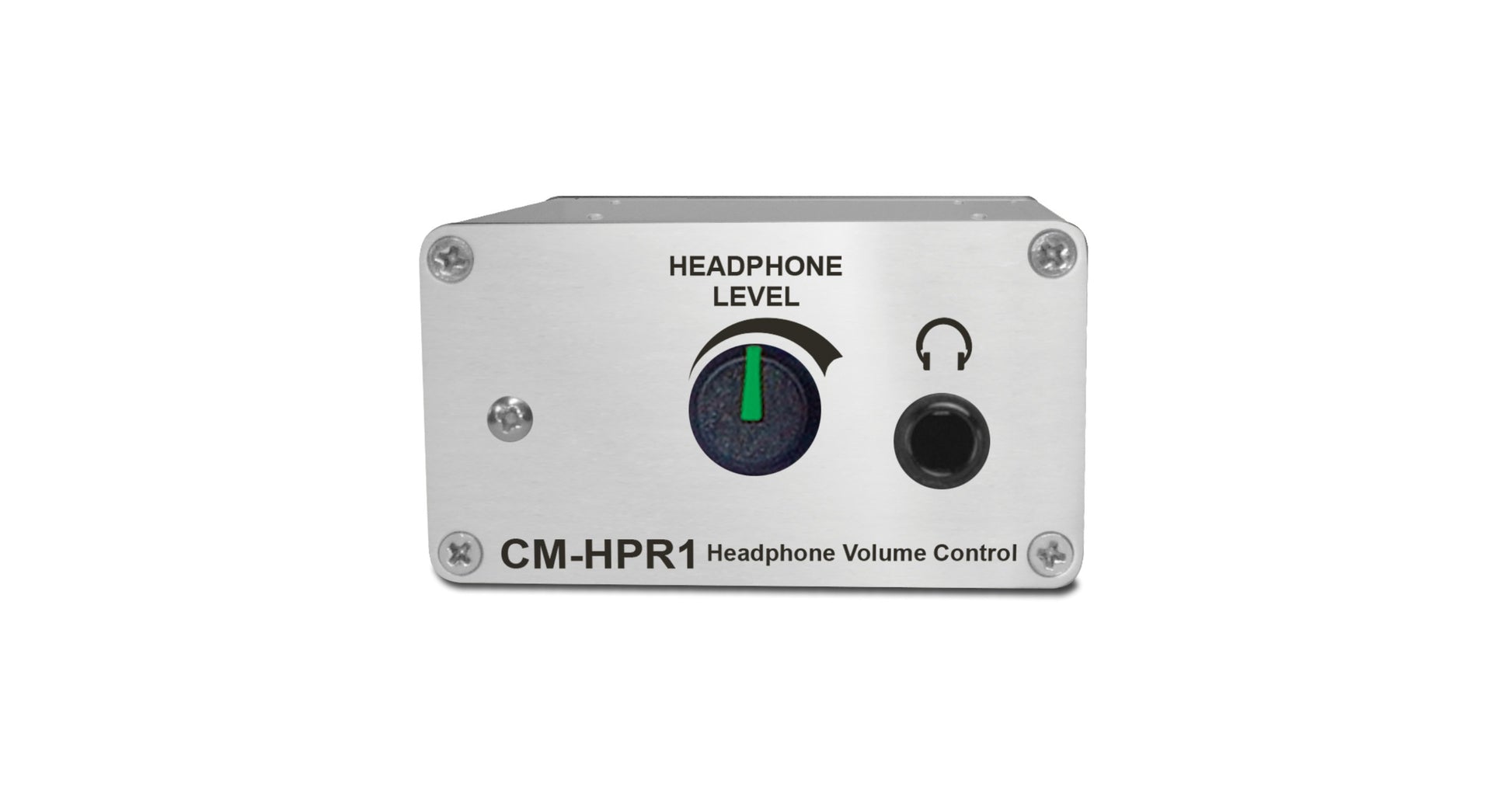

CM-HPR1: Headphone volume control, RJ45 input
Physical Specification
Dimensions (Raw): 7.7cm (W) x 8.3cm (D) x 4.2cm (H)
