The AVN-TB products are IP audio based talkback intercom units with an advanced feature set, allowing them to be used in multiple applications. With both 4-wire analogue inputs and outputs, as well as AoIP network audio connectivity, the AVN-TB units can be used with existing legacy 4-wire systems and with new AES67 AoIP networked audio infrastructure. Additionally, all audio is at 48kHz sample rate, meaning that it’s broadcast quality audio as standard. RAVENNA (of which AES67 is a subset) allows for the distribution of audio across a network. The AVN range use RAVENNA as the communication method providing compatibility with other AES67 systems.
Product Features

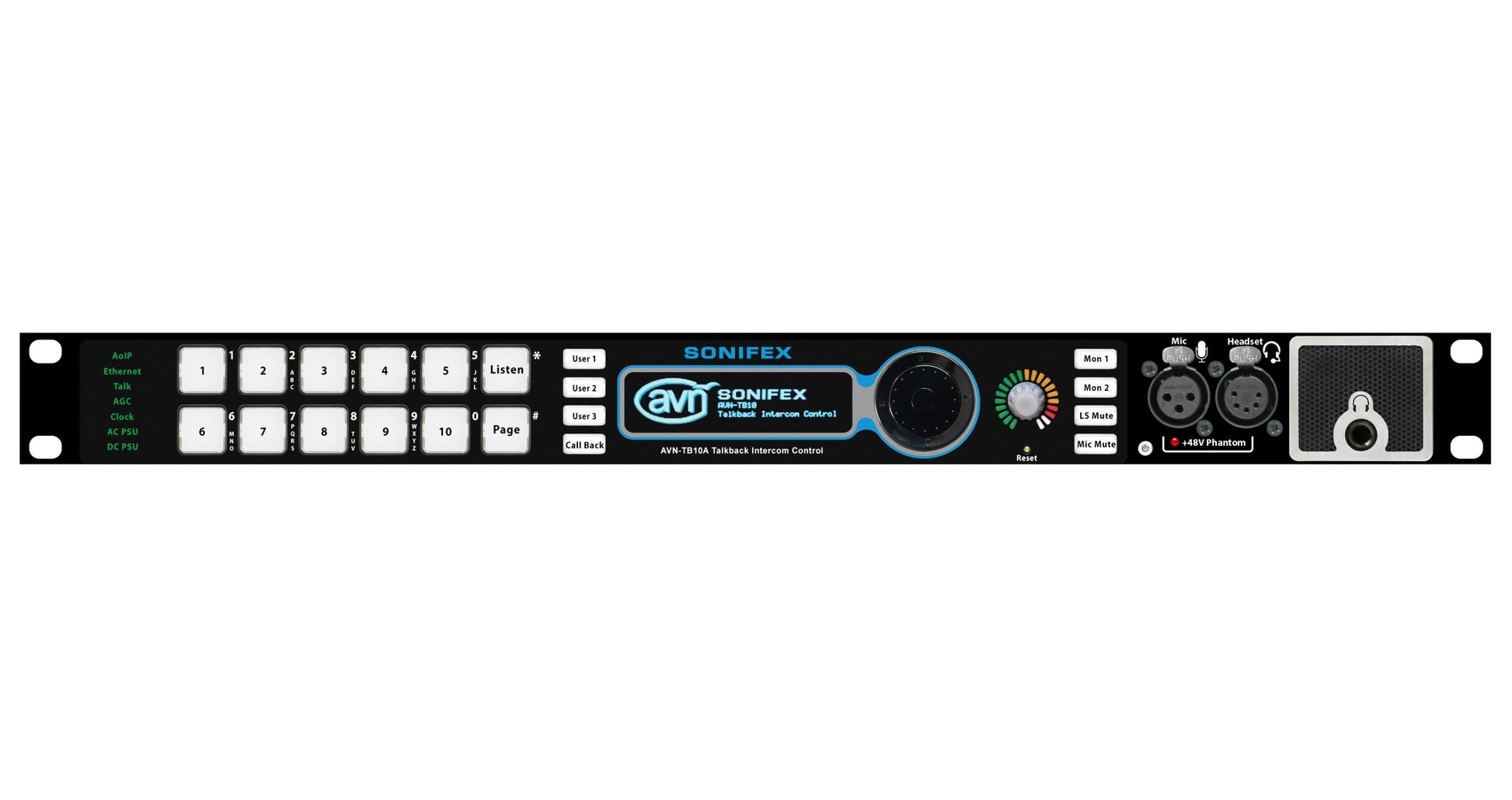

10 illuminated key-cap Talk buttons plus Listen & Page buttons.
Mic & headset inputs, headphone & speaker outputs with volume control.

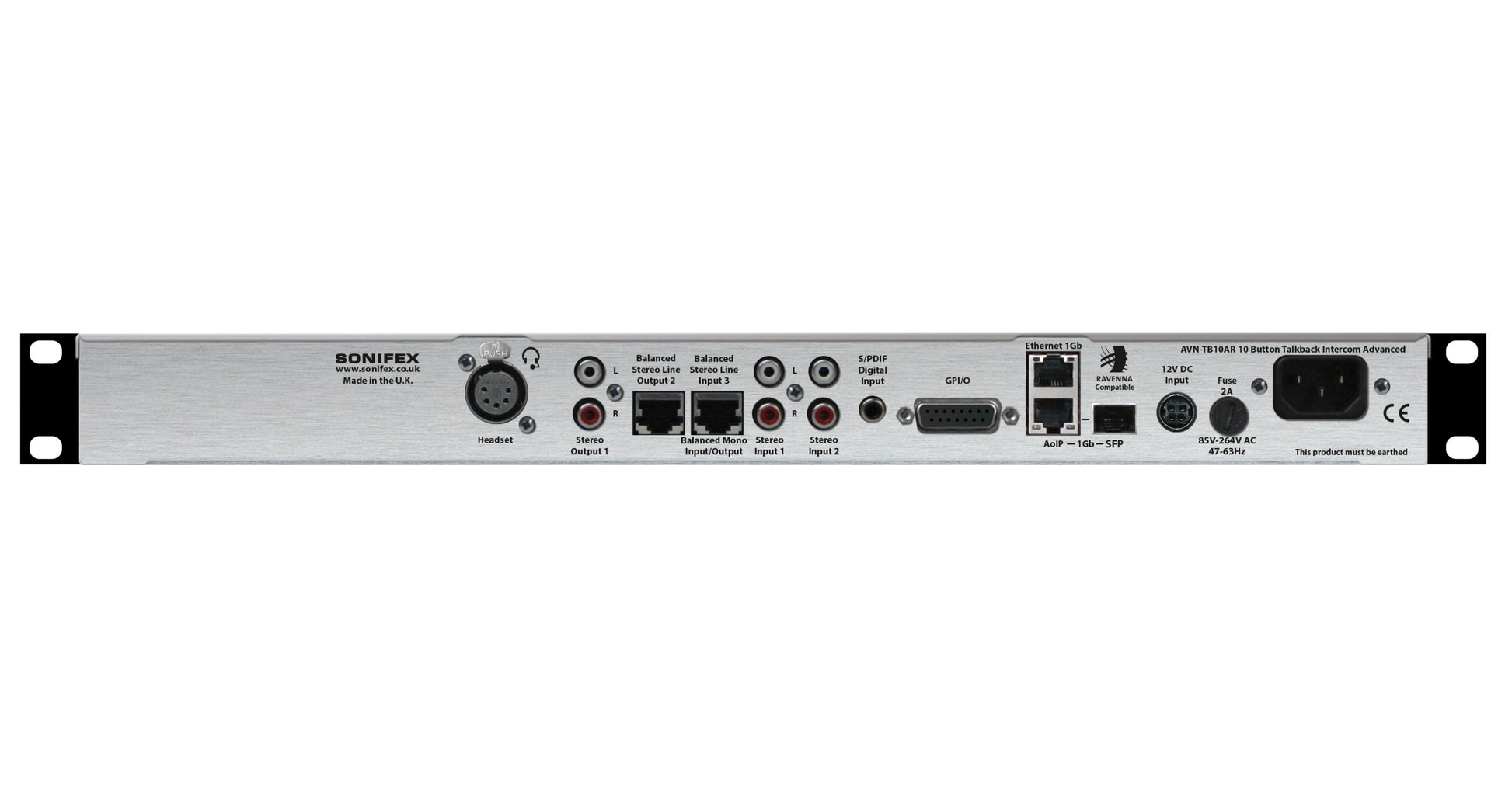

Sources from AoIP, balanced, 2 x unbalanced or S/PDIF digital inputs.
Destinations to AoIP or rear panel balanced & unbalanced outputs.
Advanced echo cancellation & mic AGC to prevent acoustic feedback.
Dual 1Gb lan ports & 1Gb SFP fibre port.
10 user assignable GPIO ports.
Dual AC & DC power supply inputs.
Front panel display providing source & destination information.
Ethernet webserver and front panel control & configuration.
Speaker & microphone mute buttons.
Callback button with source display.
Typical Applications
OB truck comms, theatre comms, inter-studio comms in a TV or radio station.
Product Category
Talkback, Intercom & Control
Technical Specifications
Audio-Over-IP Specification
Open Standards: RAVENNA, AES67
Device Discovery: Bonjour (mDNS / DNS-SD)
Audio Delivery: RTP/UDP over IPv4 multicast
QoS: DiffServ
Stream Management: RTSP/SDP
Control: Ember+/webserver
Format: Linear PCM 24-bit (L24)
Channels Per Stream: 2
Frames Per Packet: 48
Maximum Streams: RX 6, TX 5 (fixed)
Sample Rate: 48 kHz
Timing Synchronisation
Profile Support: Default, media & custom profiles
Timing Protocol: PTPv2, IEEE1588-2008
Technical Specification
Microphone and Headset Input
Input Impedance: >2.5kΩ balanced
Gain Range: 0dB to +60dB
0dBFS Line-Up: Adjustable in steps of 3dB from -58dBu to +2dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
Noise: -127dBu, 20kHz BW, Rs=200Ω ref. 76dB gain
Unbalanced Line Inputs
Input Impedance: >20kΩ
0dBFS Line-Up: +12dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
THD+N: <-97dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
Noise: -100dBFS, 20kHz BW, Rs=200Ω
Crosstalk: <-97dB
Balanced Line Inputs
Input Impedance: >20kΩ balanced
0dBFS Line-Up: Adjustable +15/+18/+20/+22/ +24dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
THD+N: <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise: -110dBFS, 20kHz BW, Rs=200Ω
Crosstalk: <-100dB
Common Mode Rejection: >70dB @ 1kHz
Headphone Output
Output Impedance: Drives 150mW into 32Ω to 600Ω headphones
0dBFS Line-Up: +20dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
THD+N: <-108dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
Noise: -110dBFS, 20kHz BW
Unbalanced Line Outputs
Output Impedance: <50Ω
0dBFS Line-Up: +12dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
THD+N: <-95dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
Noise: -100dBFS, 20kHz BW
Balanced Line Outputs
Output Impedance: <50Ω balanced
0dBFS Line-Up: Adjustable +15/+18/+20/+22/ +24dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
THD+N: <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise: -110dBFS, 20kHz BW, Rs=200Ω
Loudspeaker
Power Output: 4W
Volume: Mute to full volume via front panel control
