Sonifex AVN-GPS5 | GPS Receiver Antenna & Lead, 5m

Sonifex AVN-GPS5 | GPS Receiver Antenna & Lead, 5m

€98,22 be PVM
€98,22 be PVM
Išpardavimas Išparduota
Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

Important: This SKU is an accessory or kit and not a standalone hardware unit.

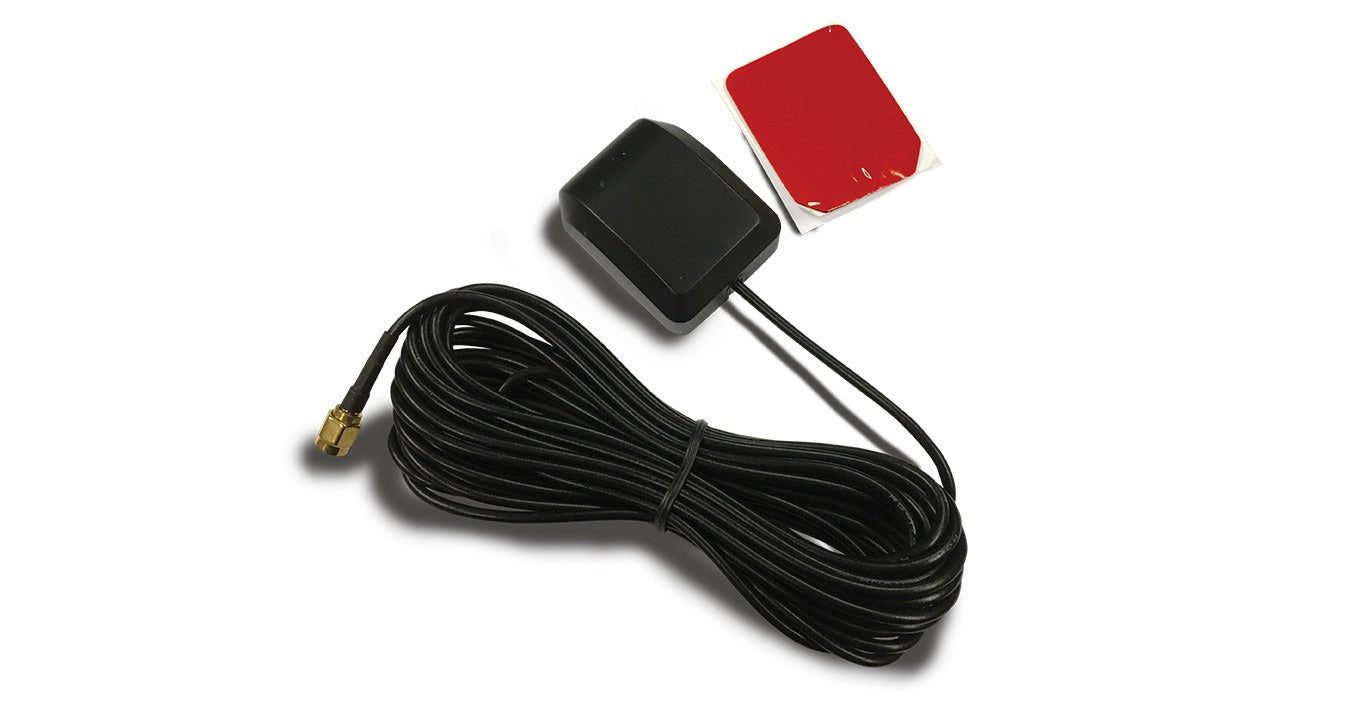

This is a GPS receiver antenna with a 5m lead for use with the AVN-GMCS & AVN-GMCOS.

Product Features

  • GPS receiver.
  • 5m lead.

Typical Applications

For use with the AVN-GMCS & AVN-GMCOS or any other device which needs to receive a GPS signal.

Product Category

AVN Accessories

Technical Specifications

Electrical

  • Temperature Range: -40 to +85°C
  • Impedence: 50 ohm
  • Gain: 28dB
  • VSWR: 2.0 max
  • Voltage / Current: 3 - 5V DC / 3V @ 10mA
  • Centre frequency: 1.575.42MHz ± 1.023MHz
  • Centre frequency: (covered with random and measured
  • Centre frequency: on ground plane)
  • Polarization: RHCP
  • Bandwidth: 10Mhz (10dB return loss)
  • Amplifier: 2 stage LNA with SAW filter for out of band attenuation
  • Noise figure: 1.4dB typical
  • Axial ratio: 1.0dB typical

Equipment Type

  • AVN-GPS5: GPS Receiver Antenna & Lead

Physcial Specification

  • Dimensions: 47mm x 35mm x 17mm ± 1mm (without cable)
  • Cable: 5m
  • Connector: SMAm, SMBm plug, MCXm, MMCXm
  • IP rating: IP67 (magnetic mount only)
  • Mounting method: Magnetic or adhesive (3M pad supplied loose in bag)
