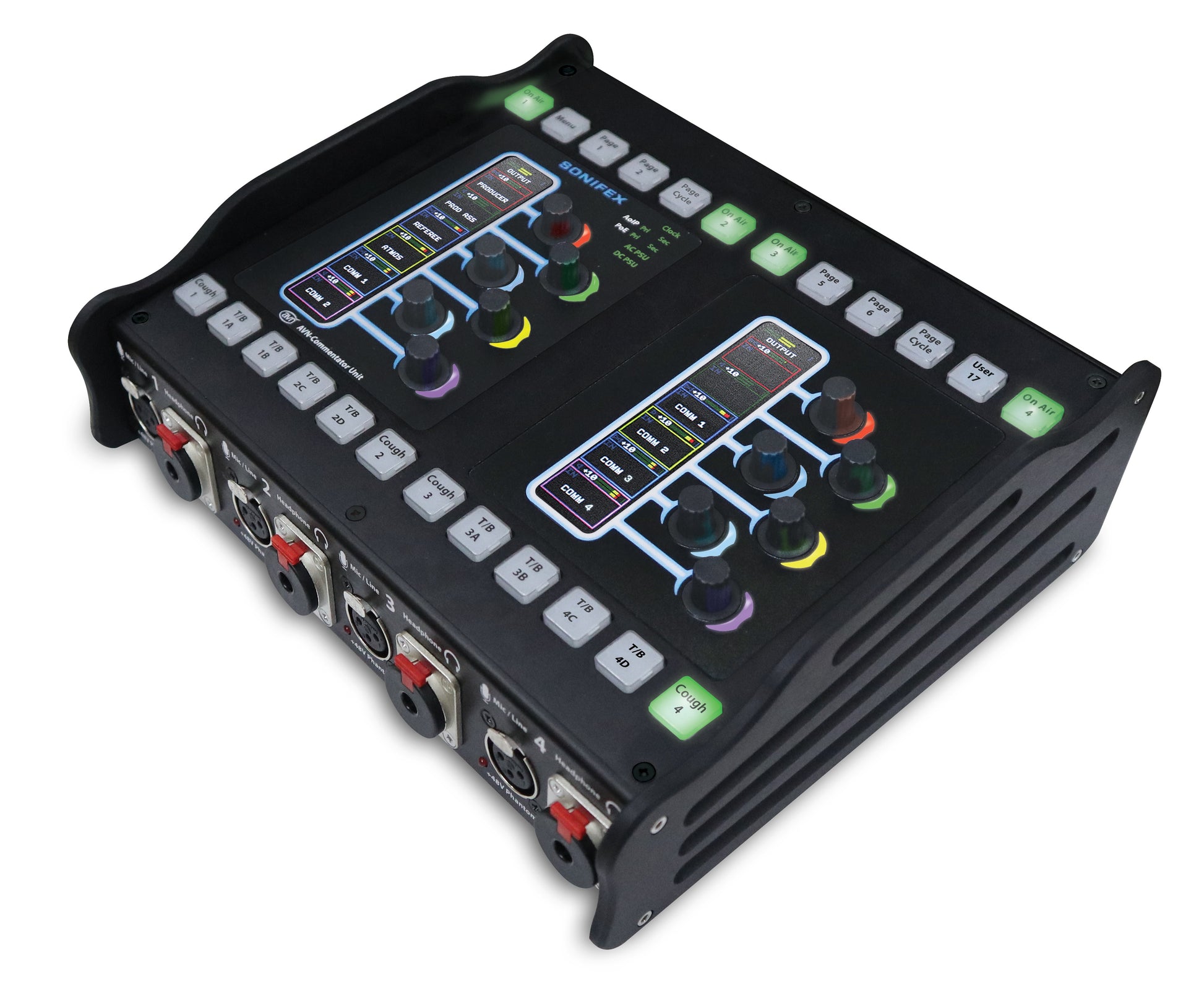

The AVN-CU4-RAV was designed from the ground up to be totally flexible in operation. The use of RAVENNA/AES67 AoIP means that inputs and outputs can be added as required (up to a max of 16 per unit). Any physical input can be combined, mixed, and routed to any output, giving you complete flexibility to create fully customisable cross-points. Additionally you can choose which of those cross-points need to be controlled by the use of rotary encoders. Using a built-in web GUI, up to 48 encoders (8 nameable pages of 6 rotary encoders) can be assigned to inputs, outputs or cross-points. Encoders can control the volume and pan of headphones and volume of the assigned inputs, outputs or cross-points. Each rotary encoder has a separate colour-coded meter section showing the channel name, detailed level metering and left/right panning on a bright daylight reading display. The colours are configurable to quickly identify particular source groups, so headphone source selection becomes intuitive.
Product Features
Web GUI for configuration & full remote control.
Lock-out of all individual controls and/or button row/encoder pages.
PoE+ using 2 x Neutrik EtherCON® RJ45s.
Dual redundant network ports on RJ45 and SFP.
4 x locking mic/line inputs with +48V phantom power indication.
4 x headphone outputs on locking 6.35mm jack sockets.
4 x analogue inputs and 6 analogue outputs on XLR.
1 x stereo AES/EBU input and output on RJ45s.
4 x talkback buses.
On-air buttons with lazy talkback ability.
Supports up to 16 x input and output streams and 16 input and output multicast flows/streams.
Configurable headphone source selection.
12 x rotary encoders to control volume, or signal panning, and colour coded with the screen.
Fully configurable buttons and rotary encoders, for inputs and outputs.
4 x pages of encoder settings, e.g. one for talkback inputs, one for outputs, one to monitor other sources.
Metering per input/output, with output configured as pre or post level adjustment.
Built-in line-up tone generator.
Limiter available on every output.
Output metering section shows limiter indication, the name of the output & level metering.
10 x configurable GPIO with 1 x switched changeover output.
GPIO & VGPIO matrix programmable with events.
Typical Applications
Used in sports grounds, events and arenas by commentators to produce commentary & hear talkback, 16 x 16 matrix mixer with configurable controls for live events

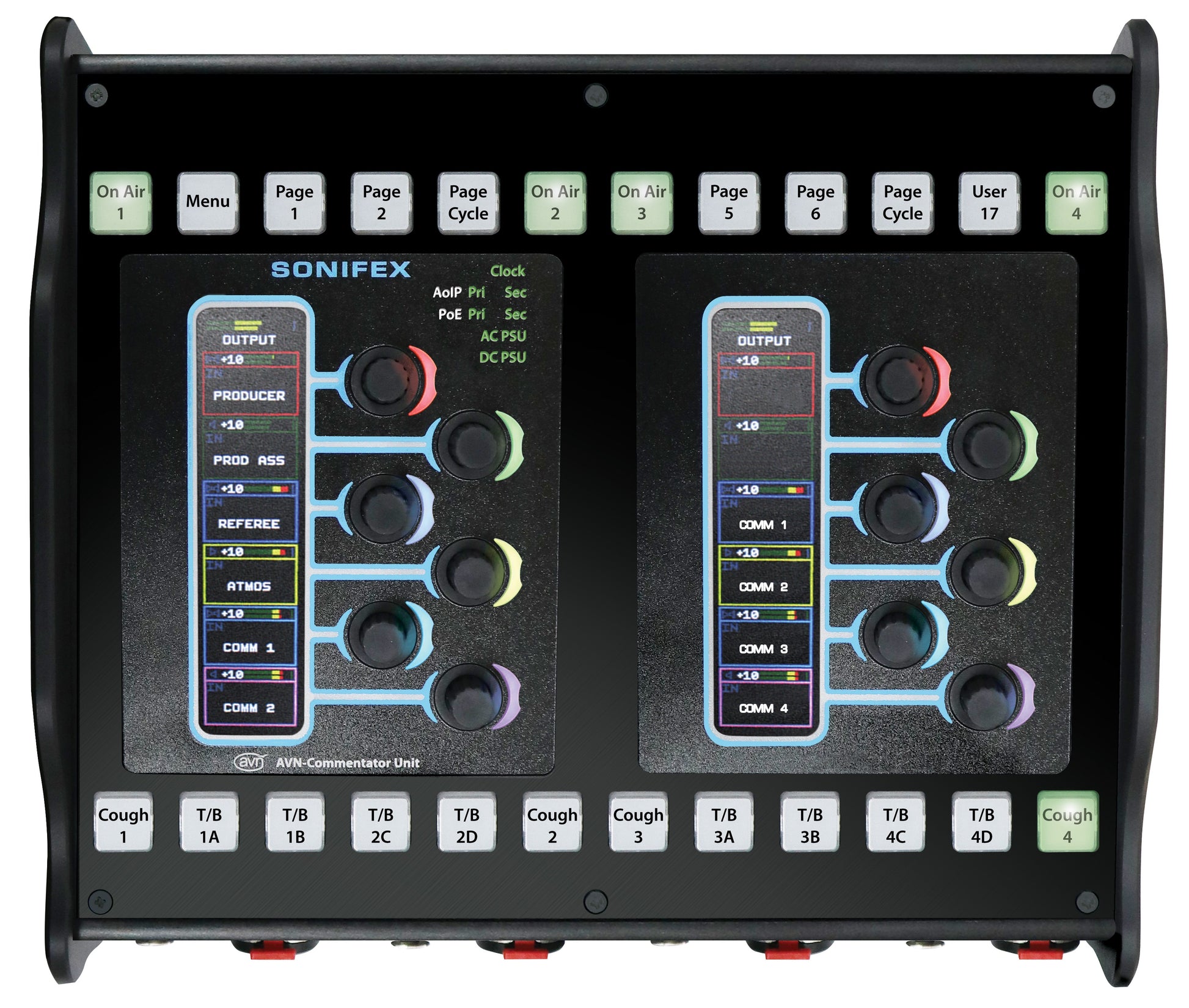

Display: 2 x 480 x 107 pixel colour TFT display showing pan status, level, metering, control type, source/mix/destination names and main output metering
Status LEDs: Clock / AoIP status / PoE status and PSU status LEDs to monitor power and connectivity. Can be disabled if required
Rotary Encoders: 12 x robust soft touch rotary encoders with adjacent configurable light bars for group/source/commentator grouping and identification

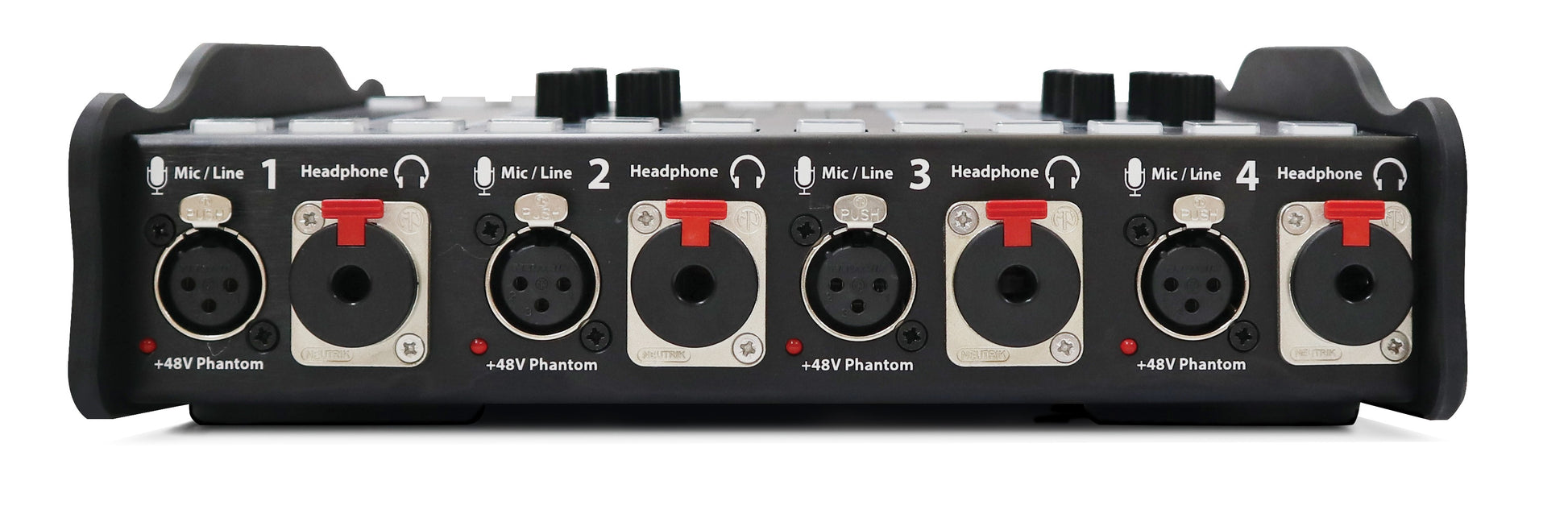

Front Panel Connections
Headphone Outputs: 4 x Neutrik ¼” (6.35mm) locking jack sockets
Microphone/Line Inputs: 4 x Neutrik 3 pin latching XLR sockets

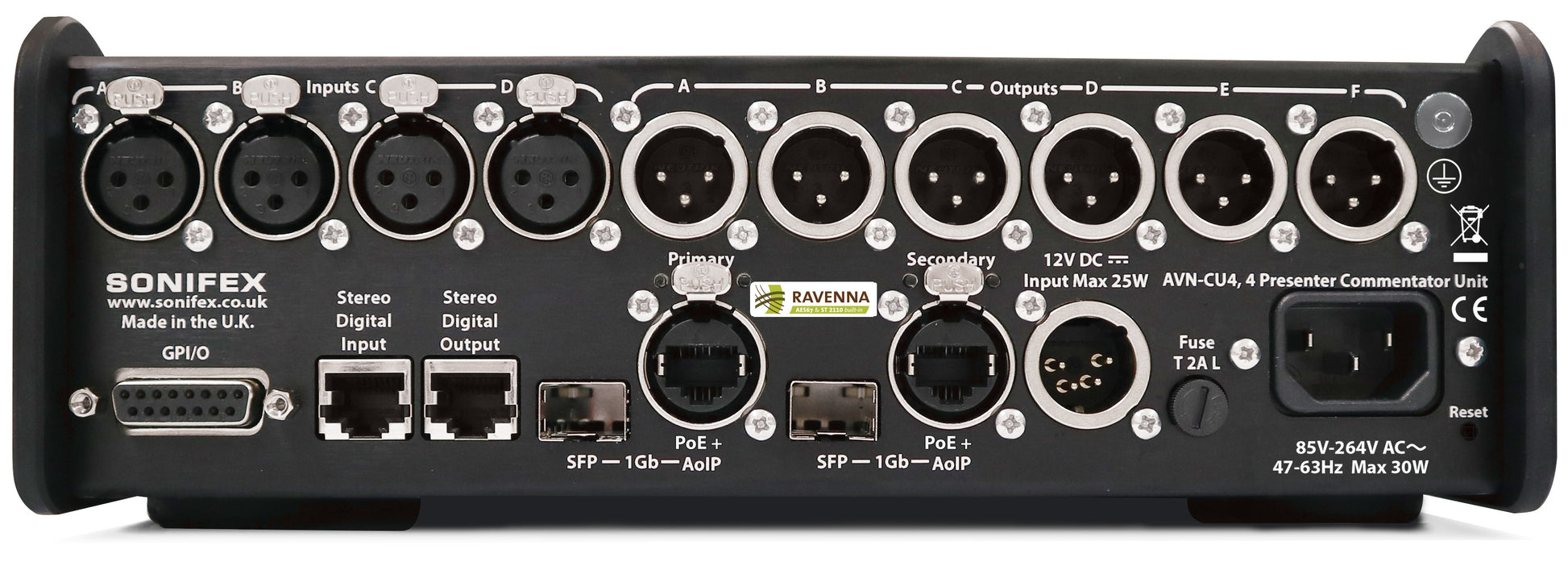

Rear Panel Connections
Stereo Digital Input: RJ45 socket (electronically balanced)
Stereo Digital Output: RJ45 socket (electronically balanced)
Analogue Line Inputs: 4 x Neutrik locking XLR sockets
Analogue Line Outputs: 6 x Neutrik locking XLR plugs
GPIO Port: 15-way ‘D’-type socket
Network: 2 x 1Gbps Neutrik EtherCON receptacles, with PoE+, Maximum 12W
Network: 2 x SFP slots for alternative interfaces
DC Input: Neutrik 4 pin XLR plug, 12VDC, Maximum 12W
