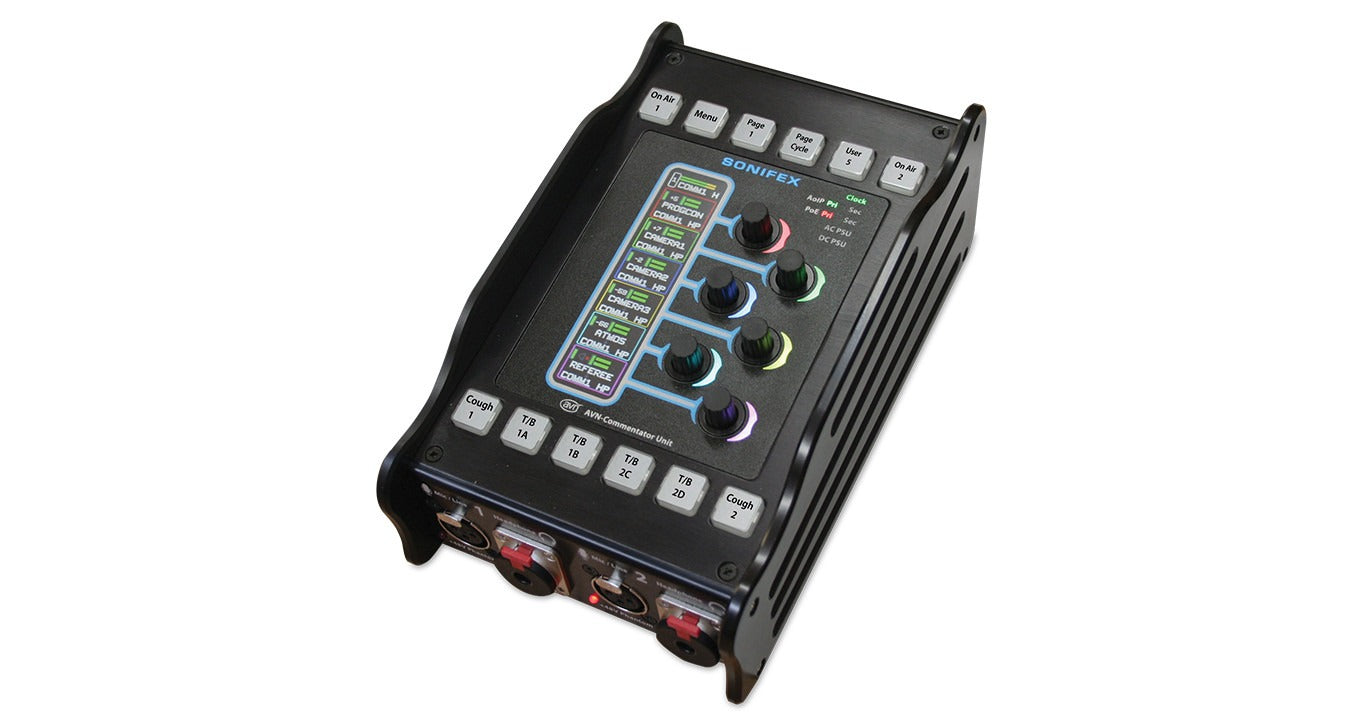

The AVN-CU2 was designed from the ground up to be totally flexible in operation. The use of RAVENNA/AES67 AoIP means that inputs and outputs can be added as required (up to a max of 16 per unit). Any physical input can be combined, mixed, and routed to any output, giving you complete flexibility to create fully customisable cross-points. Additionally you can choose which of those cross-points need to be controlled by the use of rotary encoders. Using a built-in web GUI, up to 24 encoders (4 nameable pages of 6 rotary encoders) can be assigned to inputs, outputs or cross-points. Encoders can control the volume and pan of headphones and volume of the assigned inputs, outputs or cross-points. Each rotary encoder has a separate colour-coded meter section showing the channel name, detailed level metering and left/right panning on a bright daylight reading display. The colours are configurable to quickly identify particular source groups, so headphone source selection becomes intuitive.
Product Features
Web GUI for configuration.
Full web GUI remote control.
Lock-out of all individual controls and/or button row/encoder pages.
PoE using 2 x Neutrik EtherCON® RJ45s.
Dual redundant network ports on RJ45 and SFP.

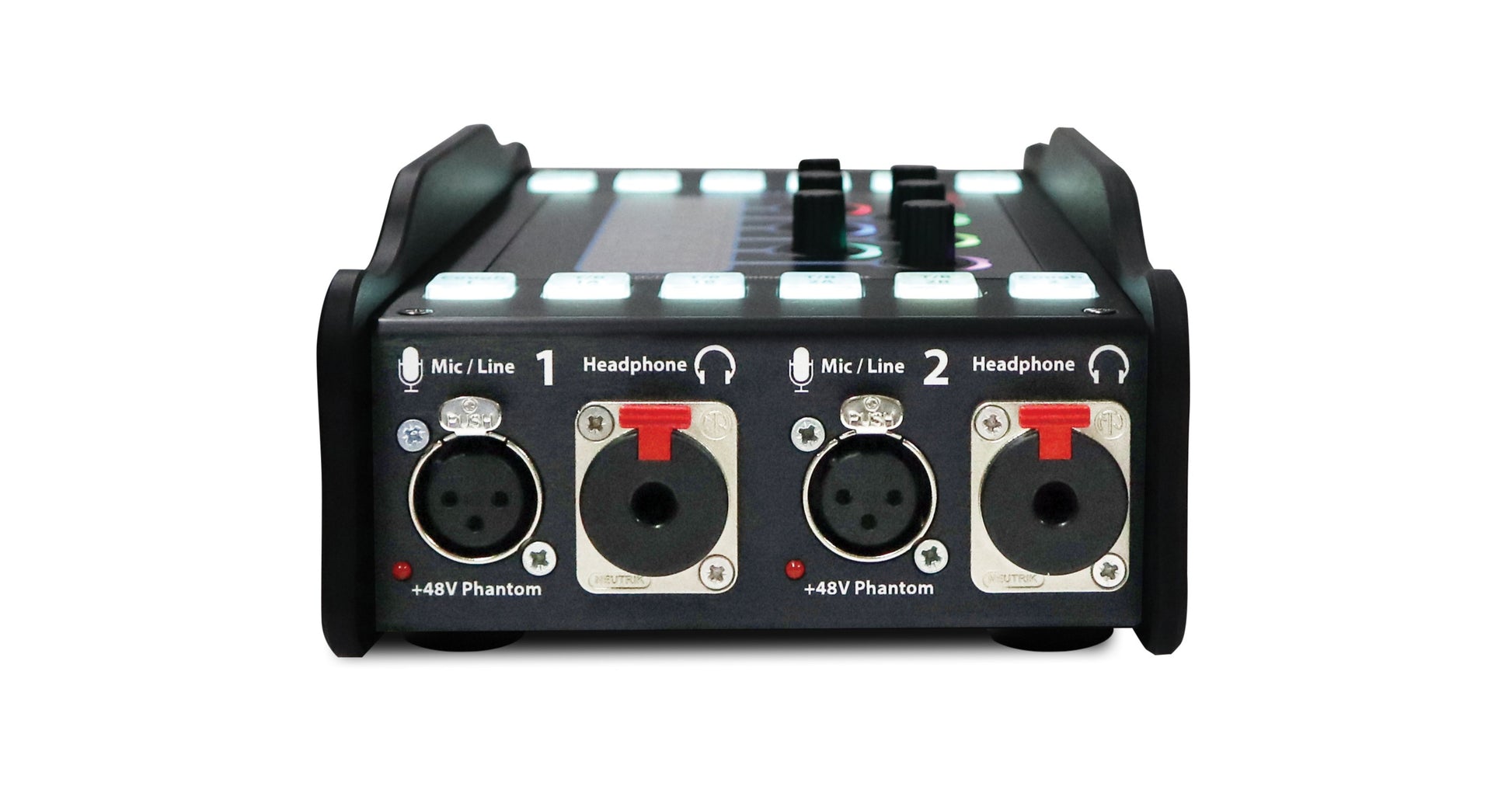

2 x locking mic/line inputs with +48V phantom power indication.
2 x headphone outputs on locking 6.35mm jack sockets.
1 x stereo analogue/digital input and 1 x stereo analogue/digital output on RJ45s.
4 x talkback buses.
On-air buttons with lazy talkback ability.
Supports up to 16 x input and output streams and 16 input and output multicast flows/streams.
Configurable headphone source selection.

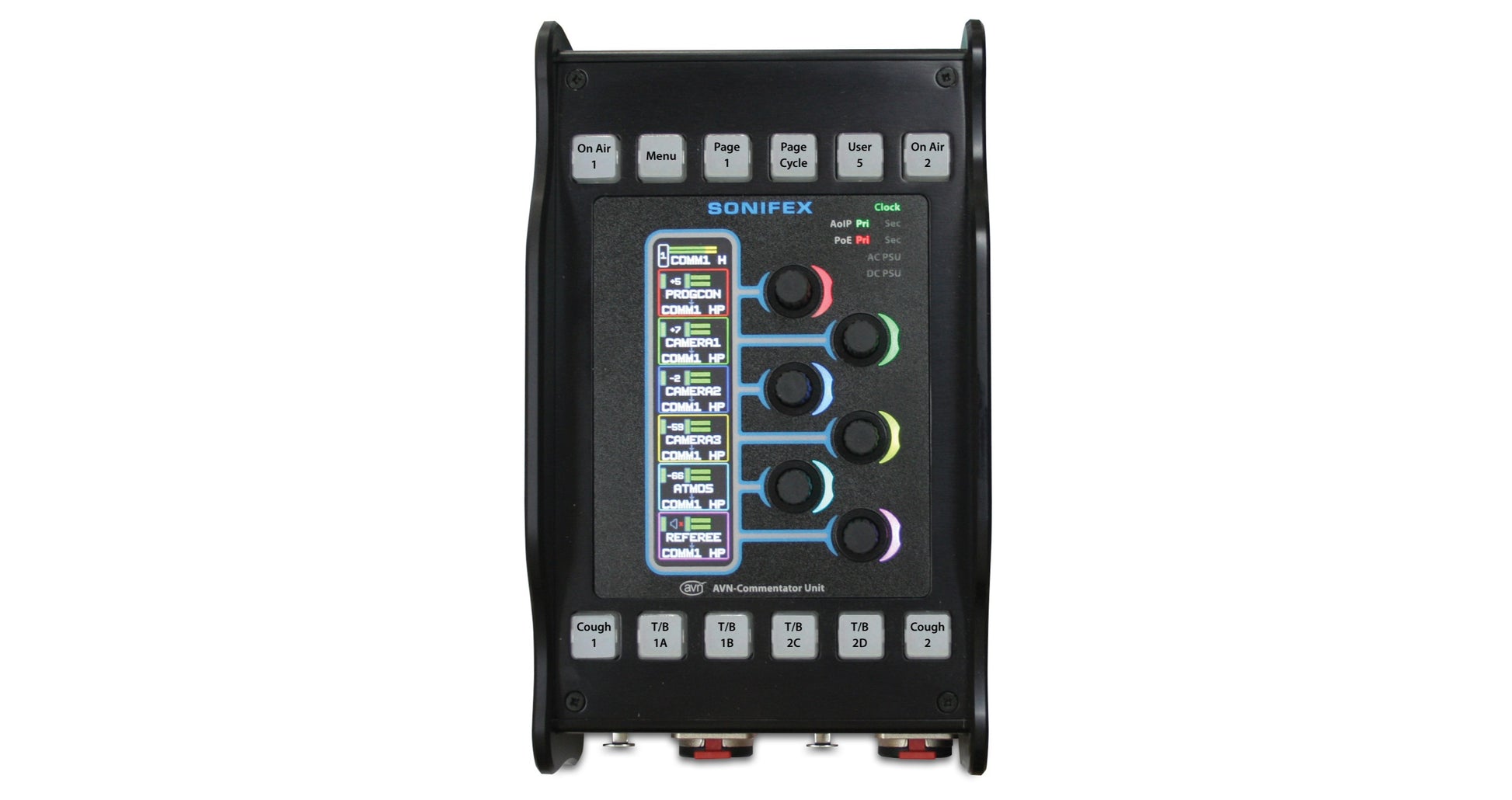

6 x rotary encoders to control volume, or signal panning, and colour coded with the screen.
Fully configurable buttons and rotary encoders, for inputs and outputs.
4 x pages of 6 x encoder settings, e.g. one for talkback inputs, one for outputs, one to monitor other sources.
Metering per input/output, with output configured as pre or post level adjustment.
Built-in line-up tone generator.
Limiter available on every output.
Output metering section shows limiter indication, the name of the output & level metering.
10 x configurable GPIO with 1 x switched changeover output.
GPIO & VGPIO matrix programmable with events.
Typical Applications
Used in sports grounds and arenas by commentators to produce commentary & hear talkback, 16 x 16 matrix mixer with configurable controls for live events
