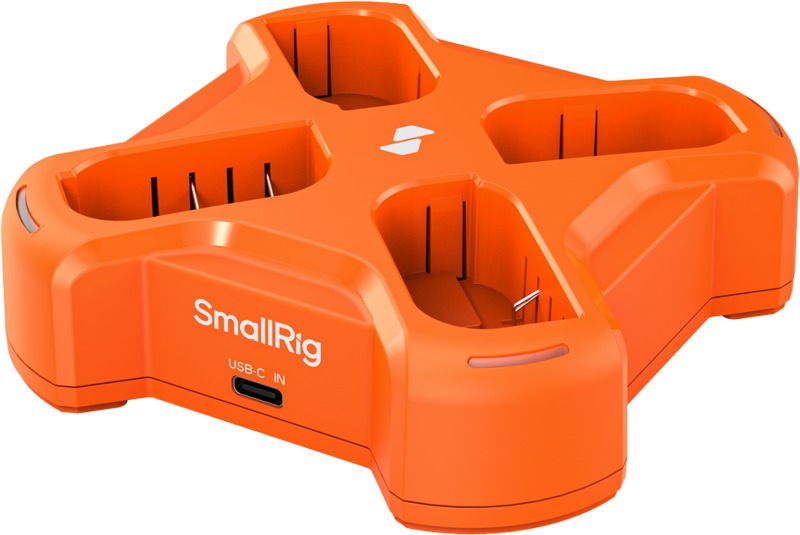

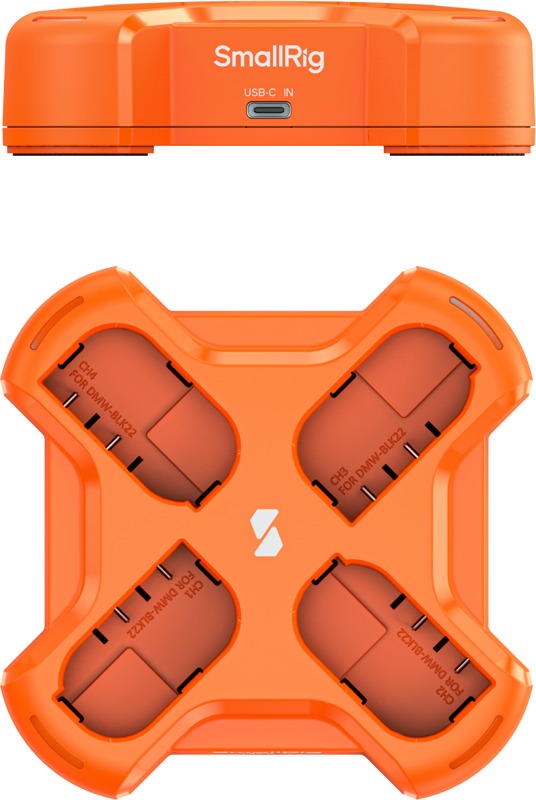

SmallRig 5748 Four-Channel Camera Battery Charger for DMW-BLK22

SmallRig 5748 Four-Channel Camera Battery Charger for DMW-BLK22
Each output port is equipped with short-circuit and overcurrent protection, ensuring safe operation at all times.
Its compact and portable design makes it ideal for both travel and daily use, providing reliable battery charging wherever you go.
Certifications: Quality Inspection Report / FCC / CE / PSE / KC / RCM
Charging Time:

• Battery Capacity: 2600mAh
• Full Charge: 4 batteries in 3 hours

Note: For optimal performance, it is recommended to use a USB-C charger with an output power of 45W or higher.
The number of charging channels activated based on the adapter's voltage:

• 5V activates 1 channel; 9V activates 2 channels; 12V activates 3 channels; 15V activates all 4 channels.
• If a higher-voltage battery is inserted during charging, the system prioritizes charging it first until it is fully charged.

Technical data:

• USB-C Input: 5V⎓2A, 9V⎓2A, 12V⎓2A, 15V⎓3A (Max 45W)
• Output (per channel): 8.4V⎓0.9A, 8.4V⎓1.8A, 8.4V⎓2.5A
• USB-C Protocol: PD
• Charge Limit Voltage: 8.45V
• Operating Temperature: 5°C – 45°C

Compatibility:

• DC-S5, DC-S5K, DC-S5II, DC-S5IIX, DC-S5M2, DC-S5M2X, DC-GH5M2, DC-GH6, DC-GH6L, DC-GH7, and other cameras using DMW-BLK22 batteries.

Packaging includes:

• DMW-BLK22 Four-Channel Charger
• 65W USB-C to USB-C Charging Cable
• User Manual

Technical Specifications

• Battery Type: Lithium, Camera
• Camera Brand: Panasonic
• Connections: USB-C
• Type of Charger: USB-C, Li-Ion
• Weight: 136
