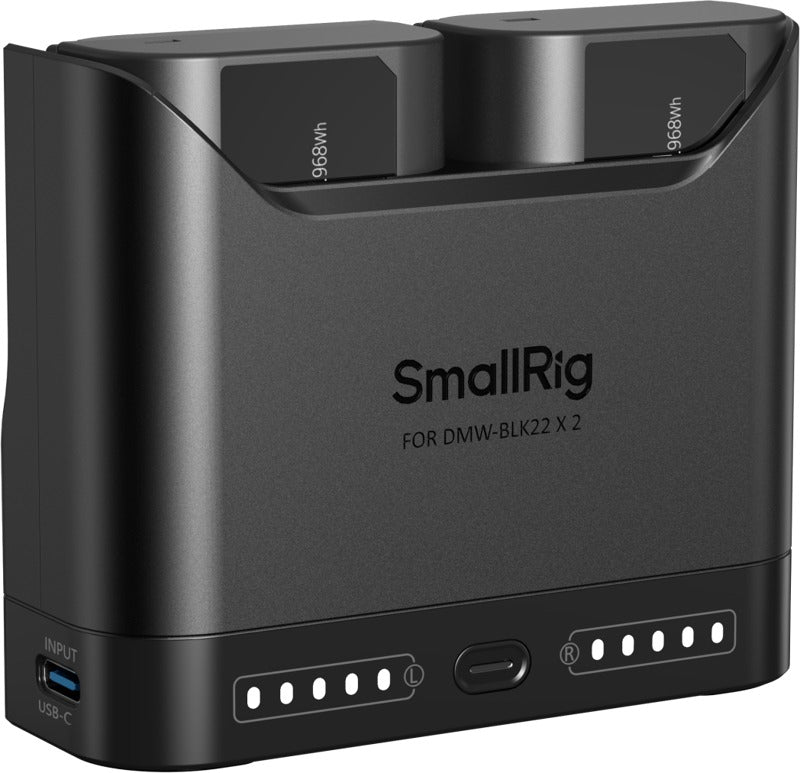

SmallRig 5487 Turbo Charging Kit for DMW-BLK22 Camera Batteries

SmallRig 5487 Turbo Charging Kit for DMW-BLK22 Camera Batteries
Intelligent circuitry offers multiple safety protections, including over-temperature and over-voltage safeguards.
It monitors temperature and voltage, automatically slowing down charging during overheating, cutting off power in case of overvoltage, and employing trickle charging near full capacity to preserve battery health.
Each charging channel features five LED indicators that display power levels in 20% increments, even without external power.
A red warning light activates when battery levels are critically low.

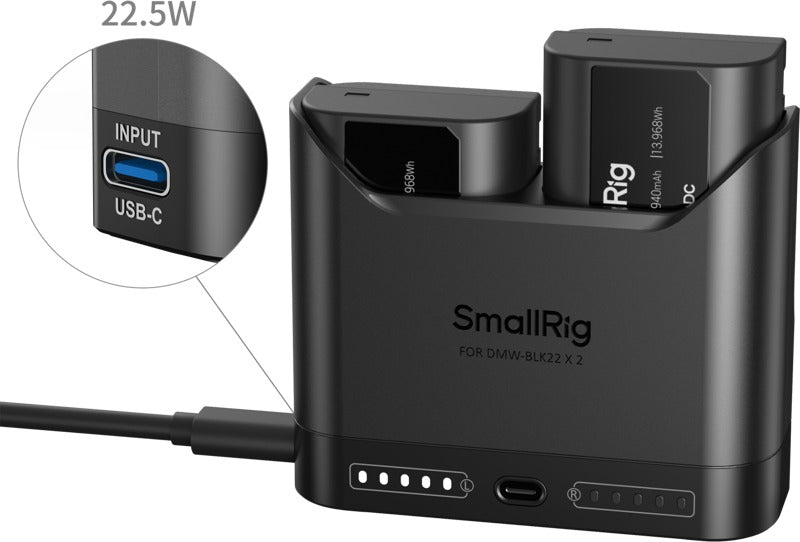

Additionally, the charger incorporates a universal USB-C input port and comes with a fast-charging cable, making it compatible with wall adapters, car chargers, and power banks for versatile charging options.
Certifications: FCC, CE, RoHS, ISED
Note:

• Recommended to use a power adapter with 22.5W or higher output.
• When using a 5V / 2.4A adapter, the charger operates in slow-charge mode, prioritizing the charging of the battery in Channel 1 first. It automatically switches to Channel 2 once Channel 1 is fully charged.

Charger Specifications:

• Material(s): PC + ABS
• USB-C Input: 5V / 2.4A, 9V / 2A, 12V / 1.75A, 15V / 1.5A; 22.5W (Max)
• USB-C Protocol: PD3.0, QC2.0, QC3.0
• Rated Output (Per Channel): 8.4V / 1A
• Operating Temperature: 0°C to 45°C

Battery Specifications:

• Battery Type: Lithium-ion Battery
• Nominal Voltage: 7.2V
• Cell Capacity: 1940mAh
• Rated Energy: 13.968Wh
• Charging Limit Voltage (Li-ion Battery Interface): 8.4V
• Charging Current (Li-ion Battery Interface): Standard Charge: 0.2C (408mA)
• Fast Charge: 0.7C (1428mA)
• Maximum Discharge Current: 4A
• Discharge Cut-off Voltage: 5.0V
• Charging Temperature: 0°C to 45°C
• Discharging Temperature: -10°C to 60°C

Compatibility:

• Panasonic LUMIX GH7 / GH6 / GH5 II / S9 / G9 II / S5 IIX / S5 II / S5

Packaging includes:

• Camera Battery Charger for DMW-BLK22
• 2x Camera Battery for DMW-BLK22
• 2x Battery Cover
• 60W USB-C to USB-C Cable (1m)

Technical Specifications

• Battery Classification: Lithium-Ion
• Battery Type: Camera
• Camera Brand: Panasonic
• Connections: USB-C
• No. of USB Ports: 1
• Rechargeable: Yes
• Type of Charger: USB-C
• Weight: 223
• Type of Accessory (Battery/Power): Charger, Battery
• Kit Item: Yes
