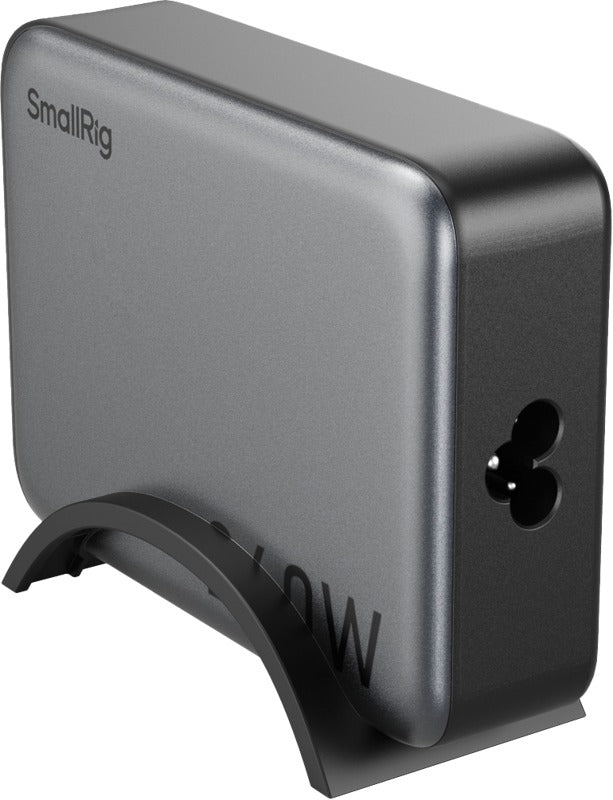

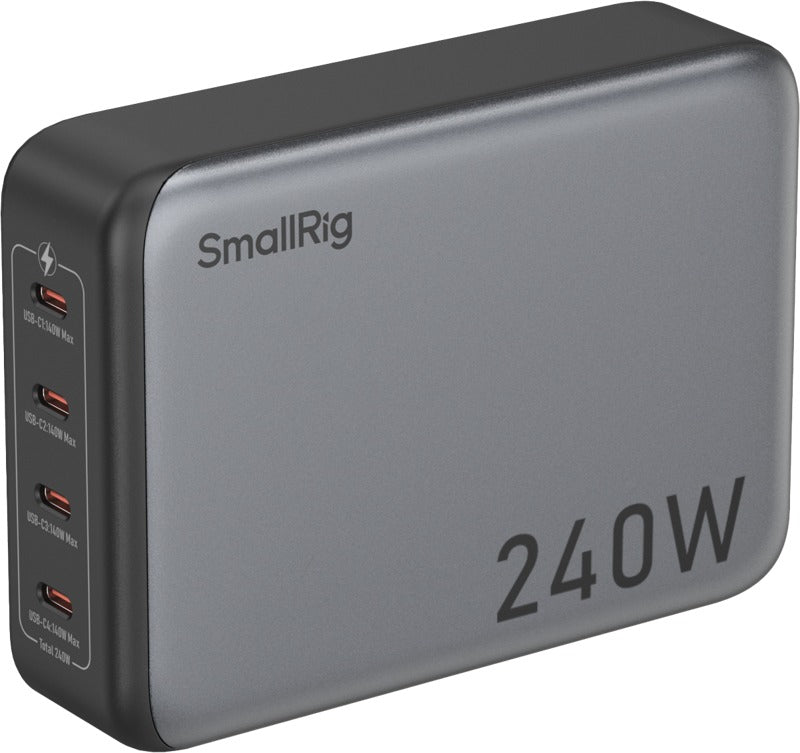

SmallRig 4752 240W 4-Port PD Power Adapter

SmallRig 4752 240W 4-Port PD Power Adapter

All ports support fast charging, with each port supporting up to 140W (Max) output through PD3.1, providing strong support for high-power devices and significantly enhancing charging efficiency.

Each output port is equipped with short-circuit and overcurrent protection to ensure safe usage.

Additionally, the compact size of the charger makes convenient for travel and daily use.

Compatibility:

• V mount batteries, NP-F batteries, cameras with direct charging batteries, smartphones, tablets, and laptops.

Certification:

• CE & RoHS

Package includes:

• 1x 240W Charger
• 1x AC Power Cable (EU Standard)
• 1x Adapter Bracket
• 1x User Manual

Technical info:

Total Output Power: 240W Power Input: 100-240VAC 50 / 60Hz 4.0A

Power Output:

Single-Port Mode:

• USB-C1 / C2 / C3 / C4: 5V3A 9V3A 5V5A 20V5A 28V5A
  Total: 140W MAX

Dual-Port Mode:

• C1 + C2 / C3 + C4: 100W + 40W / 40W + 100W / 70W + 70W
  Total: 140W MAX
• C1 + C3 / C1 + C4 / C2 + C3 / C2 + C4: 140W + 100W
  Total: 240W Max

Triple-Port Mode:

• USB-C1 + C2 + C3 / C1 + C2 + C4: 70W + 70W + 100W / 100W + 40W + 100W / 40W + 100W + 100W
  Total: 240W Max
• C2 + C3 + C4 / C1 + C3 + C4： 140W + 60W + 40W / 140W + 40W + 60W / 140W + 50W + 50W
  Total: 240W MAX

Quad-Port Mode:

• USB-C1 + C2 + C3 + C4:
  100W + 40W + 60W + 40W / 100W + 40W + 40W + 60W / 100W + 40W + 50W + 50W / 70W + 70W + 50W + 50W / 70W + 70W + 60W + 40W / 70W + 70W + 40W + 60W / 40W + 100W + 40W + 60W / 40W + 100W + 60W + 40W / 40W + 100W + 50W + 50W
  Total: 240W Max

Technical Specifications

• Connections: USB-C (3.0), HDMI output (Type D)
