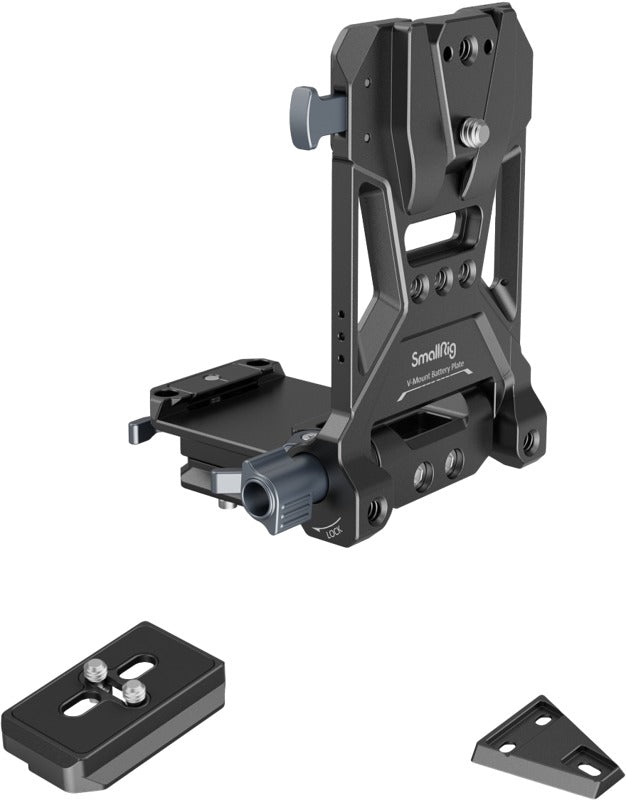

SmallRig 4064 Compact V-Mount Battery Mounting System
The baseplate can be stretched to fit mirrorless / DSLR cameras of various sizes.
Tool-free installation and adjustment make the process quick and time-saving.
Beyond any cage with a built-in Arca-type mount, it can directly support cameras and DJI RS series gimbals via the Arca-Swiss quick release plate.
The built-in 1/4"-20 threaded holes and a V-Mount plate provide more power supply solutions by attaching a SmallRig Battery Adapter Plate Professional Edition 3168, Mounting Clamp for Portable Power Banks 2336, etc.
A detachable Arca-type plate at the bottom allows quick switching between handheld and tripod shooting and is interchangeable with other quick release plates.
The rotatable structure of the V-Mount battery plate allows 90° backward rotation facilitating screen usage and adopts damping to prevent your device from falling.
The folding design of the V-Mount plate increases compactness and portability.
The included aluminum alloy V-Mount Backplate can replace the plastic V-Mount Plate on the back of other V-mount batteries.
- Universal V-Mount battery mount plate kit
- Supports three power supply solutions (V-Mount, NP-F & Power Bank)
- Can be used with Arca-Swiss compatible tripods
Note:
Load capacity: 5kg
Compatibility:
Mirrorless / DSLR cameras less than 111mm thick, for example:
Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 7C / FX3 / FX30
Canon EOS R5 C / R5 / R6 / R6 Mark II / R7 / R10 / R / RP
Panasonic LUMIX S1H / S1R / S1 / S5 / S5 II / GH6 / GH5
Package includes:
1x V-mount Battery Plate
1x Arca-Swiss Quick Release Plate
1x V-mount Backplate
Technical Specifications
