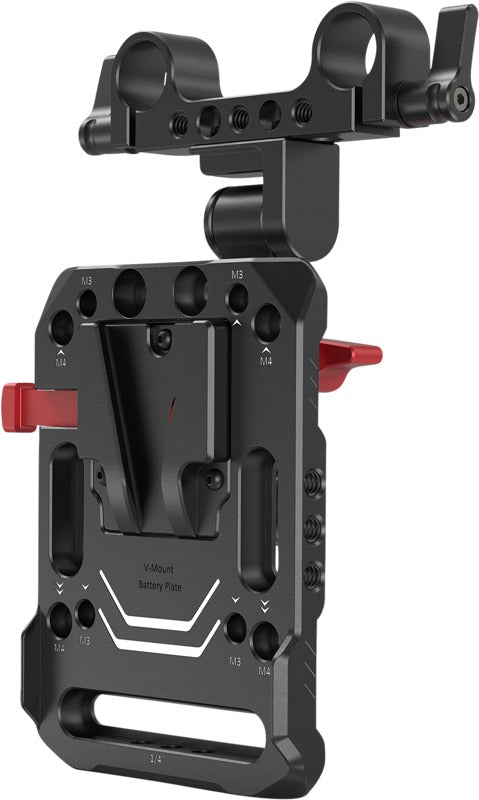

SmallRig 2991 Battery Plate V-Mount with Adjustable Arm
It comes with a dual 15mm rod clamp with an adjustable arm to help mount the plate to your 15mm LWS rod system and adjust the V mount battery's position as needed in a variety of different installation ways.
The plate itself features multiple 1/4-20" countersinks, M3 countersinks, M4 countersinks, 1/4-20" thread holes, M4 thread holes, and an ARRI 3/8" -16 thread hole to attach a dual rod clamp, a magic arm, or other accessories.
Two stoppers will prevent the battery from twisting when attached.
The plate is also compatible with the Blackmagic URSA mini.
Note:
No V-Lock part (male) provided with the plate.
This is purely a mounting solution for a V-mount battery — no power ports on the plate.
Compatibility:
The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

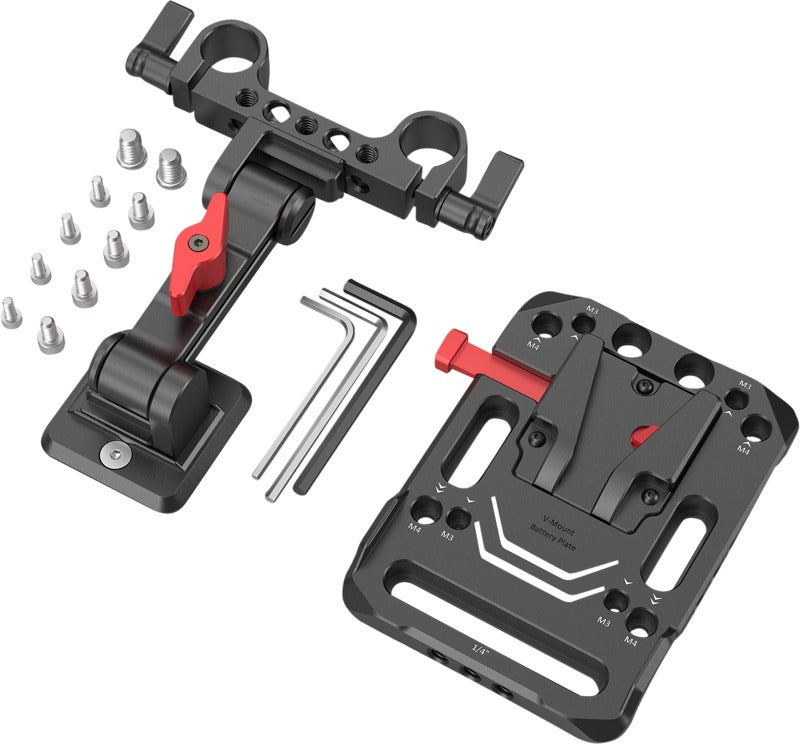

Package Includes:
1 x V Mount Battery Plate
1 x Dual 15mm Rod Clamp with Adjustable Arm
3 x Allen Wrench
2 x 1/4-20" Screw (short)
2 x 1/4-20" Screw (long)
4 x M4 Screw
4 x M3 Screw
