SmallHD Vision 24" 4K HDR Monitor

Name: SmallHD Vision 24" 4K HDR Monitor
Brand: SmallHD
SKU: SHD-MON-VISION-24
Price: 8101.15 EUR
Availability: InStock

€8.101,15 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

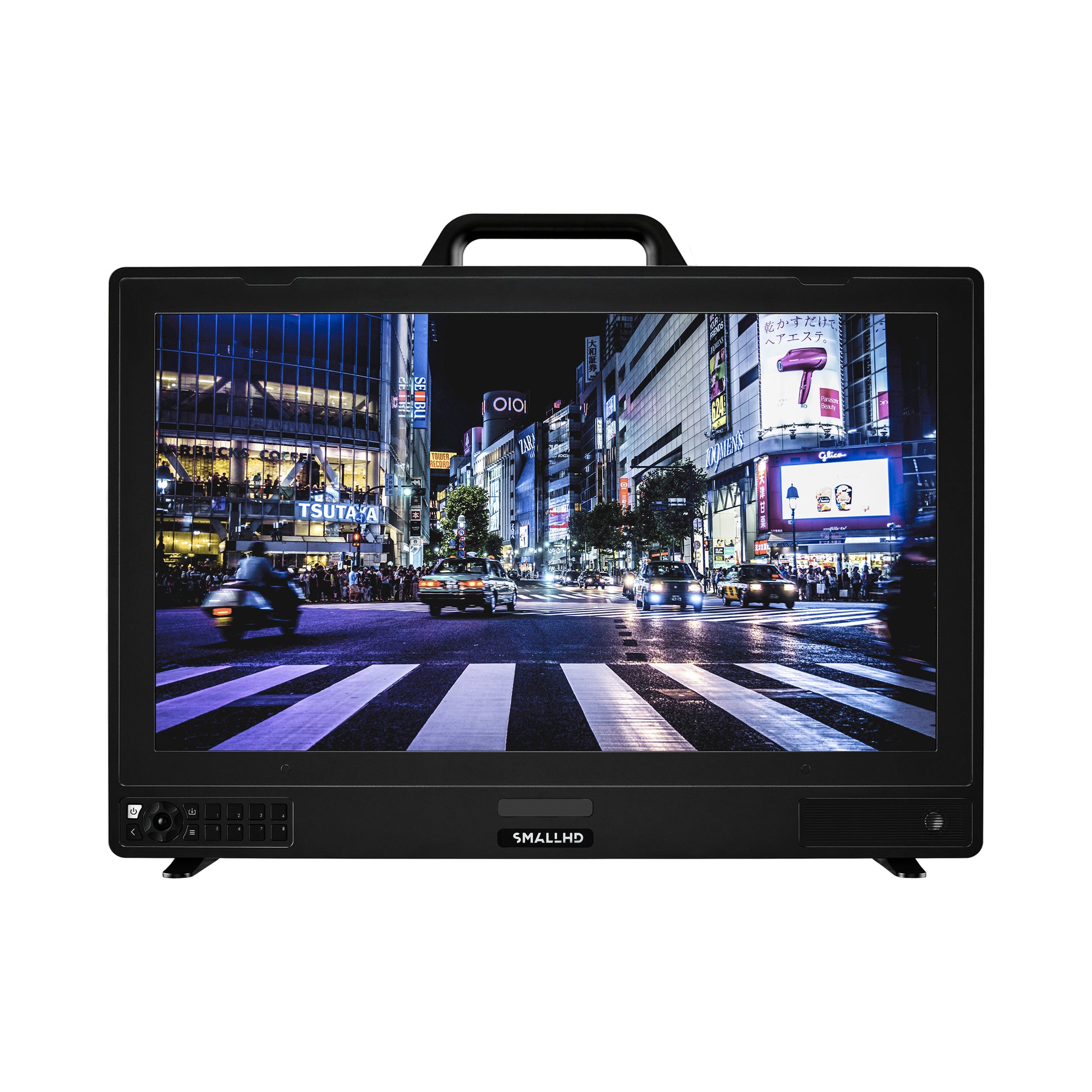

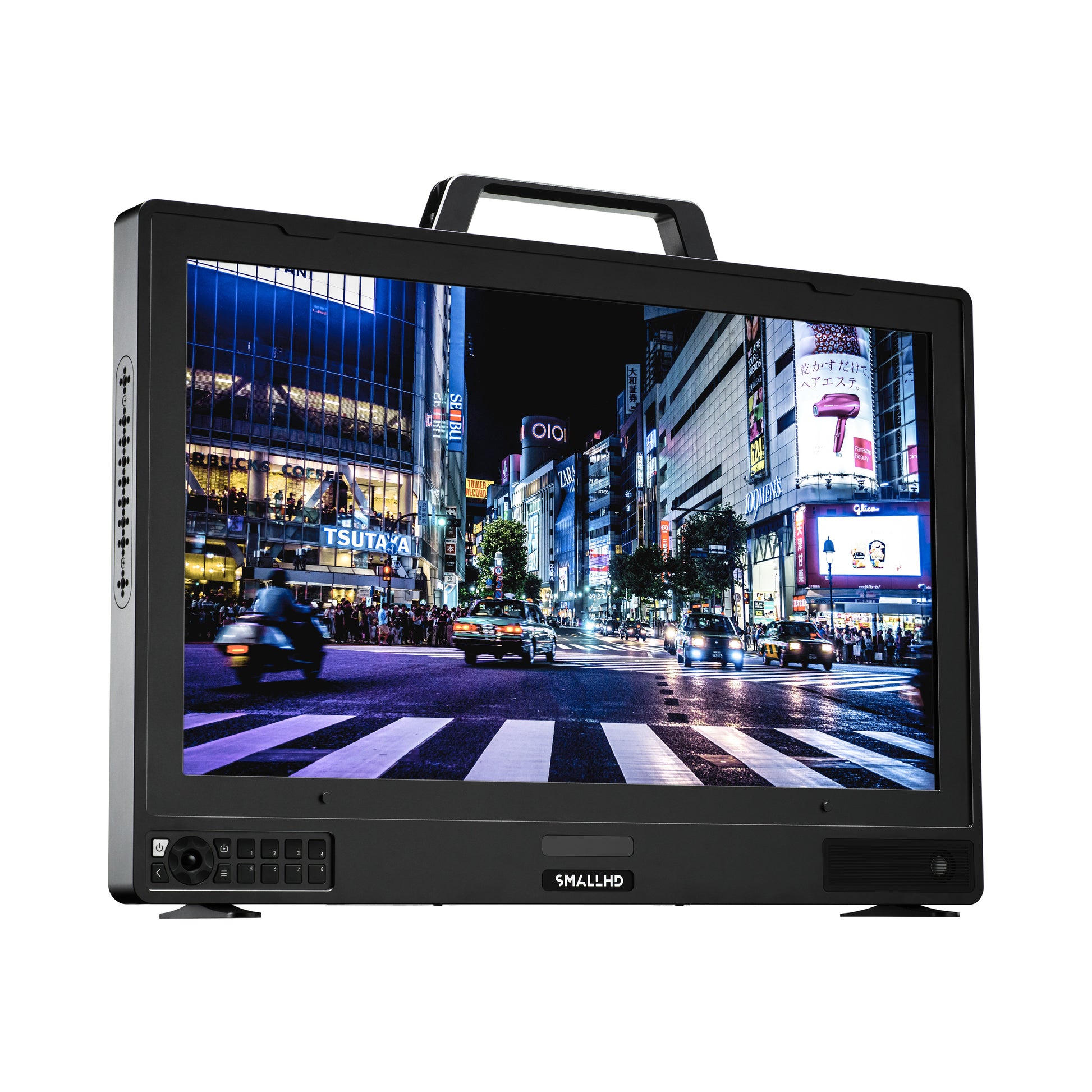

Vision 24 allows you to see as your camera sees. Ideal for use in any production environment where HDR monitoring is a necessity, Vision 24 provides you the added security that every detail is captured.

This monitor – with a 24-inch, 4096x2160-resolution screen – has been engineered to equal modern sensors’ increased sensitivity to highlight and lowlight image retention. Vision 24 is powered by SmallHDR, a proprietary Full-Array Local Dimming (FALD) hardware that enables nuanced control of over 2176 individual LED zones, rendering hyper-sharp contrasts with deep blacks, crisp highlights, and a stunning 10-bit color depth that provides a color-accurate look at your production.

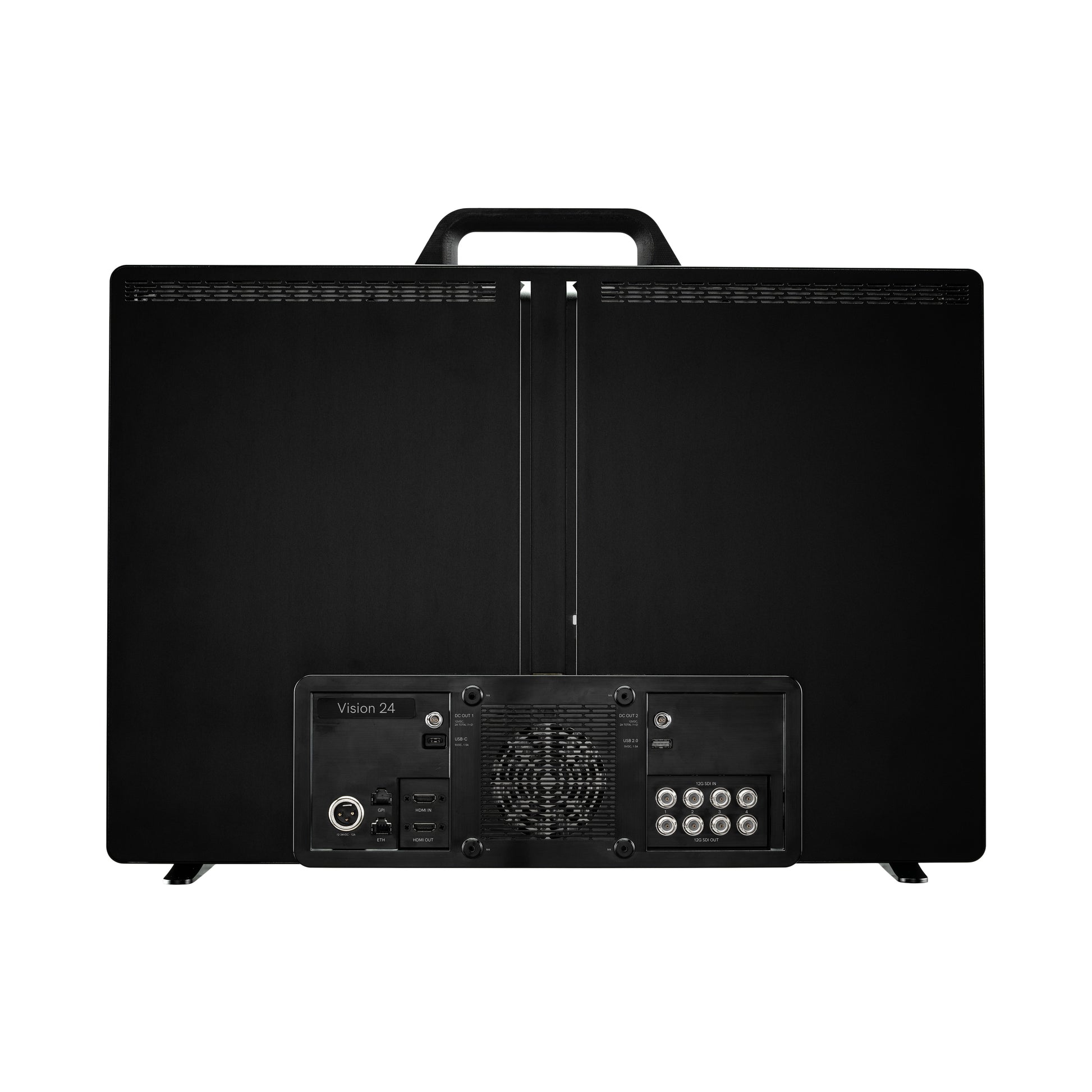

The Vision 24 features four 12G SDI inputs and outputs as well as one HDMI 2.0 input. The Unibody Smart Chassis offers a Dovetail Mounting Rail for battery and accessory mounting, interchangeable mounting points, and 2x 2-pin accessory power outputs. Hot-swappable dual inputs allow you to add on Gold Mount or V-Mount battery plate attachments.

Meet Our Smart PageOS Software

With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.

Technical Specifications

Specifications

Name: Vision 24
Need to Export: True

Environmental

Item Weight (oz): 19.7lbs/8.9kg
Height (in): 15.8 (w/out feet and handle) 16.9 (w/ feet and handle)
Width (in): 23.4 (w/out feet and handle) 23.7 (w/ feet and handle)
Length/Depth (in): 2.8 (w/out feet and handle) 4.7 (w/ feet and handle)
Compliance: FCC, IC, CE, RoHS, SRRC, MIC
Operating Temperature: 32 F - 100 F
Storage Temperature: 0 F - 105 F
Screen Protection: Basic and Hardened

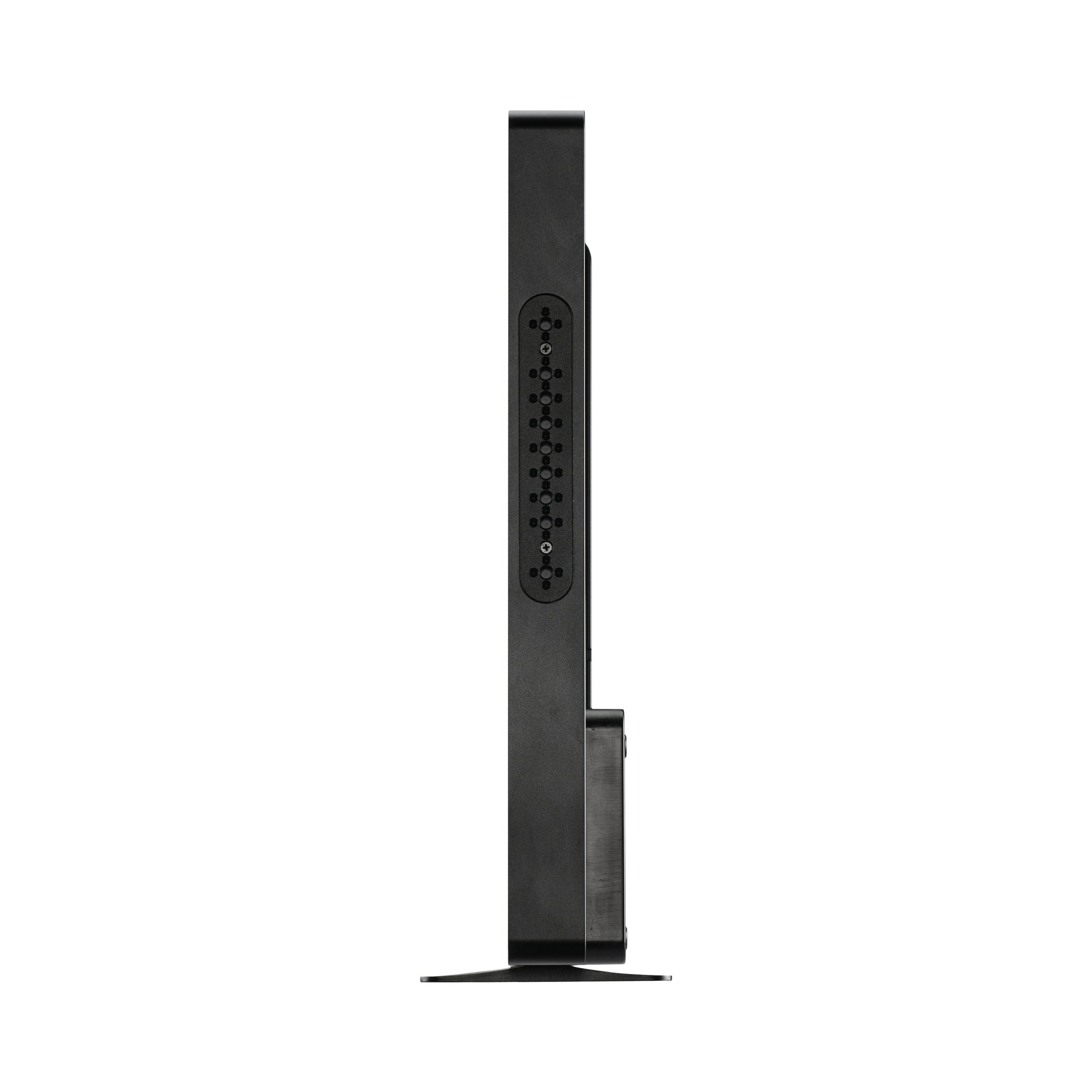

Mount Points: Interchangeable accessory mount plates on top and sides with multiple ¼”-20 and/or ⅜”-16 options
Construction: Anodized aluminum chassis with plastic accents

Display

Panel Type: IPS LCD
Diagonal Size: 24.1
Resolution: 4096x2160
Max Brightness: 1000nits
Contrast: 1,000,000:1
Gamut: Rec709 coverage 100% DCI_P3 coverage 99.89%
Color Depth: True 10-bit
Viewing Angle: 90 Degrees
Backlight Type: Full-Array Local Dimming
Backlight Zones: 2176
Refresh Rate: Synchronizes with input from 48Hz to 60Hz
Display Size: 24"
Panel Resolution: 4096 x 2160
Brightness: 1000nits
Color Bit Depth: True 10-bit
Backlight Type: Full-Array Local Dimming
DCI-P3 Color: 115% DCI-P3

Input Signal

3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
6G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
12G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types: YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

Output Signal

3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
6G-SDI Output Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
12G-SDI Output Types: YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types: YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio Output Types: 1x 3.5mm 3-pin Stereo Headphone Jack

Connector Type

Component: Not Supported
Composite: Not Supported
Audio: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Data I/O

Connector Type: 1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI

Power

Input: 1x 3-pin XLR (310W max, 27V-34V, 26A max)
Output: 2x 2pin (12V / 2A combined), 1x USB-A (2.4A) (Front), 1x USB-A (1.5A) (Rear), 1x USB-C (5V / 1.5A) (Rear)
Consumption: 225w (monitor only) 306w (w/max access. power draw)
Battery Plate Included: No
Battery Types: 1x Dual-GM/VM Batt.Plate (26V) (sold as accessory)
