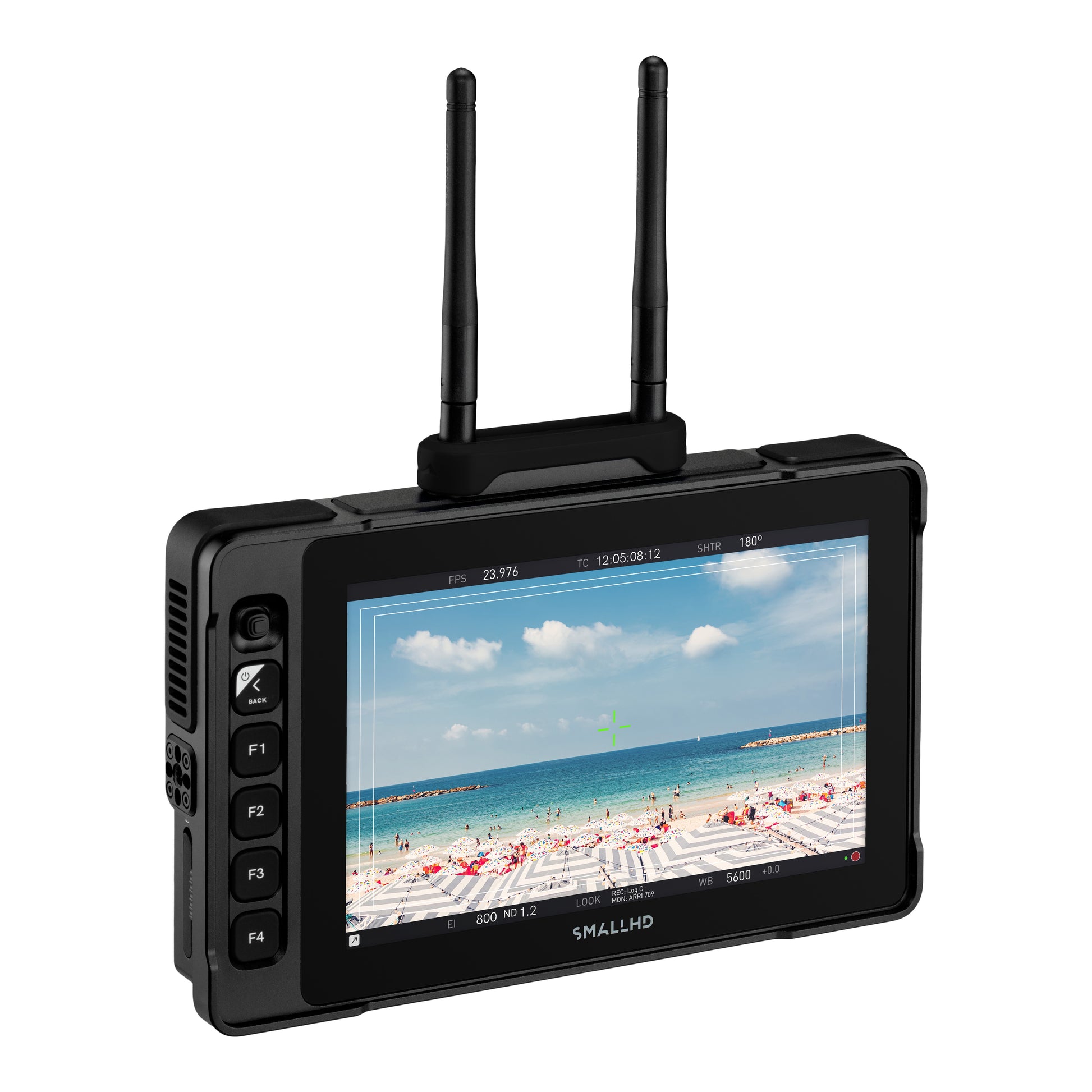

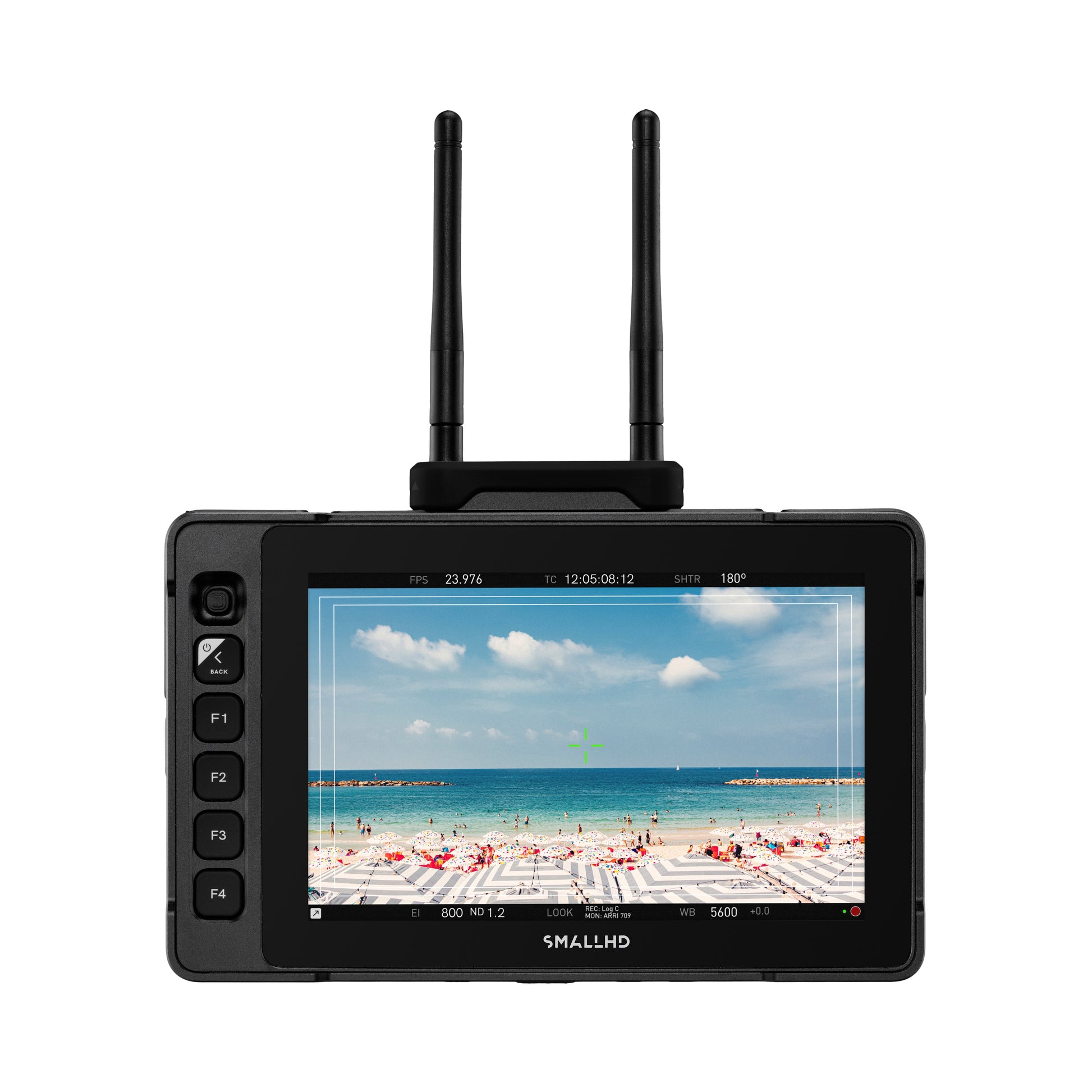

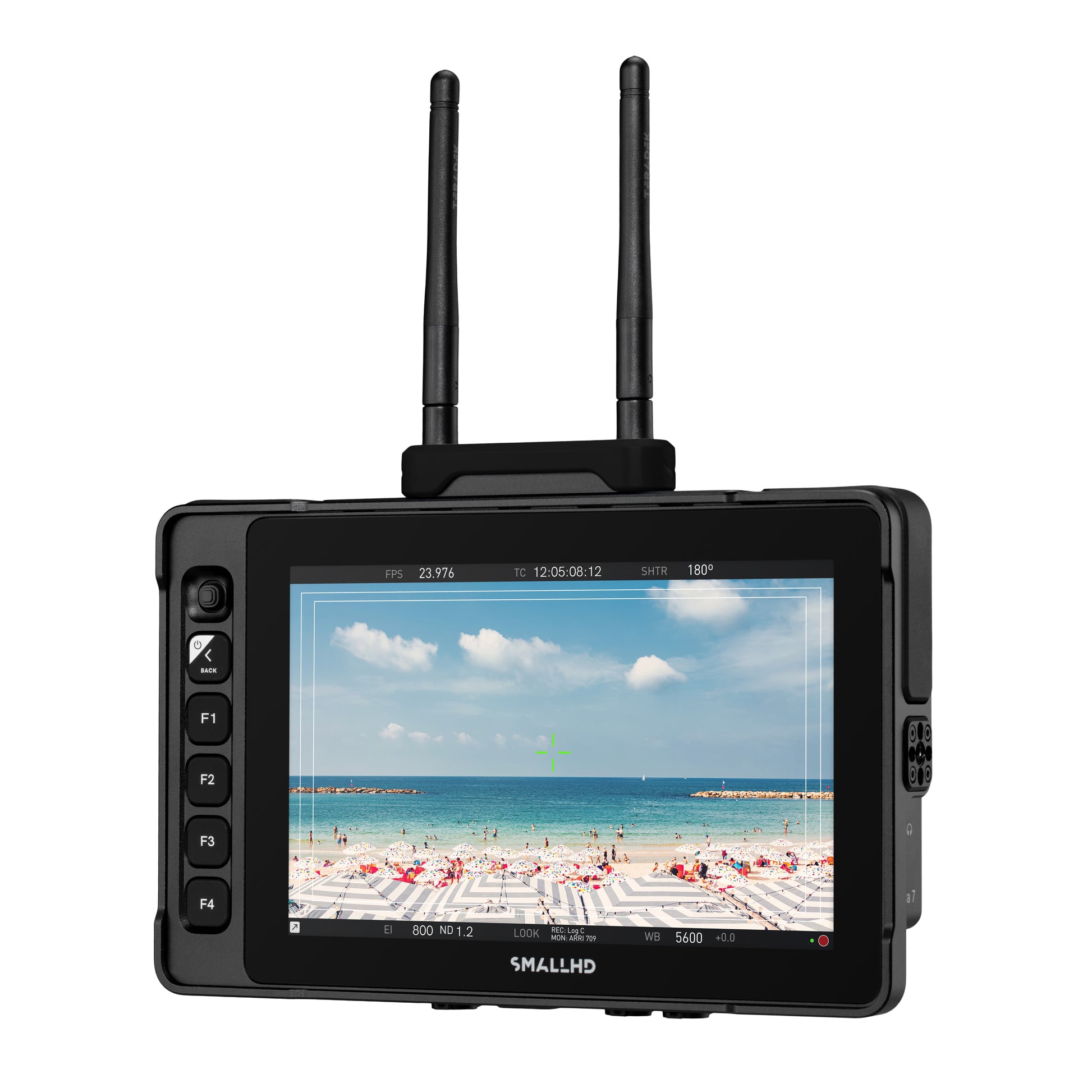

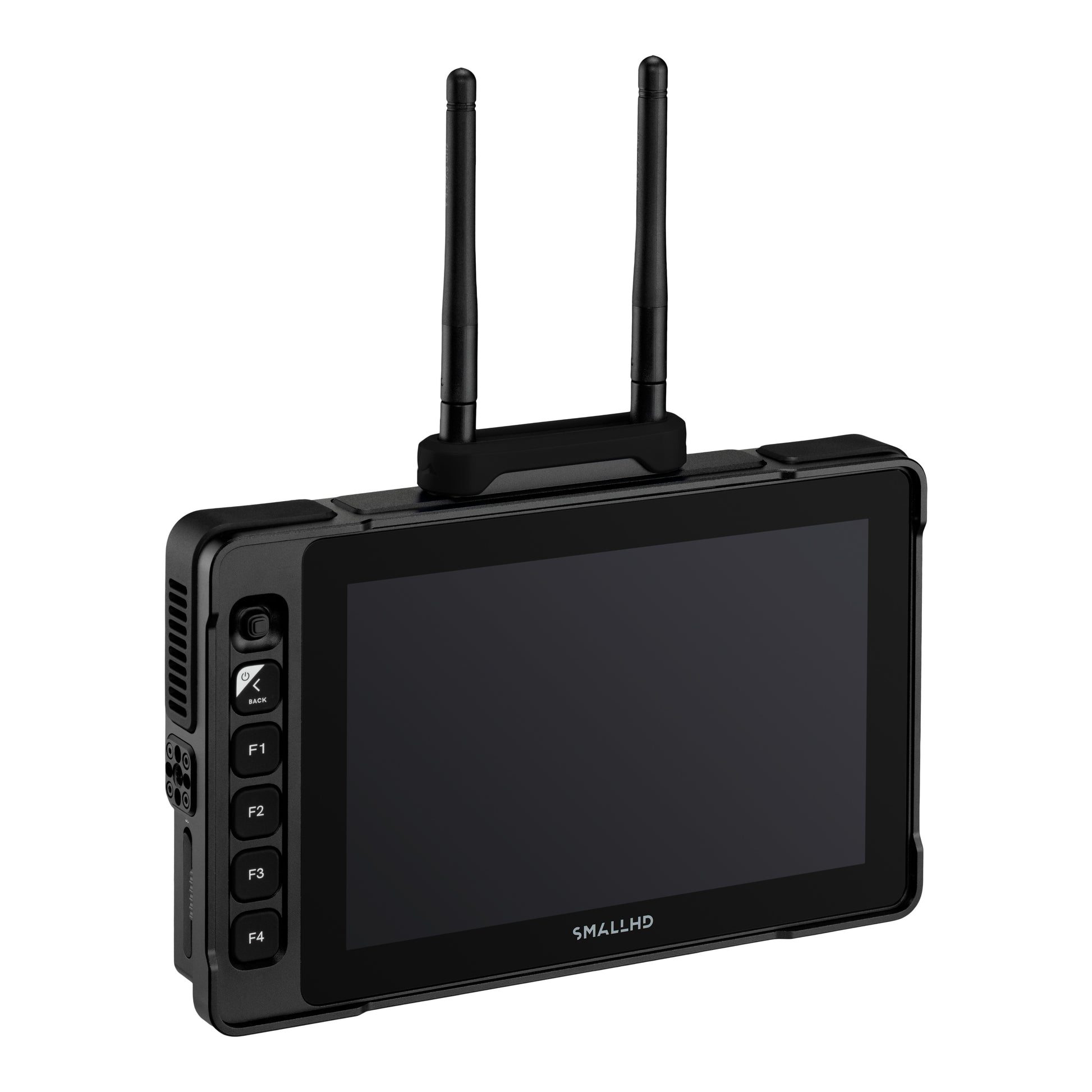

SmallHD Ultra 7 Bolt 6 TX 1500 ft / Black

Name: SmallHD Ultra 7 Bolt 6 TX 1500 ft / Black
Brand: SmallHD
SKU: SHD-16-0731
Price: 5146.13 EUR
Availability: InStock

€5.146,13 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

Powerful, bright, and durable, the Ultra 7 offers a stunning 2300nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. Experience all your favorite PageOS tools and functions on a fully loaded 7-inch touchscreen field monitor powerful enough to ingest a 4K signal with 6G-SDI.

Ultra 7 is adaptable to all situations and conditions, including optional Gold Mount, V-Mount, or B-Mount Micro Battery Plates for a compact power solution, an Ethernet port to enable ARRI and Sony VENICE Camera Control, and a 5-Pin USB port for RED® Camera Control (Camera Control license and cable sold separately).

We brought together SmallHD’s Ultra 7 monitor with Teradek’s wireless transmission technology. Ultra 7 Bolt 6 TX integrates a Bolt 6 Transmitter directly inside an Ultra 7 monitor, allowing you to wirelessly send the image from your camera with the new internal V-Antenna.

The Ultra 7 Bolt 6 TX is available in the 750 or 1500 range.

Users can now customize the colors of the bumpers and buttons on an Ultra 7, put your own personal touch on the monitor and brand your gear. Included with every purchase of an Ultra 7 Bolt 6 TX is a Teradek antenna color band that matches the color of your choice. Soon you’ll be able to buy single custom color antenna bands on SmallHD.

Please note, these units are custom-made to order in our factory and are not user changeable. There are 10 additional colors to choose from:

Red
Blue
Green
Olive Green
Teal
Purple
Yellow (Sold Out)
Orange (Sold Out)
Pink (Sold Out)
Gray (Sold Out)

Technical Specifications

Environmental

IP Rating: IP 54

Display

Resolution: 1920x1200
Max Brightness: 2300nits
Contrast: 1000:1
Gamut: 95% DCI-P3 Coverage / 98% REC 709
Color Depth: 10-bit Processing (8-bit panel)
Backlight Type: LED Edgelit

Input Signal

3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
6G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52

Output Signal

3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51
Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Data I/O

SDI: 1x BNC 6G input and 1x BNC 6G input/output
HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
Ethernet: RJ45

Power

Connector: 2-Pin Locking Connector
Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 10V minimum to 34V max
Power Supply: Recommend DC 12~15V at ~2.5 amp or greater
Battery Types: V Mount, Gold Mount Micro Battery Plates
Overload Protection: DC input: Reverse polarity

Software

Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides: Preset Aspect Ratios & Customizable
DSLR Scale: Canon 5DMkii & Canon 7D
Custom Scale: Yes (Underscan Only)
Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate: Automatic or Manual Control
Image Flip: Automatic or Manual Control
Cross Conversion: Yes: HDMI → SDI & SDI → HDMI (Coming Soon)
Focus Assist: User Adjustable Color Style and Intensity
Peaking: User Adjustable Intensity
False Color: Rainbow, Arri Style, Custom with up to 10 nodes
Zebra: Dual - User Configurable
Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope: Yes
RGB Parade: Fully User Customizable
Histogram: Luma & RGB Style
Image Capture: Yes
LUTS: - 33pt User LUT instead of 17pt - 33pt Cal LUT instead of 17pt - LUT tool continues to work after removable media containing the LUT has been removed
Custom LUTS: - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu - LUT Downstream: Available on SDI or HDMI Out (Coming Soon). Applied on Output Preview Page - LUT Import: via SD Card or USB Storage Device
Color Pipe: - Unique Calibrations may be saved to each Color Pipe - Accurate color processing
Overlay: With Opacity Slider and Blink Setting
Audio Meters: HDMI & SDI up to 8 channel
Multi-View: 2 camera feeds simultaneously (Coming Soon)
