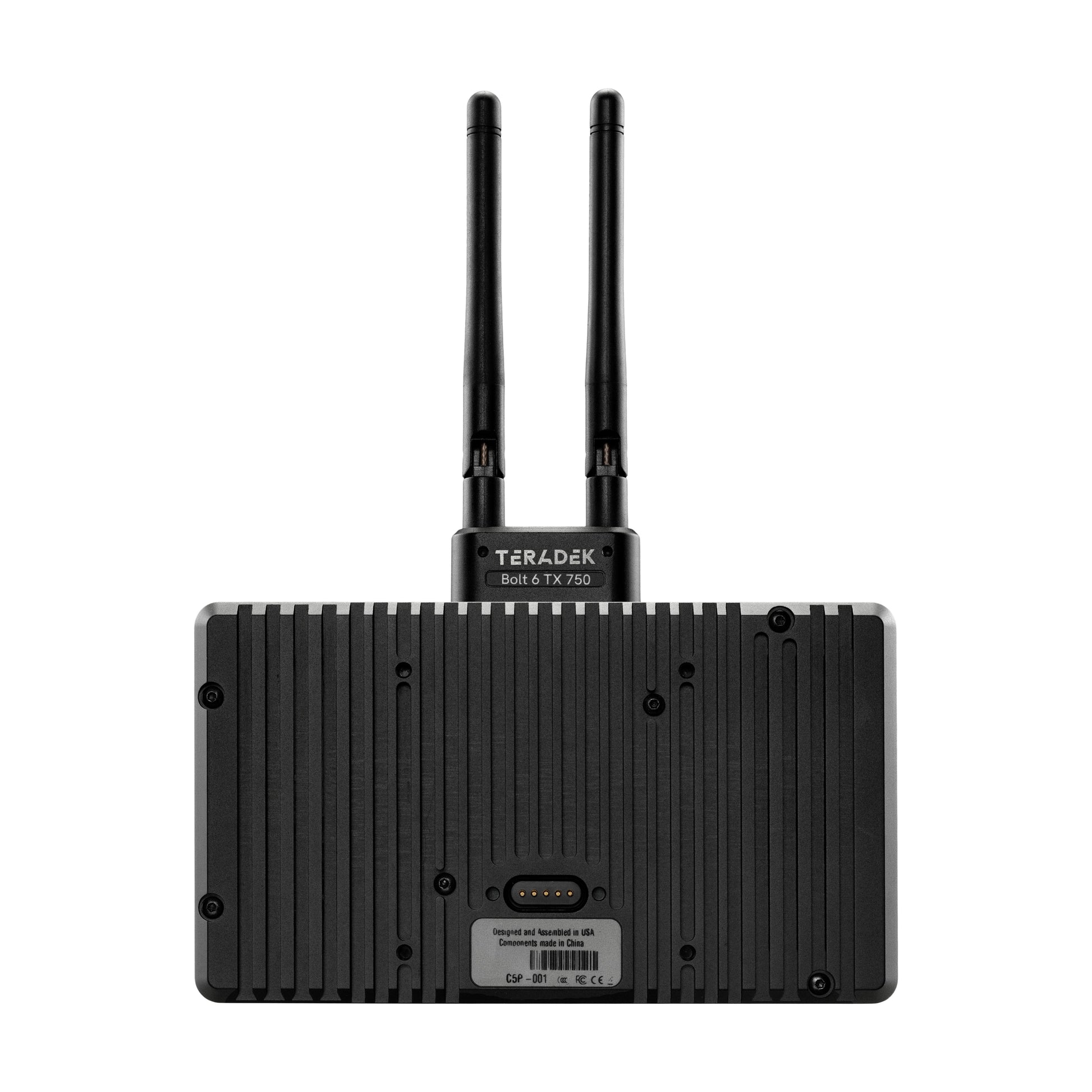

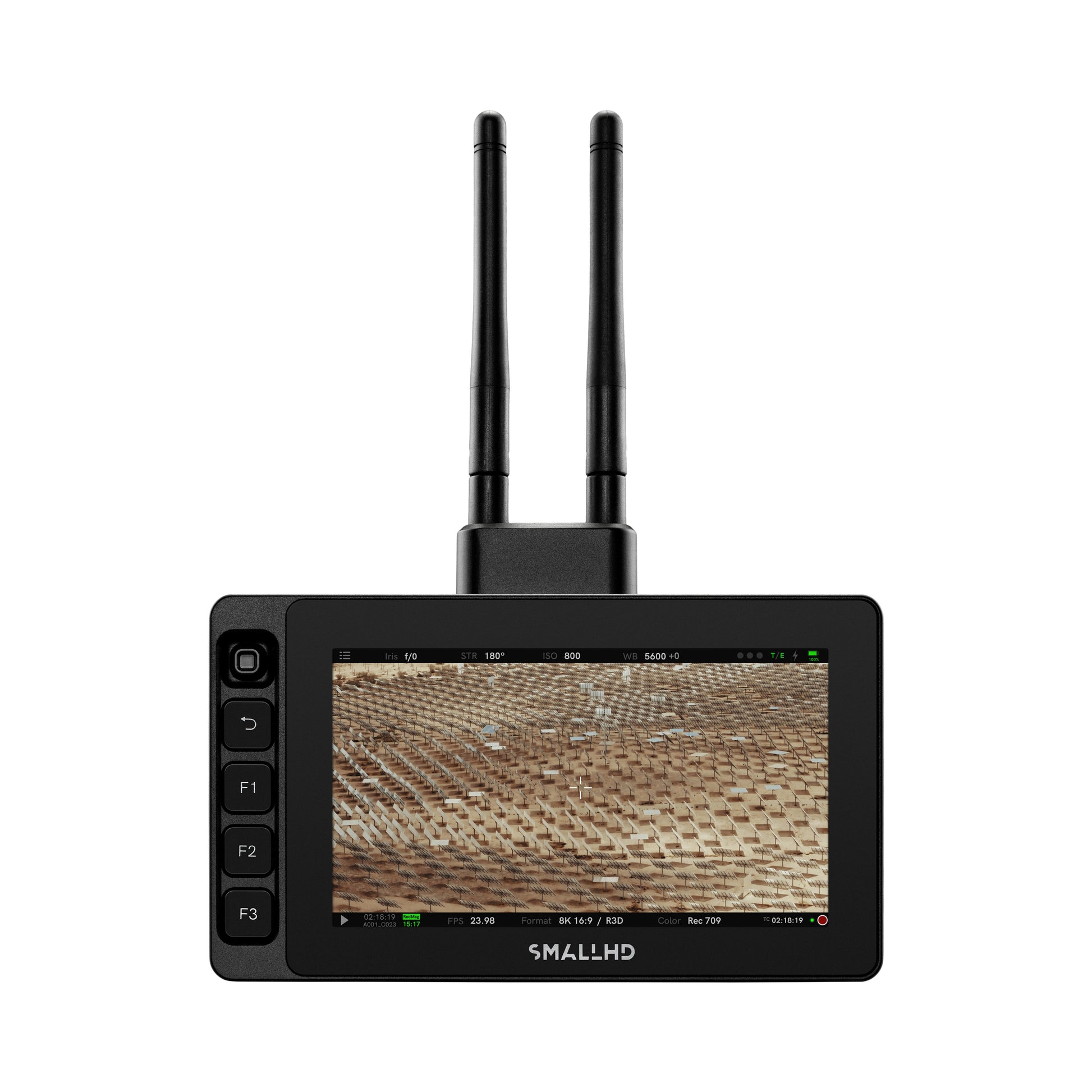

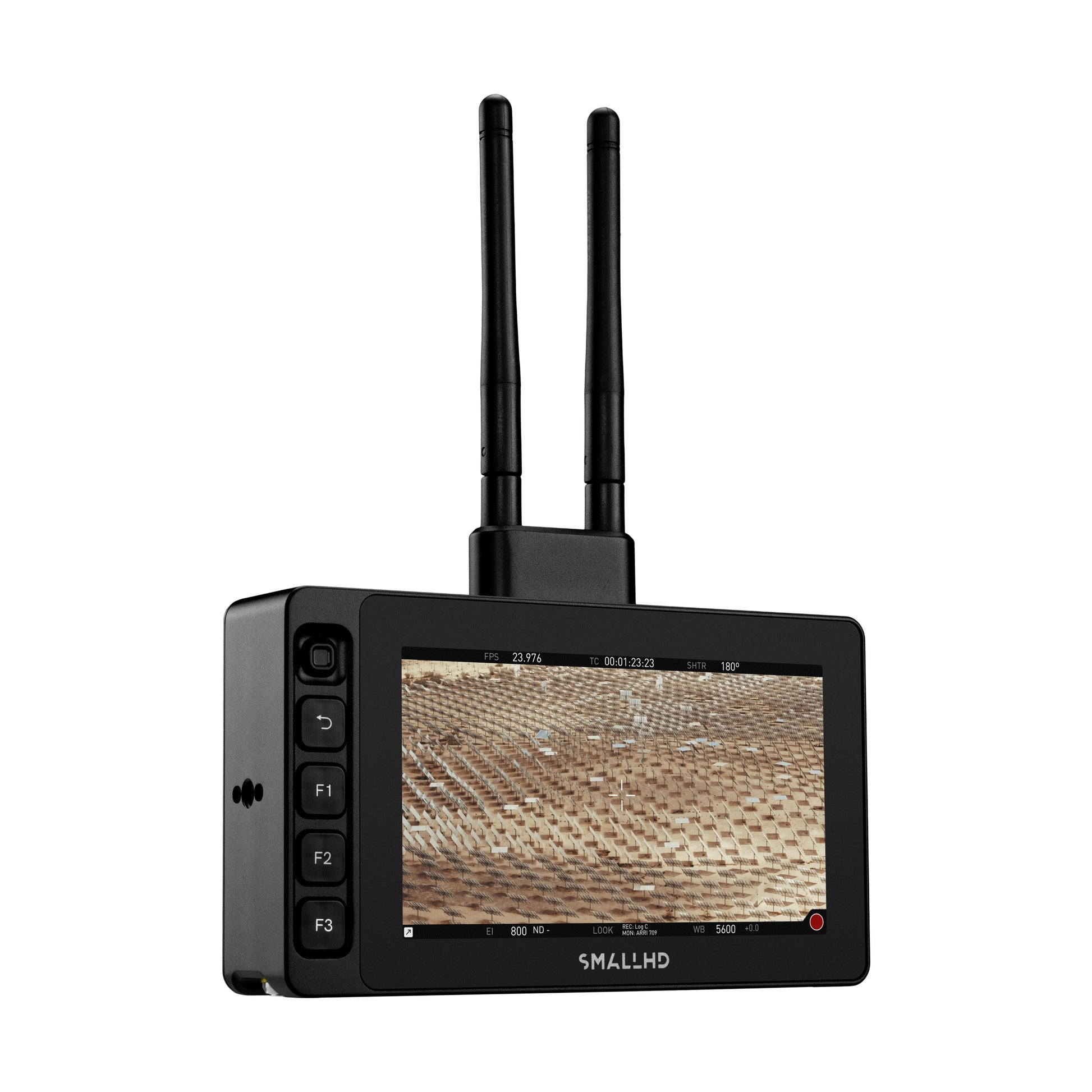

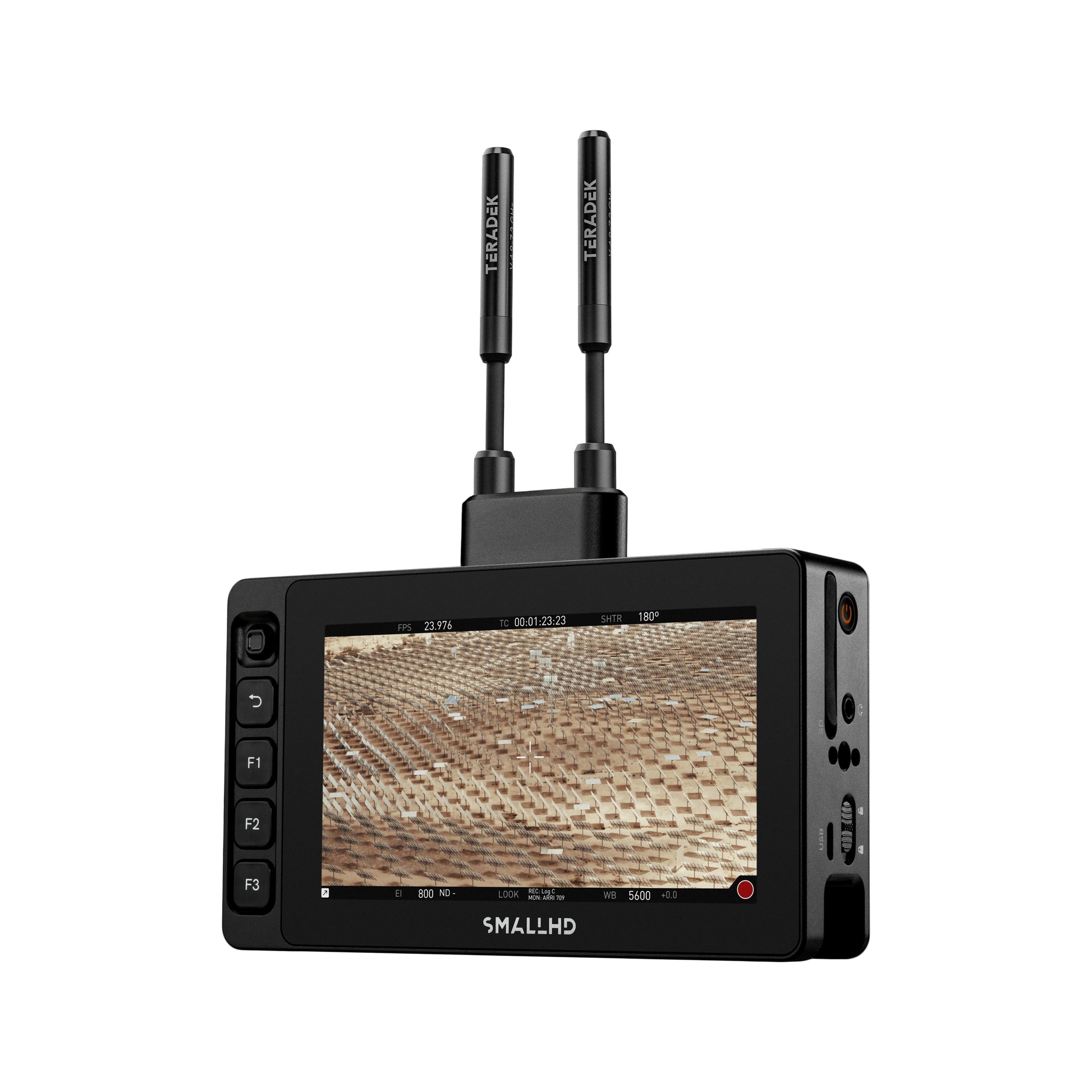

Bringing together SmallHD’s field-ready monitor with Teradek’s wireless transmission technology. Ultra 5 Bolt 6 TX 750 integrates a Bolt 6 750 Transmitter directly inside an Ultra 5 monitor, allowing you to wirelessly send the image from your camera up to 750 feet away.
About Ultra 5
Powerful, portable, and adaptable, the Ultra 5 offers a dazzling 3000nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions.. Experience all your favorite PageOS 5 tools, functions, and settings pages on a fully-loaded 5-inch touchscreen monitor.
Ultra 5 is designed for the user who wants it all, including optional Gold or V-Mount Micro Battery Plates for a compact power solution and an Ethernet port to enable ARRI and Sony VENICE Camera Control. Camera Control license and cable are sold separately.
About Teradek Bolt 6
The Bolt 6 750 TX is a real-time wireless video transmitter that supports video signals up to 4Kp30 via HDMI with no image delay. This transmitter allows you to send color accurate, True HDR images in less than 0.001 seconds. Reliably transmit your videos with advanced hardware and minimal image break-up.
Camera Control
Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to Canon, ARRI, RED DSMC2, KOMODO®, V-RAPTOR™, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more.
*Individual Camera Control software licenses are sold separately.
Technical Specifications
Environmental
-
Item Weight (oz): 19.7
-
Mount Points: 6x 1/4-20 Mounting Points
-
User Function Buttons: Joystick Back-Button 3x Custom-Function Buttons
Display
-
Panel Type: Touch-Screen
-
Resolution: 1920 x 1080
-
Aspect Ratio: 16:9
-
Max Brightness: 3000nits
-
Backlight Type: Edgelit
Input Signal
-
3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
-
HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
-
SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
-
HDMI Input Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
-
Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
Output Signal
-
3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
-
HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
-
SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
-
HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
-
Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
Connector Type
-
SDI: 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
-
HDMI: 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
-
Audio: 1x 3.5mm Stereo Headphone Jack
Data I/O
-
Connector Type: 1x RJ45 Ethernet
-
Storage Media: 1x SD Card Slot
-
USB: 1x Micro USB 1x Locking USB
Power
-
Input: 2-pin Locking Power Input (10-34V DC, 2.7A)
Software
-
Pixel Zoom: Yes
-
Focus Assist: Yes
-
Peaking: Yes
-
False Color: Customizable False Color Overlays
-
Waveform: Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
-
Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
Camera Control
-
Camera Control Compatibility: Camera Control for ARRI Camera Control for Sony VENICE Camera Control for RED® DSMC2™ Camera Control for RED® RCP2™ Cameras (KOMODO®, DSMC3™)
Product Details
-
SKU: SHD-16-0529
-
EAN: 811786033430
-
Warranty: 12 months
-
Country of origin: United States
