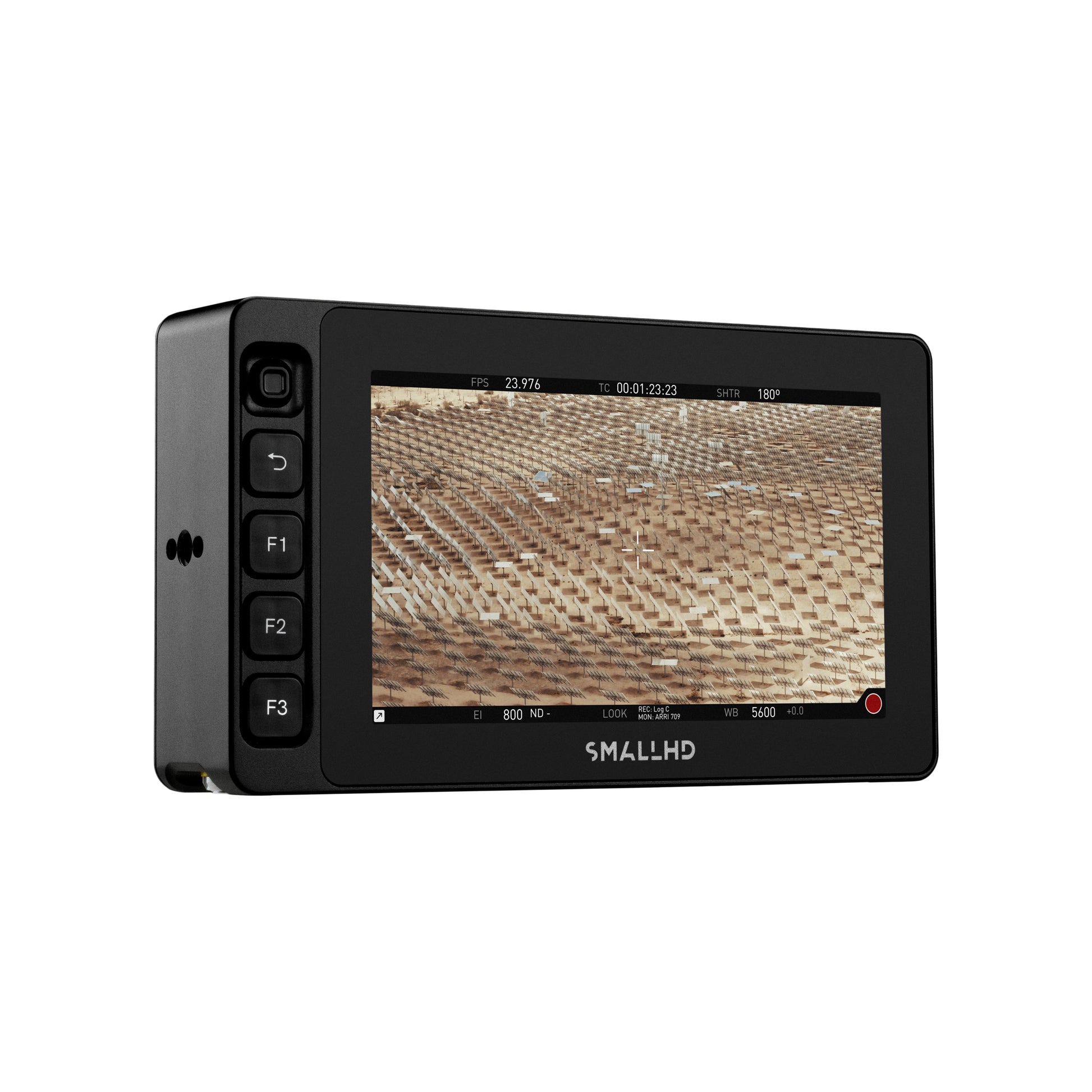

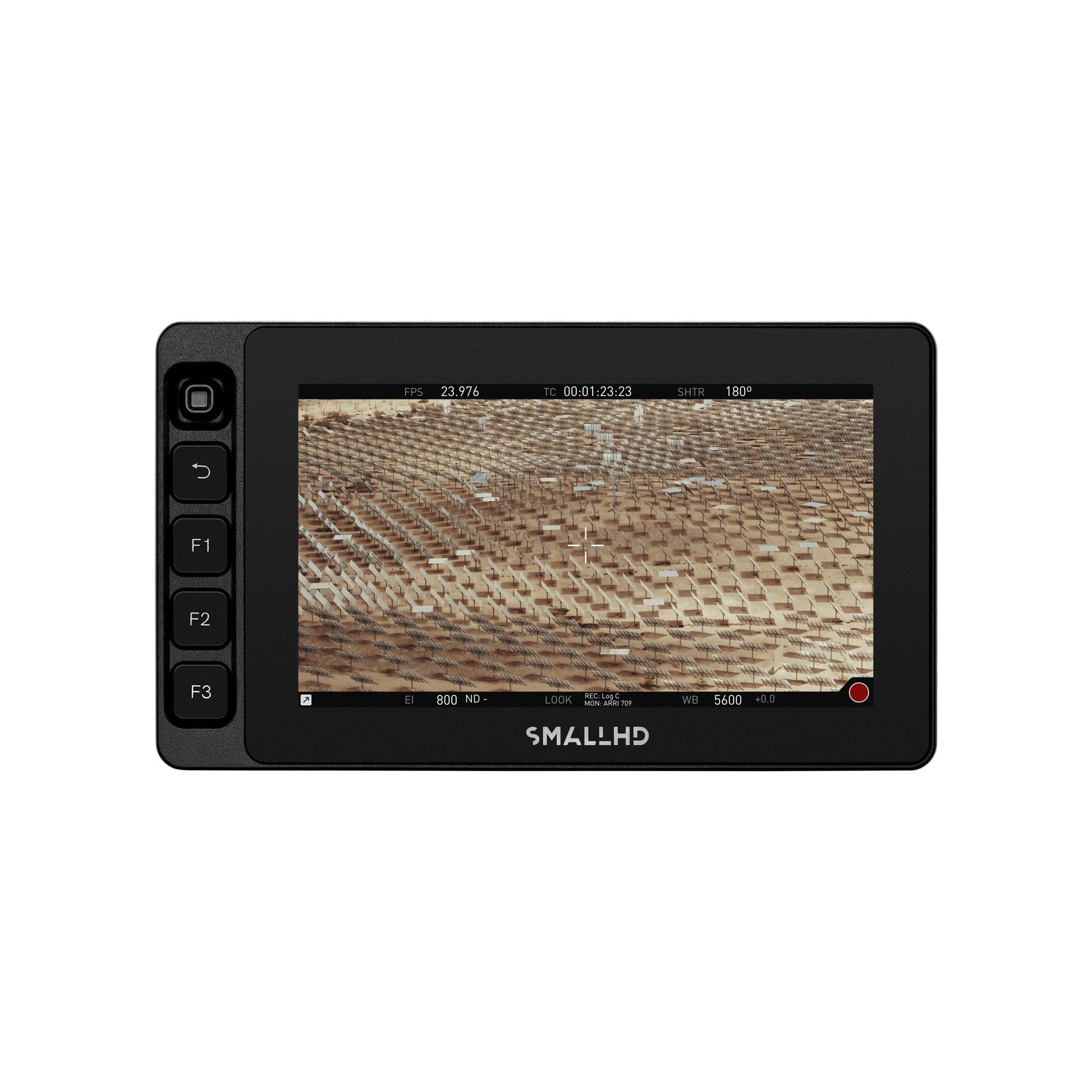

SmallHD Ultra 5

Powerful, portable, and adaptable, the Ultra 5 offers a dazzling 3000nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. Experience all your favorite PageOS 5 tools, functions, and settings pages on a fully-loaded 5-inch touchscreen field monitor.

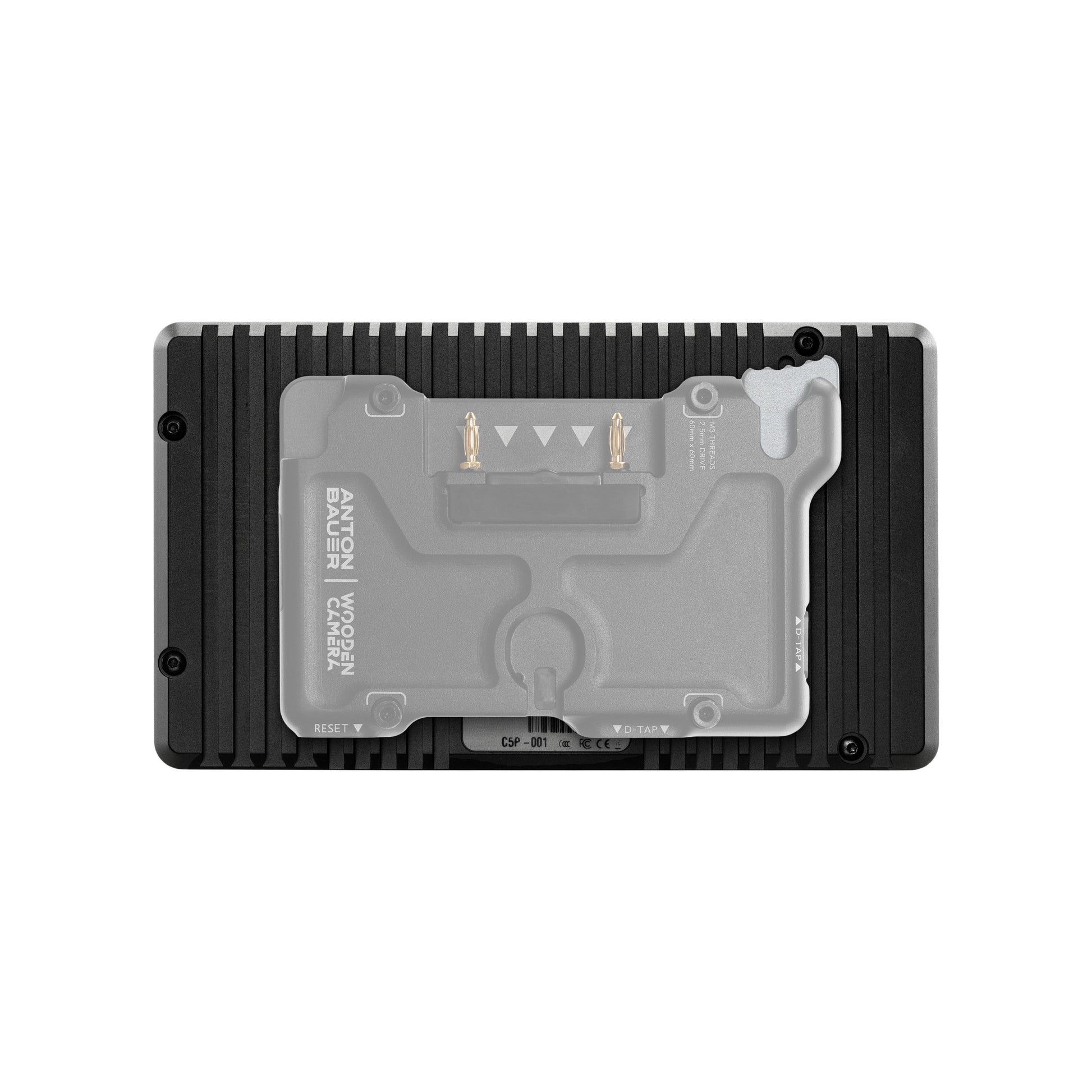

Ultra 5 is designed for the user who wants it all, including optional Gold or V-Mount Micro Battery Plates for a compact power solution and an Ethernet port to enable ARRI and Sony VENICE Camera Control (Camera Control license and cable sold separately).

Camera Control for ARRI, RED®, and Sony VENICE

Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to ARRI, RED DSMC2, KOMODO®, V-RAPTOR™, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

Technical Specifications

Environmental

• Item Weight (oz): 17.8
• Height (in): 3.39
• Width (in): 5.28
• Length/Depth (in): 1.36
• Mount Points: 6x 1/4-20 Mounting Points
• User Function Buttons: Joystick Back-Button 3x Custom-Function Buttons

Display

• Panel Type: Touch-Screen
• Resolution: 1920 x 1080
• Aspect Ratio: 16:9
• Max Brightness: 3000nits
• Backlight Type: Edgelit

Input Signal

• 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
• HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
• SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
• HDMI Input Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
• Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal

• 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
• HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
• SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
• HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
• Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type

• SDI: 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
• HDMI: 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
• Audio: 1x 3.5mm Stereo Headphone Jack

Data I/O

• Connector Type: 1x RJ45 Ethernet
• Storage Media: 1x SD Card Slot
• USB: 1x Micro USB 1x Locking USB

Power

• Input: 2-pin Locking Power Input (10-34V DC, 2.1A)

Software

• Pixel Zoom: Yes
• Focus Assist: Yes
• Peaking: Yes
• False Color: Customizable False Color Overlays
• Waveform: Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
• Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input

Camera Control

• Camera Control Compatibility: Camera Control for ARRI Camera Control for Sony VENICE Camera Control for RED® DSMC2™ Camera Control for RED® RCP2™ Cameras (KOMODO®, DSMC3™)

Compare Chart

• Resolution: 1920 x 1080
• Color Depth: 10-Bit Color
• Brightness: 3000 nits
• SDI (1080p60): 1x 3G-SDI Input 1x 3G-SDI (I/O)
• HDMI (4Kp30): 1x HDMI 2.0 Input 1x HDMI 2.0 Output
• Touchscreen: ✔️
• Weight: 17.8 oz / 503 g
• Joystick Control: Front Joystick
• Physical Buttons: Back-Button 3x Custom-Function
• Power Input: 2-pin Locking Connector
• Locking USB Control Port: ✔️
• Ethernet Port: ✔️
• Camera Control Compatibility*: ARRI, REDⓇ, Sony VENICE
• Battery Support: Gold or V-Mount Micro Plates*
• Touchscreen Lock: ✔️
• Built-in Teradek Bolt 6: Ultra 5 Bolt 6 750 Transmitter + Receiver

Product Details

• SKU: SHD-16-0527
• EAN: 811786033461
• Warranty: 12 months
• Country of origin: United States
