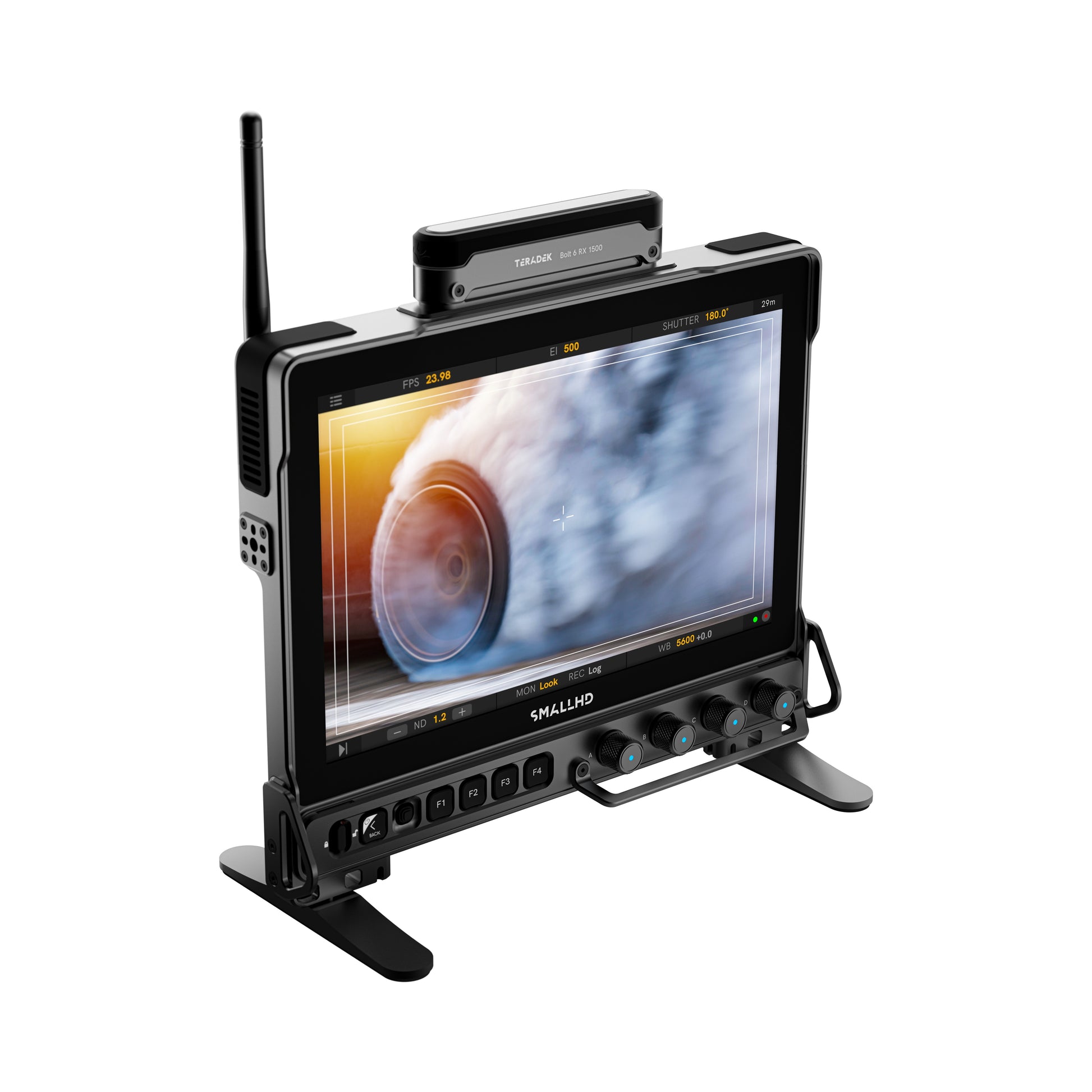

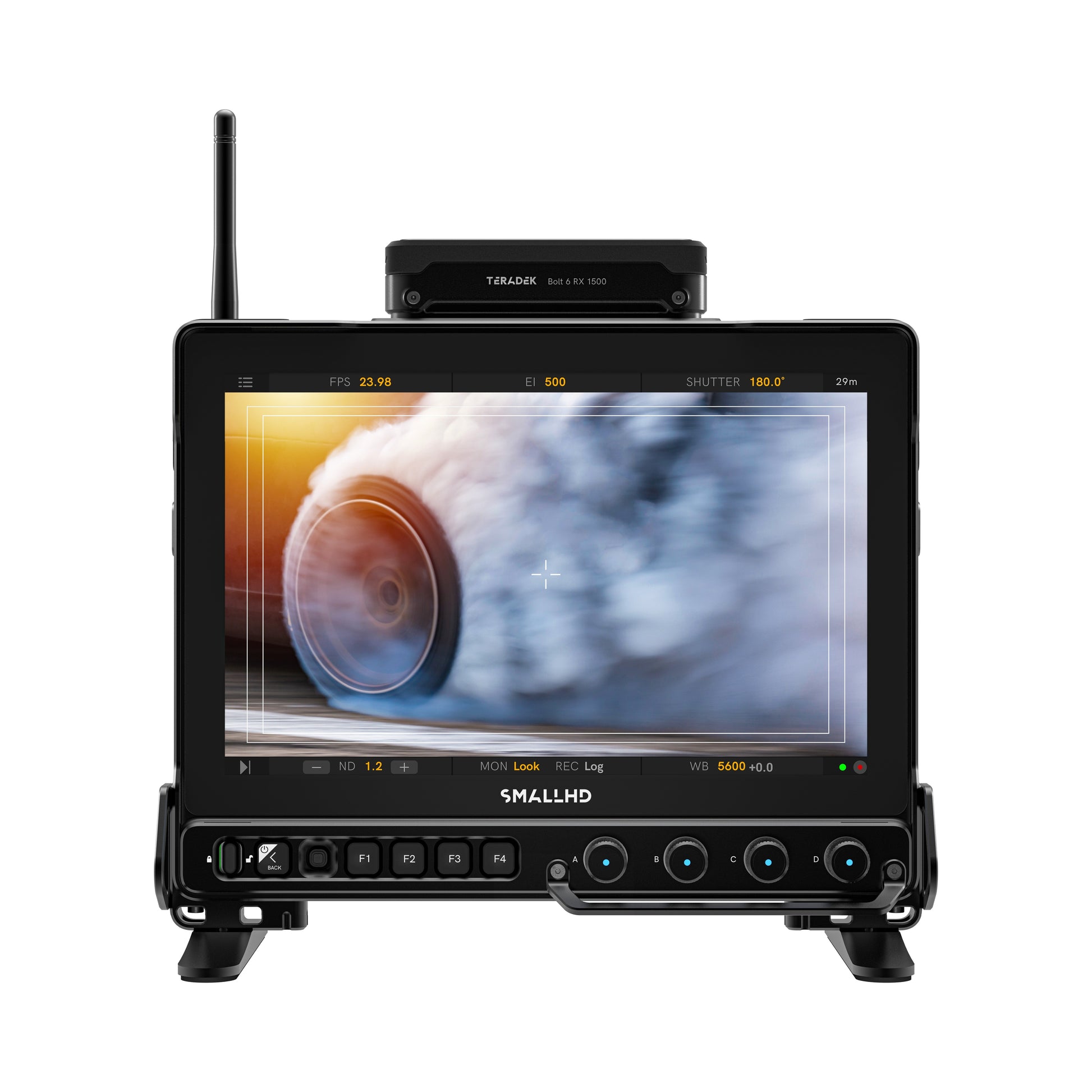

SmallHD Ultra 10 Bolt 6 RX 1500 ft / Gold Mount

Ultra 10 strikes the perfect balance between screen size and lightweight portability with a feature-packed 10-inch Ultra-Bright Monitor designed to adapt to any production scenario. Key features include 2000 nits of brightness, 6G-SDI architecture, an impact-resistant IP54-certified form factor, and more ways than ever to customize your PageOS workflow via touchscreen, joystick, large tactile buttons, and new multi-function rotary encoder knobs for maximum control in all conditions.

The Ultra 10 Bolt 6 RX features an integrated Teradek Bolt 6 Receiver, allowing you to receive zero-delay wireless video from your camera via the new internal V-Antenna at ranges up to 750 or 1500 feet. It is available as a Gold Mount or V-Mount option.

Ultra 10 is our first IP54-certified monitor, which is defined as resistant to water spray from any direction and protection against dust and dirt in extreme environments while operating in variable temperatures ranging from 0ºC to 40ºC. The chassis features raised edges protecting the front glass of the display and user-replaceable shock-absorbing bumpers to mitigate drops, tumbles, and impacts

Ultra 10 comes with 5-pin locking USB and Ethernet ports for optional ARRI, Sony VENICE, BURANO and FX6, and RED® Camera Control (license and cable sold separately).

Technical Specifications

Specifications

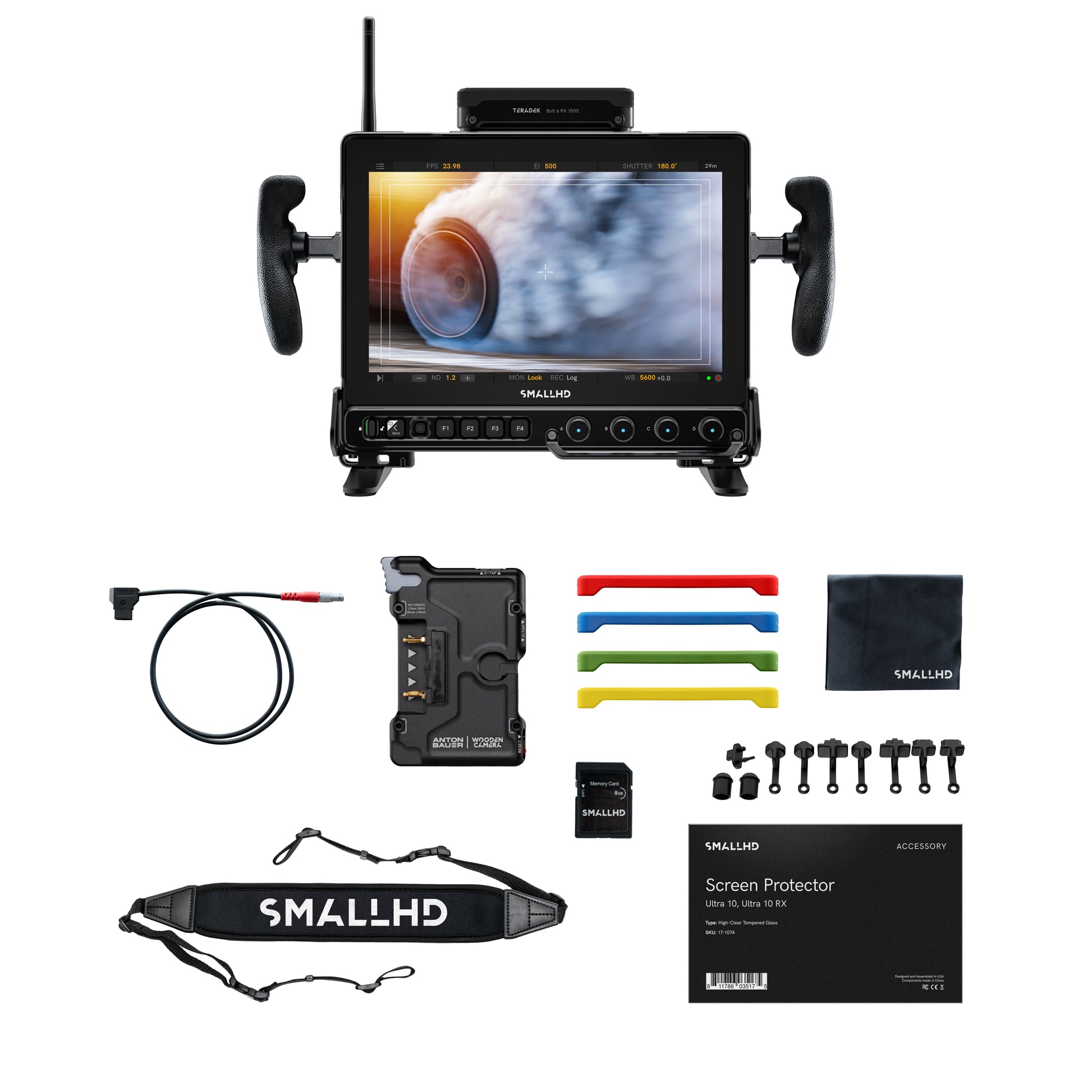

• Name: Ultra 10 Bolt 6 RX 1500 Gold Mount Kit
• Need to Export: True

Environmental

• IP Rating: IP54

Display

• Panel Type: IPS LCD
• Diagonal Size: 10.1"
• Resolution: 1920x1200
• Contrast: 1000:1
• Color Depth: 10-bit Processing (8-bit panel)
• Backlight Type: LED Edgelit
• Refresh Rate: Synchronizes with input from 48Hz to 60Hz

Input Signal

• 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
• 6G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
• HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
• SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
• HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52

Output Signal

• 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
• HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
• SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
• HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51
• Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

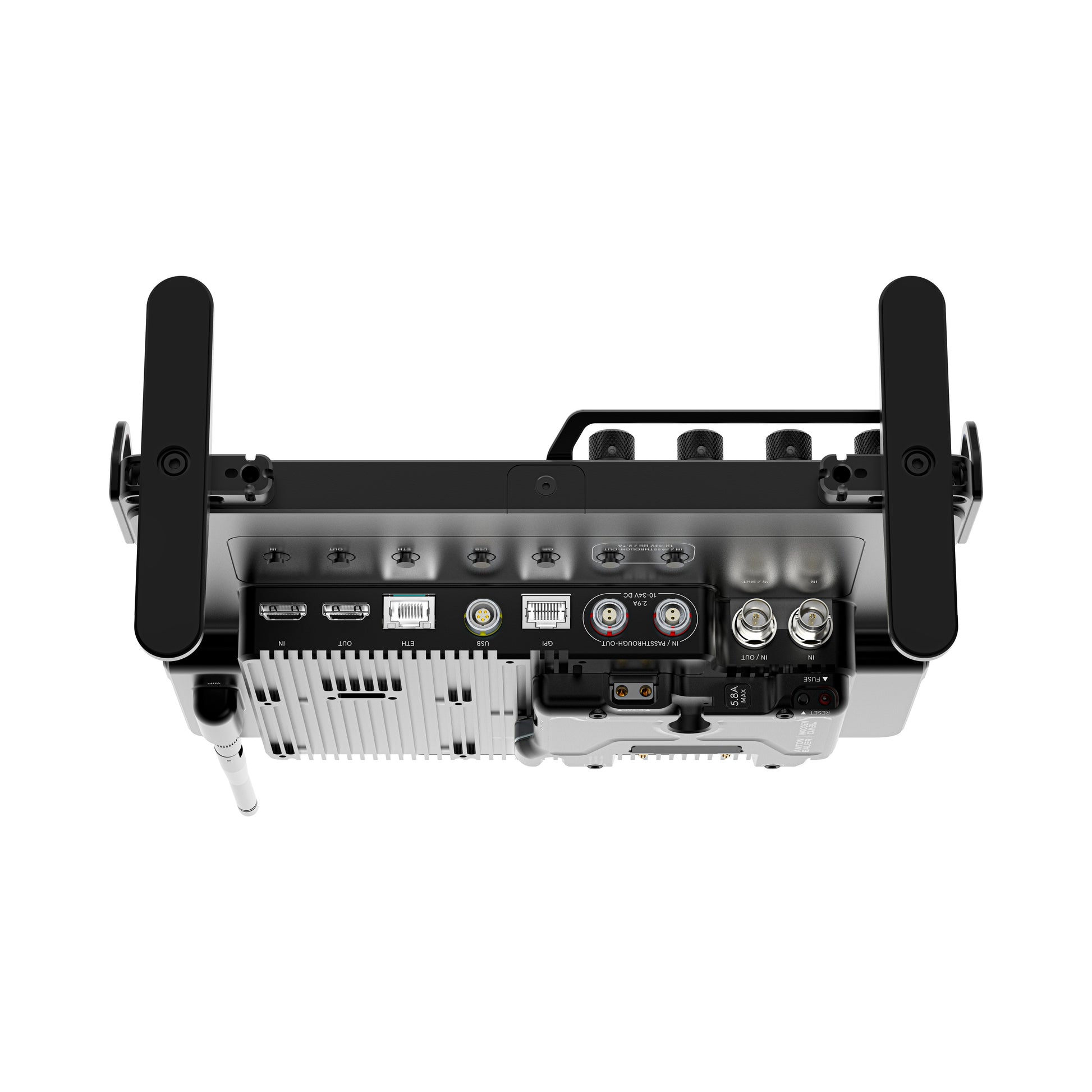

Data I/O

• SDI: 1x BNC 6G input and 1x BNC 6G selectable input/output
• HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size)
• Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
• Ethernet: RJ45 and GPI
• Monitoring I/O: SDI: 1x BNC 12G input and 1x BNC 12G selectable input/output HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size) Audio: 1x 3.5mm 3-pin Stereo Headphone Jack Ethernet: RJ45 and GPI

Power

• Connector: 2-Pin Locking Connector
• Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
• Power Supply: Recommend DC 12~15V at ~2.5 amp or greater
• Battery Types: V Mount, Gold Mount Micro Battery Plates
• Overload Protection: DC input: Reverse polarity
• Battery Chemistry: Li-ion

Software

• Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
• Frame Guides: Preset Aspect Ratios & Customizable
• DSLR Scale: Canon 5DMkii & Canon 7D
• Custom Scale: Yes (Underscan Only)
• Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
• Image Rotate: Automatic or Manual Control
• Image Flip: Automatic or Manual Control
• Cross Conversion: Yes: HDMI → SDI & SDI → HDMI
• Focus Assist: User Adjustable Color Style and Intensity
• Peaking: User Adjustable Intensity
• False Color: Rainbow, Arri Style, Custom with up to 10 nodes
• Zebra: Dual - User Configurable
• Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
• Vectorscope: Yes
• RGB Parade: Fully User Customizable
• Histogram: Luma & RGB Style
• Image Capture: Yes
• LUTS: - 33pt User LUT instead of 17pt - 33pt Cal LUT instead of 17pt - LUT tool continues to work after removable media containing the LUT has been removed
• Custom LUTS: - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu - LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page. - LUT Import: via SD Card or USB Storage Device
• Color Pipe: - Unique Calibrations may be saved to each Color Pipe - Accurate color processing
• Overlay: With Opacity Slider and Blink Setting
• Audio Meters: HDMI & SDI up to 8 channel
• Multi-View: 2 camera feeds simultaneously

Product Details

• SKU: SHD-16-1003-GM
• EAN: 811786035212
• Warranty: 12 months
• Country of origin: United States
