SmallHD Indie 7 RED® RCP2™ Kit (KOMODO-X, KOMODO®, DSMC3™)

Name: SmallHD Indie 7 RED® RCP2™ Kit (KOMODO-X, KOMODO®, DSMC3™)
Brand: SmallHD
SKU: SHD-16-0712-R2
Price: 1838.64 EUR
Availability: InStock

€1.838,64 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

Our Indie 7 RED® RCP2™ Kit bundles everything you need to control your RED® KOMODO® or RED® V-RAPTOR™ (DSMC3™) camera from SmallHD’s Indie 7 monitor. Each component of the kit has been designed to pair our Indie 7 with your camera, helping simplify shoots by giving you camera control from the touchscreen monitor.

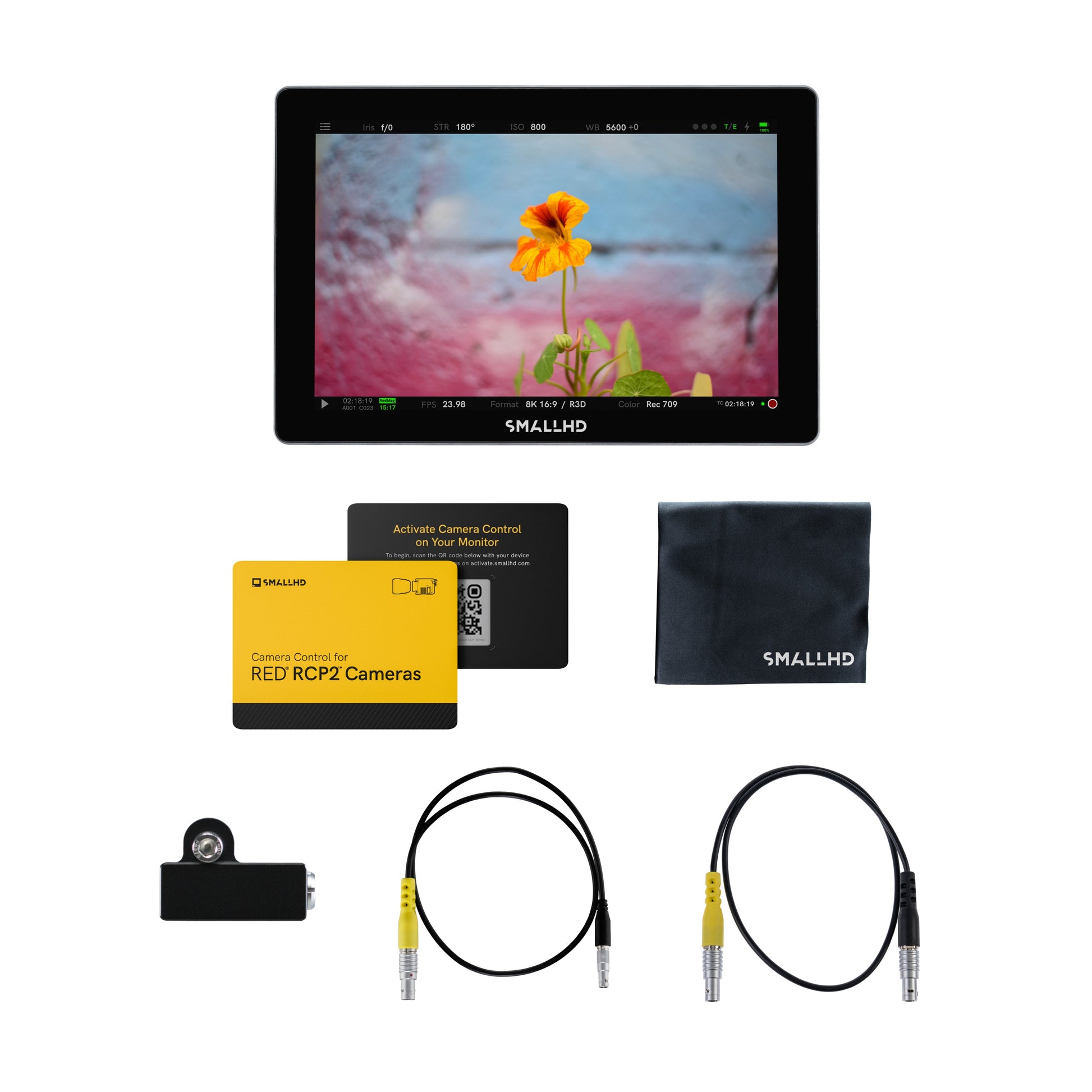

The Indie 7 RED® RCP2™ Kit includes our Indie 7 monitor, RED® EXT Camera Control Cable, SmallHD Cleaning Cloth, Micro Connector Adaptor, and Camera Control software for RED® RCP2™ cameras.

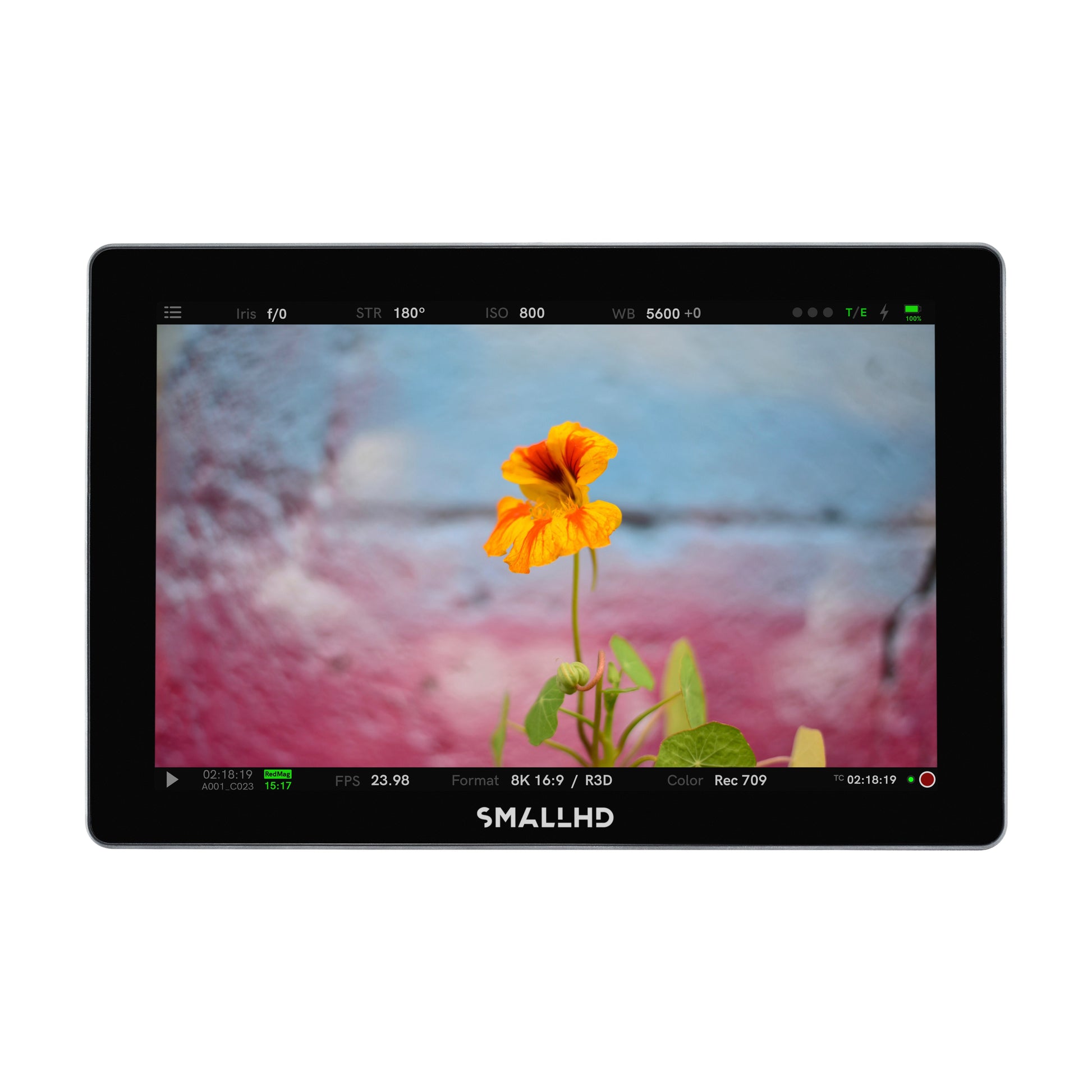

Indie 7 is the vivid, lightweight entry model into SmallHD’s professional 7-inch touchscreen monitor series. This hyper-responsive touchscreen monitor is powered by the user-customizable PageOS software, with a host of internal imaging assistance tools such as Focus Assist, Exposure Assist, and more. Housed in a lightweight, rugged, and thin aluminum chassis, the Indie 7 is designed for heavy production use.

Indie 7 provides a personalized viewing experience designed to improve your workflow. Backed by 1000nits of brightness, the Indie 7 can be viewed in direct sunlight, allowing you to monitor your production regardless of environment or time of day.

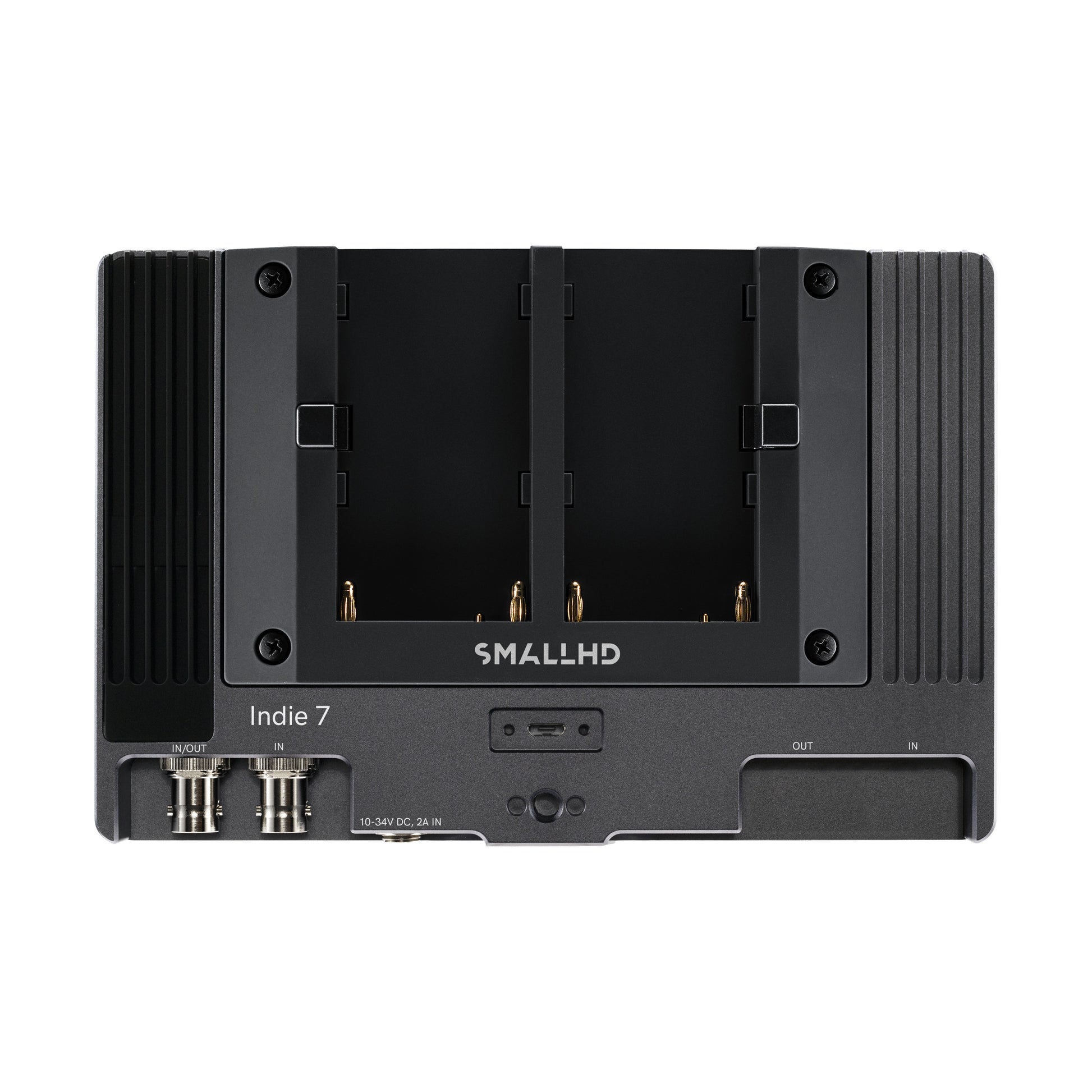

The Indie 7 features two 3G SDI inputs, with the second input doubling as a loop out, an HDMI input, a 2mm barrel connector port, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount or V-Mount battery plate attachment.

With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.

This Software License is a digital download that allows you to unlock access to camera control for RED® KOMODO® and RED® V-RAPTOR™ (DSMC3™) cameras via a software activation code. Tap into the internal camera settings with intuitive touchscreen configuration tools.

Disclaimer: Once any camera control is registered in your SmallHD monitor, it can not be removed or transferred to a different monitor

Technical Specifications

Environmental

Item Weight (oz): 18.9
Package Weight (oz): 26
Height (in): 4.67
Width (in): 1.32
Length/Depth (in): 7.09
Compliance: FCC, IC, CE, RoHS
Operating Temperature: 30F to 100F
Storage Temperature: 0F to 120F
Mount Points: Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
Construction: Anodized aluminum chassis

Display

Panel Type: IPS LCD Touchscreen
Diagonal Size: 7.02
Resolution: 1920x1200
Pixel Density: 323
Aspect Ratio: 16:9
Active Area: 5.95 x 3.72
Max Brightness: 1000 Nits
Contrast: 1000:1
Gamut: 100% rec709
Color Depth: 10-bit Processing (8-bit panel)
Viewing Angle: 160
Backlight Type: LED
Adjustable Backlight: Yes
Brightness: 1000 Nits
DCI-P3 Color: 100% rec709

Input Signal

3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal

3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

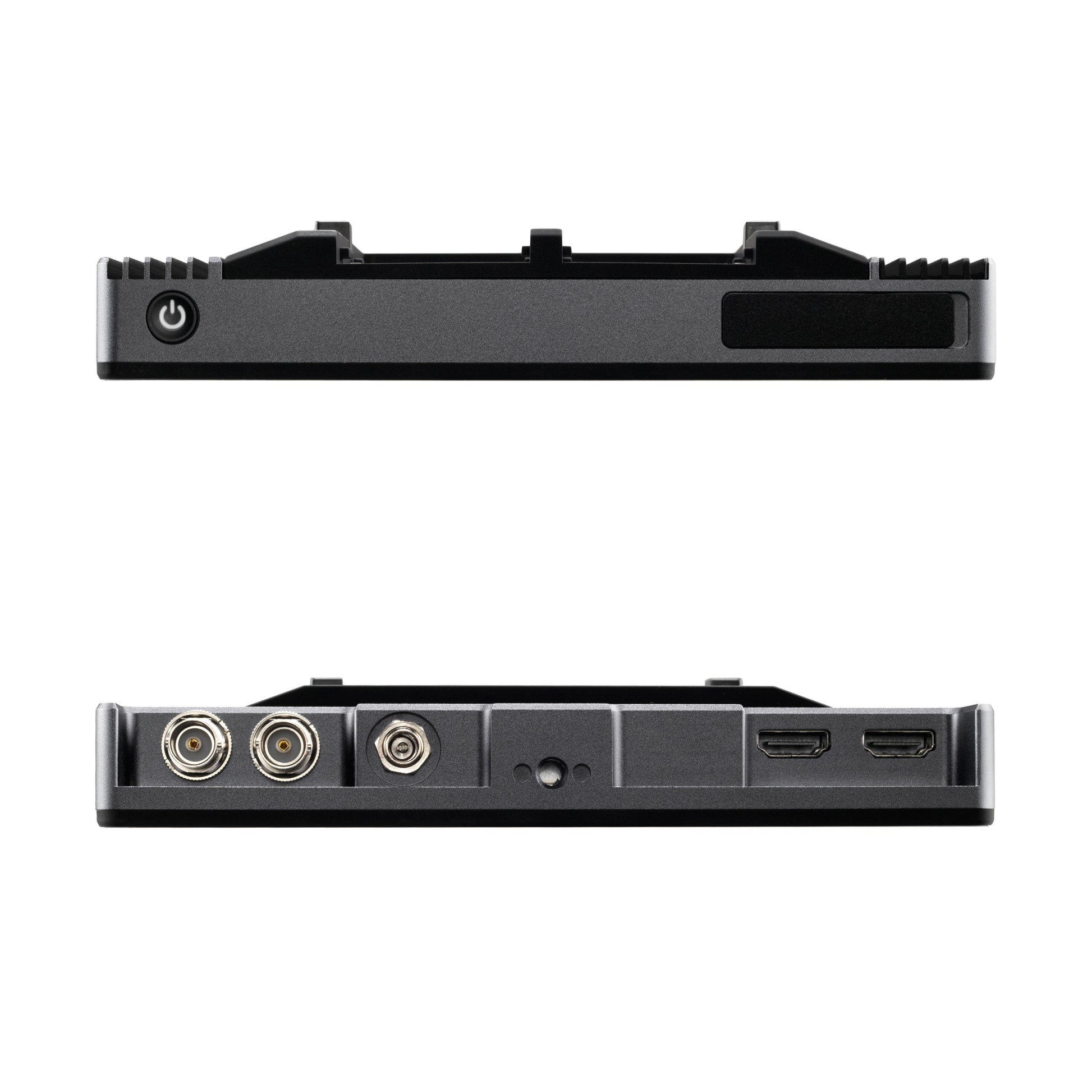

Connector Type

SDI: 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI: 1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
Power In: Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
USB: 1x USB 2.0 Micro-B receptacle

Controls

Primary: Touch Screen
Record Capture: Image Capture Tool

Power

Connector: Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Consumption: 17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel)
Battery Plate Included: L-Series standard (V Mount or Gold Mount optional accessories)
Power Supply: Recommend DC 12~15V at ~2.5 amp or greater
Battery Types: L-Series, V Mount, Gold Mount
Overload Protection: DC input: Reverse polarity
Battery Chemistry: Li-ion
Battery Charging Time: Monitor does not support the charging of batteries
Power Plug-in: Barrel Connector

Software

Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides: Preset Aspect Ratios & Customizable
DSLR Scale: Canon 5DMkii & Canon 7D
Custom Scale: Yes (Underscan Only)
Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate: Automatic or Manual Control
Image Flip: Automatic or Manual Control
Cross Conversion: Yes: HDMI → SDI & SDI → HDMI
Focus Assist: User Adjustable Color Style and Intensity
Peaking: User Adjustable Intensity
False Color: Rainbow, Arri Style, Custom with up to 10 nodes
Zebra: Dual - User Configurable
Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope: Yes
RGB Parade: Fully User Customizable
Histogram: Luma & RGB Style
Image Capture: Yes
Custom LUTS: Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import: via SD Card or USB Storage Device
Overlay: With Opacity Slider and Blink Setting
Audio Meters: HDMI & SDI up to 8 channel
Notes: Access all camera features available thru RED Camera Protocol (DSMC2 interface only)
