SmallHD Indie 5 RED® RCP2™ Kit (KOMODO-X, KOMODO®, DSMC3™)
SmallHD Indie 5 RED® RCP2™ Kit (KOMODO-X, KOMODO®, DSMC3™)
Nepavyko įkelti atsiėmimo galimybių
Introducing the Indie 5 RED® RCP2™ Kit, the latest addition to our Smart 5 Series of monitors. As our smallest and lightest monitor, the Indie 5 packs a punch with its powerful features and sleek design.
With its hyper-responsive touchscreen display, the Indie 5 delivers stunning visuals with a brightness of 1000 nits and 1080p resolution. It also comes equipped with our intuitive PageOS 5 operating system, which provides quick access to all your favorite tools for effortless navigation.

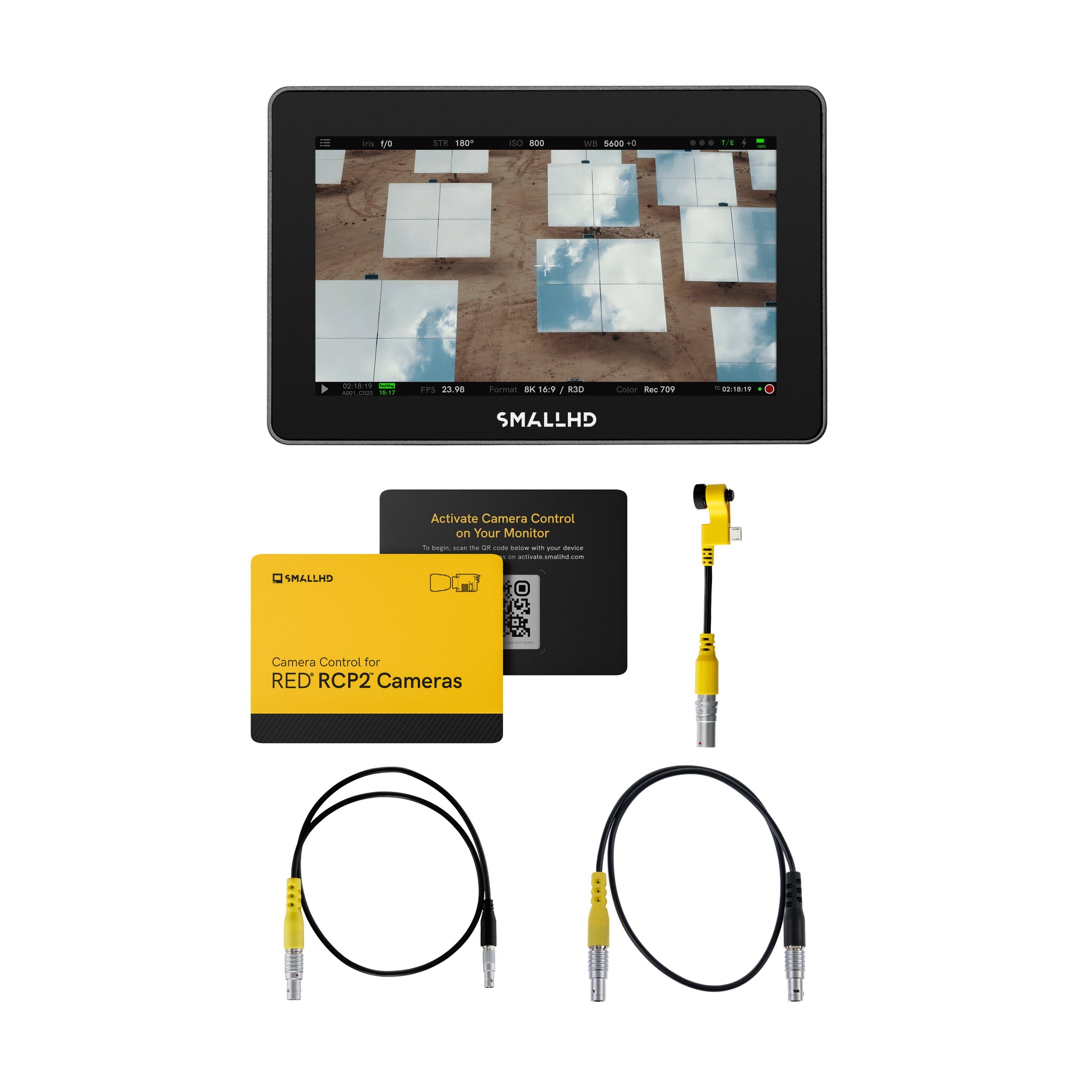

Take control of your camera with the Indie 5's RED® RCP2™ camera-control functionality. This kit includes our RED® RCP2™ software license and control cables, which enable real-time configuration of RED® RCP2™ cameras such as KOMODO-X, KOMODO®, DSMC3™, and V-RAPTOR™. Quickly access essential camera settings with our user-friendly controls, and transform your touchscreen into the central command hub of your camera.
Whether you're a professional on an indie budget or just starting out, the Indie 5 is the perfect entry-level monitor for you. Its integrated tools provide more accurate exposure and color control, Look-Around Camera Control, EL Zone, Advanced Teradek RT overlays, and so much more.
Upgrade your filmmaking game with the Indie 5 - the premium touchscreen 5-inch monitor that delivers big on features and performance.
*Additional Individual Camera Control software licenses are sold separately.
Technical Specifications
Environmental
- Item Weight (oz): 14.4
- Height (in): 3.39
- Width (in): 5.28
- Length/Depth (in): 1.52
- Mount Points: 6x 1/4-20 Mounting Points
Display
- Panel Type: Touch-Screen
- Resolution: 1920 x 1080
- Aspect Ratio: 16:9
- Max Brightness: 1000nits
- Backlight Type: Edgelit
Input Signal
- 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
- HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
- SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
- HDMI Input Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
- Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
Output Signal
- 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
- HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
- SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
- HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
- Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

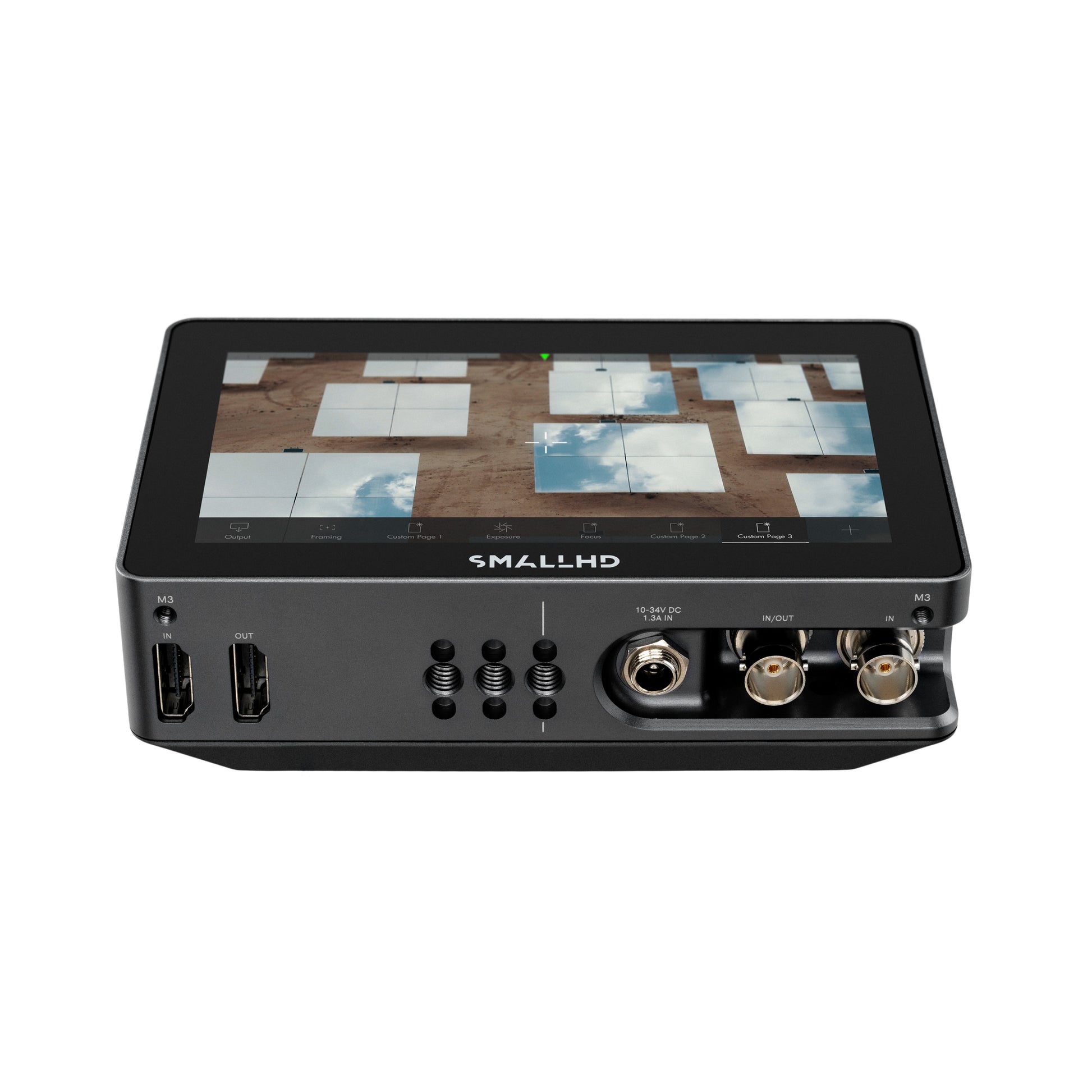

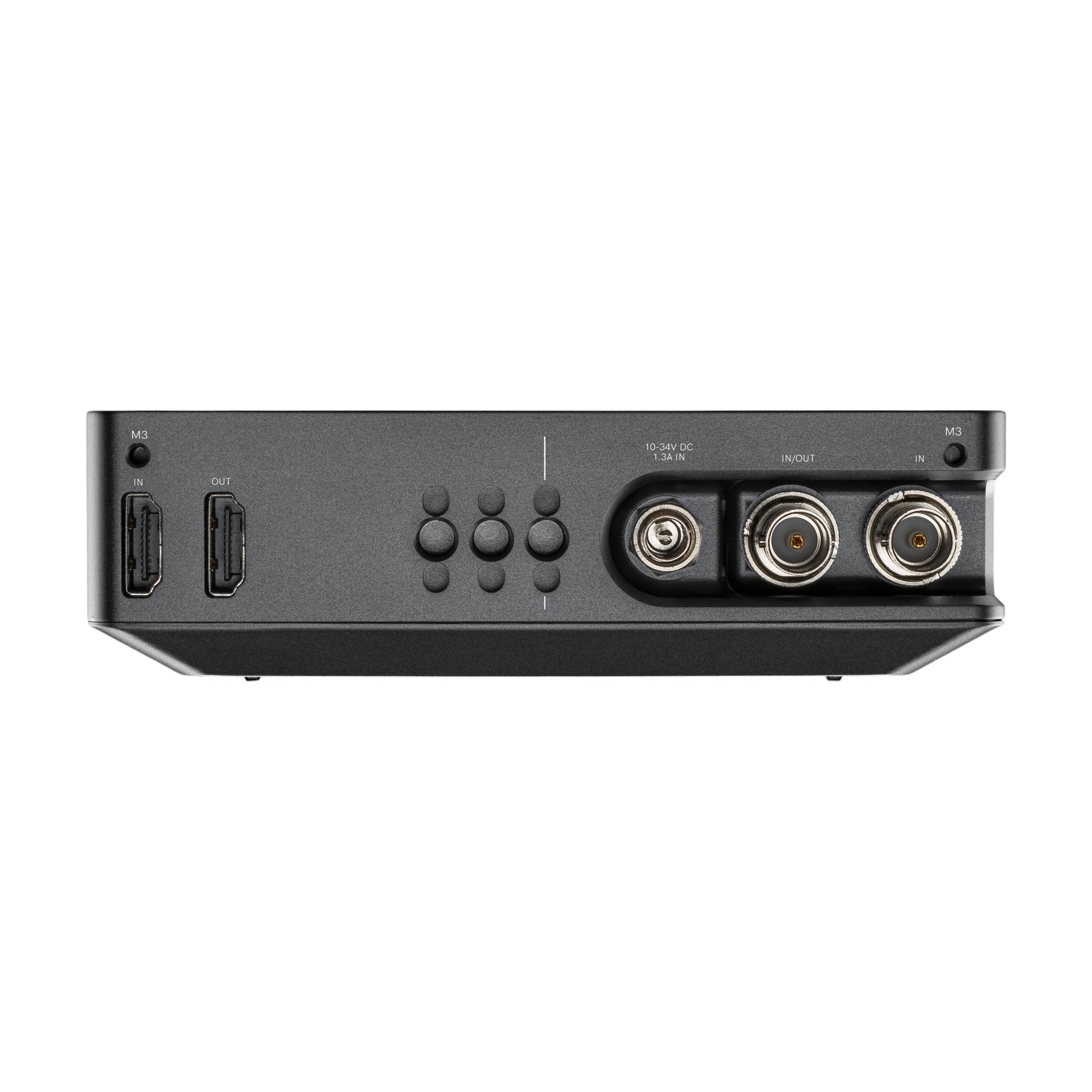

Connector Type
- SDI: 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
- HDMI: 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
- Audio: 1x 3.5mm Stereo Headphone Jack
Data I/O
- Storage Media: 1x SD Card Slot
- USB: 1x Micro USB
Power
- Input: Barrel Power Input
Software
- Pixel Zoom: Yes
- Focus Assist: Yes
- Peaking: Yes
- False Color: Customizable False Color Overlays
- Waveform: Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
- Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
Camera Control
- Camera Control Compatibility: Camera Control for RED® DSMC2™ Camera Control for RED® RCP2™ Cameras (KOMODO®, DSMC3™)
Product Details
- SKU: SHD-16-0525-R2
- EAN: 811786033669
- Warranty: 12 months
- Country of origin: United States
Official Resources
