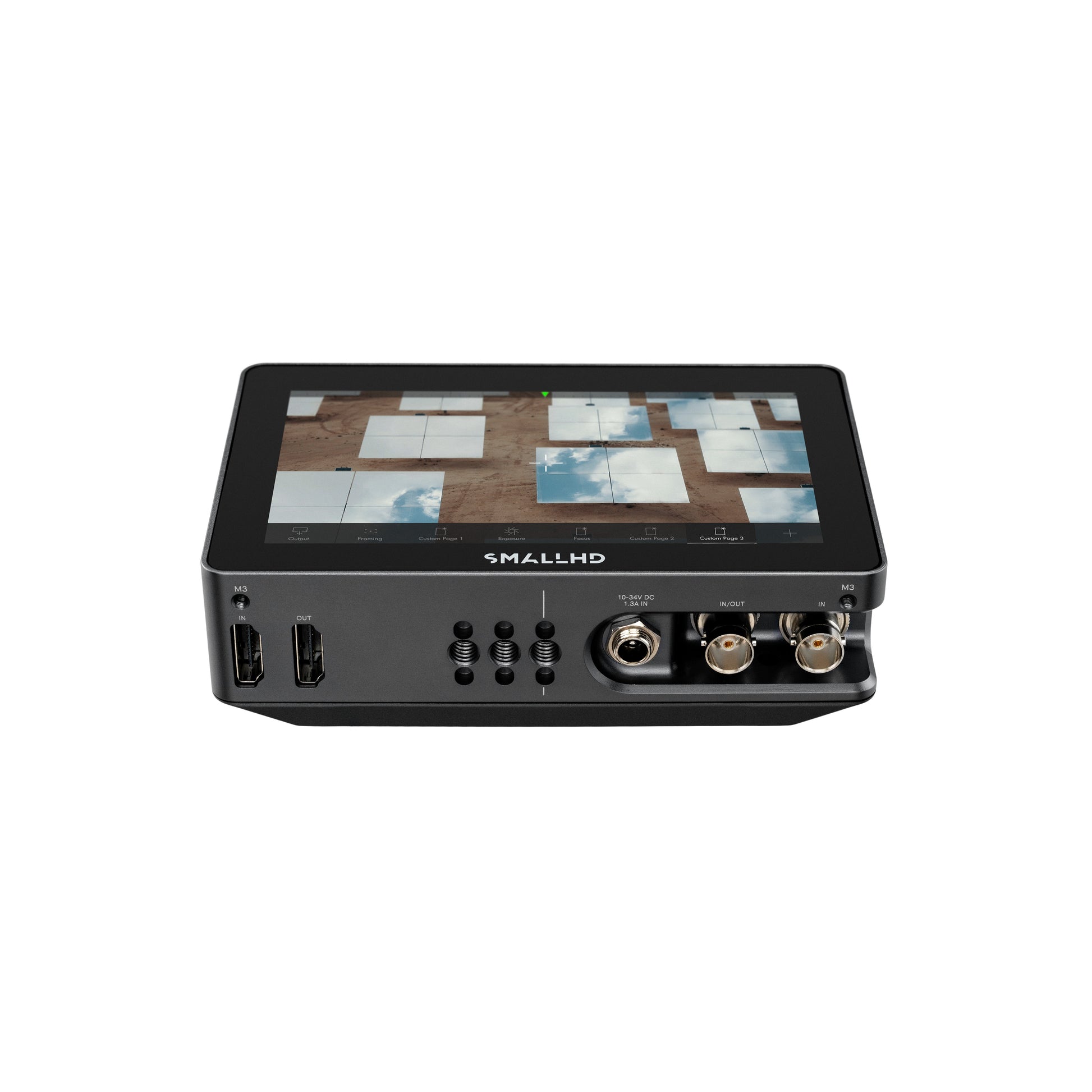

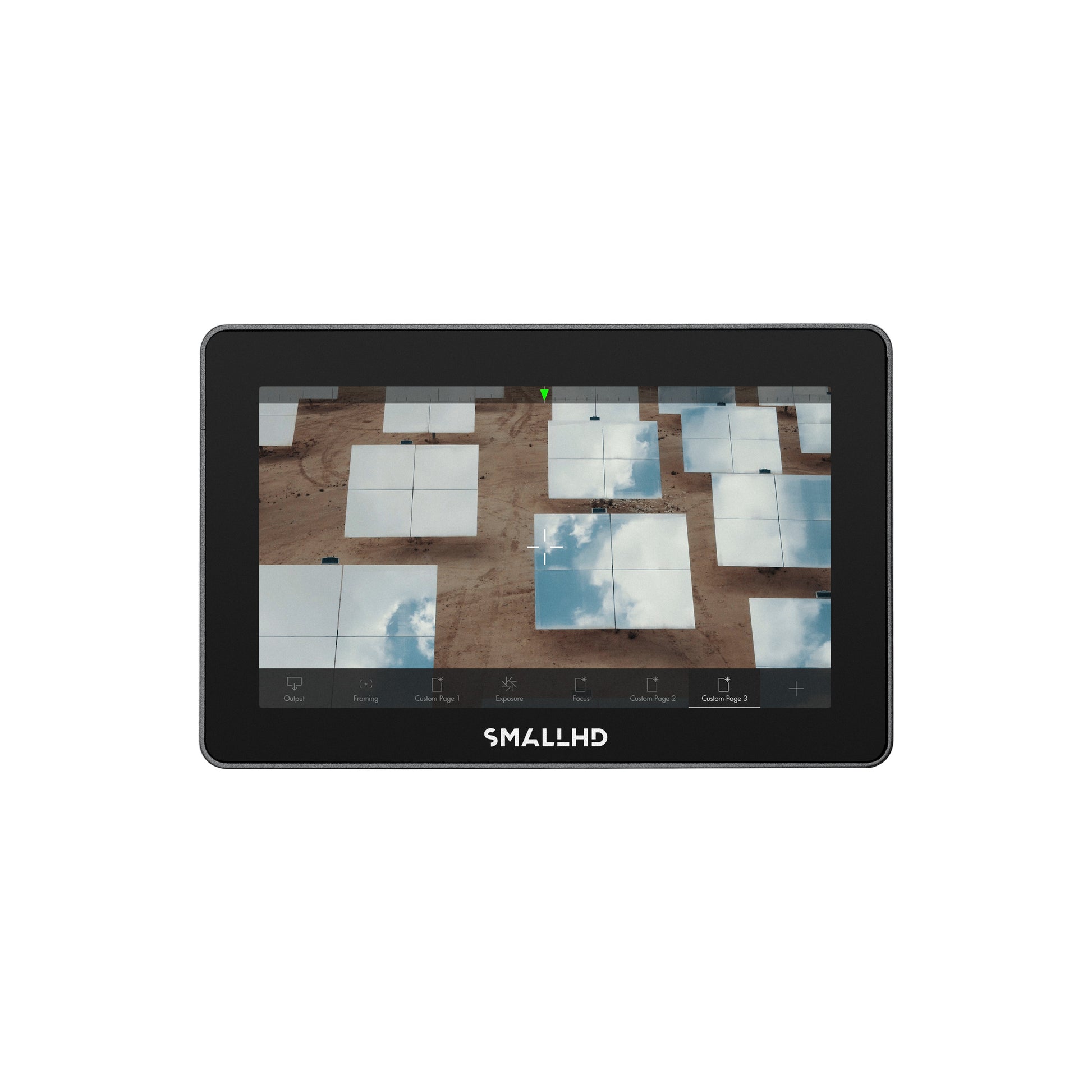

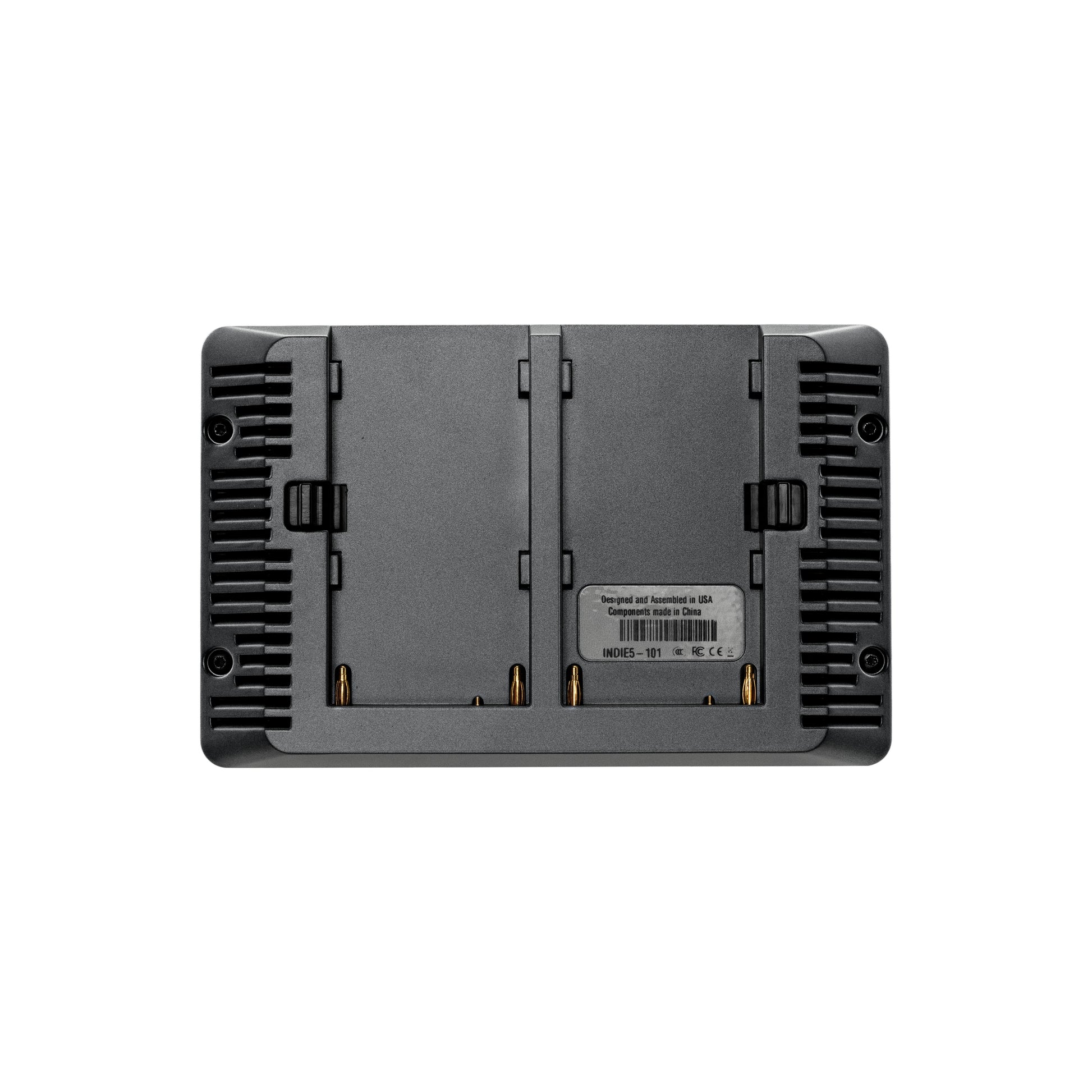

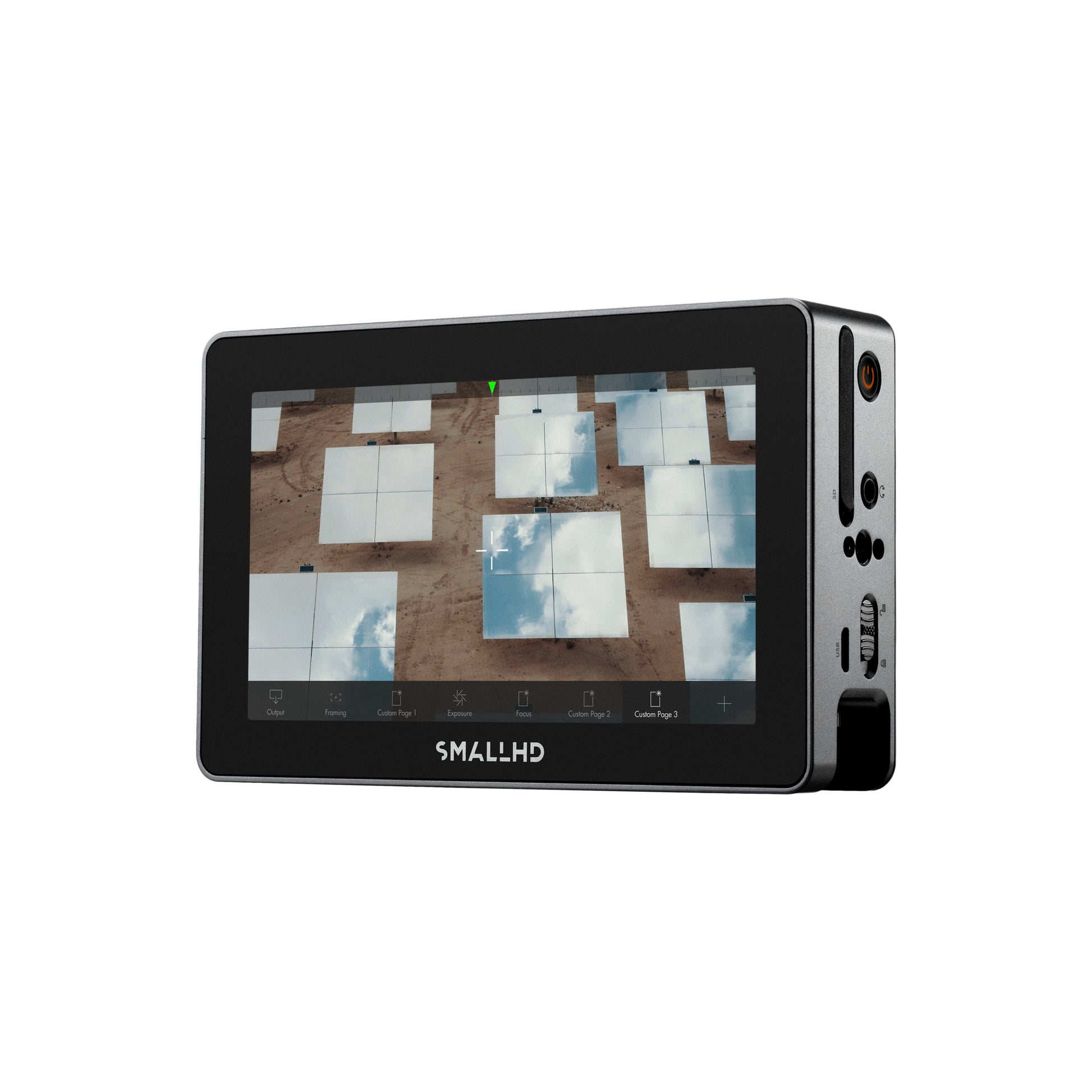

SmallHD Indie 5

Indie 5 is the smallest and lightest monitor in the Smart 5 Series, with optional camera-control functionality, all your favorite PageOS tools, and customization on a premium touchscreen 5-inch monitor. At 1000nit brightness, this compact model is also daylight-viewable.

Indie 5’s hyper-responsive touchscreen display, with 1080p resolution, is backed by PageOS. With Indie 5, you’ll be able to access our intuitive UI/UX for at-a-glance adjustments and effortless navigation, integrated tools for more accurate exposure and color control, Look-Around Camera Control, EL Zone, Advanced Teradek RT overlays, and so much more

Indie 5 is our entry-level Smart 5 field monitor, ideal for professionals on an indie budget.

Camera Control for RED® DSMC2® & RCP2™

Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED DSMC2, KOMODO®, and V-RAPTOR™ camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

Technical Specifications

Environmental

• Item Weight (oz): 14.4
• Height (in): 3.39
• Width (in): 5.28
• Length/Depth (in): 1.52
• Mount Points: 6x 1/4-20 Mounting Points

Display

• Panel Type: Touch-Screen
• Resolution: 1920 x 1080
• Aspect Ratio: 16:9
• Max Brightness: 1000nits
• Backlight Type: Edgelit

Input Signal

• 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
• HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
• SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
• HDMI Input Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
• Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal

• 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
• HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
• SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
• HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
• Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type

• SDI: 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
• HDMI: 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
• Audio: 1x 3.5mm Stereo Headphone Jack

Data I/O

• Storage Media: 1x SD Card Slot
• USB: 1x Micro USB

Power

• Input: Barrel Power Input
• Overload Protection: DC input: Reverse polarity
• Battery Chemistry: Li-ion

Software

• Pixel Zoom: Yes
• Focus Assist: Yes
• Peaking: Yes
• False Color: Customizable False Color Overlays
• Waveform: Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
• Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input

Camera Control

• Camera Control Compatibility: Camera Control for RED® DSMC2™ Camera Control for RED® RCP2™ Cameras (KOMODO®, DSMC3™) *Additional camera control compatibility coming soon

Compare Chart

• Resolution: 1920 x 1080
• Color Depth: 10-Bit Color
• Brightness: 1000 nits
• SDI (1080p60): 1x 3G-SDI Input 1x 3G-SDI (I/O)
• HDMI (4Kp30): 1x HDMI 2.0 Input 1x HDMI 2.0 Output
• Touchscreen: ✔️
• Weight: 14.4 oz / 407 g
• Joystick Control: ❌
• Physical Buttons: ❌
• Power Input: 2.0mm Barrel Power Input
• Locking USB Control Port: ❌
• Ethernet Port: ❌
• Camera Control Compatibility*: REDⓇ
• Battery Support: Integrated Sony L-Series
• Touchscreen Lock: ✔️
• Built-in Teradek Bolt 6: ❌

Product Details

• SKU: SHD-16-0525
• EAN: 811786033416
• Warranty: 12 months
• Country of origin: United States
