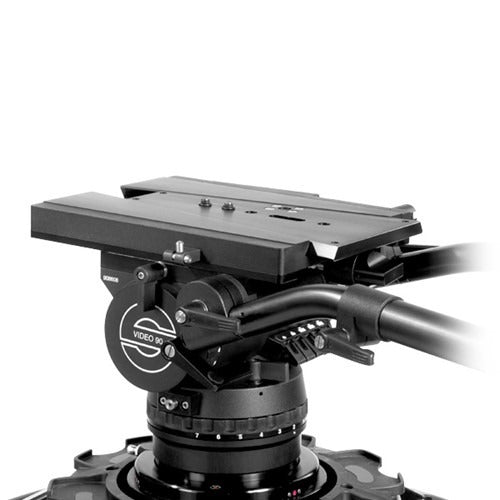

For professional studio and outside broadcasting work, having lightweight, stable gear that you can rely on is a must. The Sachtler Video 90 FB boasts supports a payload of 115kg and its ergonomic, durable and squeeze-proof design provides safe and secure operation in any position.
These well-known Sachtler features include 24-step dynamic counterbalancing, which compensates for torque as the camera tilts; frictionless fluid damping with seven levels of drag and vertical and horizontal brakes for completely smooth movement; and a sliding balance plate with a connection thread for teleprompter mount.
Technical Specifications
Range: Video
Payload: 0 kg to 115 kg
Drag: 7 + 0 drag settings
Counterbalance: 24 steps
Bowl Size: Flat Base
Camera Plate: V-plate
Sliding Range: 18 cm
Weight: 16 kg
Tilt Range: +60° to -45°
Pan Bar Type: Pan bar front sections
Pan Bar Count: 2
Pan Bar Length: 40 cm
Pan Bar Attachment: ⌀ 28.5/-/- mm
Level Bubble: Yes
Adaptor Viewfinder Extension: Included
Temperature Range: -40°C to 60°C
In The Box
Video 90 FB fluid head with two pan bar front sections and camera plate V-plate Standard Wedge Plate (
