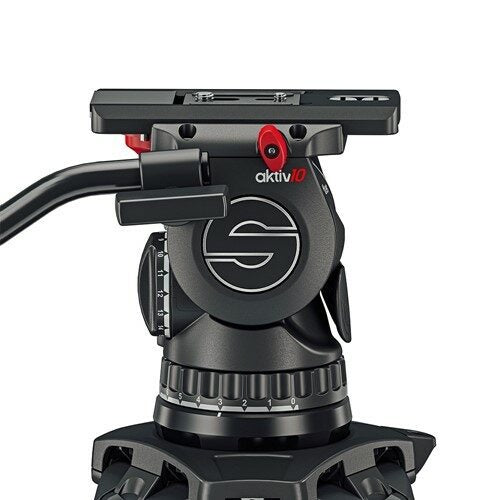

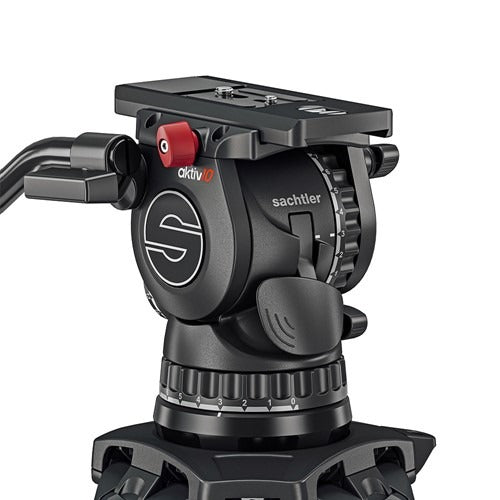

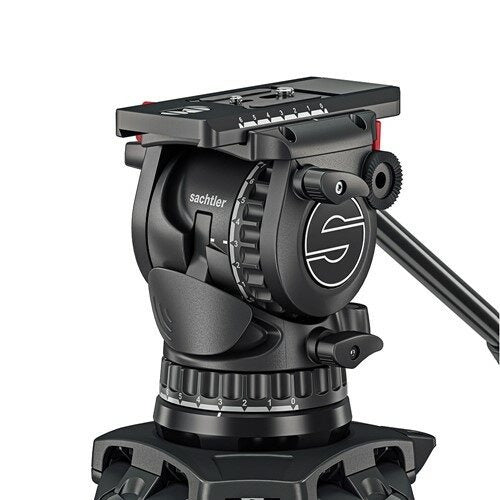

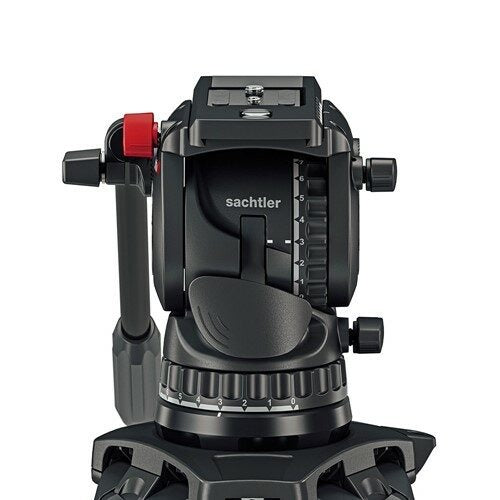

This Sachtler aktiv™ 100 mm fluid head for payloads of up to 12 kg (26.5 lbs.) , with unique SpeedLevel™ technology, can be levelled in seconds giving you time to get the perfect shot in documentary, corporate or news applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility.
Technical Specifications
Range: aktiv
Payload @ 100mm cog: 0 kg to 12 kg
Drag: 7 + 0 drag settings
Counterbalance: 15 + 0 steps
Bowl Size: 100 mm

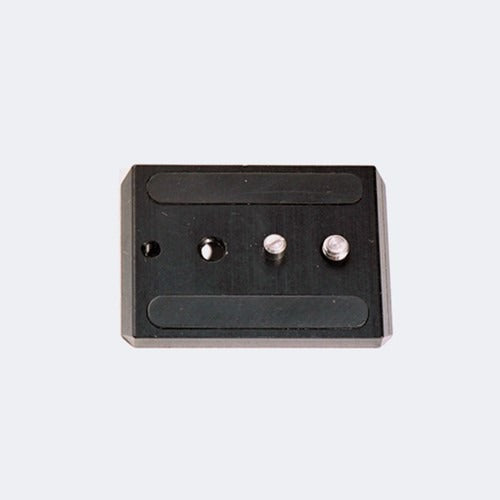

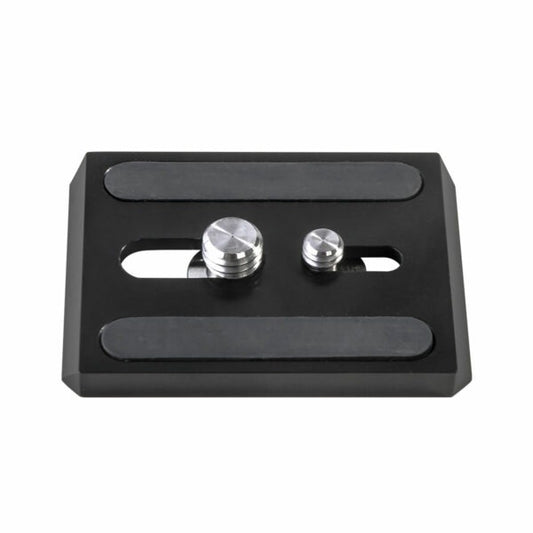

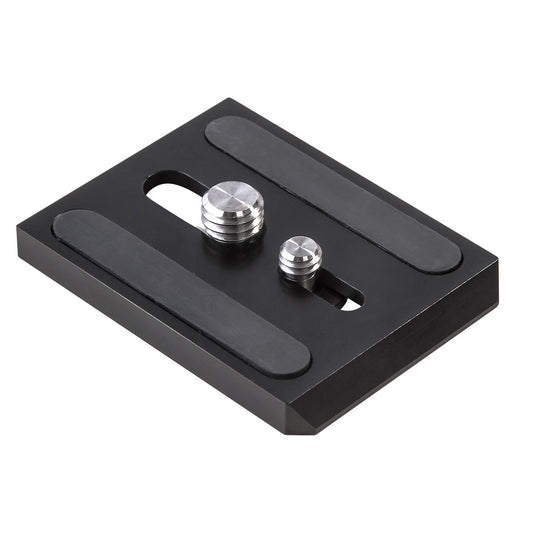

Camera Plate: Touch & Go plate S
Sliding Range: 60 mm
Weight: 3 kg
Tilt Range: 90° to -70°
Pan Bar Type: Pan bar DV 75
Pan Bar Count: 1
Pan Bar Length: 43 cm
Pan Bar Attachment: ⌀ 16/-/28 mm
Level Bubble: Yes, illuminated PrismBubble
Battery Type: CR2032
Temperature Range: -40°C to 60°C
In The Box
aktiv™10T fluid head with one pan bar DV and Touch & Go plate S Pan bar DV 75 (0992SP) Touch & Go plate S (0364) aktiv bowl connector 100 mm V2 (
