SWIT S-4612 | Heavy Duty DVI to SDI converter
SWIT S-4612 | Heavy Duty DVI to SDI converter
DVI converted to 3G/HD/SD-SDI, supports to embed Analog audio into SDI
DVI to SDI Converter
Official Features
Portable Mini Converter
DVI (DVI-D, 18+1) to SDI S-4612 is a mini converter for DVI to SDI conversion, (DVI-D, 18+1 connector), which can be widely used for DVI video source to deliver and broadcast, support up to 1080p 50/60 format DVI to convert to SDI.
Input and Output

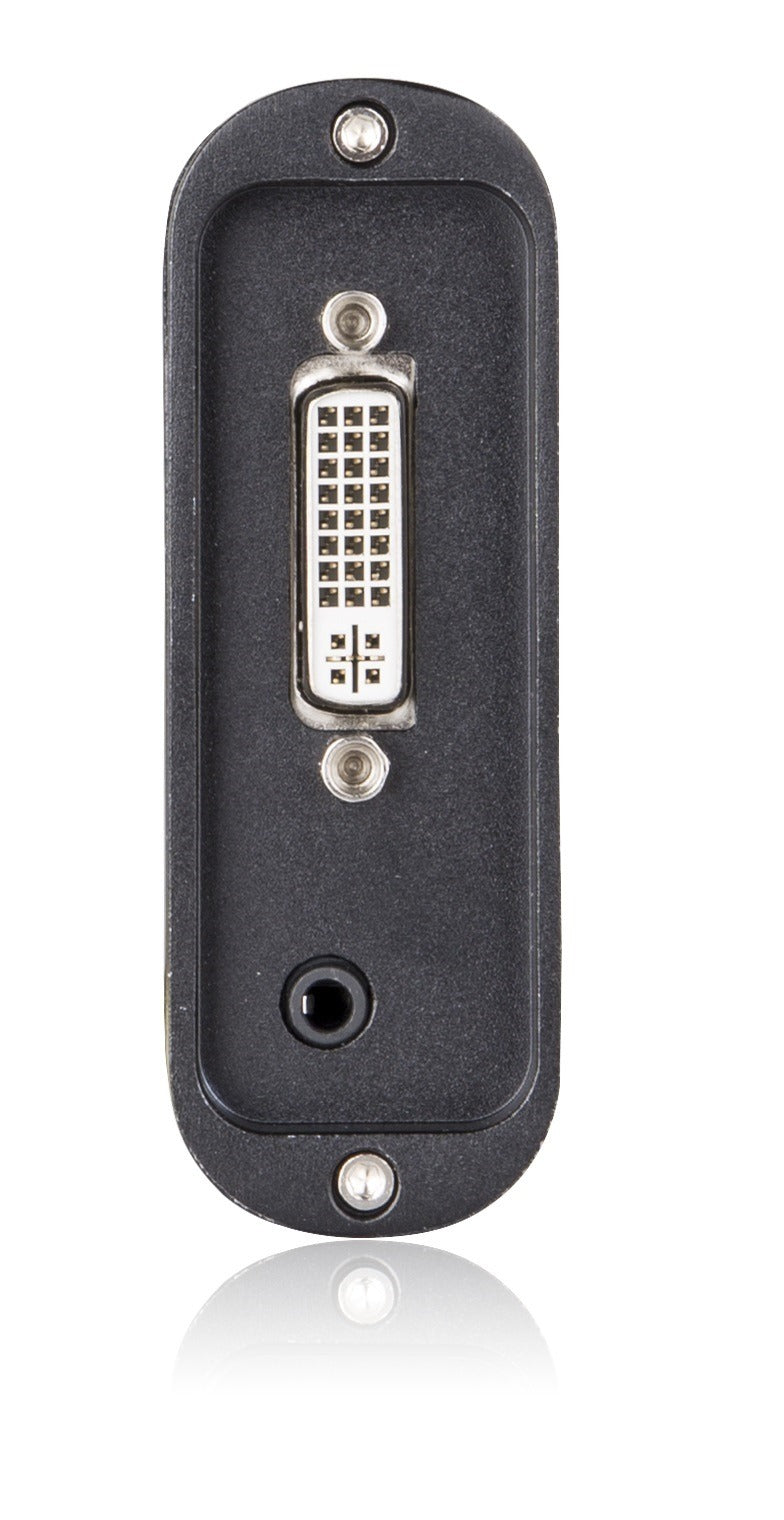

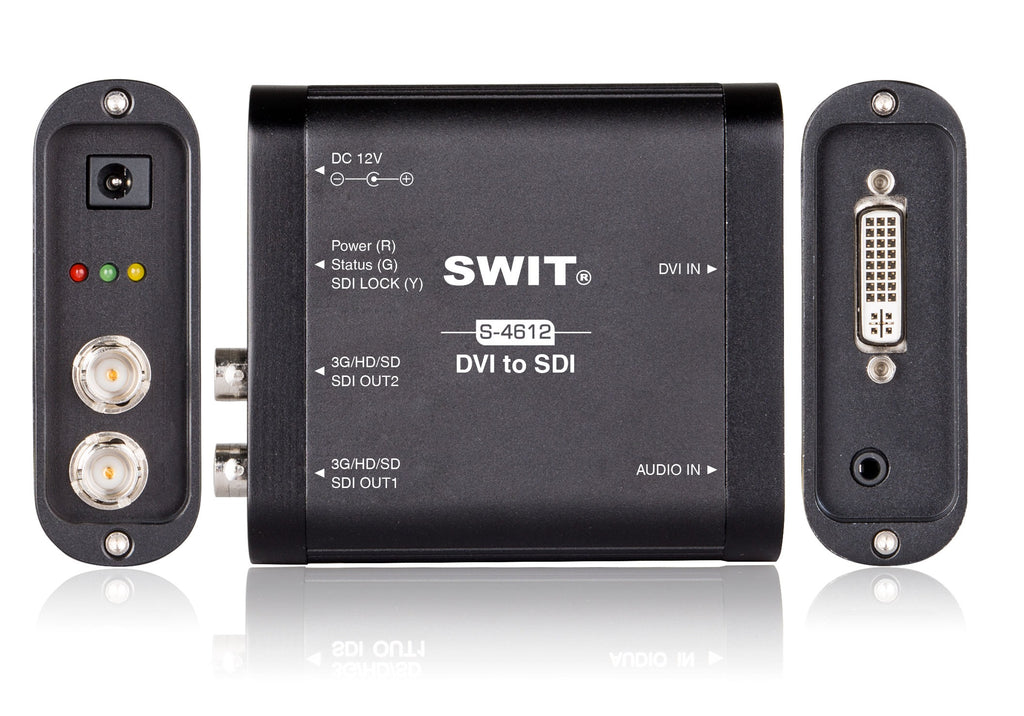

S-4612 offers: 1× DVI-D (18+1) input 2× 3G/HD/SD-SDI output (Reclocked) 1× 3.5mm audio input (The DVI to SDI supports the same format conversion only.) S-4612 features low SDI jitter and SDI re-clocking so that you can use the longest SDI cable lengths and maintain pristine quality images.
Embed Analog audio into SDI output
Analog audio input and embed to SDI S-4612 support 3.5mm analog audio input, and can be embedded into SDI to output. The audio supports 48kHz sample rate.
Status Indicators

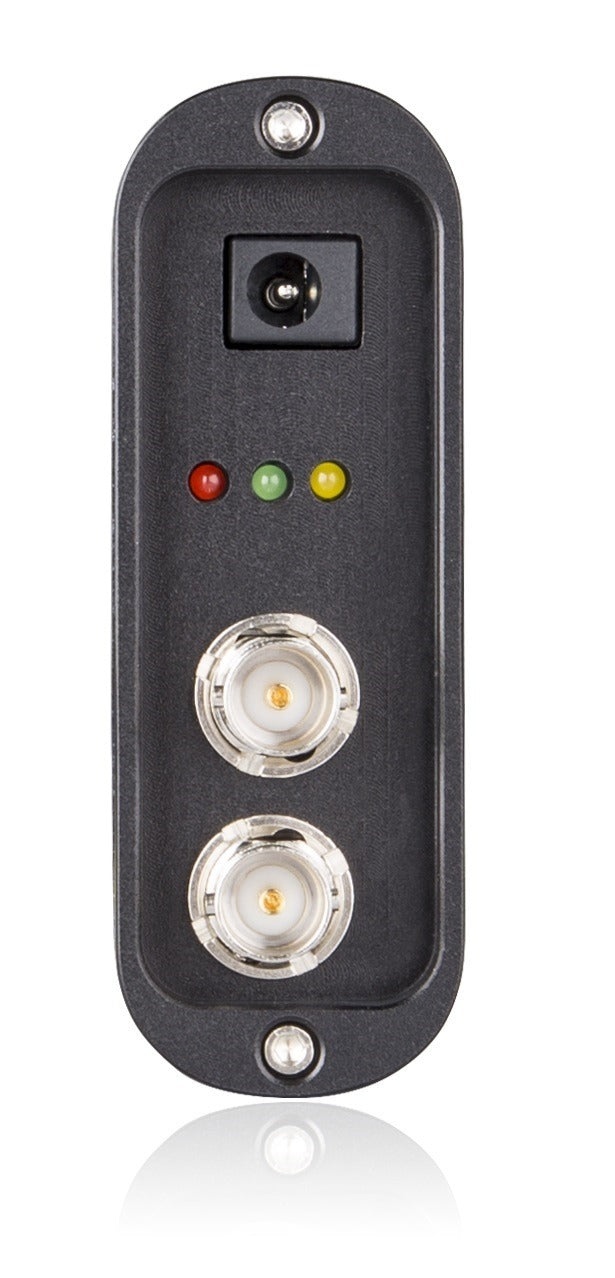

Power / Input / Output S-4612 provides 3 LED indictors, to check if the power is connected, and if the input/output signal is delivered.
Power Supply
Pole-tap DC input The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing

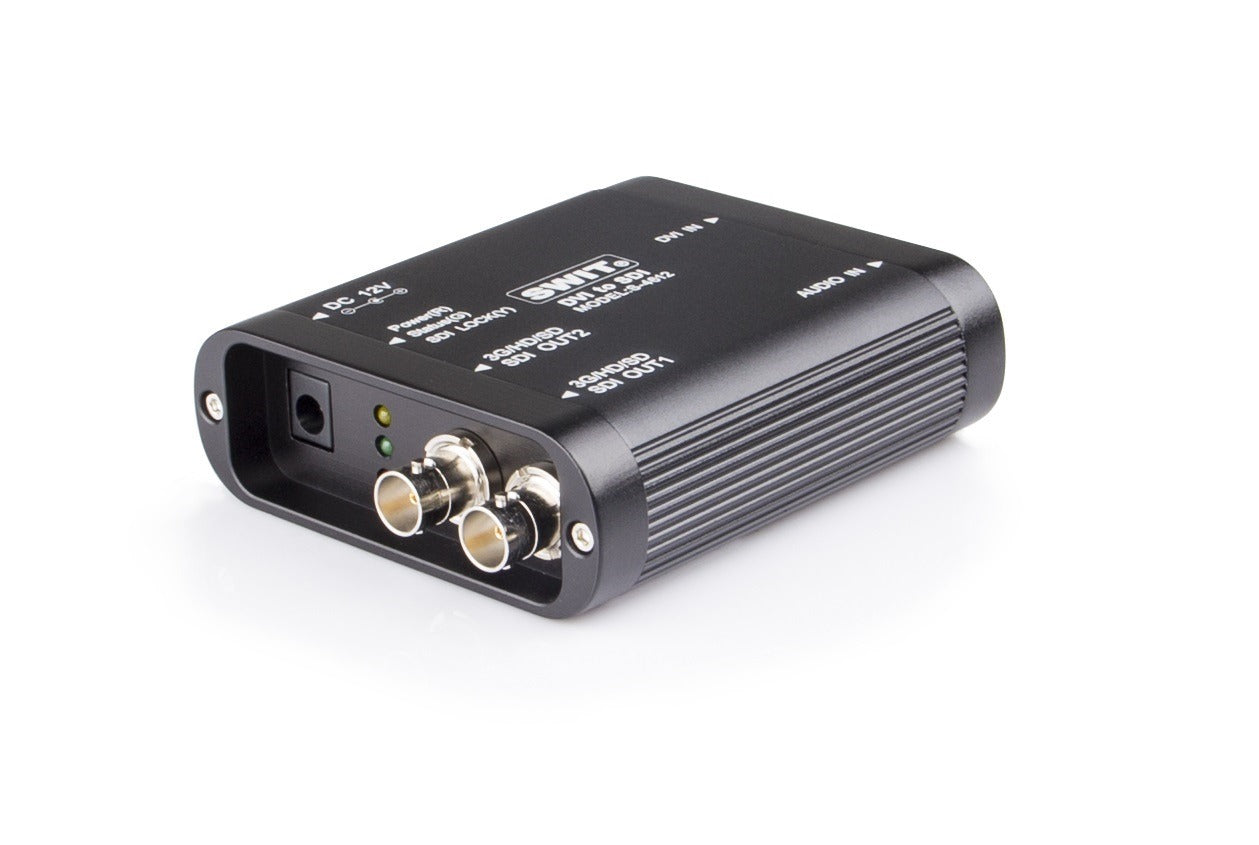

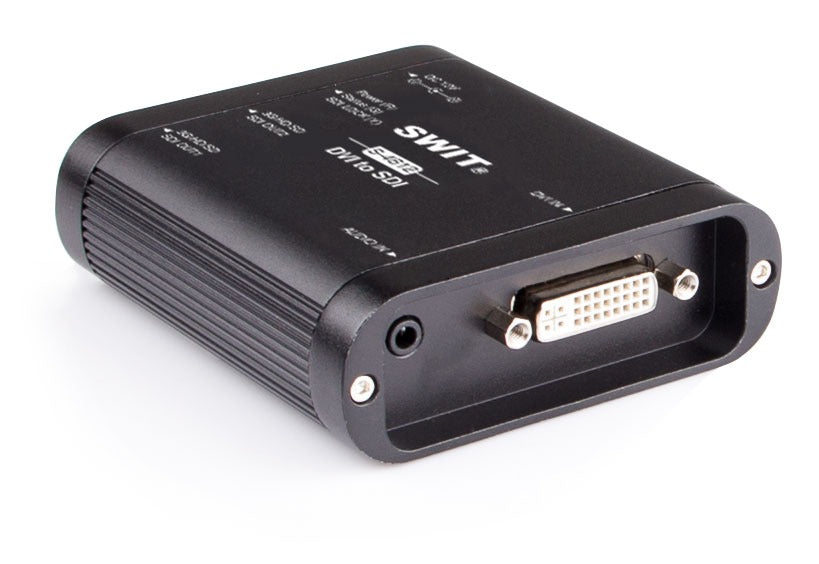

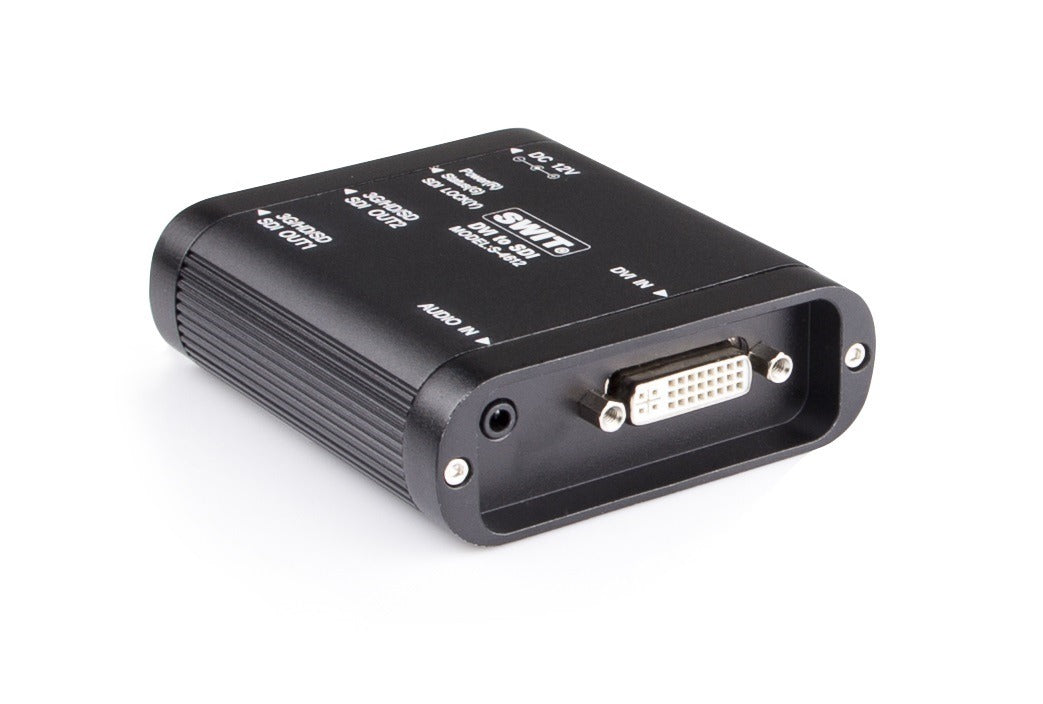

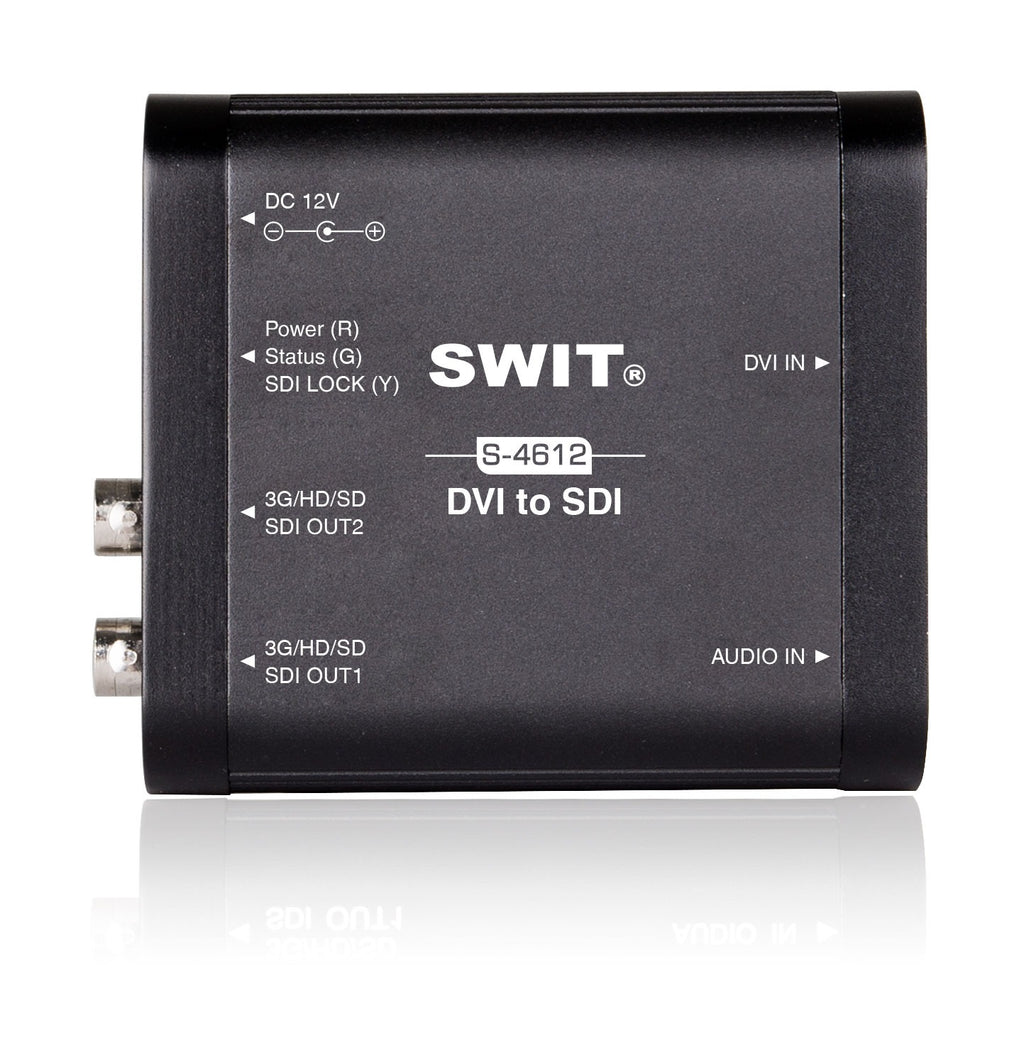

The S-4612 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.
Installation

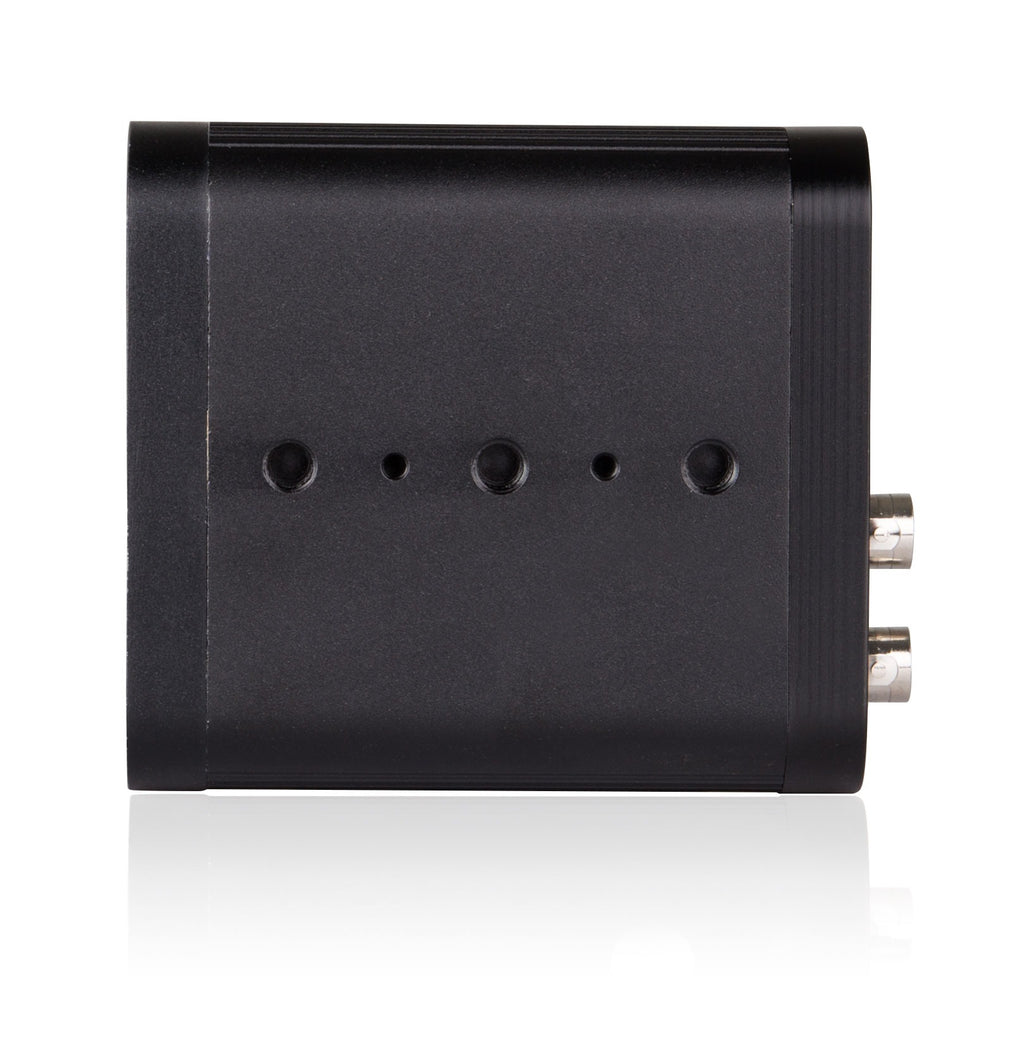

S-4612 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC/DVI cables.
Official Product Data
- Model SPU: S-4612
- Division: Other
- Big Category: Converter
- Small Category: Video converter
- Weight (kg): 0.5
- Spec 1: DVI to SDI converter
Official Specifications
Input
| DVI-D ×1 | DVI input |
| 3.5mm×1 | Analog audio input |
Output
| BNC ×2 | Converted 3G/HD/SD-SDI output |
Video Format
| SDI | 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
| DVI | 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 480i / 576i | |
| Audio | 48KHz Sync |
General
| Power | ≤3W |
| Working Voltage | DC 6-18V |
| Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% |
| Dimensions | 98×84×29 mm |
| Net weight | Net 207g; With package 0.5kg |
