2-ch AES/EBU or analog audio embeds to any 2 audio channels of 3G/HD/SD-SDI
SDI Audio Embedder
Official Features
Portable Mini Converter

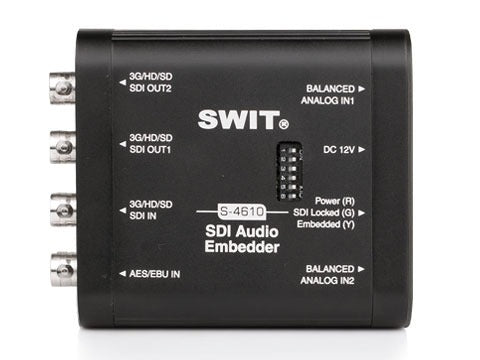

SDI audio Embedder S-4610 is a portable mini converter of SDI audio embedder, supports digital audio or analog audio to embed, and SDI up to 3Gb/s. It’s widely used in broadcast field production and professional audio/video conversion and transmission.
Input and Output

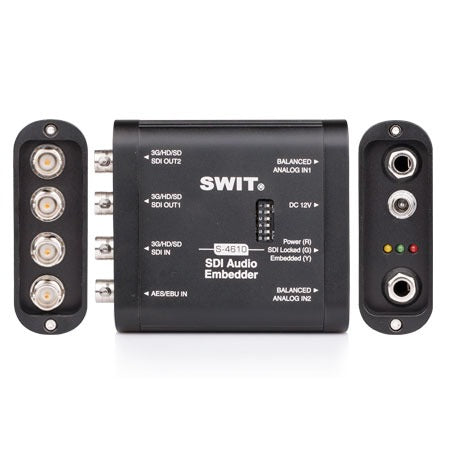

S-4610 provides: 1x 3G/HD/SD-SDI input 1x AES/EBU digital audio input (2-ch) 2x 6.35mm analog audio input (balanced) 2x New embedded 3G/HD/SD-SDI output *If both AES/EBU audio and analog audio is connected, only AES/EBU audio can be embed-ded
De-embed Channel Selection

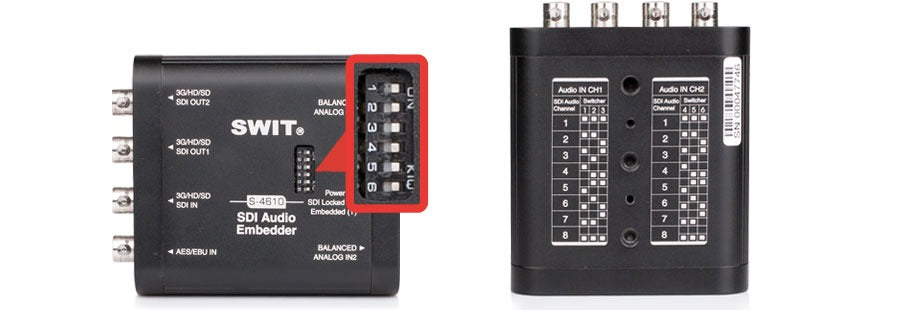

By 6 switchers S-4610 can embed 2-ch audio to any 2 positions of SDI first 8 audio channels. User can select the channel number to be embedded by the 6 switchers on the front panel of the product. And on the rear side, S-4610 provides the description of the 6 switchers for reference.
Status Indicators

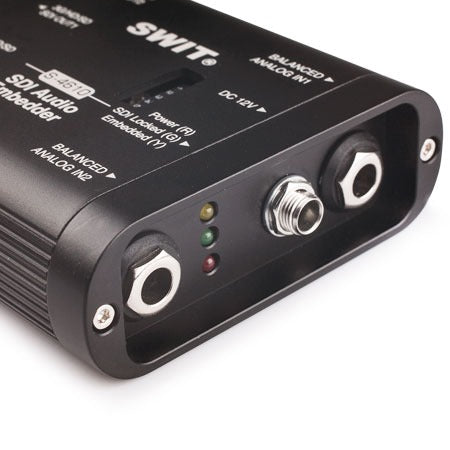

Power / SDI / Embedder S-4610 provides 3 LED indictors, to check if the power is connected, if the SDI input is recognized, and if new embedded SDI outputs.
Power Supply

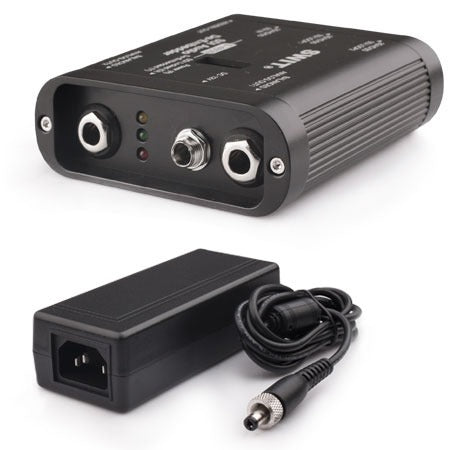

Pole-tap DC input The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing
The S-4610 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the audio/video connectors effectively.
Installation

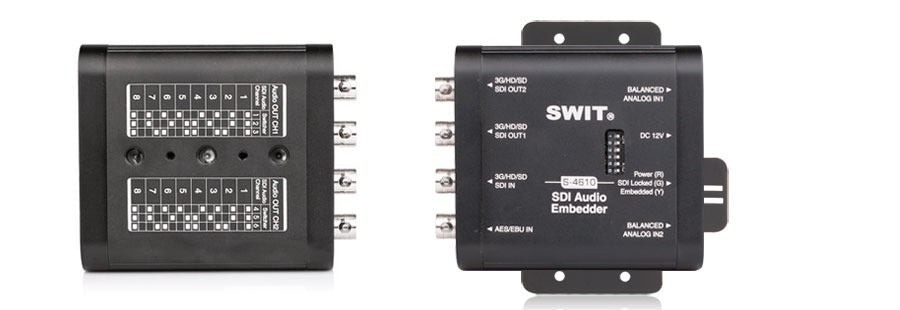

S-4610 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC/audio cables.
Official Product Data
- Model SPU: S-4610
- Division: Other
- Big Category: Converter
- Small Category: SDI Audio Em/DeEmbedder
- Weight (kg): 0.55
- Spec 1: SDI Aduio Embedder
Official Specifications
Input
| BNC ×1 | 3G/HD/SD-SDI input ×1 |
| BNC ×1 | AES/EBU digital audio input ×1 |
| 6.35mm ×2 | Analog audio (balanced) input ×2 |
Output
| BNC ×2 | 3G/HD/SD-SDI embedded output ×2 |
Video Format
| SDI | 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) |
Audio Formats
| Digital audio | Type: AES/EBU |
| Output level: 5Vp-p | |
| Sample frequency: 48KHz | |
| Analog audio | Max output level: +24dbu |
| Bandwidth: 20Hz-20KHz |
General
| Power consumption | ≤3W |
| Working Voltage | DC 6-18V |
| Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% |
| Dimensions | 98×84×29 mm |
| Net weight | Net 235g; With package 0.55kg |
