SWIT S-4607 | Heavy Duty Bi-directional 3G-SDI / Optical converter

3G/HD/SD-SDI and Single Mode Optical Fiber (LC) Bi-direction conversion.

Bi-directional SDI/Optical Converter

Official Features

Portable Mini Converter

Bi-directional SDI/Optical With S-4607 mini converter, you can convert SDI to LC single mode Optical Fiber, and convert Optical Fiber to SDI simultaneously. It’s widely used on transmitting SDI in a long distance and bi-directionally.

Input and Output

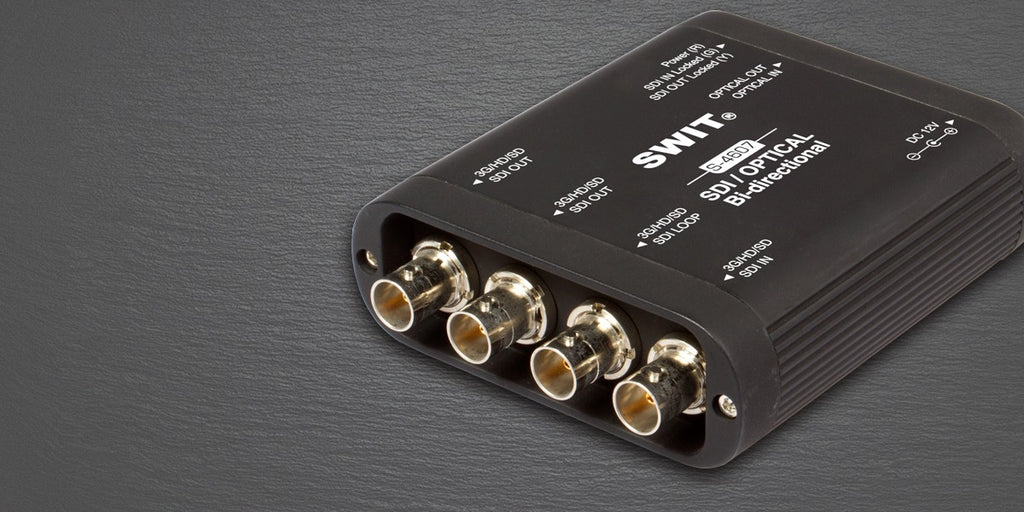

S-4607 SDI to Optical channel: 1× 3G/HD/SD-SDI input 1× 3G/HD/SD-SDI loop output (Reclocked) 1× LC Optical Fiber output S-4607 Optical to SDI channel: 1× LC Optical Fiber input 2× 3G/HD/SD-SDI output

Encoder and Decoder

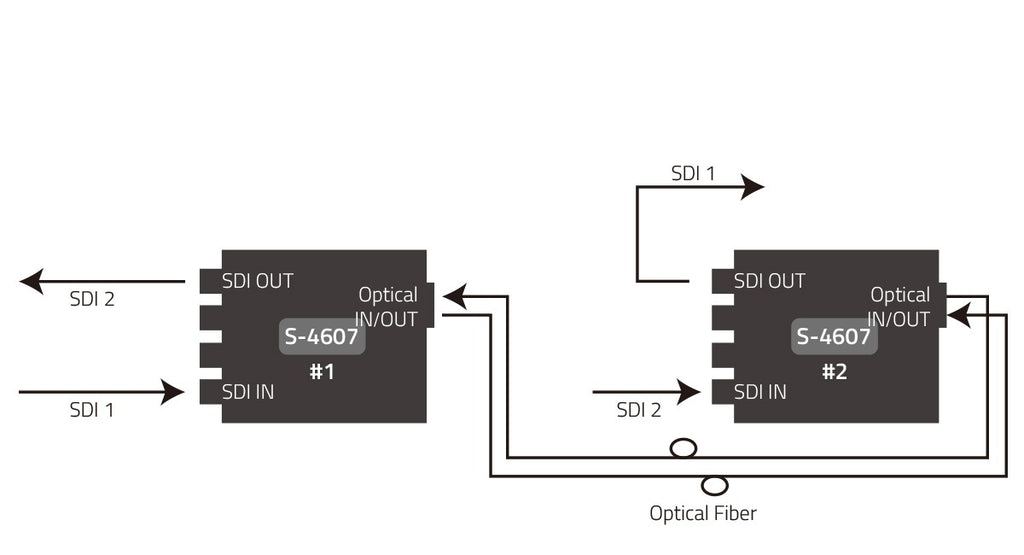

Using 2× S-4607 You can use 2× S-4607 to transmit SDI via Optical fiber, and bi-directionally. The reliable transmission distance is 20km.

Power Supply

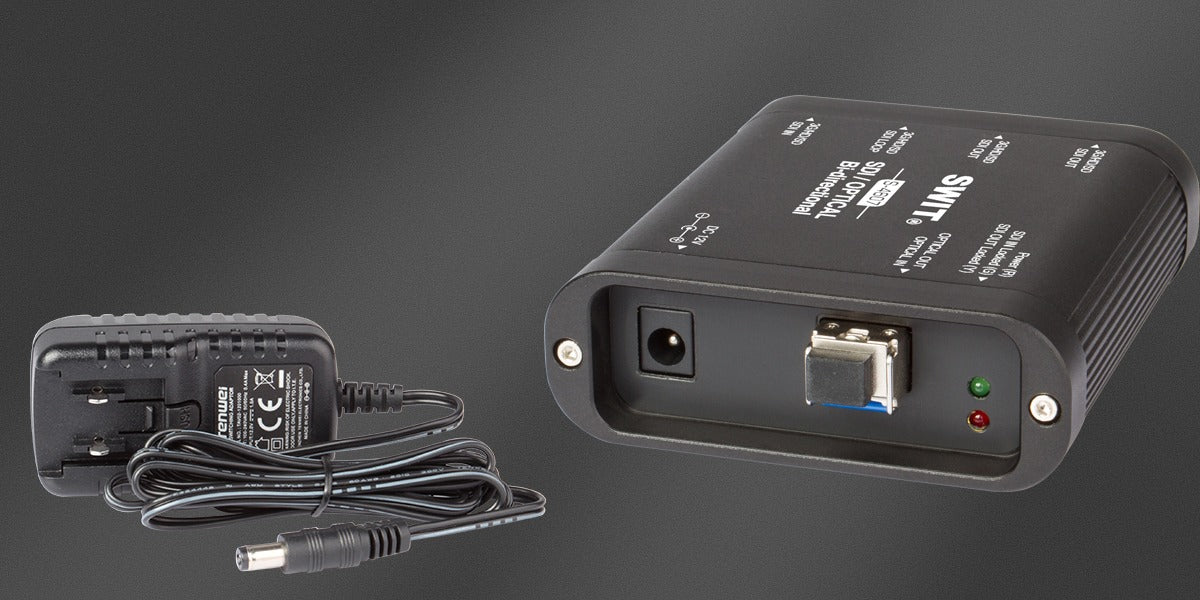

The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

Status Indicators

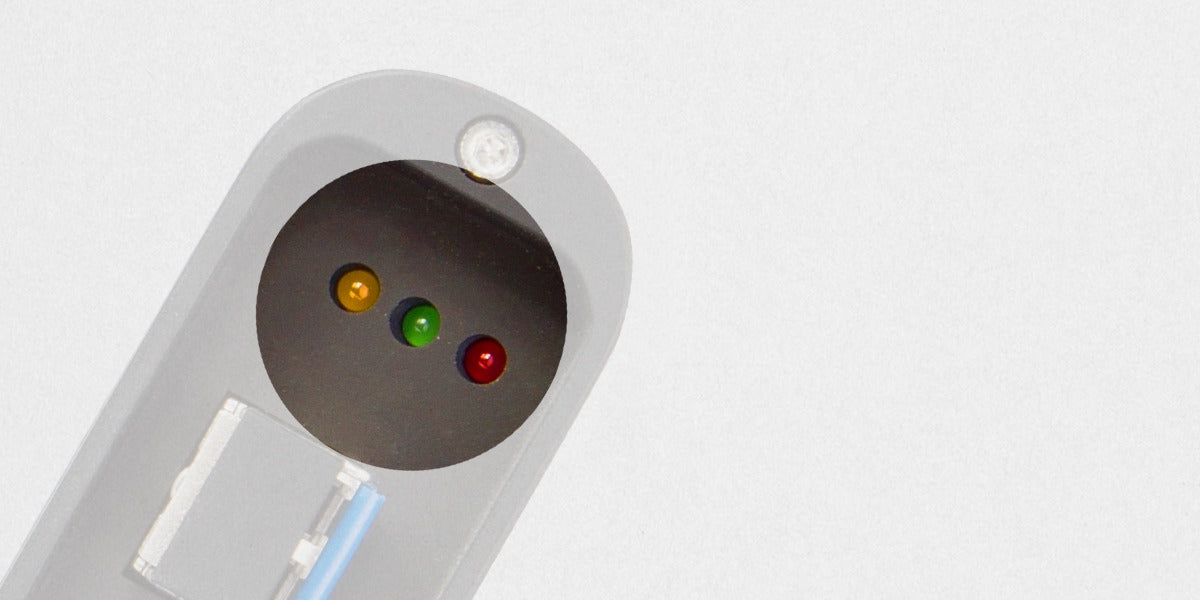

Power / SDI output S-4607 provides 3 LED indictors, to check if the power is connected, and if the SDI input / Output is recognized.

Heavy Duty Housing

The S-4607 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.

Installation

S-4607 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC cables and optical fibers.

Official Product Data

• Model SPU: S-4607
• Division: Other
• Big Category: Converter
• Small Category: Video converter
• Weight (kg): 0.55
• Spec 1: SDI/Optical bi-directional converter

Official Specifications

Input

Output

Video Format

General
