Single Mode Optical Fiber (LC) decoded to 3G/HD/SD-SDI.
Optical to SDI Converter
Official Features
Portable Mini Converter

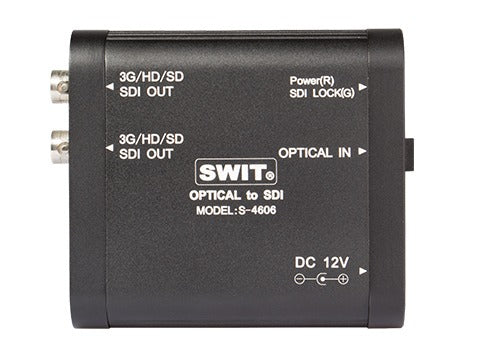

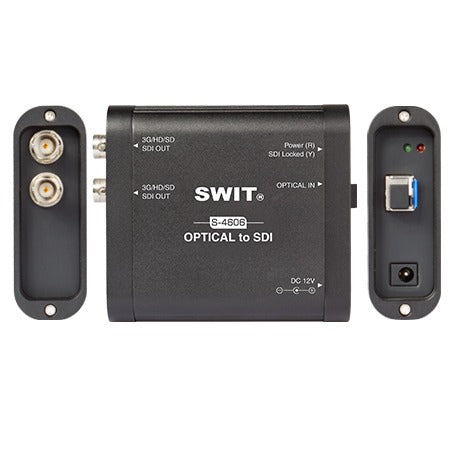

Optical Fiber to SDI S-4606 is a mini converter for LC single mode Optical Fiber to SDI conversion, widely used on transmitting SDI in a long distance.

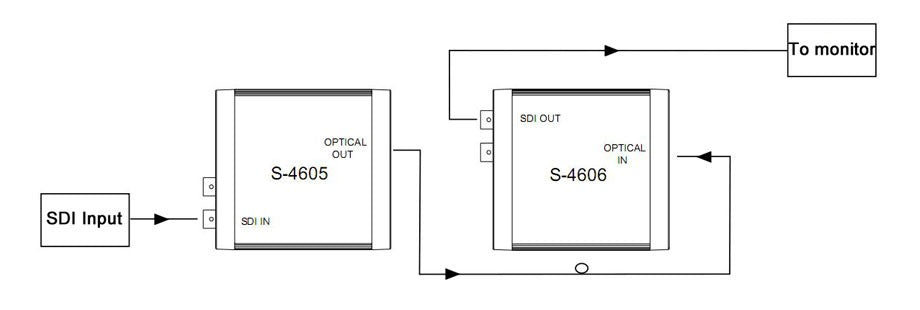

Working together with S-4605 The S-4606 works as decoder to convert Optical fiber back to SDI, and you can use SWIT S-4605 (SDI to Optical fiber encoder) together, to transmit SDI via fiber up to 20km reliable distance.
Status Indicators

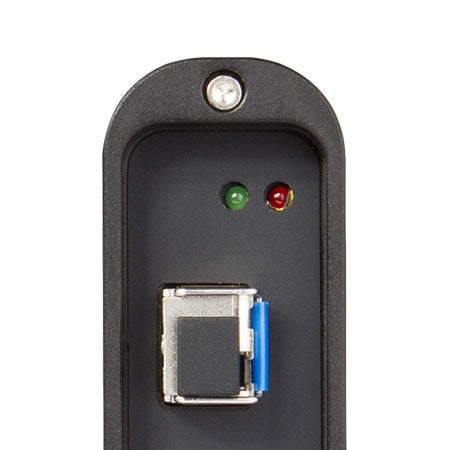

Power / SDI output S-4606 provides 2 LED indictors, to check if the power is connected, and if the output SDI is recognized.
Power Supply

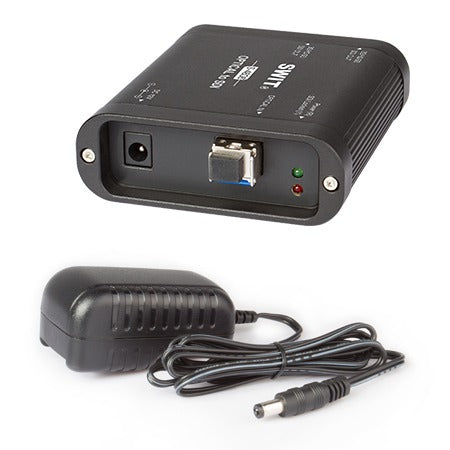

The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing
The S-4606 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.
Installation

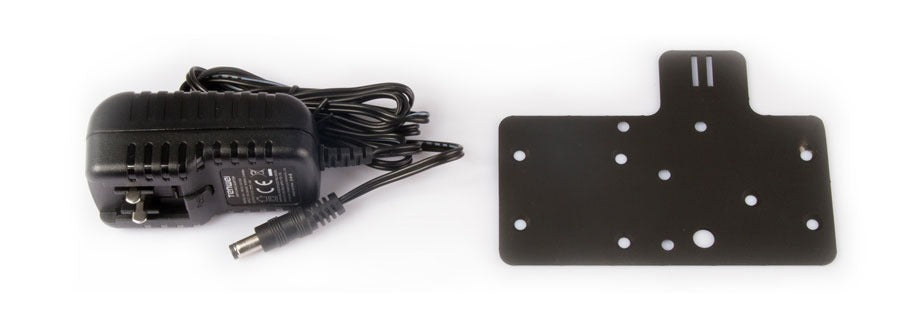

S-4606 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC cables and optical fibers.
