SWIT S-4605 | Heavy Duty 3G-SDI to Optical fiber converter
SWIT S-4605 | Heavy Duty 3G-SDI to Optical fiber converter
Nepavyko įkelti atsiėmimo galimybių
3G/HD/SD-SDI encoded to Single Mode Optical Fiber (LC).
SDI to Optical Converter
Official Features
Portable Mini Converter
SDI to Optical Fiber S-4605 is a mini converter for SDI to LC single mode Optical Fiber conversion, widely used on trans- mitting SDI in a long distance.

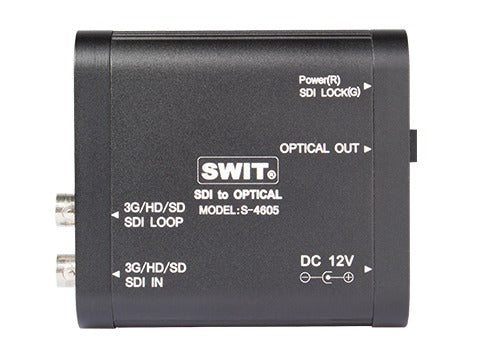

Input and Output
S-4605 offers: 1× 3G/HD/SD-SDI input 1× 3G/HD/SD-SDI loop output (Reclocked) 1× LC Optical Fiber output

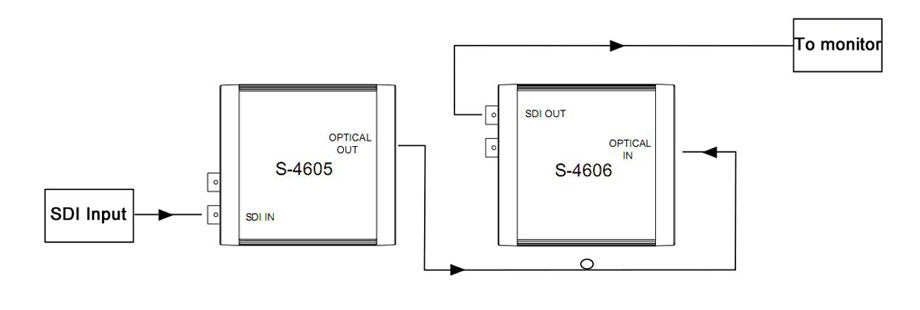

Encoder and Decoder
Working together with S-4606 The S-4605 convert SDI to Optical fiber at encoder end, and you can use SWIT S-4606 to convert Optical fiber back to SDI at the decoder end. The reliable transmission distance is up to 20km.

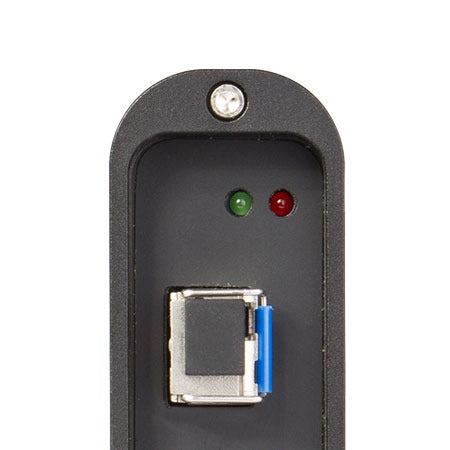

Status Indicators
Power / Input S-4605 provides 2 LED indictors, to check if the power is connected, and if the input SDI is recognized.

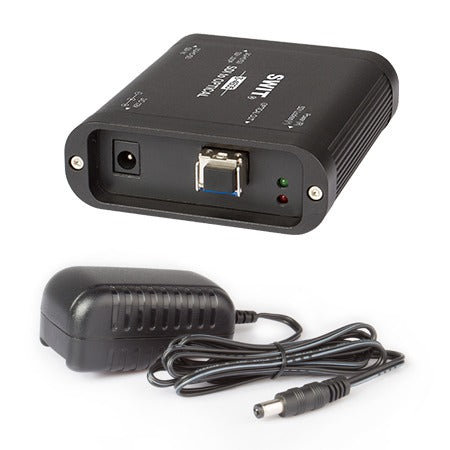

Power Supply
The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

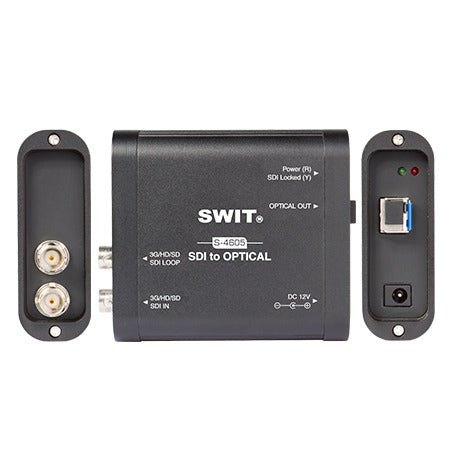

Heavy Duty Housing
The S-4605 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.

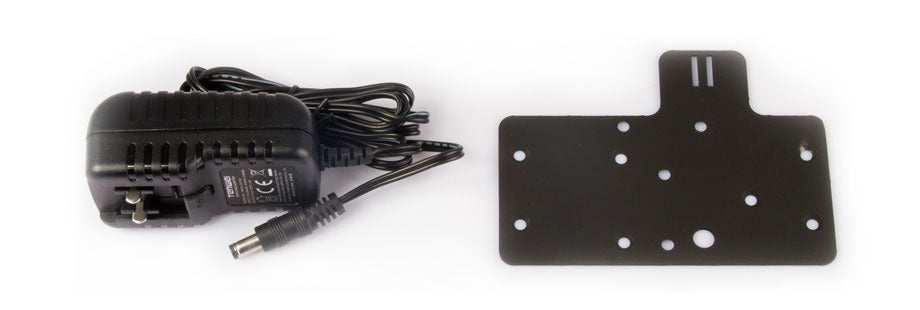

Installation
S-4605 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and bind- ing the BNC cables and optical fibers.
Official Product Data
- Model SPU: S-4605
- Division: Other
- Big Category: Converter
- Small Category: Video converter
- Weight (kg): 0.5
- Spec 1: SDI to Optical converter
- Lifecycle: Stopped

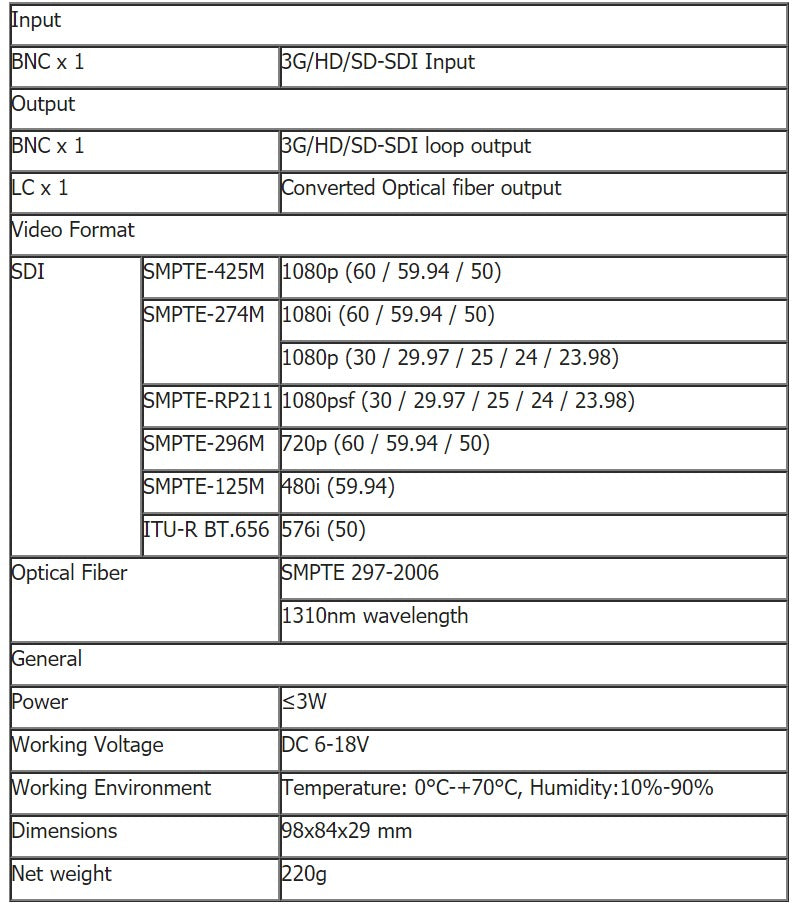

Official Specifications
Input
| BNC×1 | 3G/HD/SD-SDI input |
Output
| BNC ×1 | 3G/HD/SD-SDI loop output |
| LC ×1 | Converted Optical fiber output |
Video Format
| SDI | 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
| Optical Fiber | SMPTE 297-2006 |
| 1310nm wavelength |
General
| Power | ≤3W |
| Working Voltage | DC 6-18V |
| Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% |
| Dimensions | 98×84×29 mm |
| Net weight | Net 220g; With package 0.5kg |
