SWIT S-4604 | Heavy Duty 3G-SDI 1 to 4 Distributor and Amplifer

3G/HD/SD-SDI 1 input, 4 outputs, with re-clocking and amplifier.

SDI 1 to 4 Distributor and Amplifier

Official Features

Portable Mini Converter

SDI 1 to 4 distributor S-4604 is a mini converter for distributing 1 SDI input to 4 SDI output, supports up to 3Gb/s SDI, with all embedded information, widely used on broadcast projects.

Input and Output

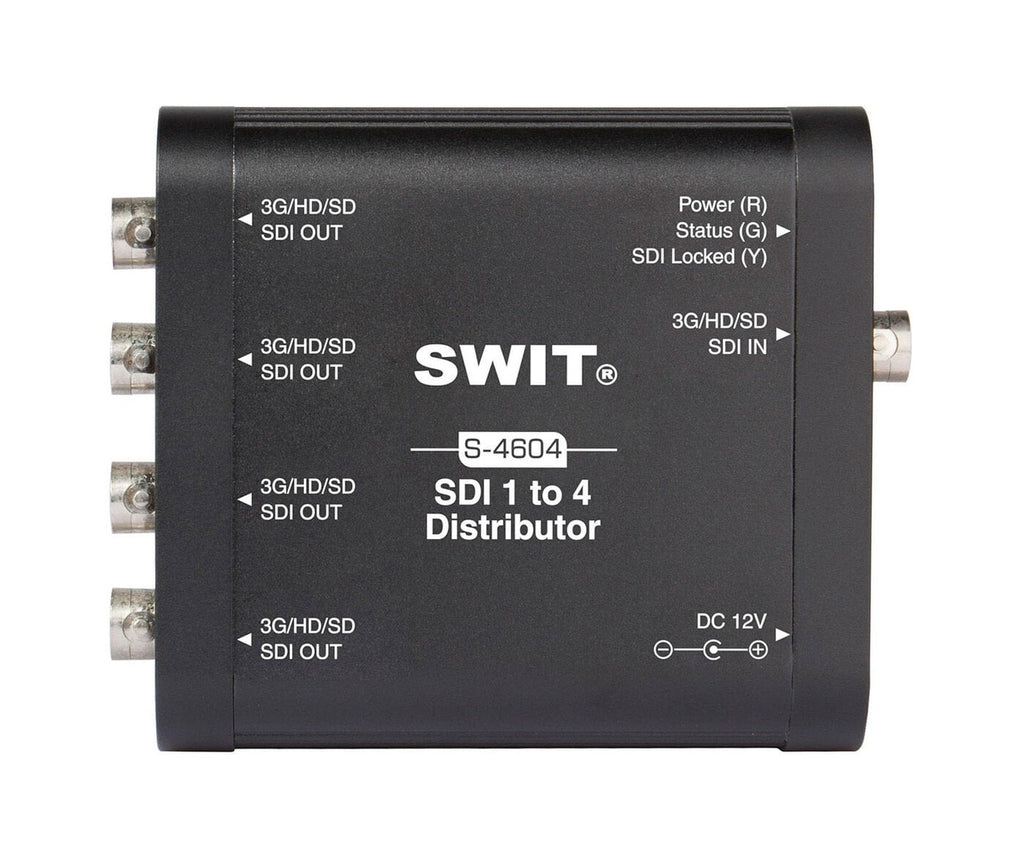

S-4604 offers: 1× 3G/HD/SD-SDI input 4× 3G/HD/SD-SDI output (Reclocked)

SDI Amplifier

The S-4604 features low SDI jitter and SDI re-clocking, so that you can use several S-4604 to prolong the SDI transmission distance.

Status Indicators

Power / Input / Output S-4604 provides 3 LED indictors, to check if the power is connected, and if the input/output signal is delivered.

Power Supply

The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

Heavy Duty Housing

The S-4604 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.

Installation

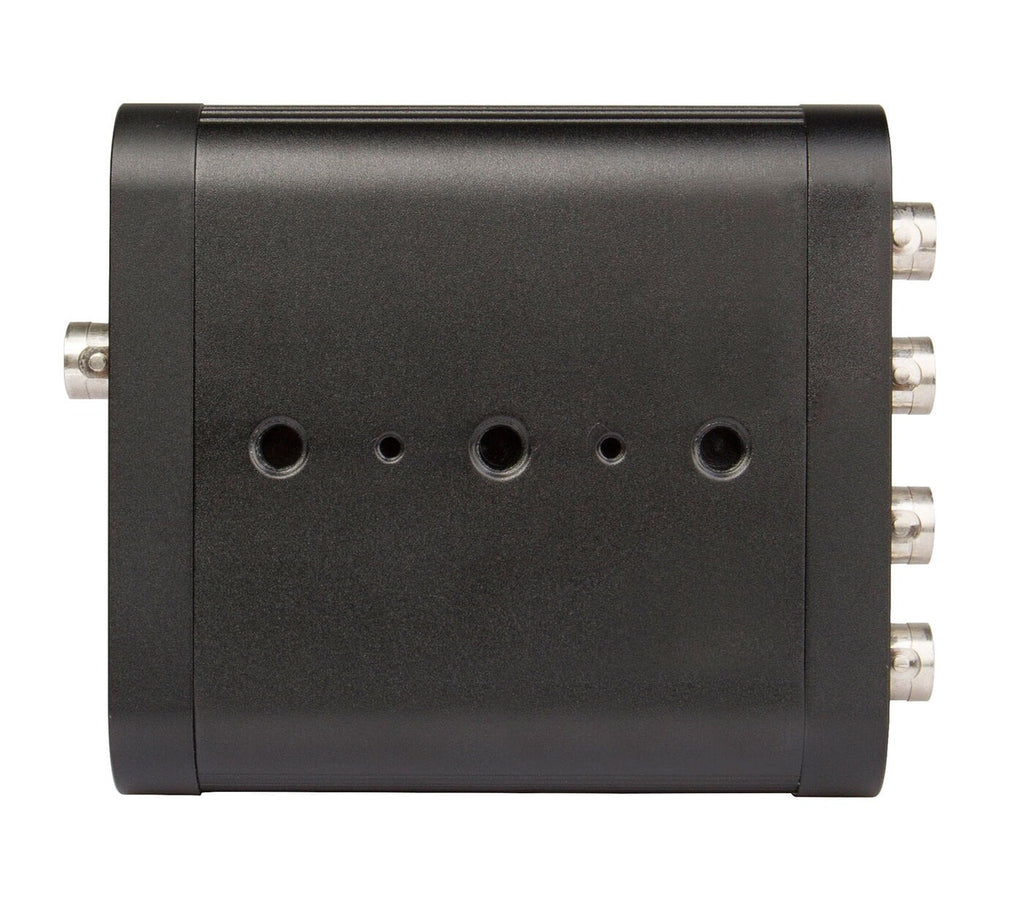

S-4604 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and bind- ing the BNC cables.

Official Product Data

• Model SPU: S-4604
• Division: Other
• Big Category: Converter
• Small Category: Video converter
• Weight (kg): 0.55
• Spec 1: SDI Distributor

Official Specifications

Input

Output

Video Format

General

Official Documentation

• 250911589969.pdf
• 201539161498.pdf
• 290944084078.pdf
• Official Product Page
