23W, 1800Lux Chip-on-board LED, non-glare, single shadow, wide beam angle; 3200K/5000K/5600K; DV battery / D-tap power

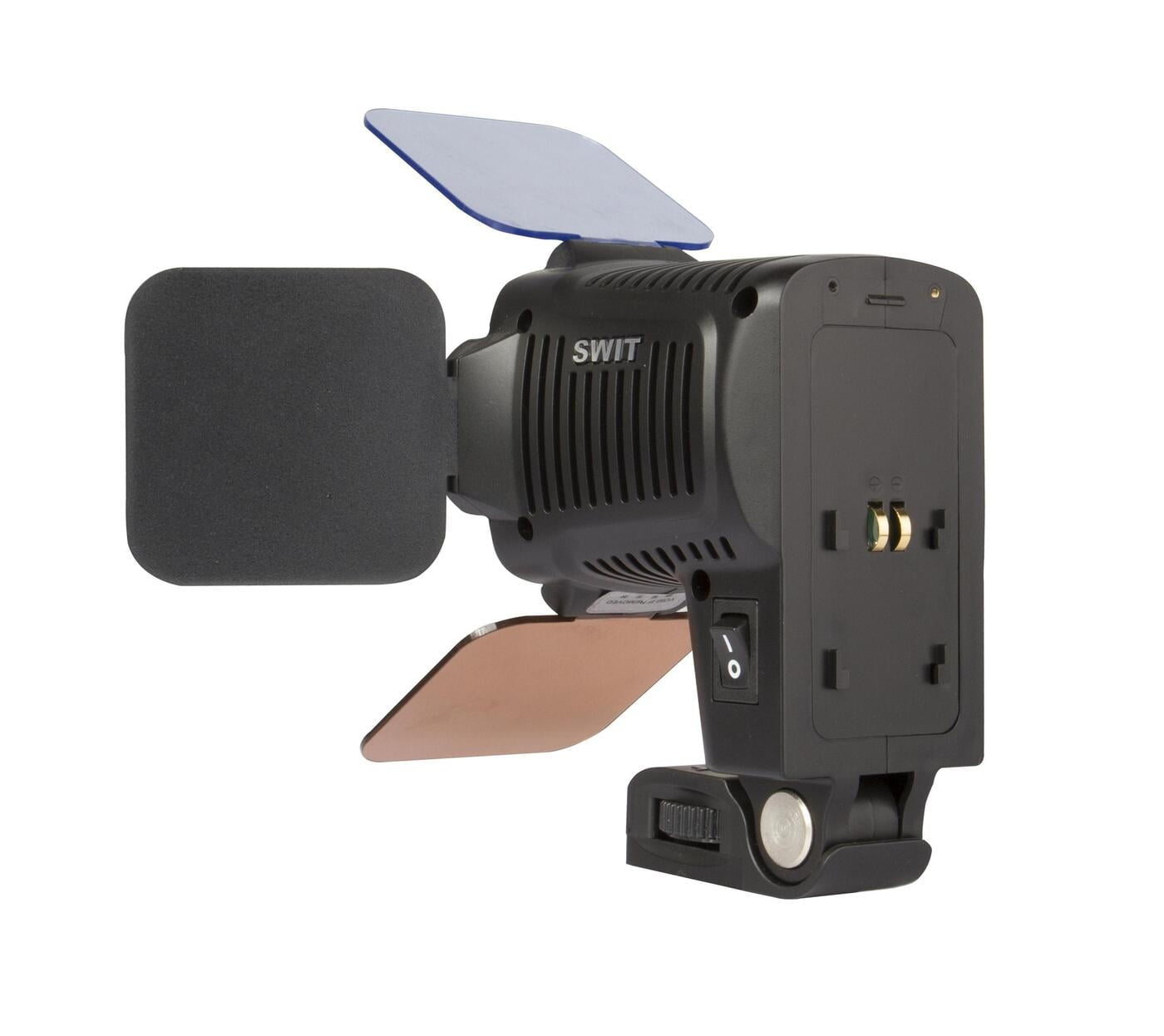

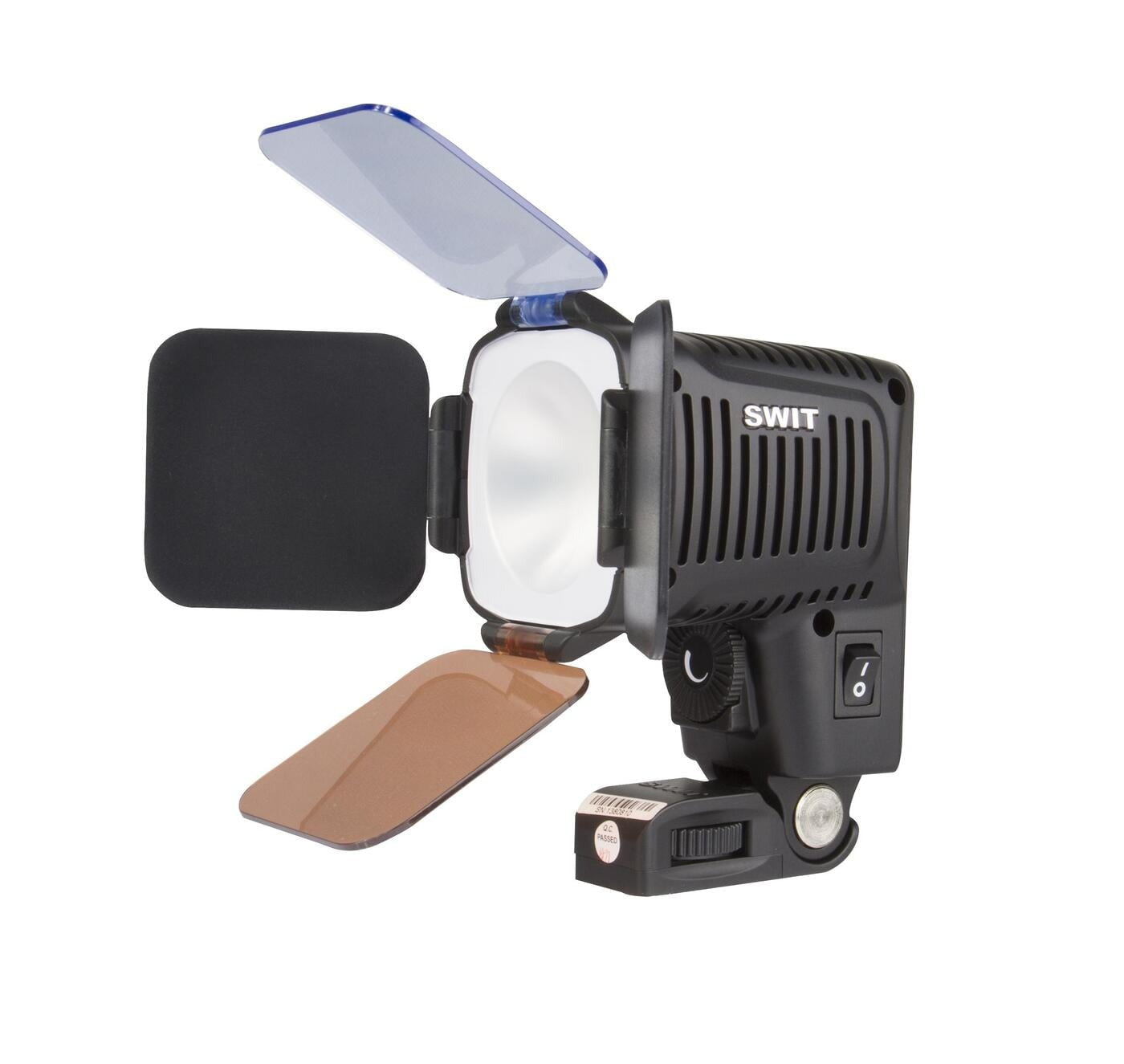

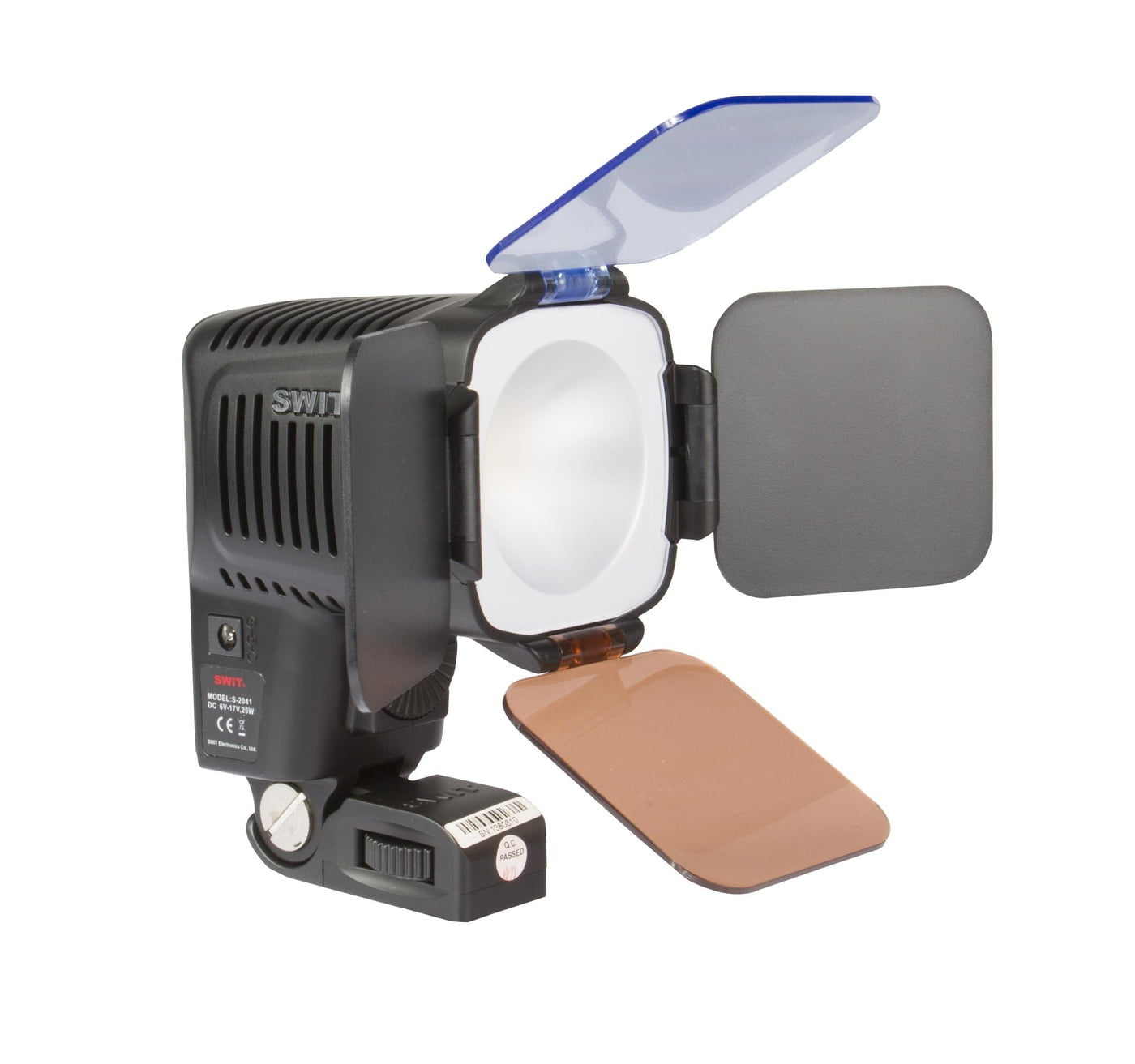

COB LED On-camera Light
Official Features
Chip-on-board LED
Brighter and Non-glaring The S-2041 on-camera LED light adopts the new generation Chip-on-board LED, which integrates the LEDs into a chip with high brightness output but in smaller size, and the most remarkable, it offers a equally spread, soft, glareless light, similar to the traditional Halogen bulb light.
23W Light Output, 100W Equivalent
1800 Lux @ 1 meter distance and 1 meter scale S-2041 feeds 23W light output, and equivalent to an 100W halogen bulb. The illuminance is 1800 Lux at 1 meter distance and 1 meter scale.
Wider Beam Angle
Equally spread lights, no visible beam edge The traditional LED lights use lens to converge and get a higher brightness, but dropped down quickly around, which will generate a visible lighting border in the image. In comparison, the COB LED generates a wider beam angle, equally spread from the center to edge, and suitable for HD shooting.
Glareless light, Single Shadow
The traditional LED array always generates several highlight pots on retina and people will feel glaring, even can’t recover sight until a few seconds. In comparison, the SWIT Chip-on-board LED has only one bulb in appearance, and output a glareless, single shadow light, suitable for close interview shooting.
3200K/5000K/5600K Color Temperature
The S-2041 LED has 5000K color temperature and also equipped with a 5600K (Daylight) and a 3200K (Tungsten) color temperature filter. You can switch the color temperature easily.
6-17V Wide Voltage Power Supply
The S-2041 accepts 6-17V wide voltage input, so you can get power from 14.4V V-mount/Gold Mount batteries or 7.2V DV batteries. The light package goes with a D-tap to pole-tap cable (S-7104), to plug into the DC-IN port of S-2041 and get power from D-tap power output sockets, such as batteries, battery plates, or camera handle. You can also directly mount a 7.2V DV battery onto the rear of S-2041, by the particular battery plate.
Interchangeable DV plates
You can power the S-2041 by most popular DV batteries, via the easy interchangeable DV battery plates. We supply the following DV plates for optional:
Official Product Data
-
Model SPU: S-2041
-
Division: Lighting
-
Big Category: Lighting
-
Small Category: On-camera Light
-
Power: 23W
-
Voltage: 6-17V
-
Weight (kg): 0.95
-
Plate Type: No-Plate
-
Accessory Options: S-7004F/U/E/D/C/V/I/B
