Pocket fit tiny V-mount battery, built-in D-tap and USB, 150W high load.
98Wh Pocket V-mount Battery Pack
Official Features
Tiny V-mount battery

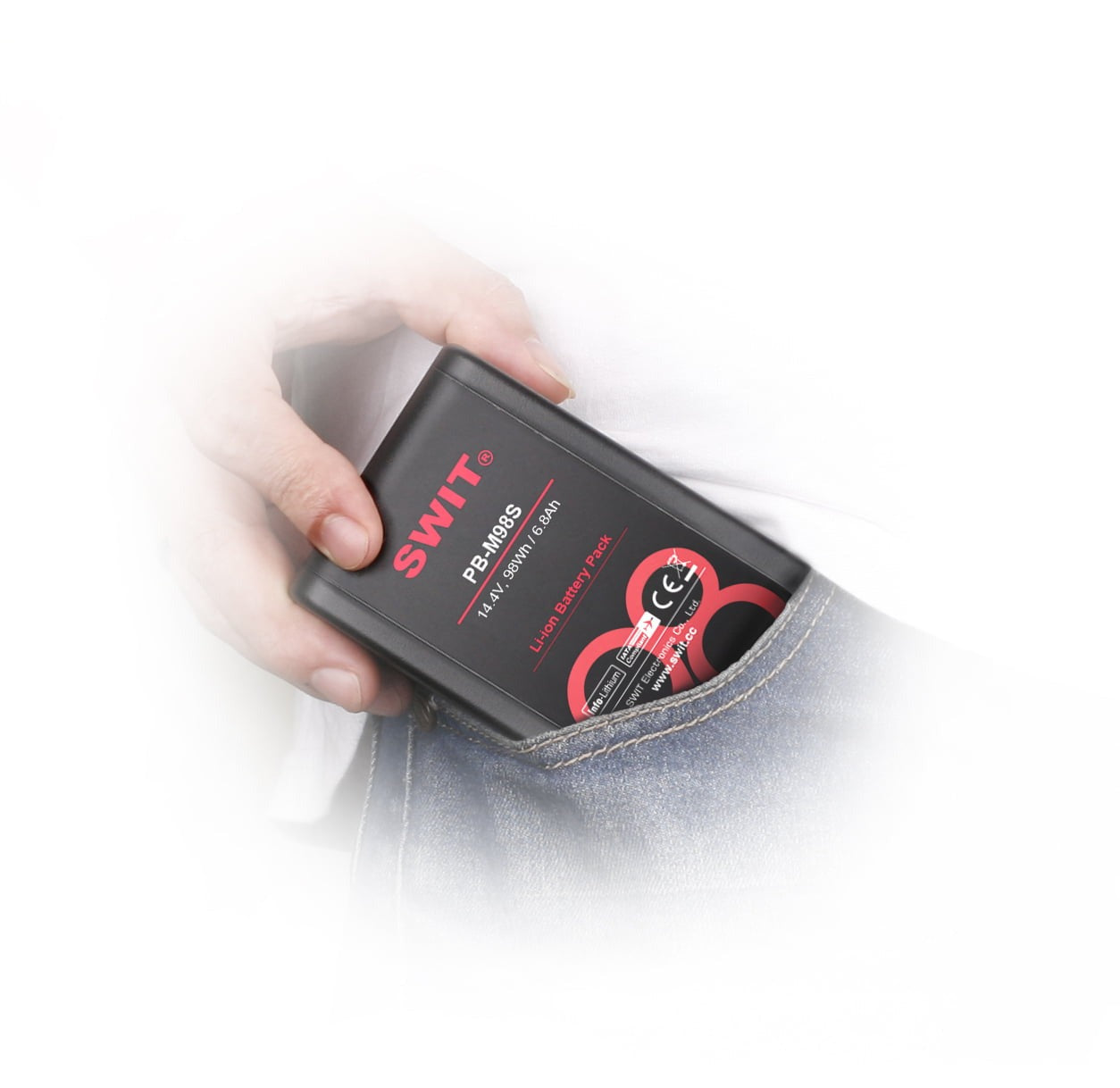

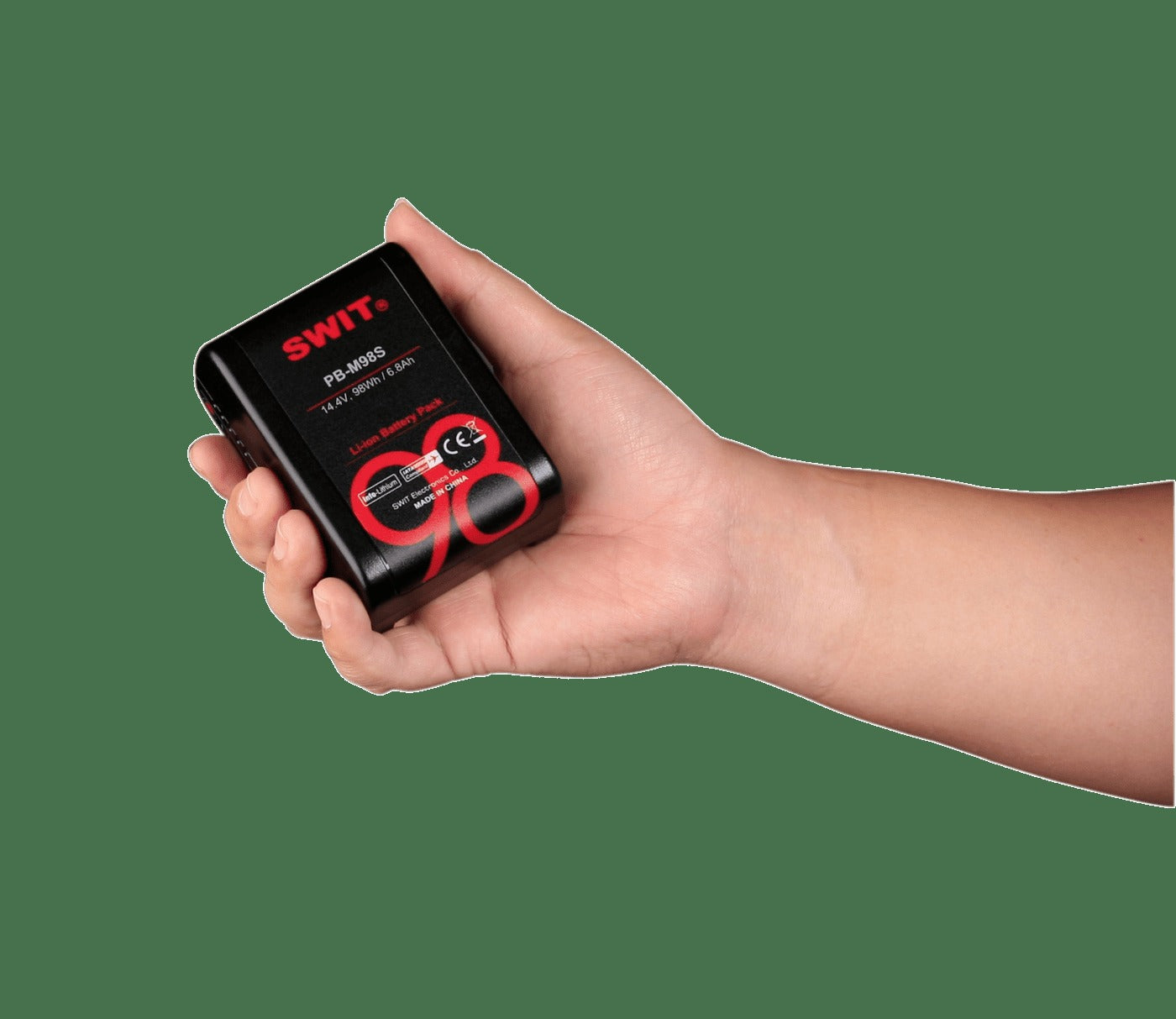

Pocket fit size The brick size V-mount batteries are always too big and heavy for field shootings, especially the handheld stabi- lizers, focus puller monitor, portable LED panel, or small cameras. PB-M98S Pocket V-mount battery is designed for the above applications! It’s only a DV battery size, with high capacity cells and still reaches 98Wh, and without any compromise on the DC sockets!
98Wh Fly Friendly
150W/12A constant high load PB-M98S consists of 8pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.8Ah high capacity. You can take this battery in carry-on luggage to board airplane. The constant load is as high as 150W, 12A, applicable for high power devices.

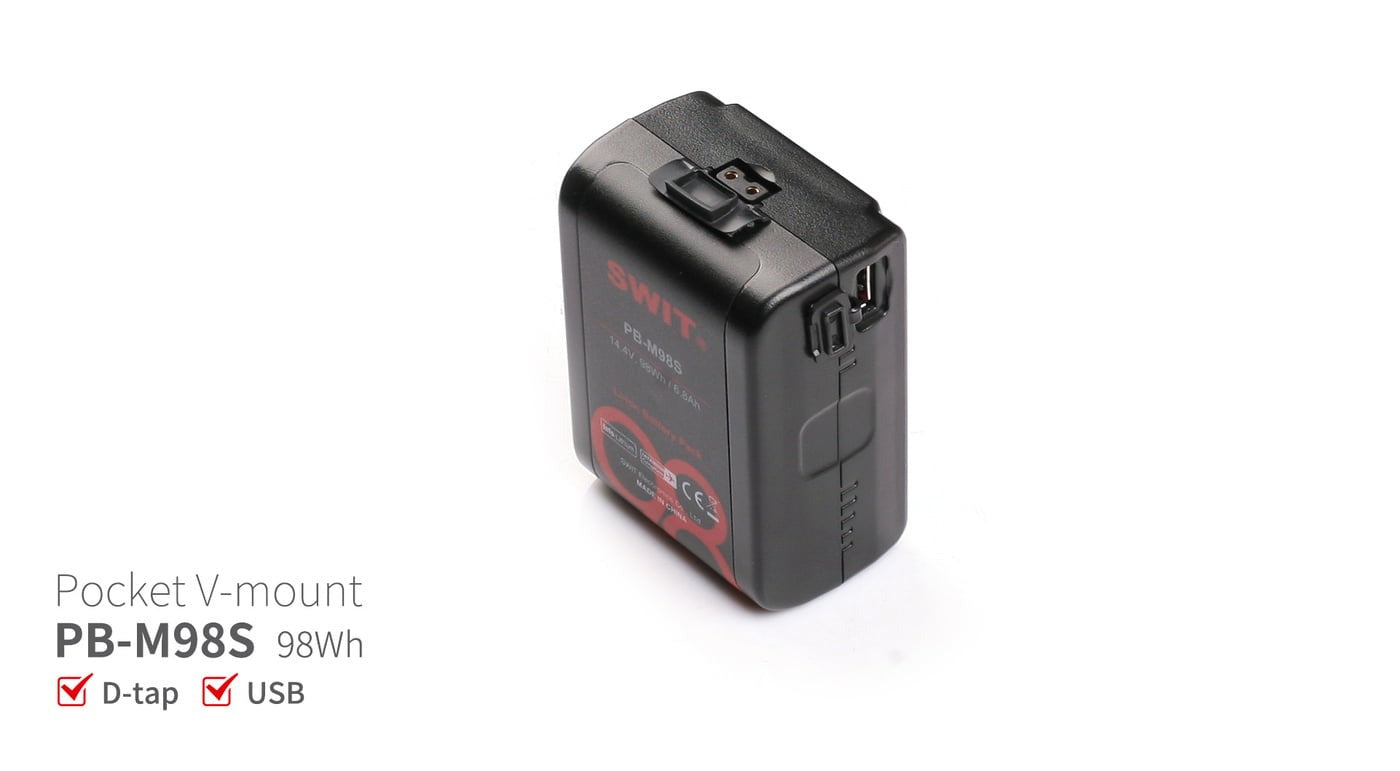

Built-in D-tap and USB
The pocket size PB-M98S still has D-tap and USB sockets built-in. The D-tap socket has 100W/8A load, and support charging input by SWIT PC-U130B2 dual D-tap charger. The USB socket outputs 5V/2A for smart phone fast charging.
5-LED Power Indicator
Low battery warning PB-M98S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery.
3A Fast Charging
PB-M98S can be charged by all standard V-mount chargers and D-tap chargers. Max charging current is 3A. The following chargers are recommended: 1. S-3822S, Portable 2-ch Simultaneous Charger Charge 2x PB-M98S: Approx. 3 hours 2. PC-U130B2, Ultra-Portable Dual D-tap head charger Charge 1x PB-M98S: Approx. 3 hours Charge 2x PB-M98S: Approx. 5 hours and 15 minutes
Hot-Swap Adaptor
You can use 2x PB-M98S hot-swapable on cameras, by the Hot-swap Adaptor KA-M20S, to get a long time, uninterrupted power, and equivalent to a standard size V-mount battery.
Wire-Free Internal Tech
PB-M98S has innovative “Wire-Free” internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.
Transparent Special Version
Provide the special transparent PB-M98S to show the internal technic of this battery, includes: 1. Wire-free technical 2. Class A high grade cells 3. Wider Nickel plate to solder the cells * The transparent housing has the same intensity than regular housing.
Official Product Data
-
Model SPU: PB-M98
-
Division: Power
-
Big Category: Battery
-
Small Category: Power Battery
-
Power: 98Wh
-
Voltage: 14.4V
-
Weight (kg): 0.55
-
Spec 2: Pocket Mini Size
-
Plate Type: V-Mount
-
Lifecycle: Hot Selling
-
Accessory Options: KA-M20S, TA-T10S
